Owner's Comments

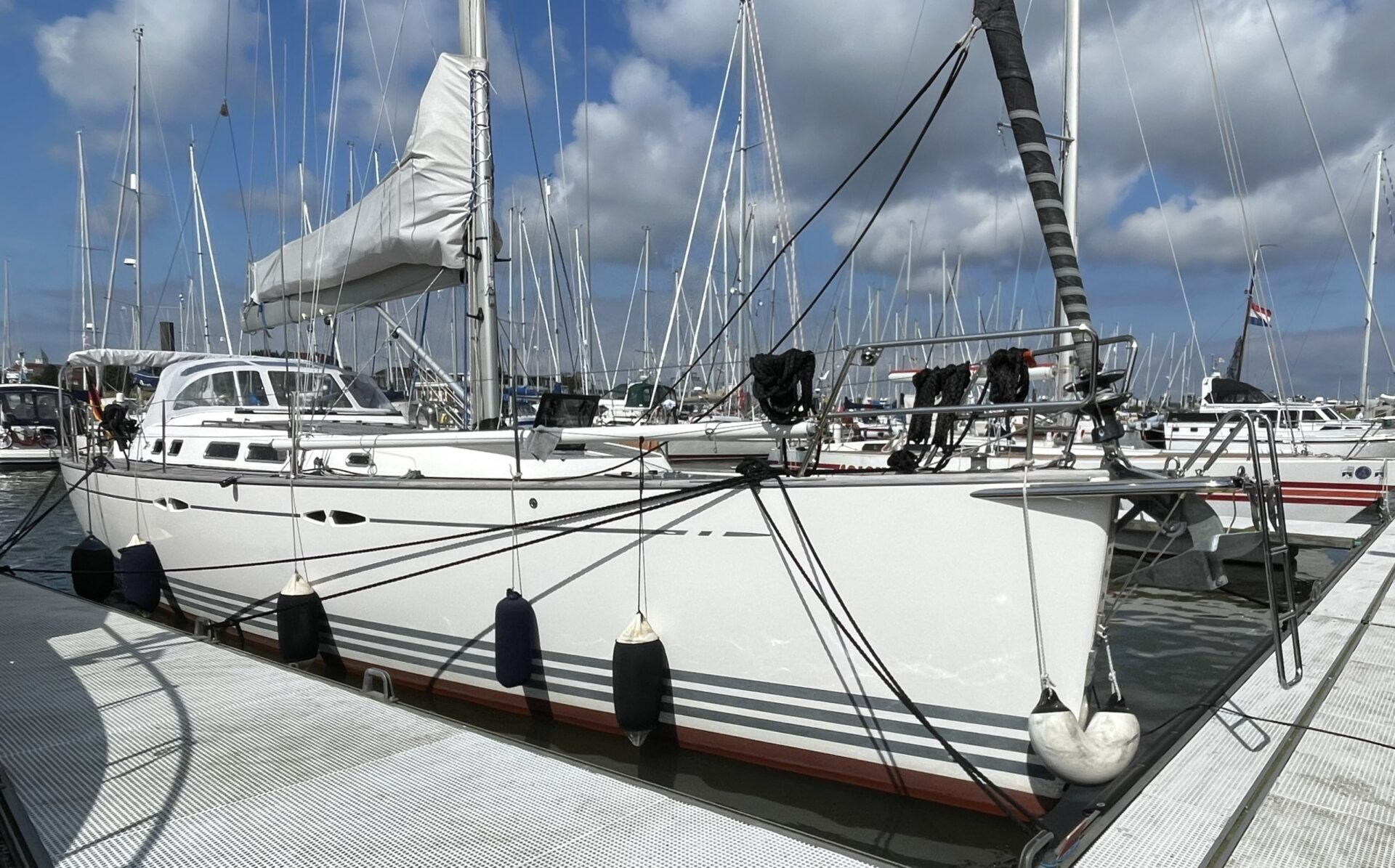

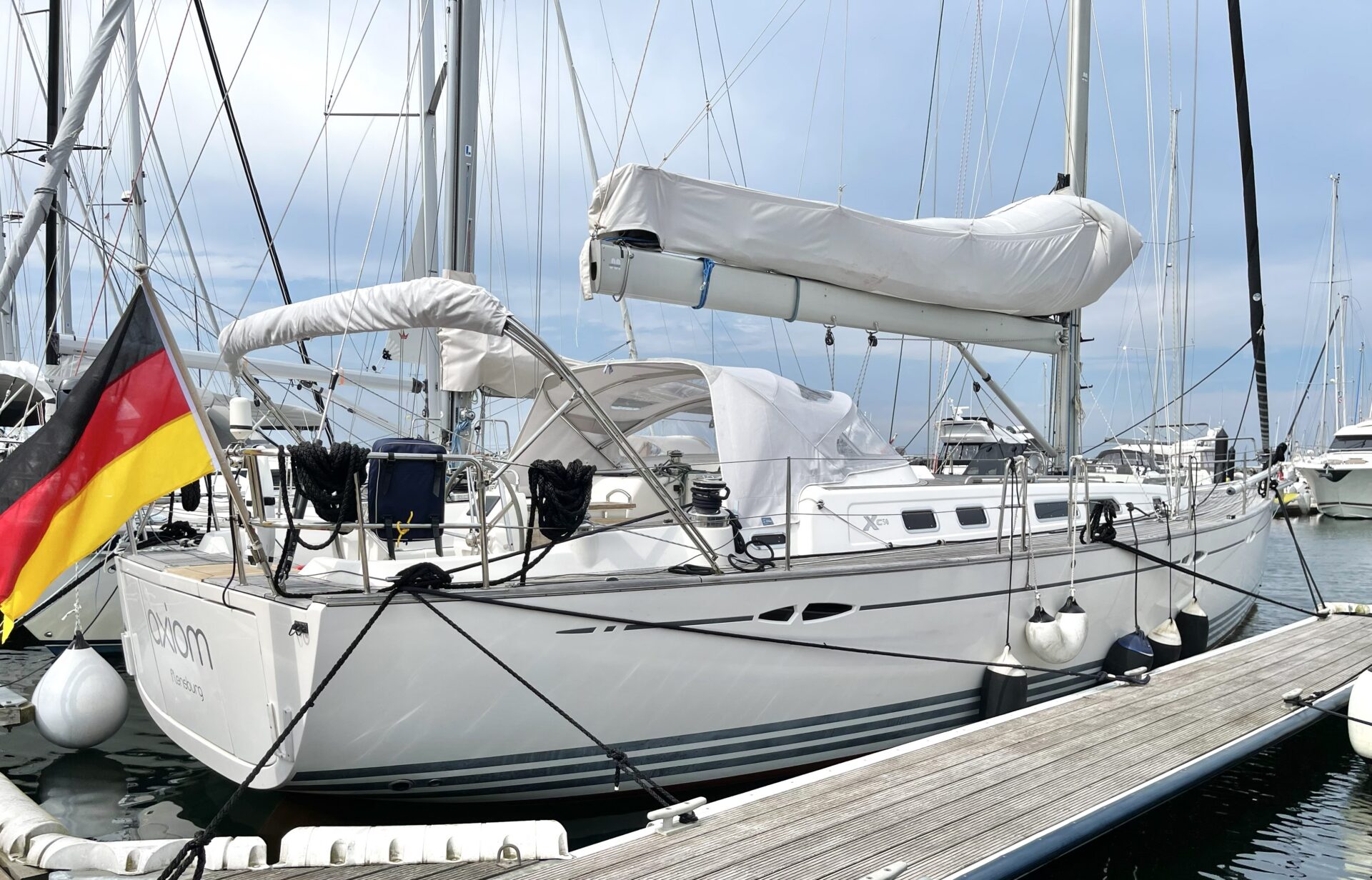

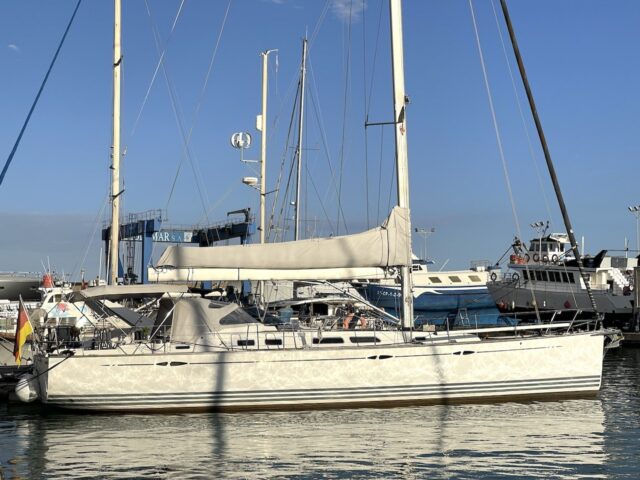

Built in 2010, this Xc-50 is in perfect condition. Major upgrade between 2022 and 2024, including new rod riggging, electronics RAYMARINE , upholstery, and more. It has a forward cabin version with bed on portside and access to the sail locker from the inside, ideal for long sailling trips.

Details

Exterior Details

Hull

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull ttings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3 waterlines in NGA Gelcoat Grey light.
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht
• • Bathing platform incorporated in transom port with electrical hoisting and lowering system
• • Bathing ladder in stainless steel mounted onto bathing platform
• • X-Yachts style hull recessed portlights (6 pc
• • Rudder bearing replaced 2024

Deck

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - Electric windlass with SPADE anchor + chain 10 mm 80 M 2024
• • Gas springs tted to sail cabin, port & stb cockpit lockers and port aft cockpit
• locker hatch (4 pcs)
• • Halyard locker recessed into cockpit
• • Cockpit table with space for navigationnel instruments and compass
• • Bimini
• • Sprayhood 2024
• • 2 stainless steel steering wheels + covers, steering cable replaced 2024

Sail Handling

• • 2 x Electrical Stainless Steel Andersen 68.2 primary winches
• • 2 x Stainless Steel Andersen 52.2 for Geman Mainsheet system
• • 2 x Stainless Steel Andersen 46.2 for halyards, including one electrical
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit

Sails

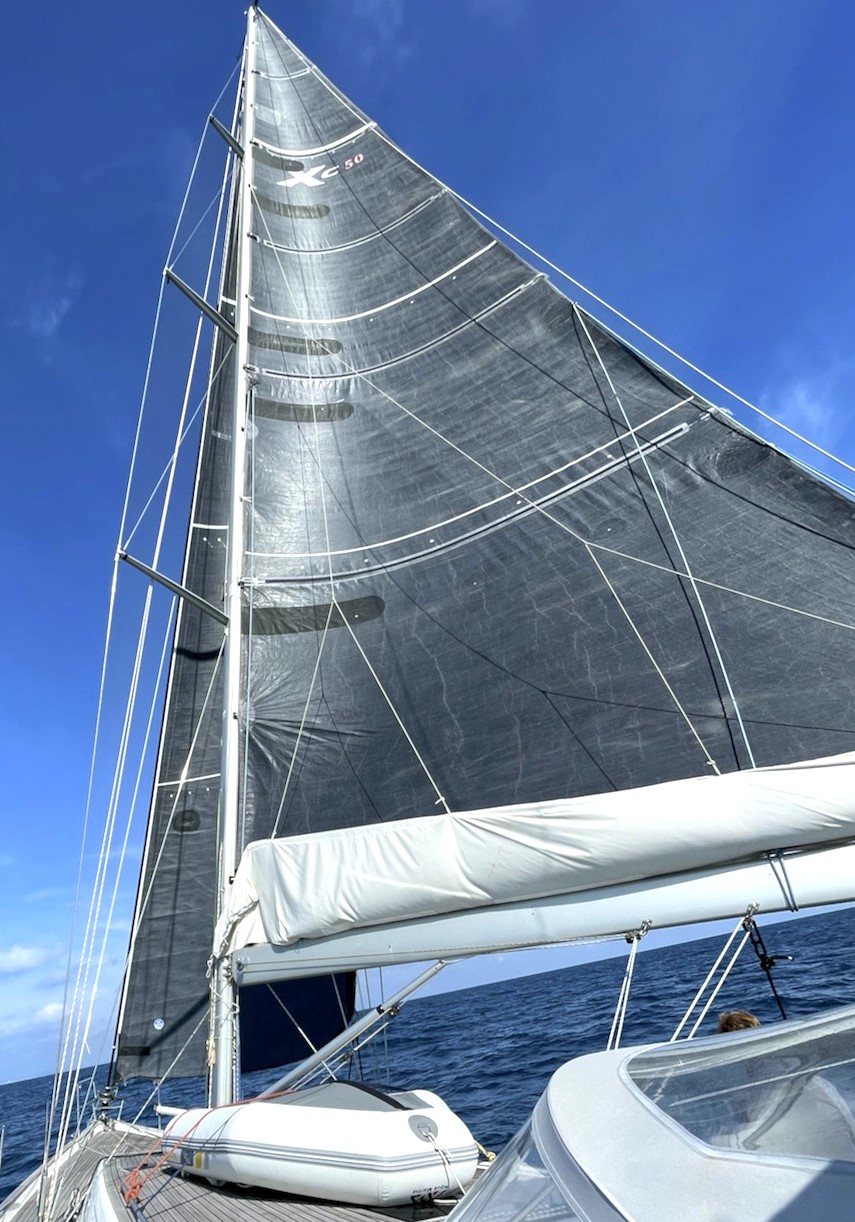

• Main NORTH 3DI Endurance extra heavy cloth 5 x full batten 2 reefs 2019
• Lazy bag + lazy jack
• Furling Genoa 110 % NORTH 3DI Endurance extra heavy cloth 4 x vertical batten 2019
• Assymetrical spinnaker
• + spares Dacron main and genoa 2010

Mast & Rigging

• JOHN MAST Fractional triple spreader, tapered silver anodized aluminium mast stepped on steel frame, specially designed for Xc 50
• • Silver anodized boom with single line reeng and internal boom outhaul with control on boom, telescopic vang and outer purchase block system
• • Split backstay tted with single Navtec 10 integral backstay adjuster on starboardside and turnbuckle on port
• •Tip cups in stainless steel tted to stainless steel tie rods (2 pcs)
• • Discontinuous rod rigging throughout with rod turnbuckles BSI replaced 2024
• • Chain plates in stainless steel for forestay and split backstay (3 pcs)
• • PROFURL headsail furler

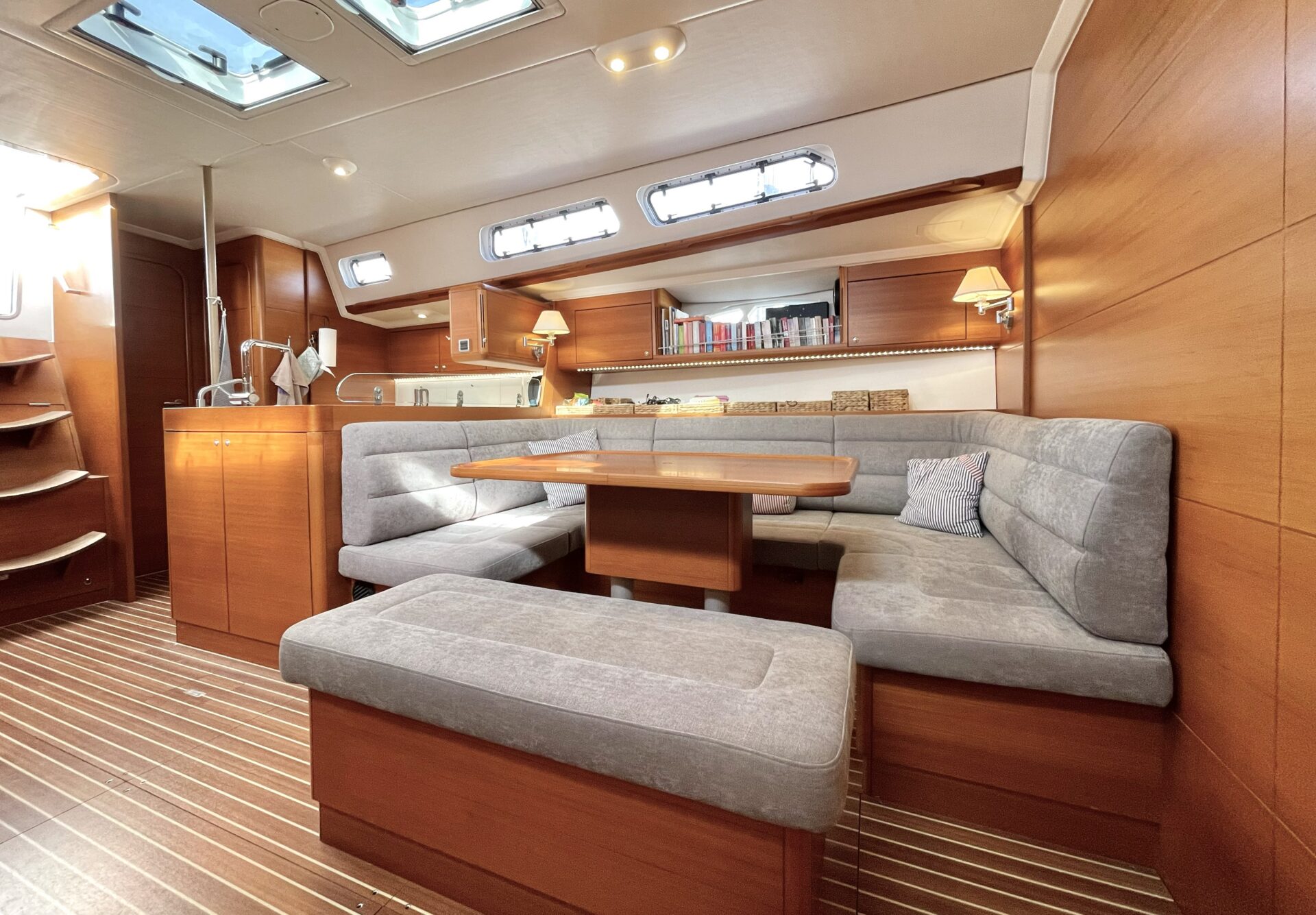

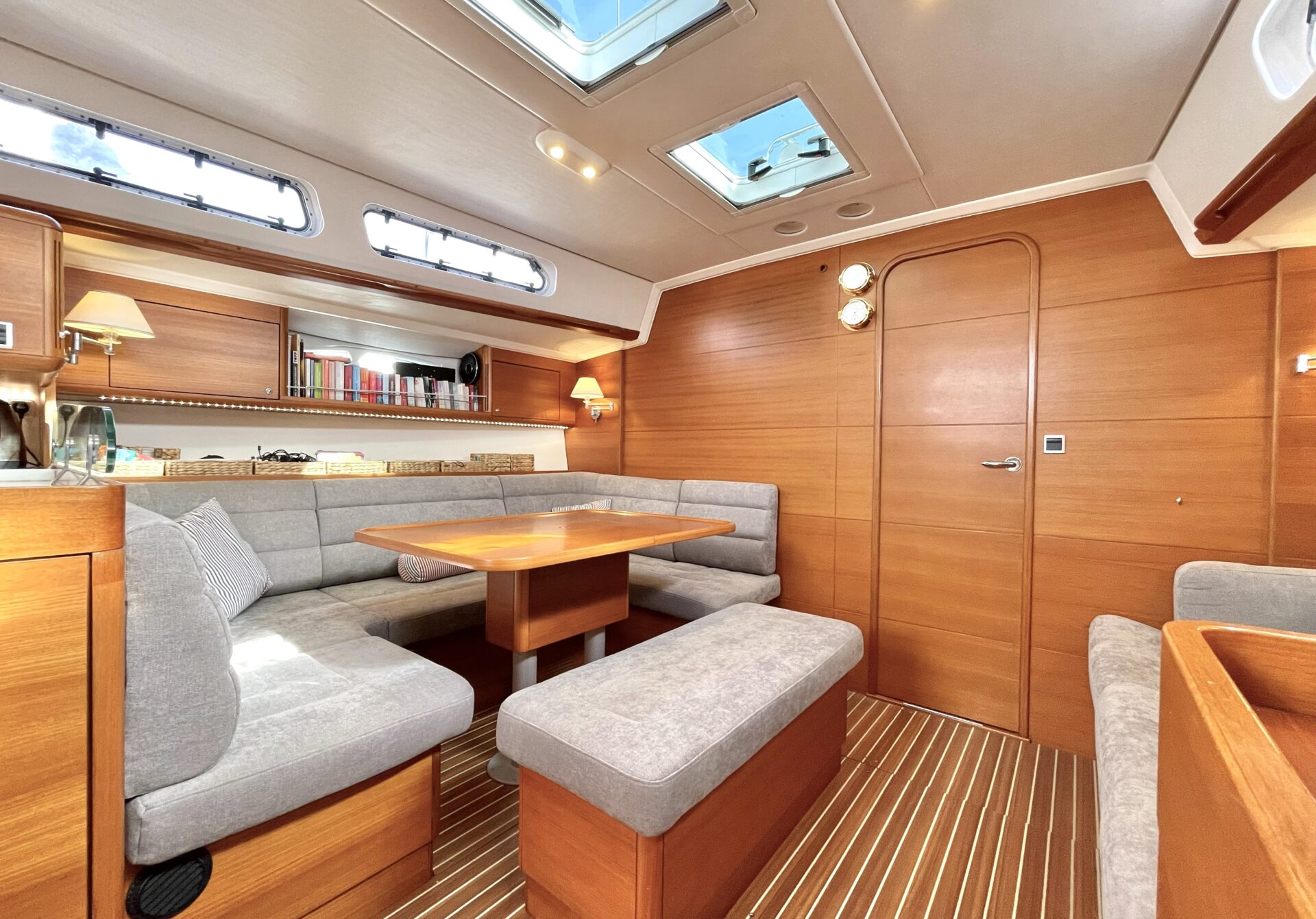

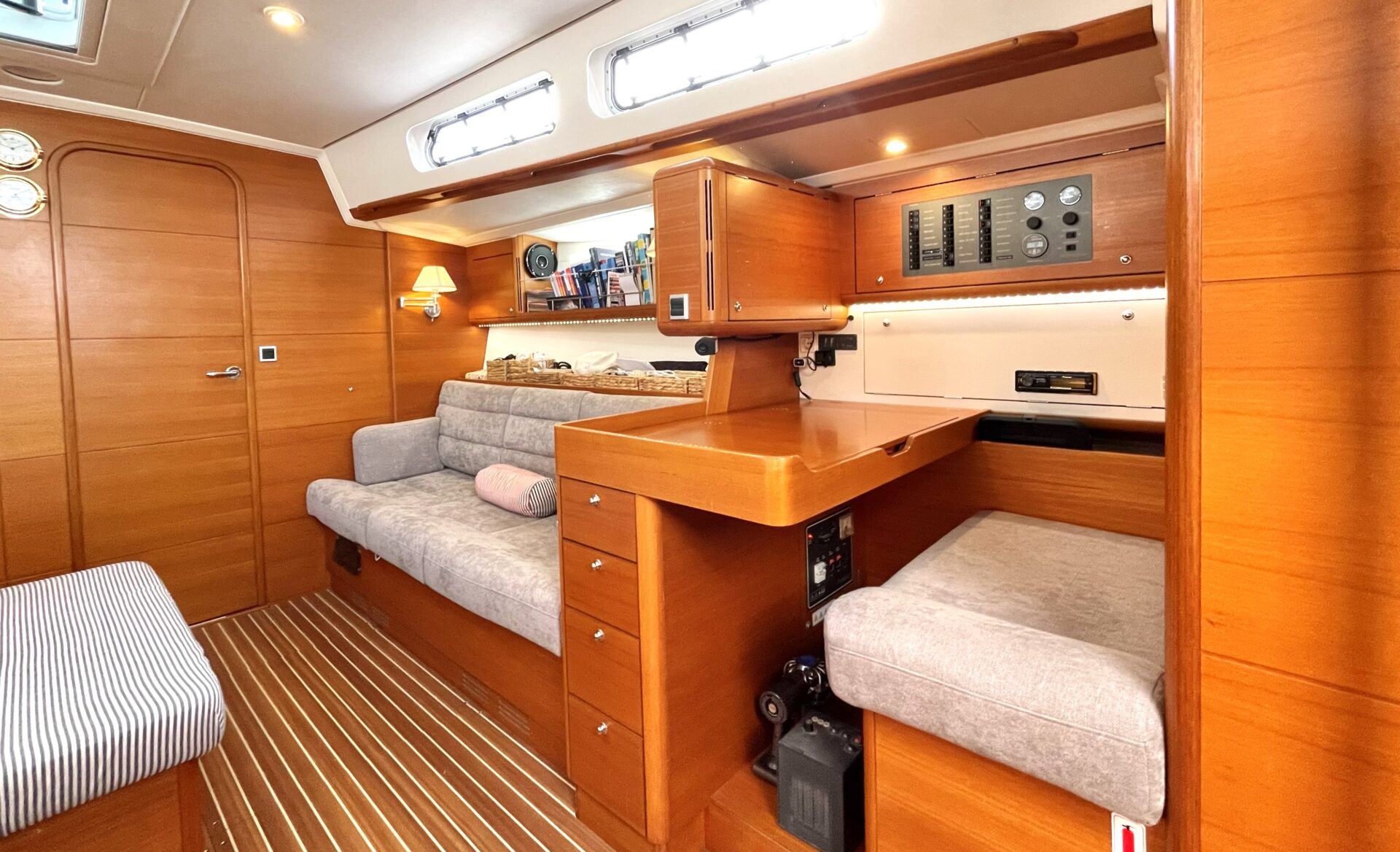

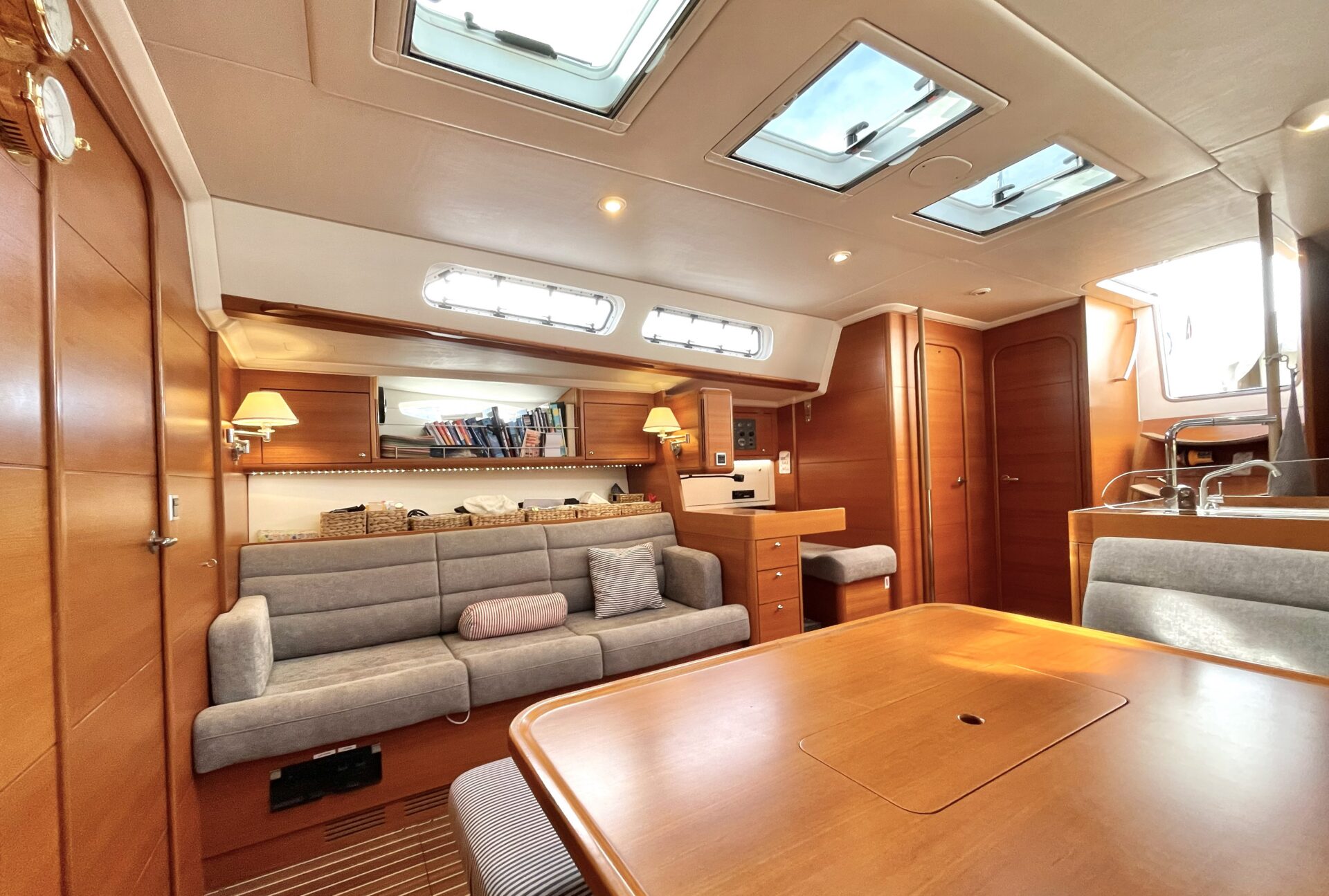

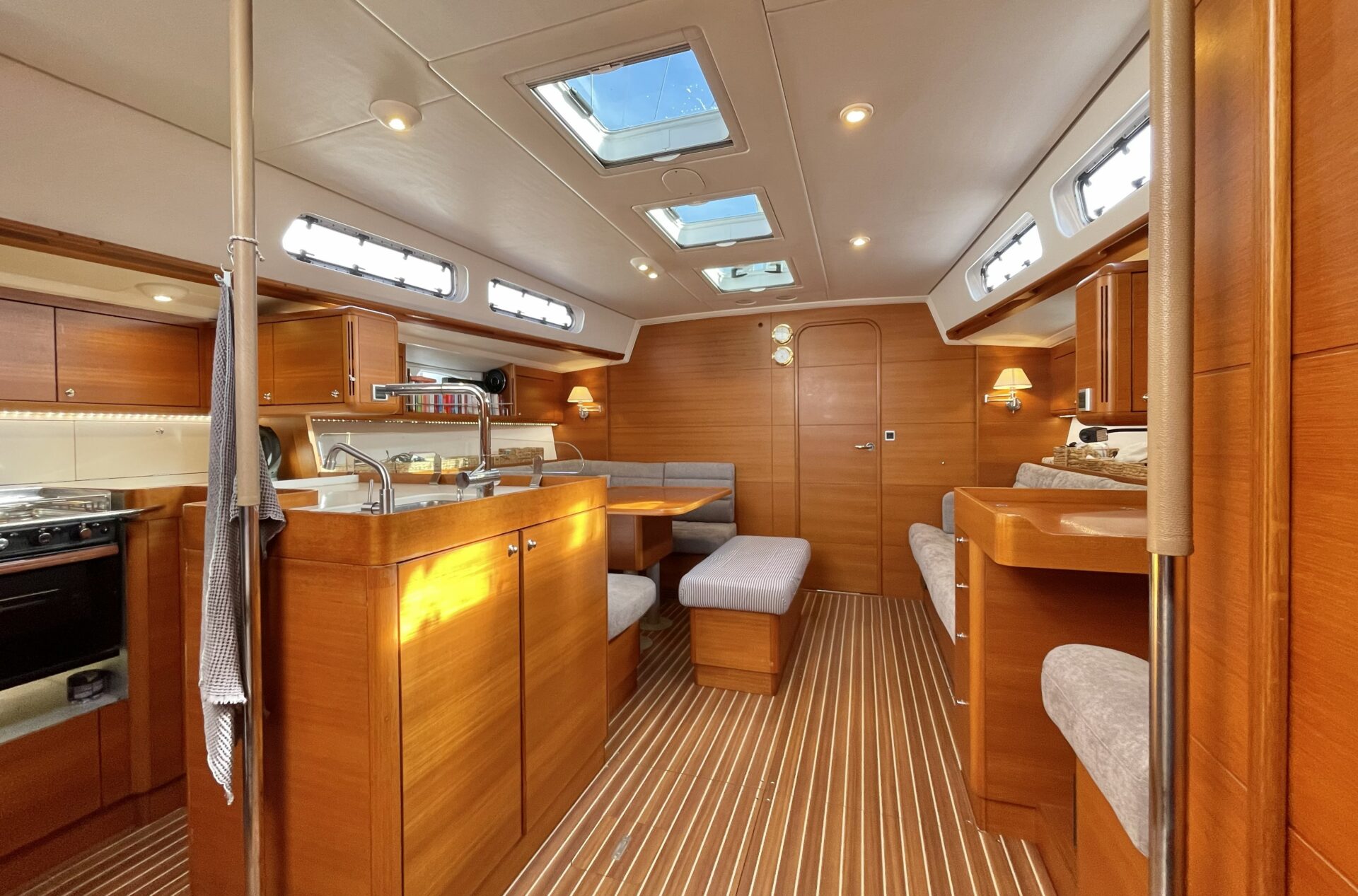

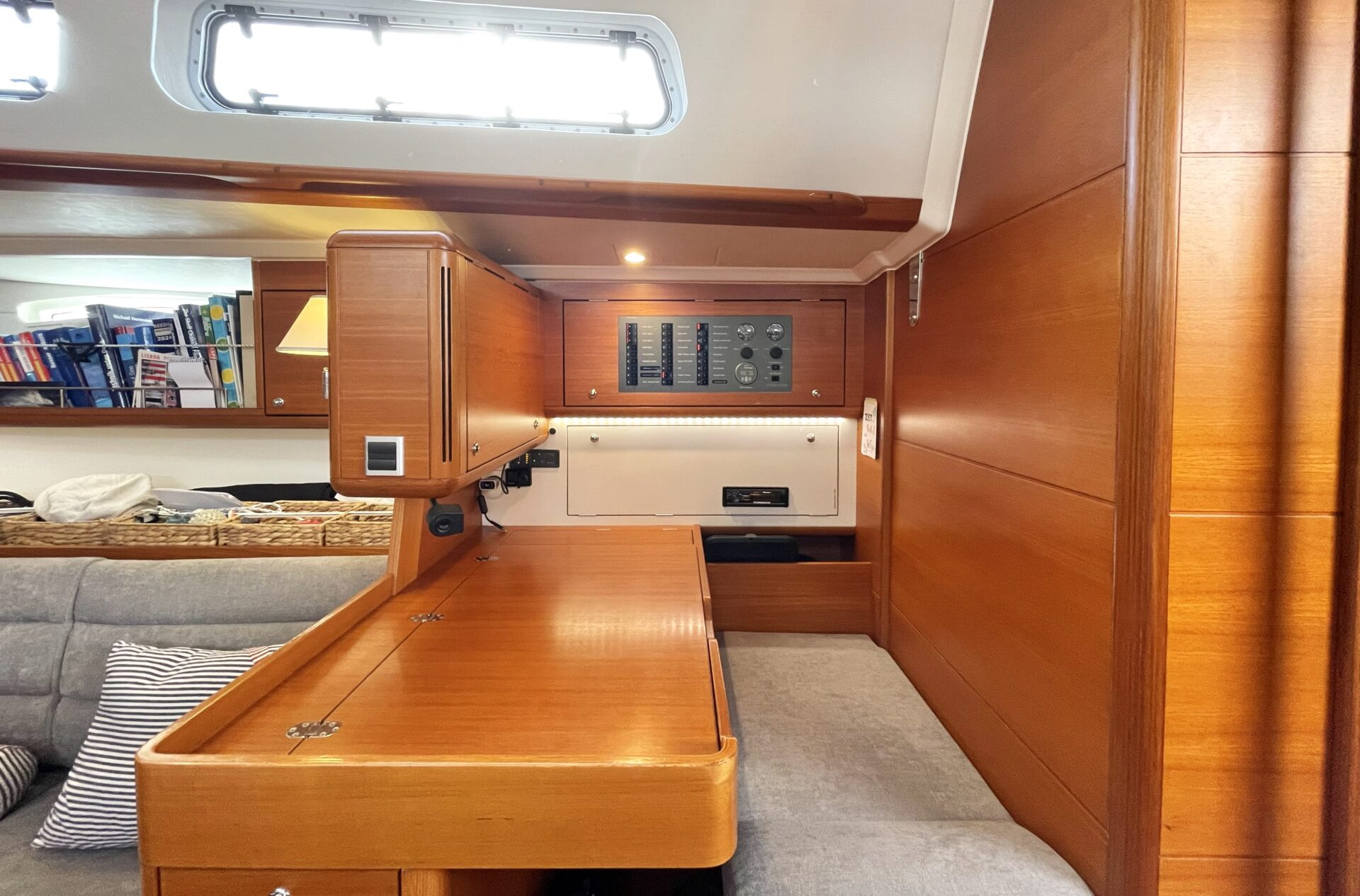

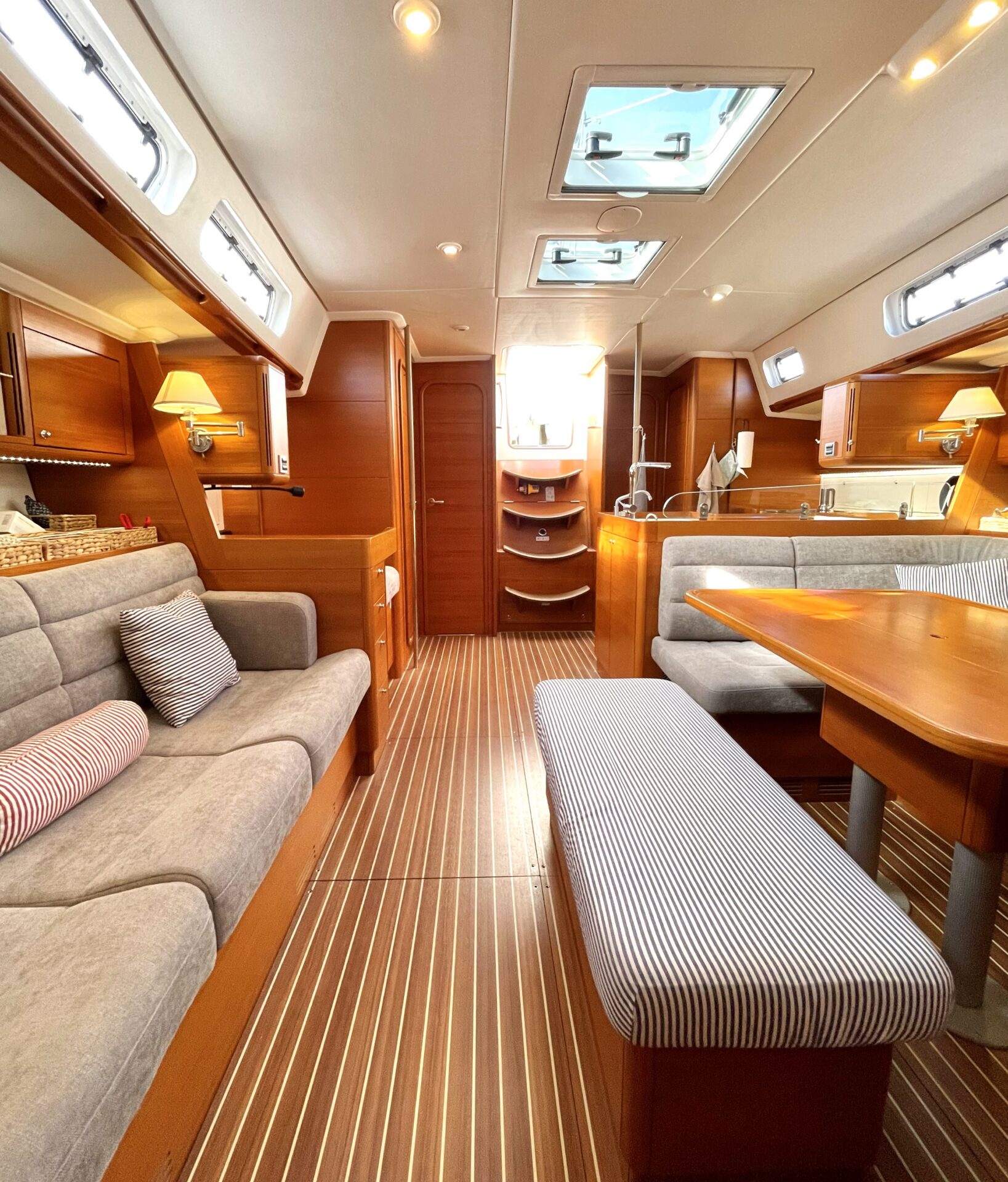

Accommodation

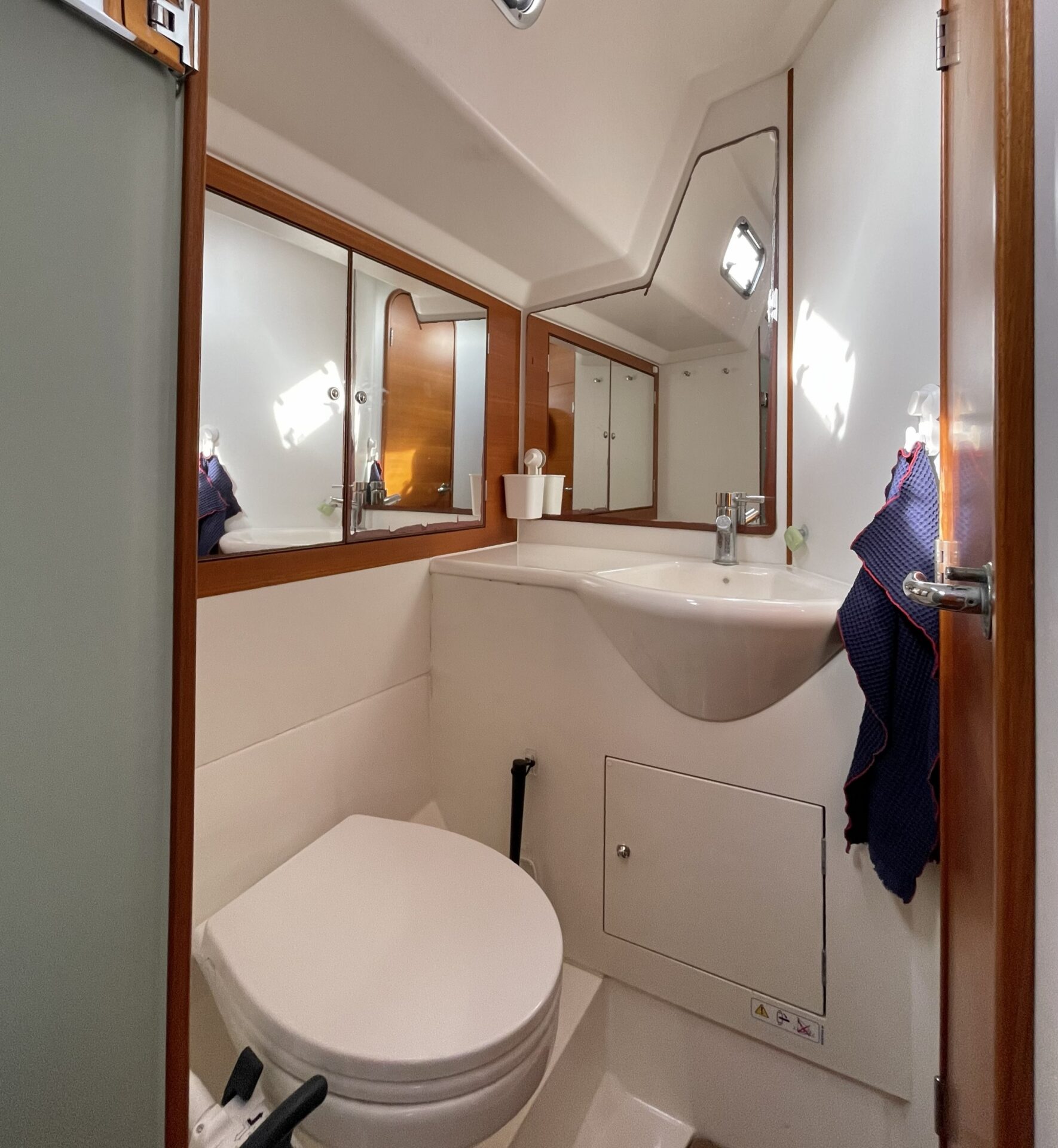

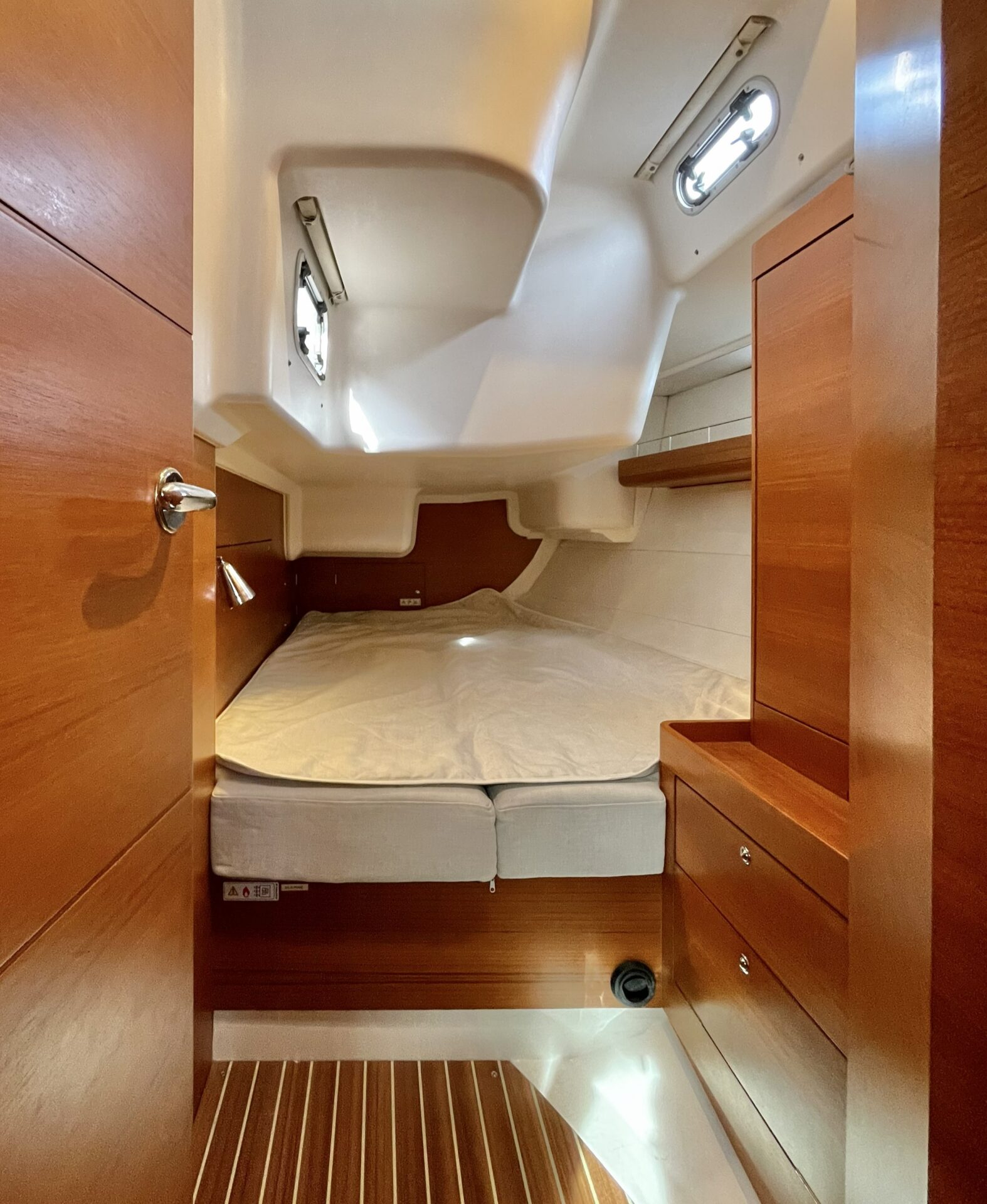

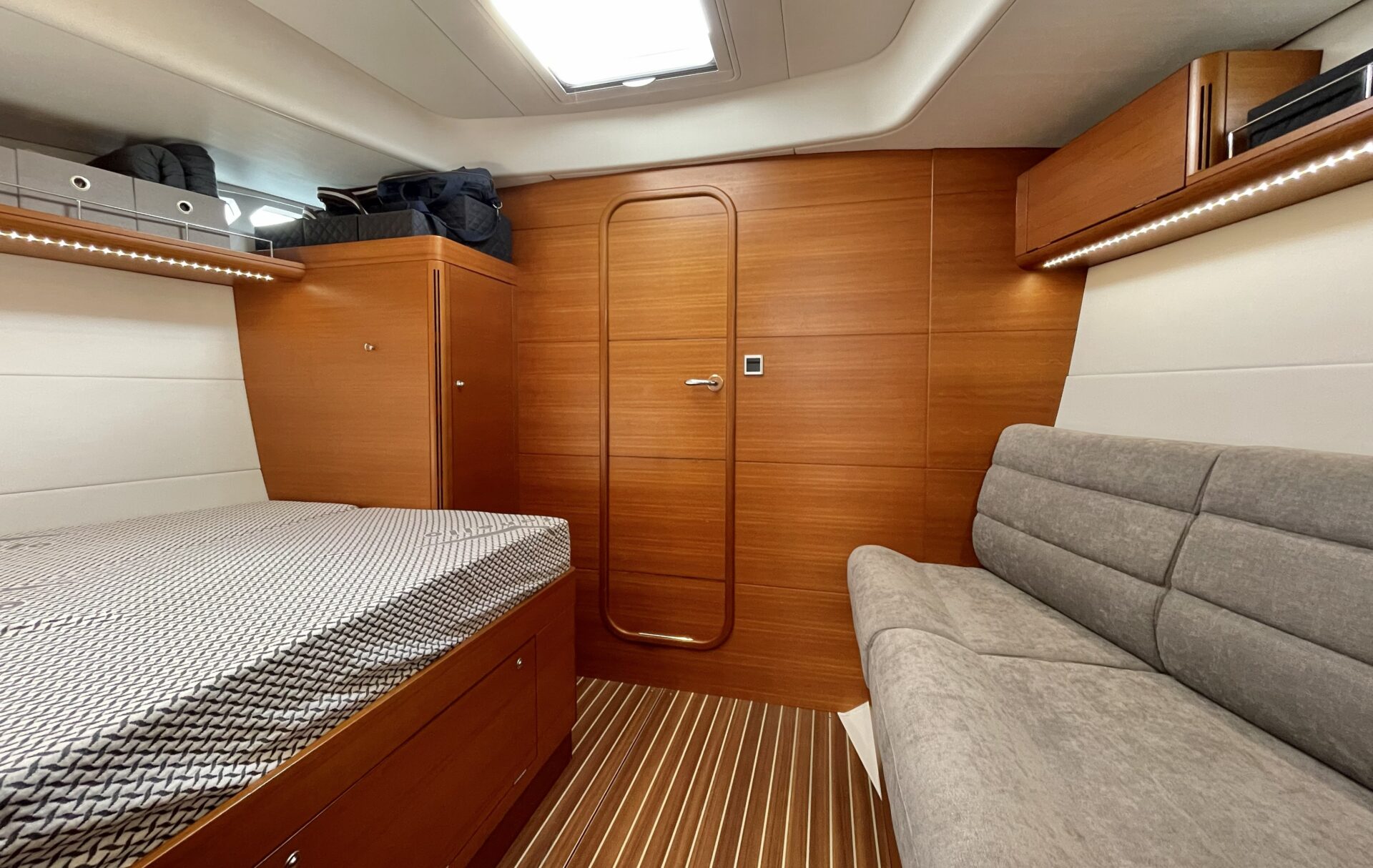

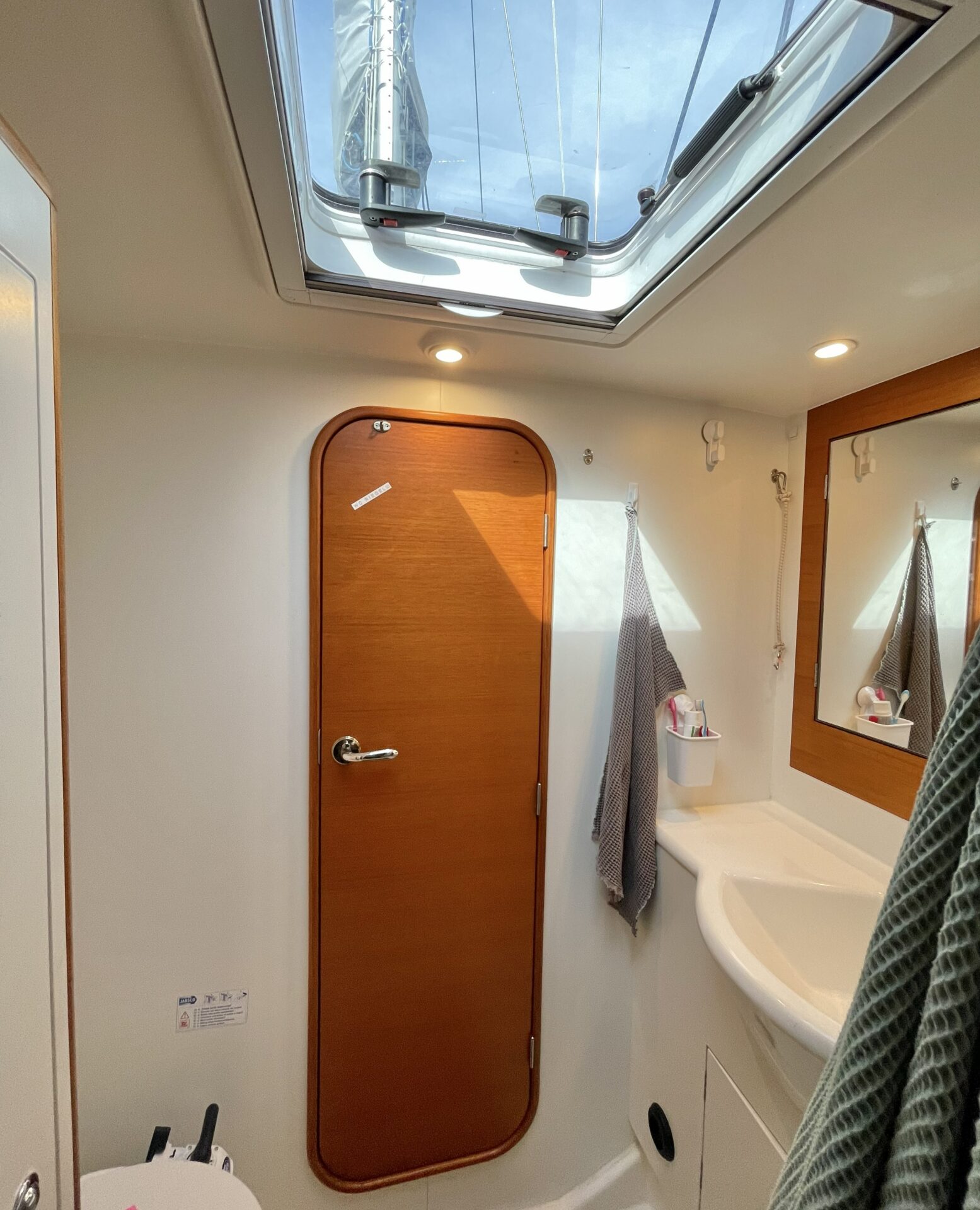

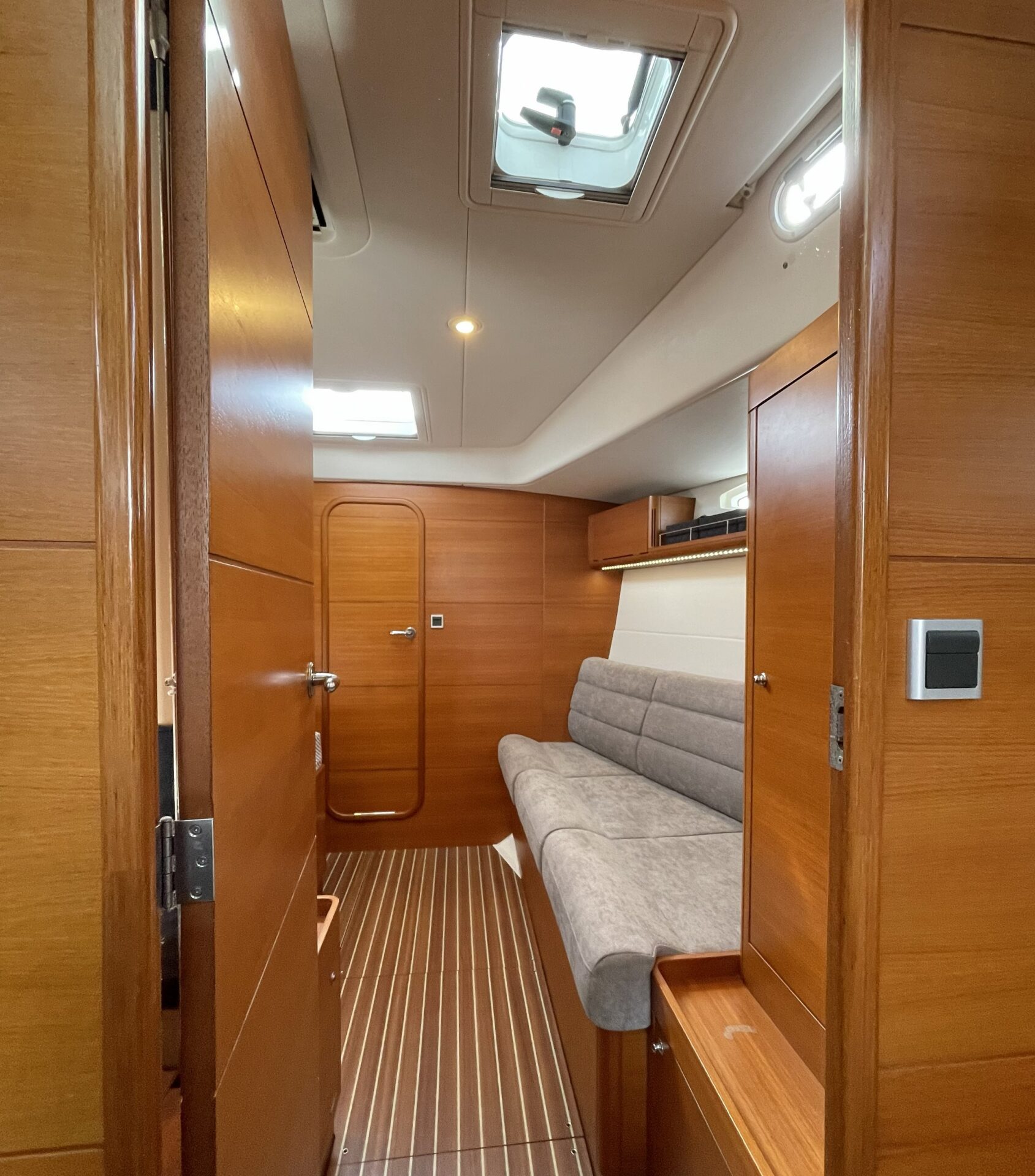

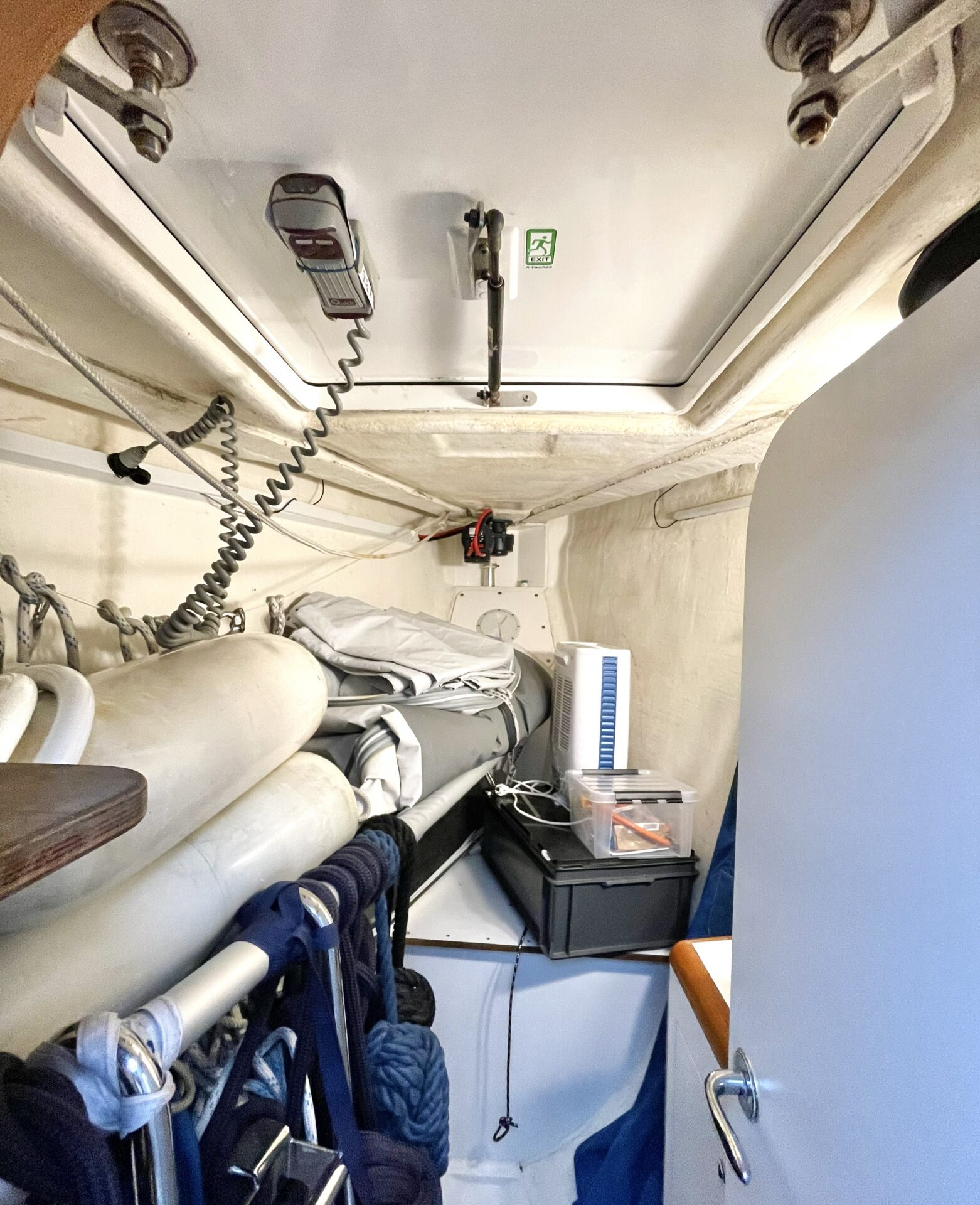

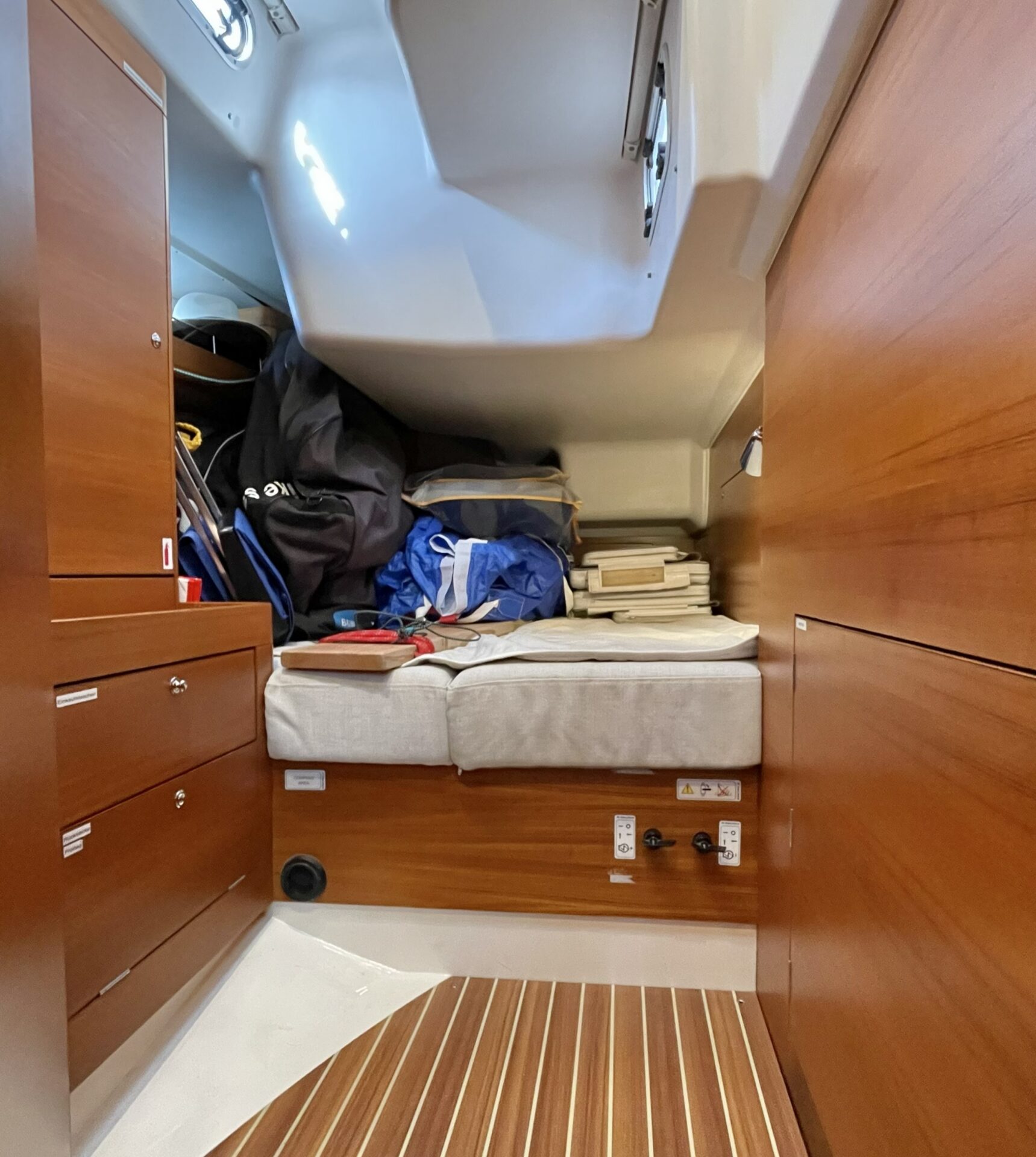

• 3 cabines layout 2 with owners bed on left side, owners bathroom in the front , large saillocker with entrance inside..
• New matress, new mirror, new uphostery for saloon and owner 's cabin
• Teack wood inside

Systems

Engine

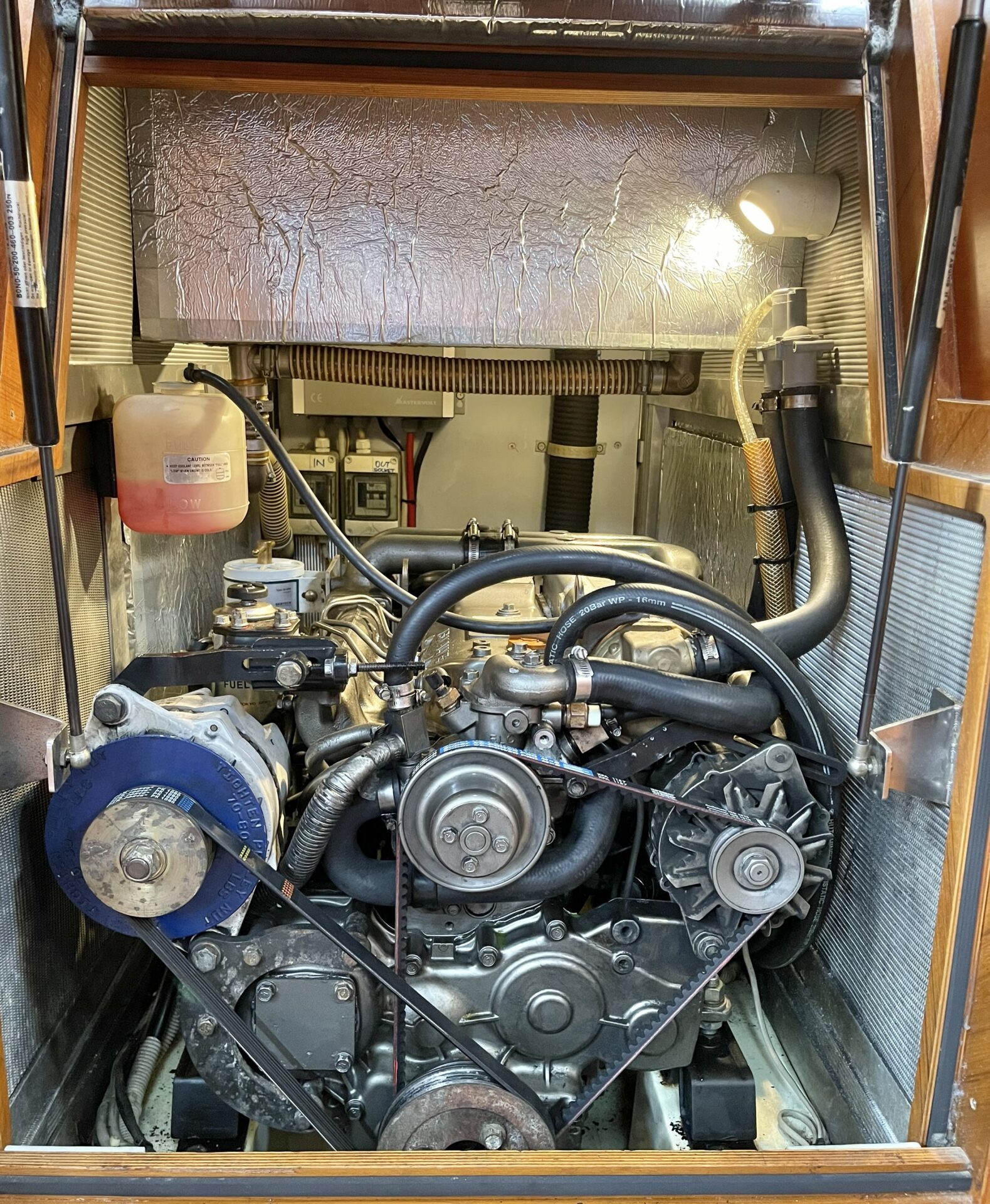

• Main engine - YANMAR 4JH4 HTE 110 HP. annual maintenance

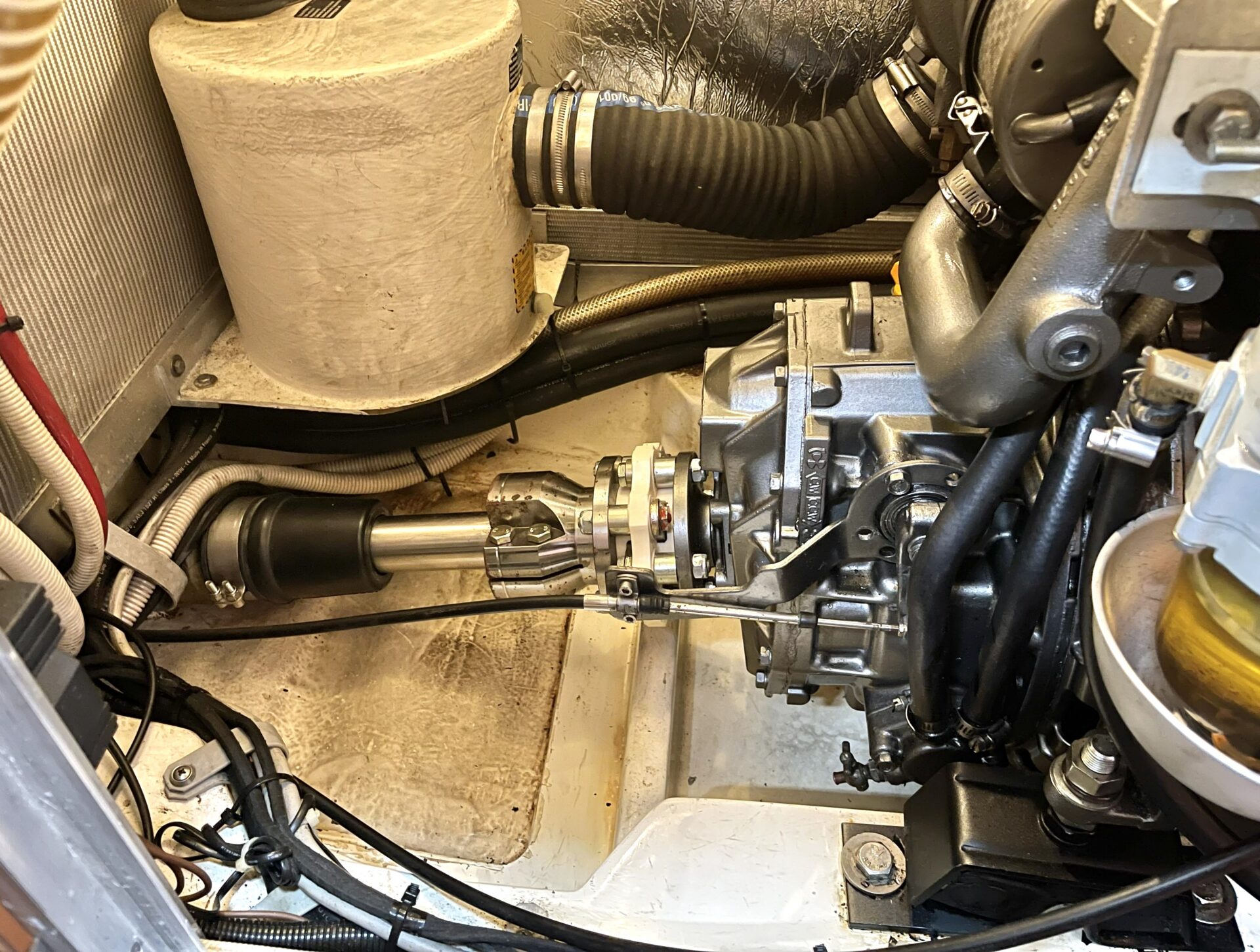

• •2024 large service with new engine mounts, new shaft drive,new cupping, heat exchanger cleaning
• • 3 blades folding propeller FLEXOFOLD with rope cutter 2024
• • Fuel tank around 600 L
• • Retractable bowthruster MAXPOWER new 2022

Plumbing

• Seacocks and through hull are bronze ball and flush mounted 4 replaced
• • Fresh water stainless steel tank total 508 litres
• • Hot water tank Isotherm 40 l.2024 Tank can be heated either by main engine or immersion heater connected to shore power

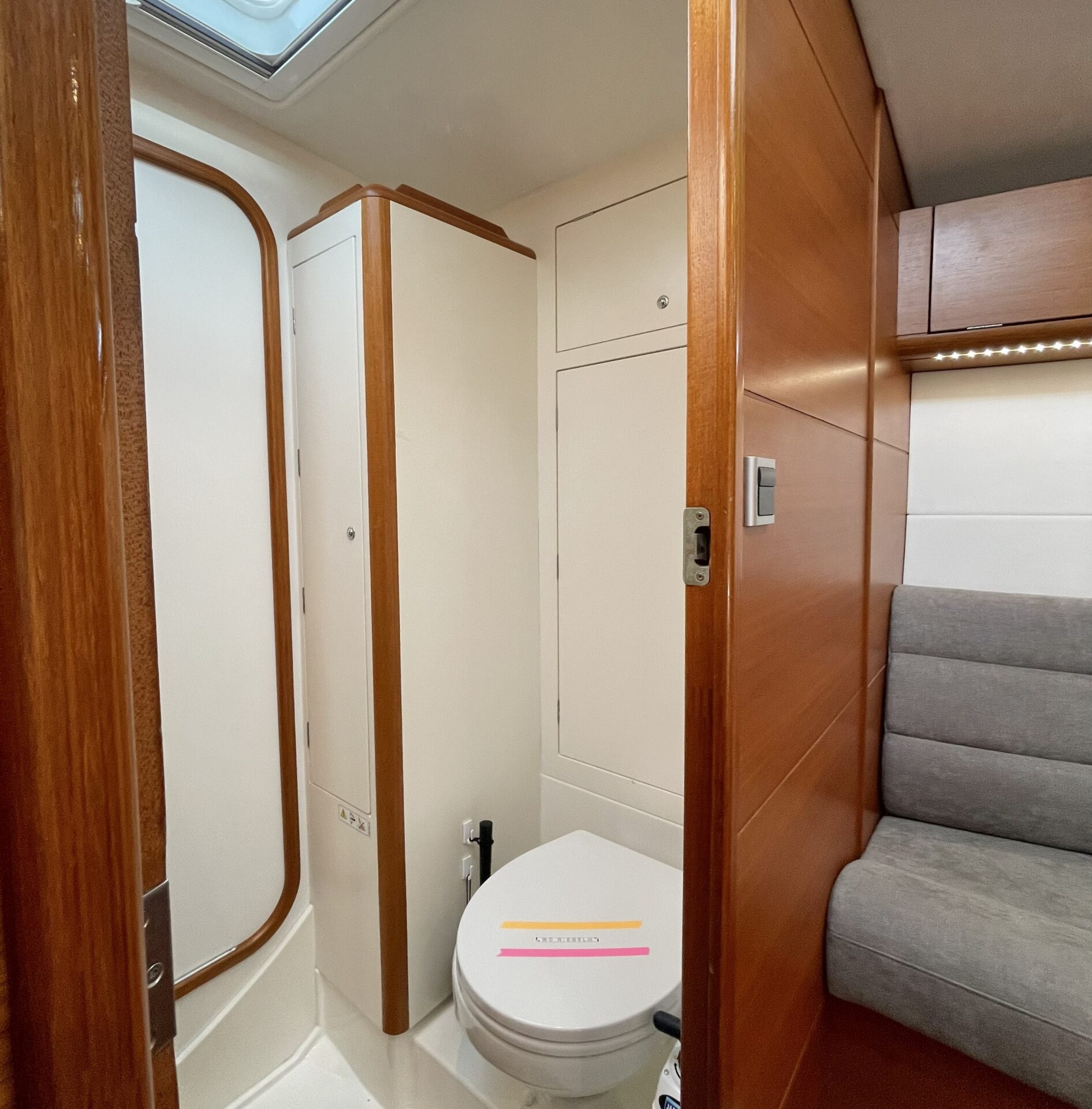

• • Holding tank, 60 l, and JABSCO toiletts replaced 2024
• • Seawater tap with electrical pump tted at galley
• • Deck shower tted at bathing platform with hot/cold freshwater
• • Electric fridge cooled Danfoss compressor replaced 2022

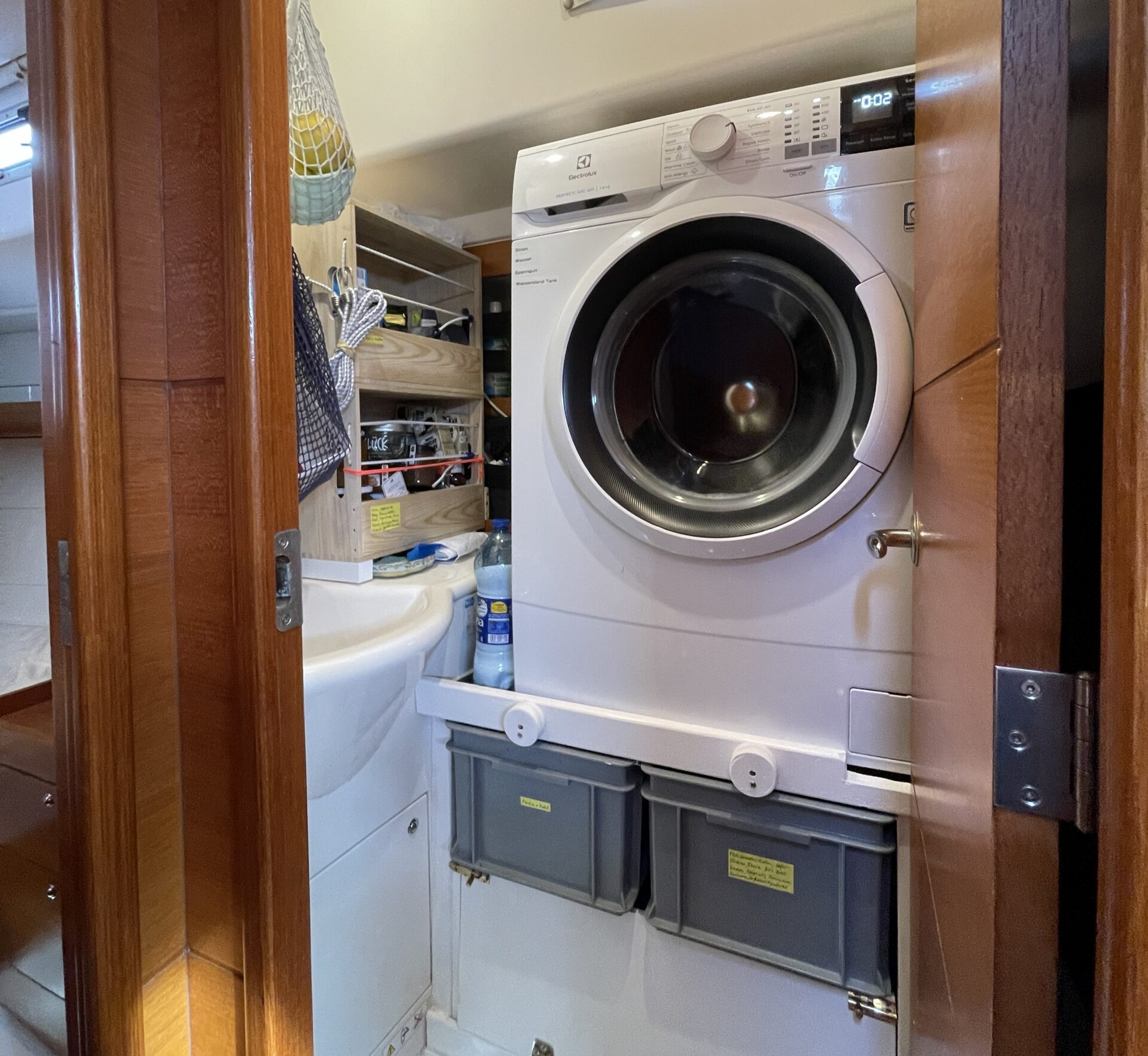

• • Washing machine ELECTROLUX Perfect care 600 2024
• • WEBASTO AIR TOP AIR 55 Heating NEW 2024

Electrical

• • 24 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• • AGM services batteries 8 x 134 amp 2024
• • Separate engine spiral-cell battery (55 Ah, 12V) new 2019
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and MASTERVOLT battery charger 24 V/50A
• • 4 Solar pannels
• • Hydrogenerator WATT and SEA 600

Electronics

• RAYMARINE electronic
• AXIOM Plus chart plotter 9 RV in the cockpit 2021
• 2 x I70 display 2021
• Autopilot RAY P70 2021 + RAM spare
• VHF RAY 90 2022
• AIS RAYMARINE 650
• Radio CD PIONEER 2021

Thrusters

• Dinghy + Mercury 6 HP 2017
• PLASTIMO Transocean + 24 H Liferat 6 PL new 2024
• EPIRB Ocean Signal 406 RLS AIS 2024
• Jonbuoy, safetry ladder, rescues sling 2024
• 6 Fenders + dock lines ...
