Xp 33

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: Xp 33
  • Build Number: 16
  • Build Year: 2013
  • Lying: Marina Muiderzand, Netherlands
  • Price: Sold
  • Dealer: X-Yachts Netherlands
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email:

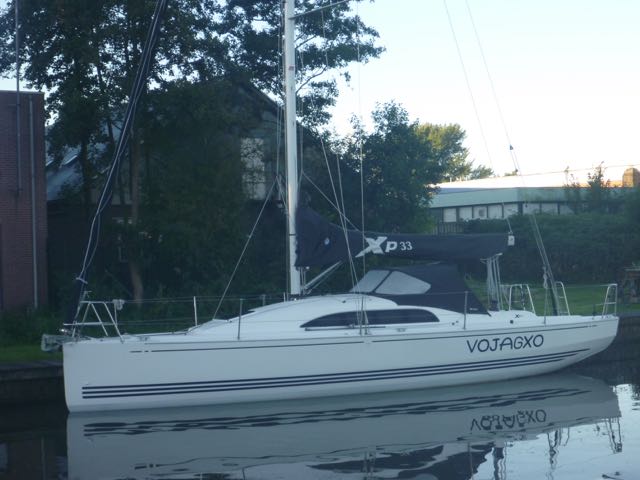

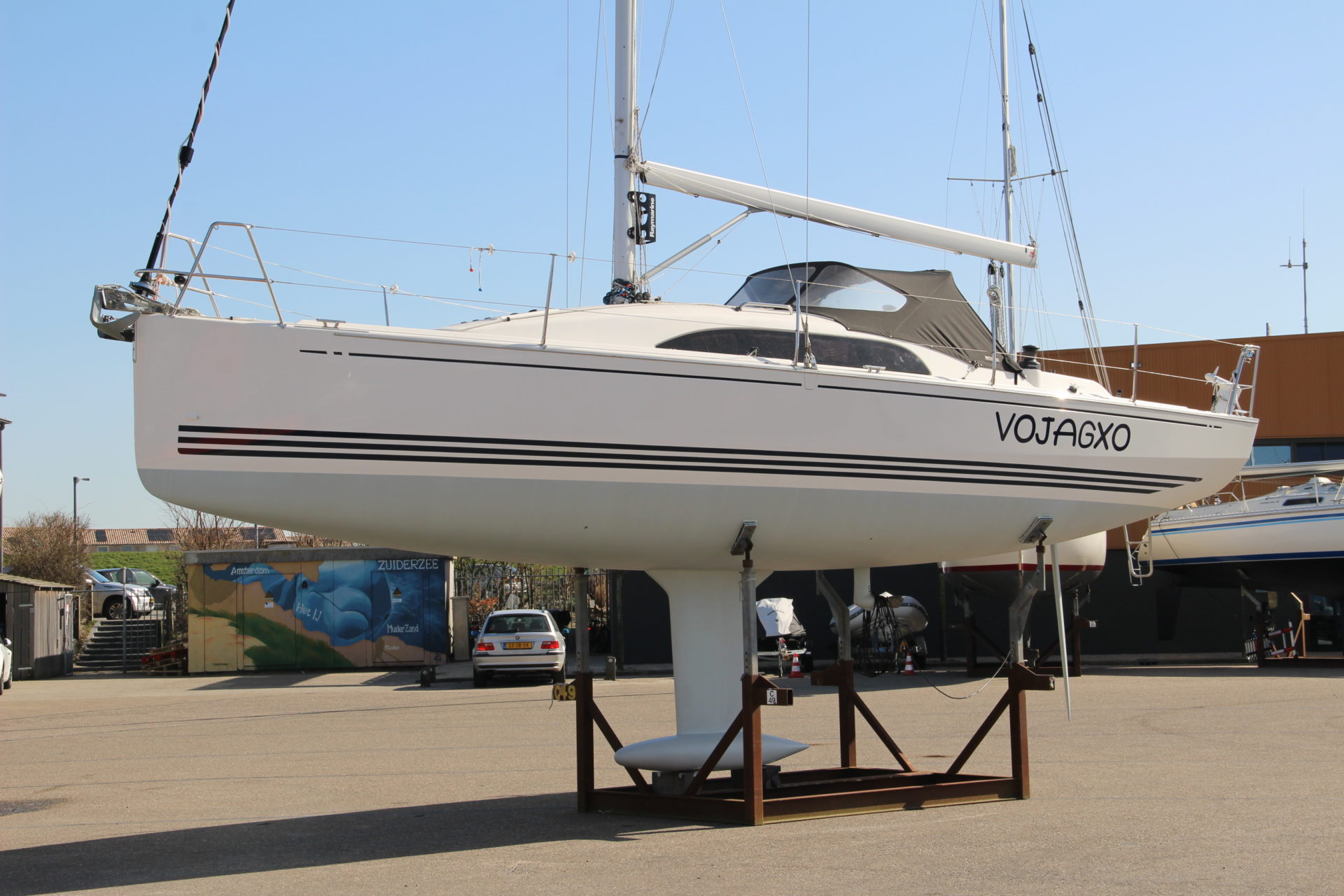

Xp 33


If you are looking for a no-nonsense fast cruising boat with impressive sailing conditions, then look no further. A great Xp 33 with all the cruising options included, she is now available and ready to be enjoyed.

Standard Specification

DesignerX-Yachts Design Team
Hull Length9.99 m32'9"
Waterline Length8.79 m28'10"
Beam (max)3.21 m10'6"
Draft1.90 m6'3"
Ballast - Std1,700 kg3,748 lbs
Displacement - Light4,300 kg9,480 lbs
Engine Power15 kW20 hp
Fuel Tank - Std50 ltr13 gal (US)
Water Tank - Std110 ltr29 gal (US)

Standard Xp 33 brochure

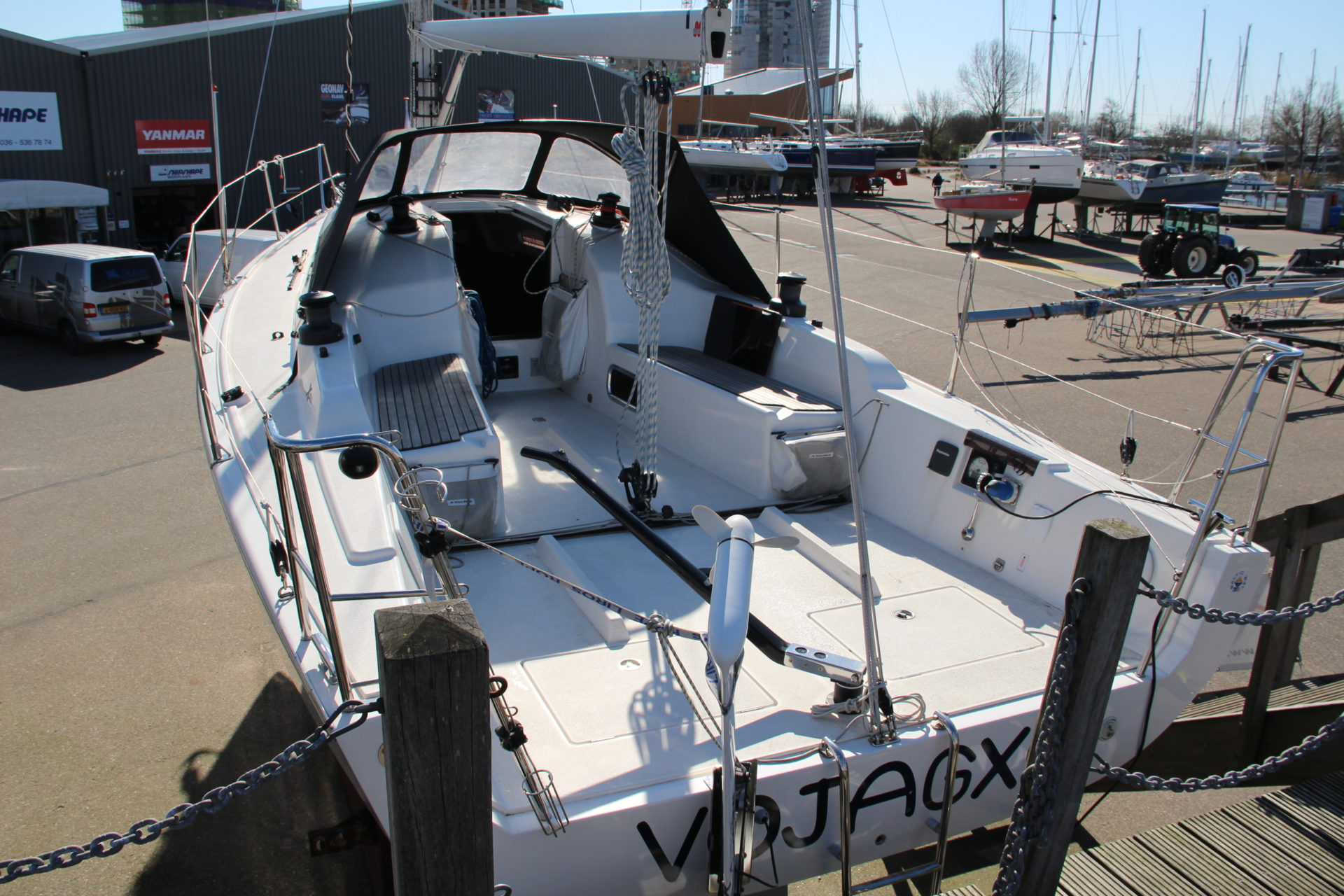

Exterior Details


  • Bottom treatment from yard (3x epoxy and antifouling)
  • Antifouling last applied spring 2020
  • Bathing ladder on transom


  • Teak on cockpit benches
  • Sprayhood with stainless steel tubing
  • Stainless steel handholds mounted on coachroof
  • Additional midships mooring cleats
  • Upgrade to Harken Performa 46.2 primary winches with self-tailing
  • Upgrade to Harken Performa 40 STQP Quattro halyard winches
  • Mainsheet with fine-tune purchase on Harken central swivel base
  • Full deck package for asymmetric sailing
  • 4x halyard bags in cockpit

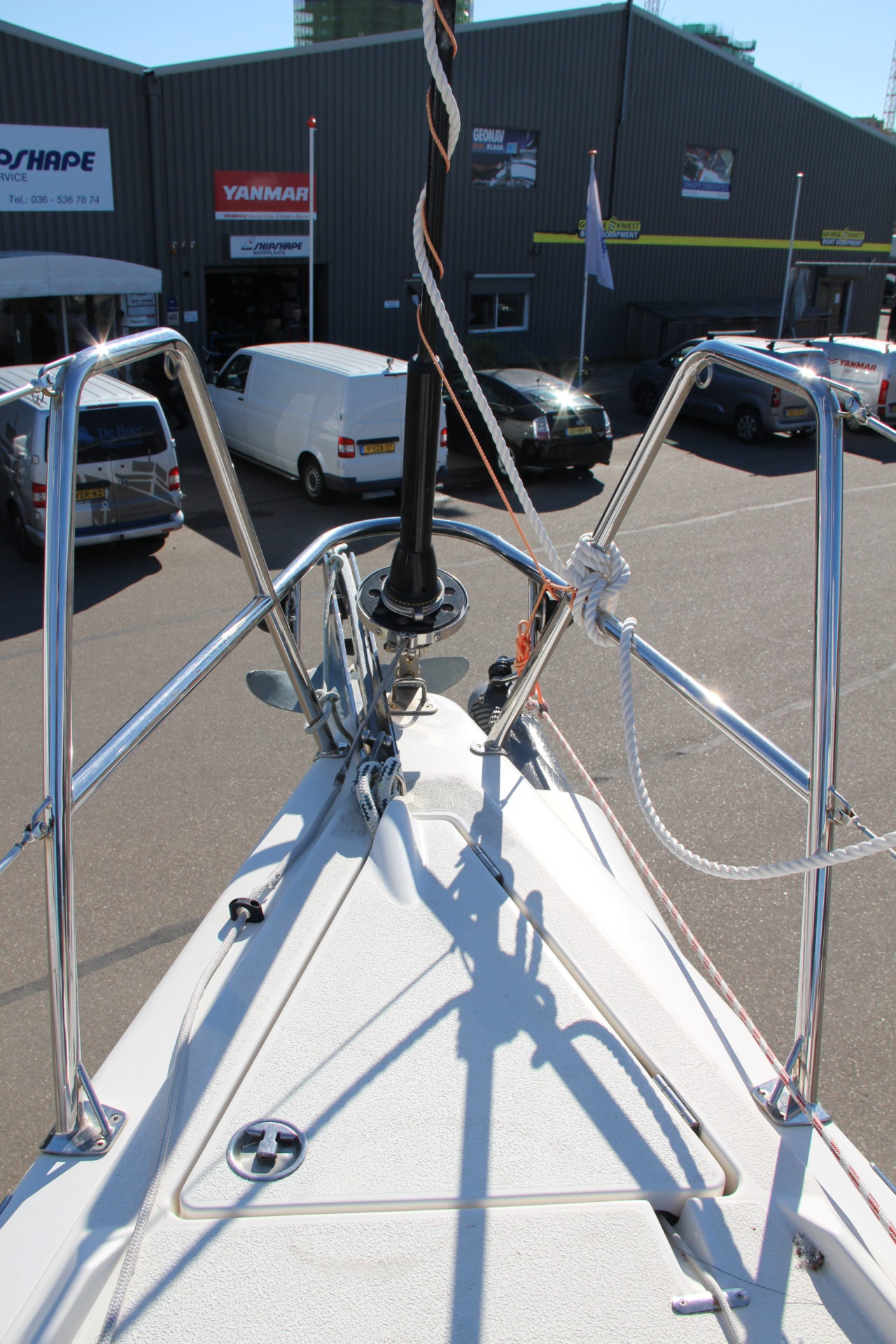

  • Carbonfiber retractable bowsprit
  • Safety toerail incorporated in deck design forward
  • Anchor locker - drained compartment with space for anchor & anchor warp/chain
  • Bruce anchor with lead line and demountable anchor roller
  • Cockpit shower
  • Speakers in cockpit for Fusion


  • North Sails mainsail in Soft Norlam cloth, 5x full batten and 2x reef
  • North Sails furling jib in Soft Norlam cloth, 3x vertical batten

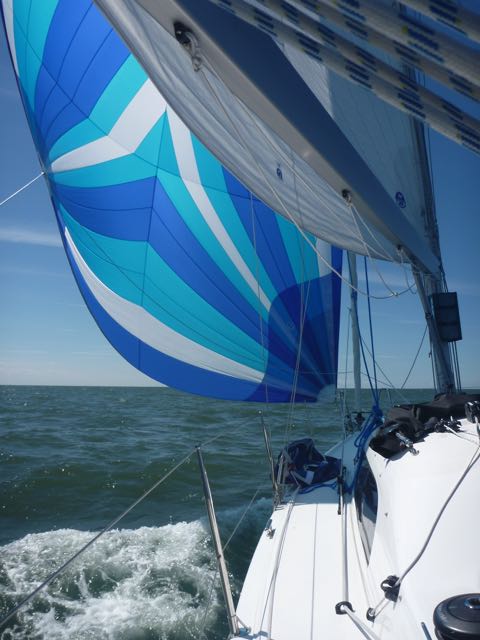

  • North Sails gennaker G2 in Norlon 75 cloth, with snuffer
  • Mainsail cover

Mast & Rigging

  • Facnor furling system for jib with low-profile drum
  • Combined 3-colour/anchor light in top of mast (with LED bulb)
  • Lazy jacks system

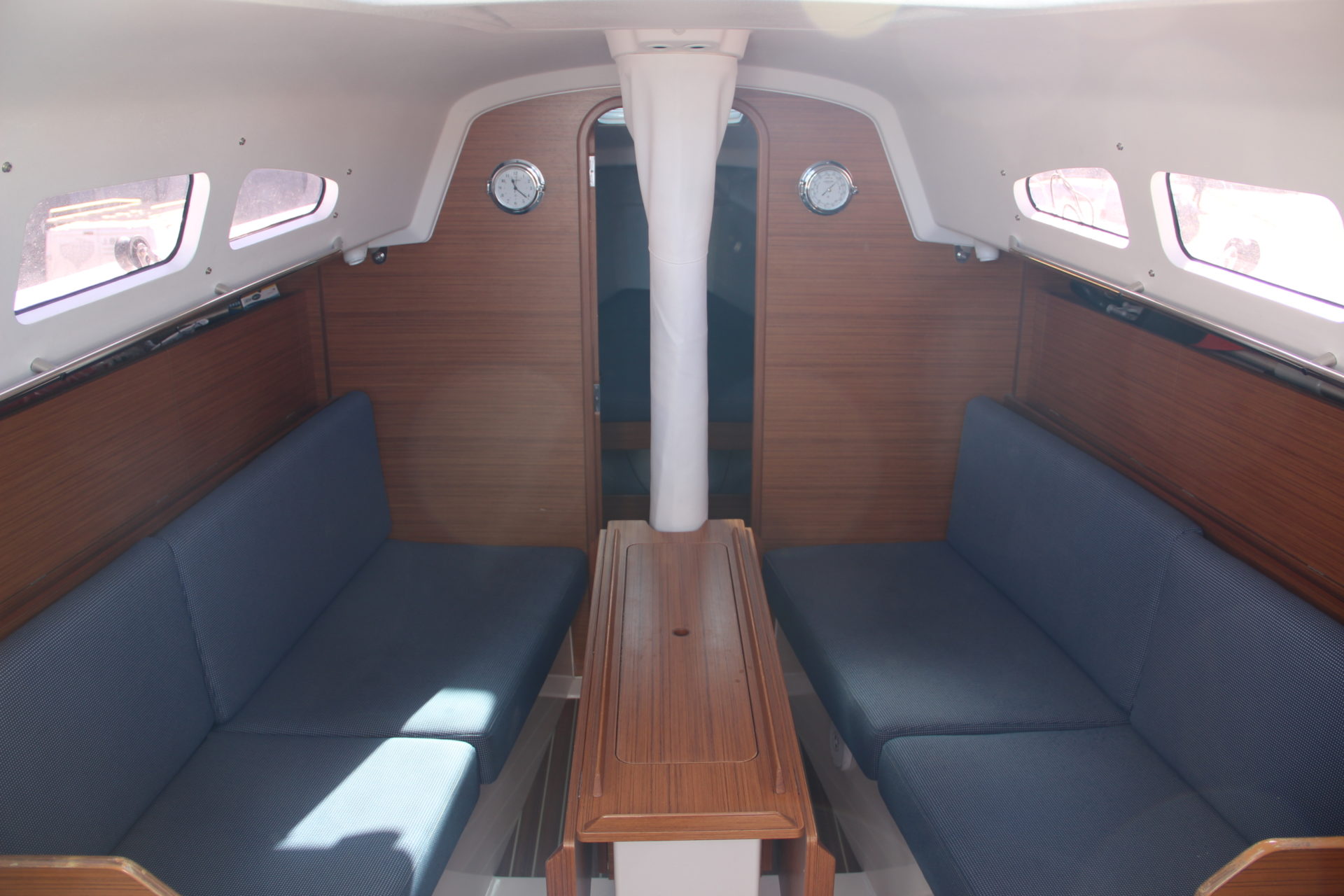

  • Main cabin:
  • Removable table mounted on stainless steel bar
  • Two sofas each 1900 mm long with comfortable double density cushions
  • Companionway with steps of unvarnished teak

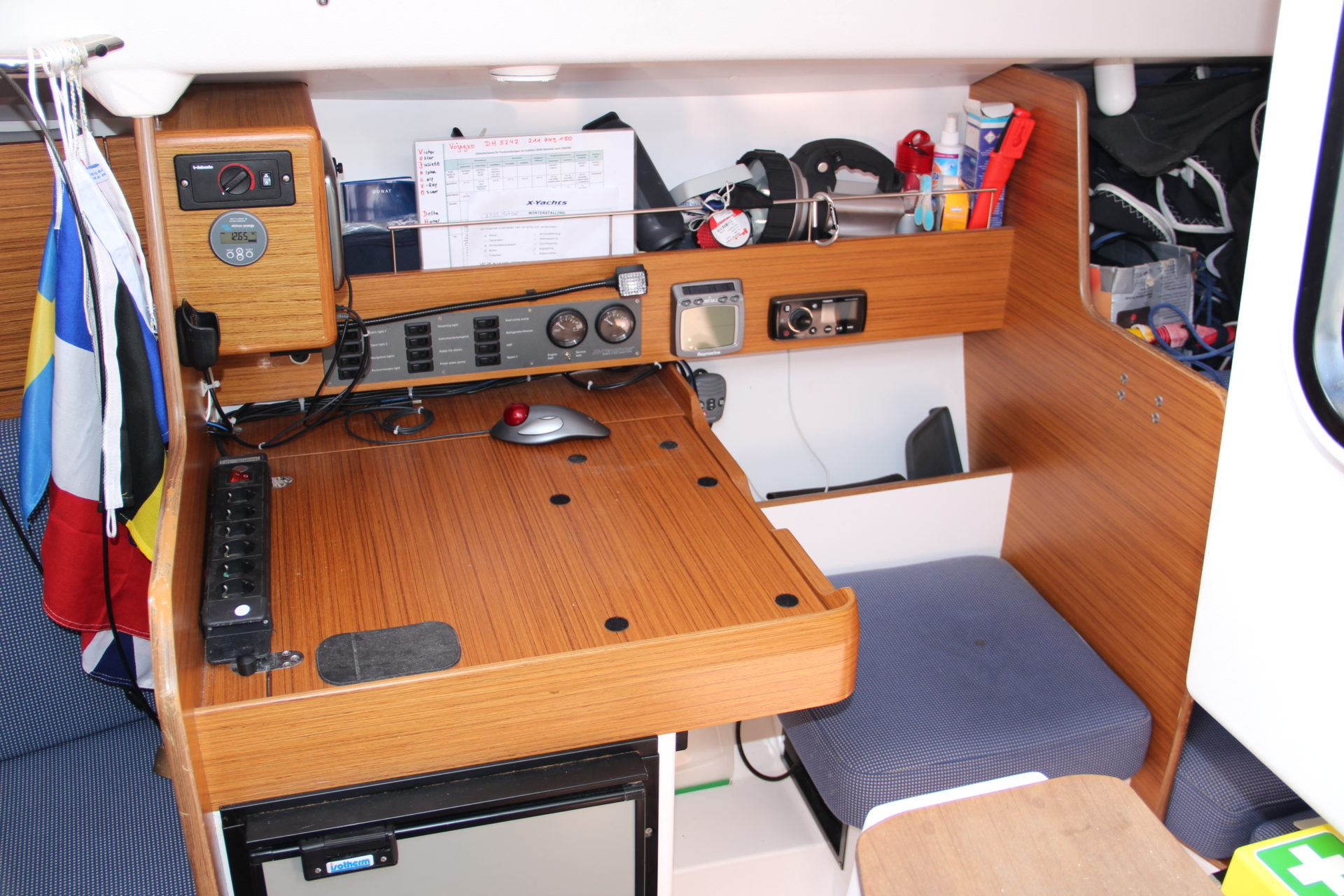

  • Forward facing nav. station, and below is a locker with 3 shelves
  • Removable cupboards in saloon
  • Black-out blinds for skylight and coachroof windows
  • Fusion MS-RA205 radio/USB/iPhone player with speakers in saloon

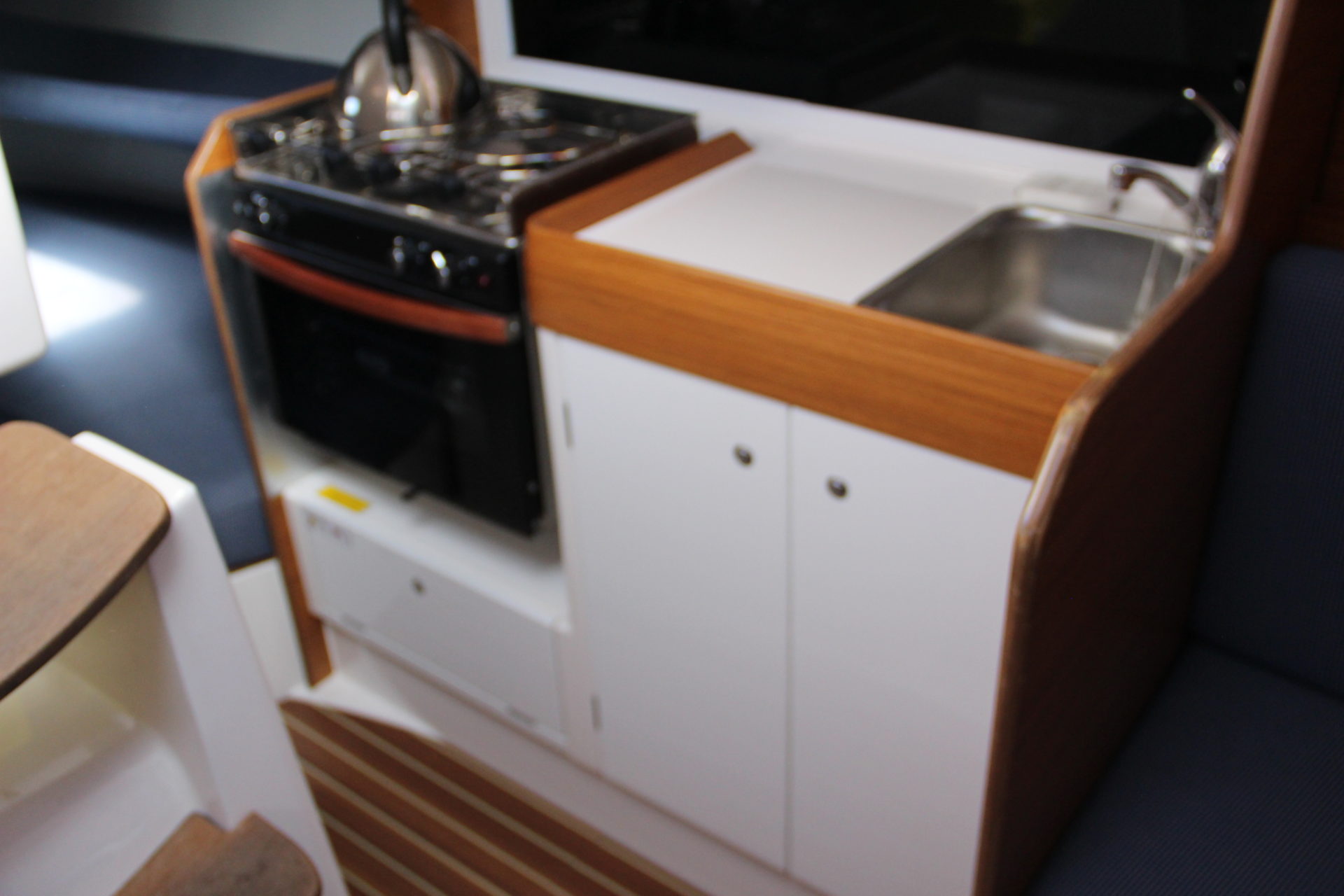

  • Galley:
  • Galley, high gloss white composite moulding with stainless steel sink and single lever mixer tap
  • Integrated space/shelves for crockery/pot/pan in the front of the galley
  • Top cupboard outboard with smoke coloured 5 mm sliding Plexi doors
  • ENO gas stove with oven

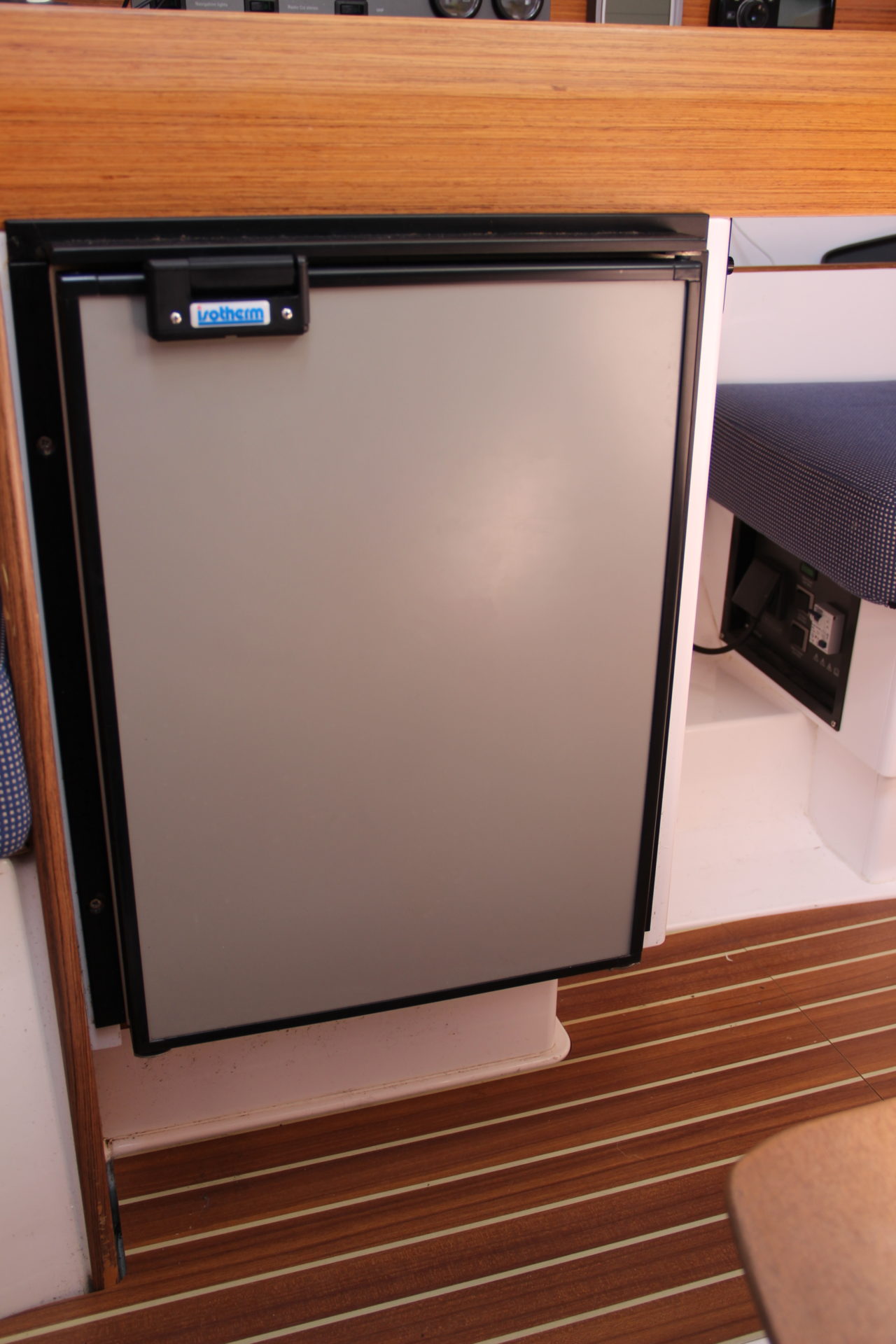

  • Refrigerator (front-opened), 49l capacity

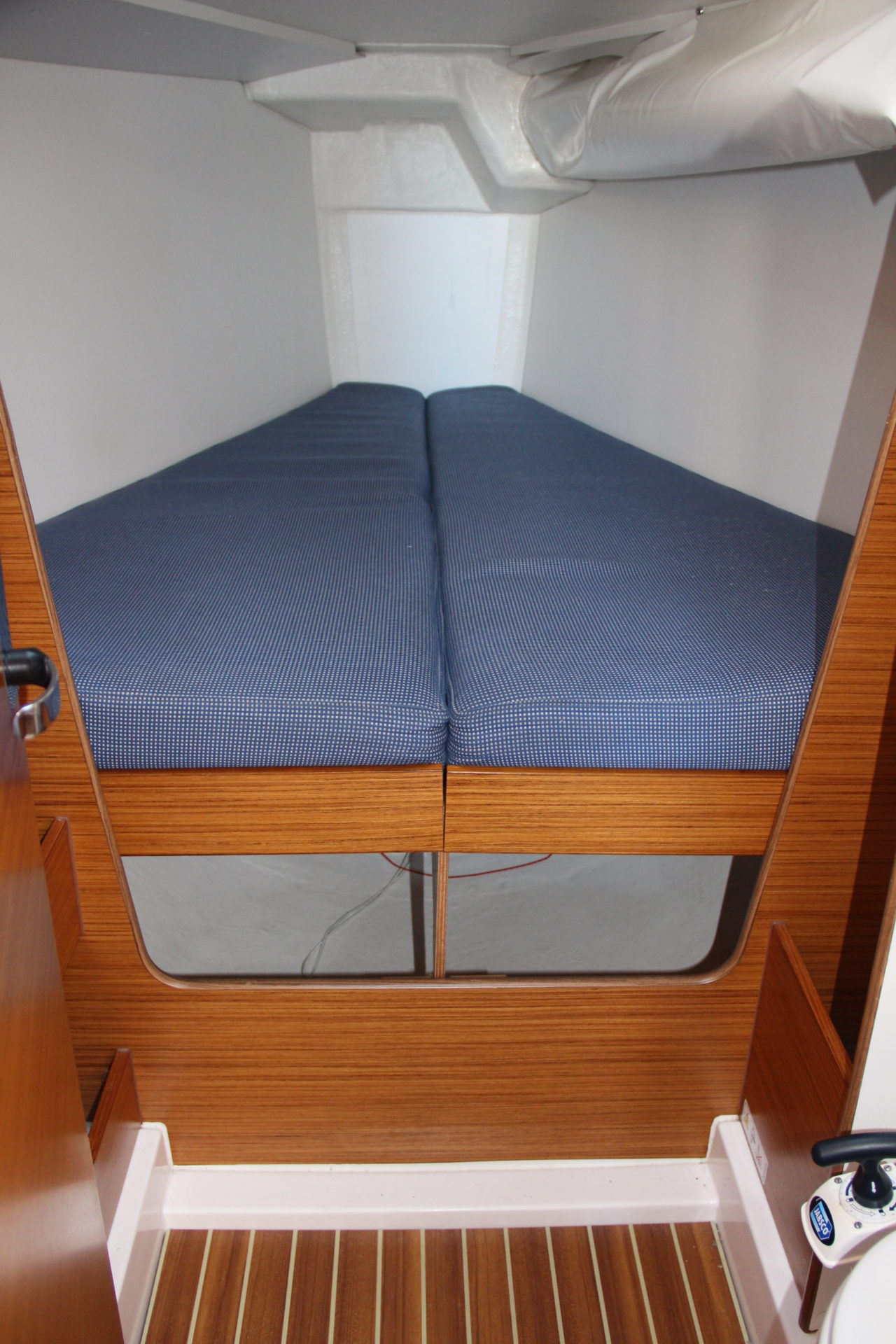

  • Forward cabin:
  • 2 wardrobes, one for hangers, one with shelves
  • Removable forepeak double berth, incl 120 mm foam mattress

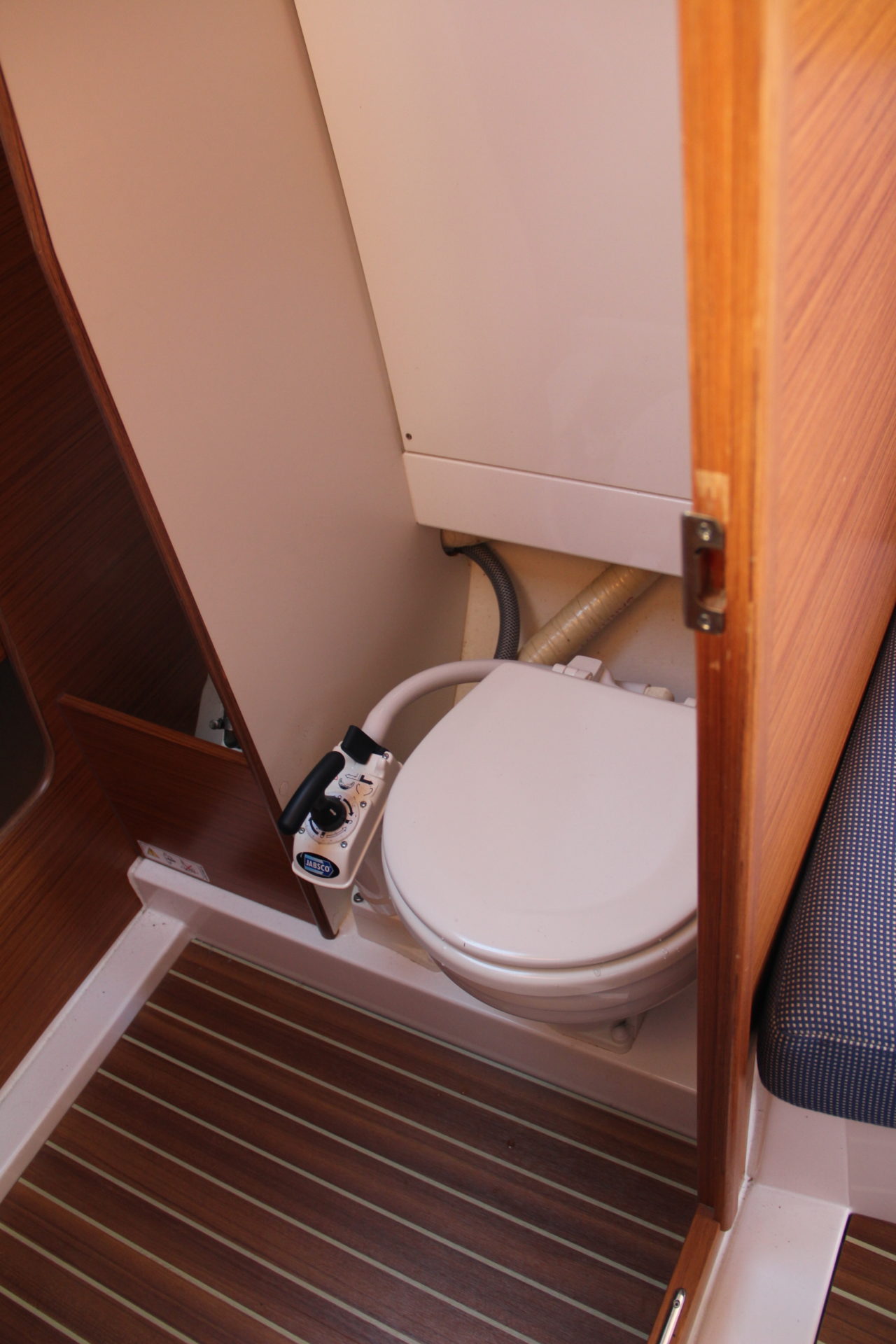

  • Head Compartment:
  • Tabletop and sink in a white composite moulding
  • Mixer tap, single lever for sink
  • Towel hooks and toilet roll holder
  • Mirror above sink

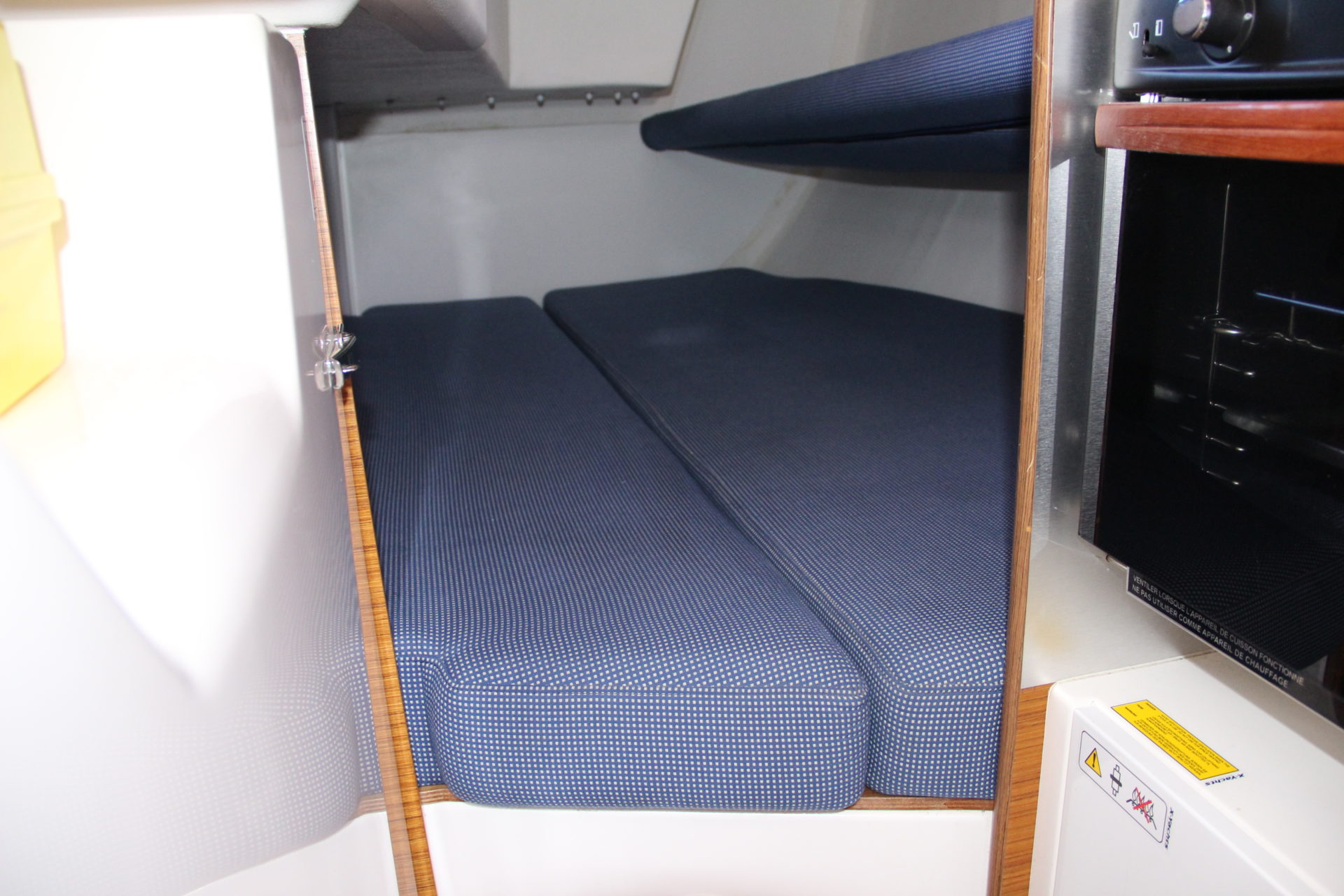

  • Aft Cabins:
  • Each having a double berth with 120 mm mattresses
  • Sea berths mounted against side of hull



  • X-Yachts main switch board with automatic fuses and 2 analogue meters for fuel level and battery voltage level
  • Additional AGM battery (total 186 Ah) securely mounted in saloon SB forward
  • AGM engine battery (70 Ah)
  • Shore power connection with 15A charger
  • Additional 12V socket at nav station


  • Raymarine TackTick base instrument package with:
  • 2x maxi display & 1x maxi dual display mounted in bracket at mast
  • wireless wind transducer
  • hull transducer for speed and depth
  • electronic compass
  • remote control (with display)
  • In cockpit:
  • Raymarine SPX10 autopilot, with p70 display and below-deck drive
  • Magnetic compass Silva 100 B/H below companionway
  • At nav station:
  • Raymarine e7 plotter in wooden box
  • Raymarine Ray240E VHF

Additional Information

  • Webasto AirTop 2000 diesel heating system with 2 exits in saloon
  • Hot water container
  • Holding tank for toilet
  • 4x fender
  • Mooring lines
  • Winter cover
