Xp 33

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: Xp 33
  • Build Number: 4
  • Build Year: 2013
  • Lying: Marina Muiderzand, Netherlands
  • Price: Sold
  • Dealer: X-Yachts Netherlands
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email:
Xp 33

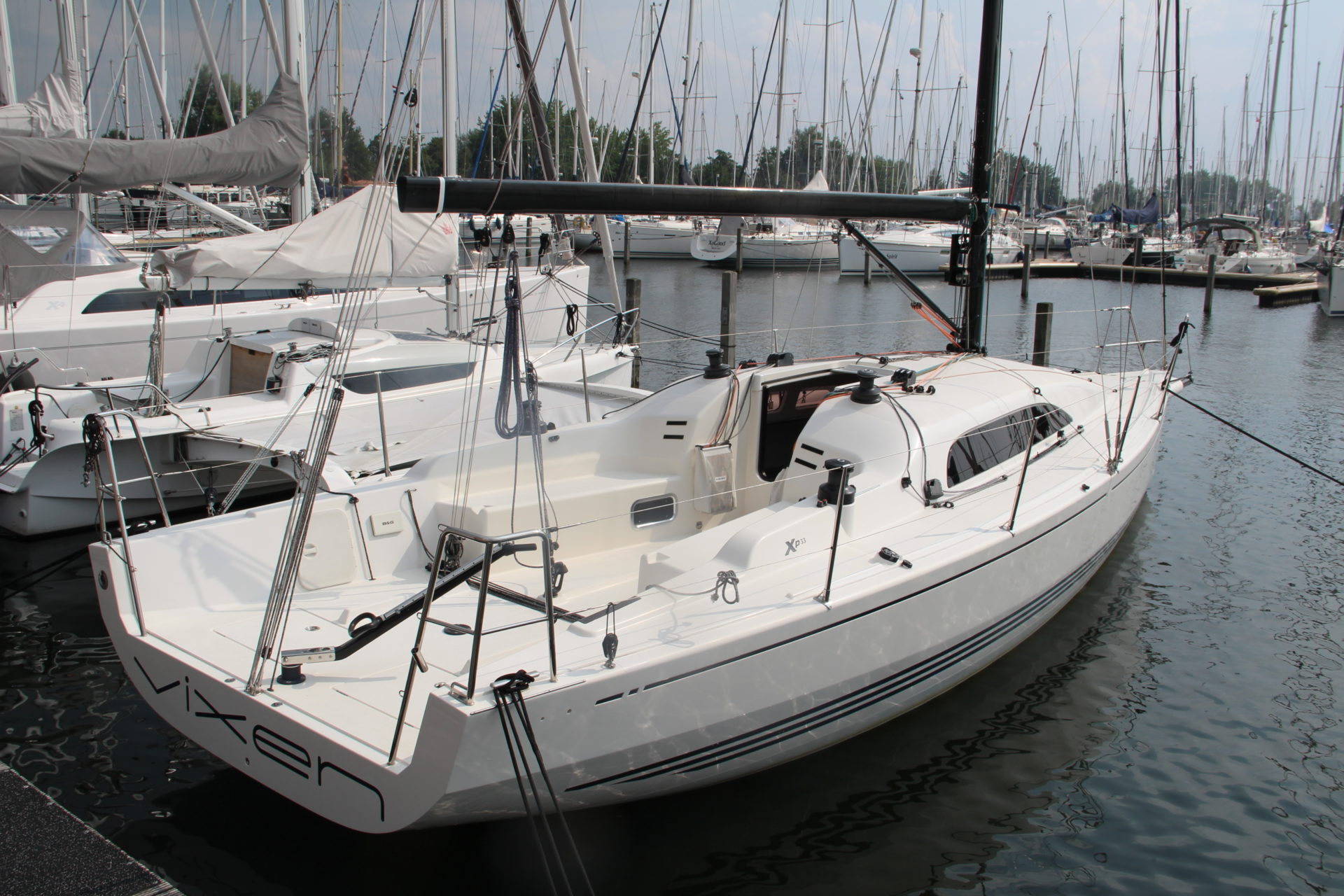

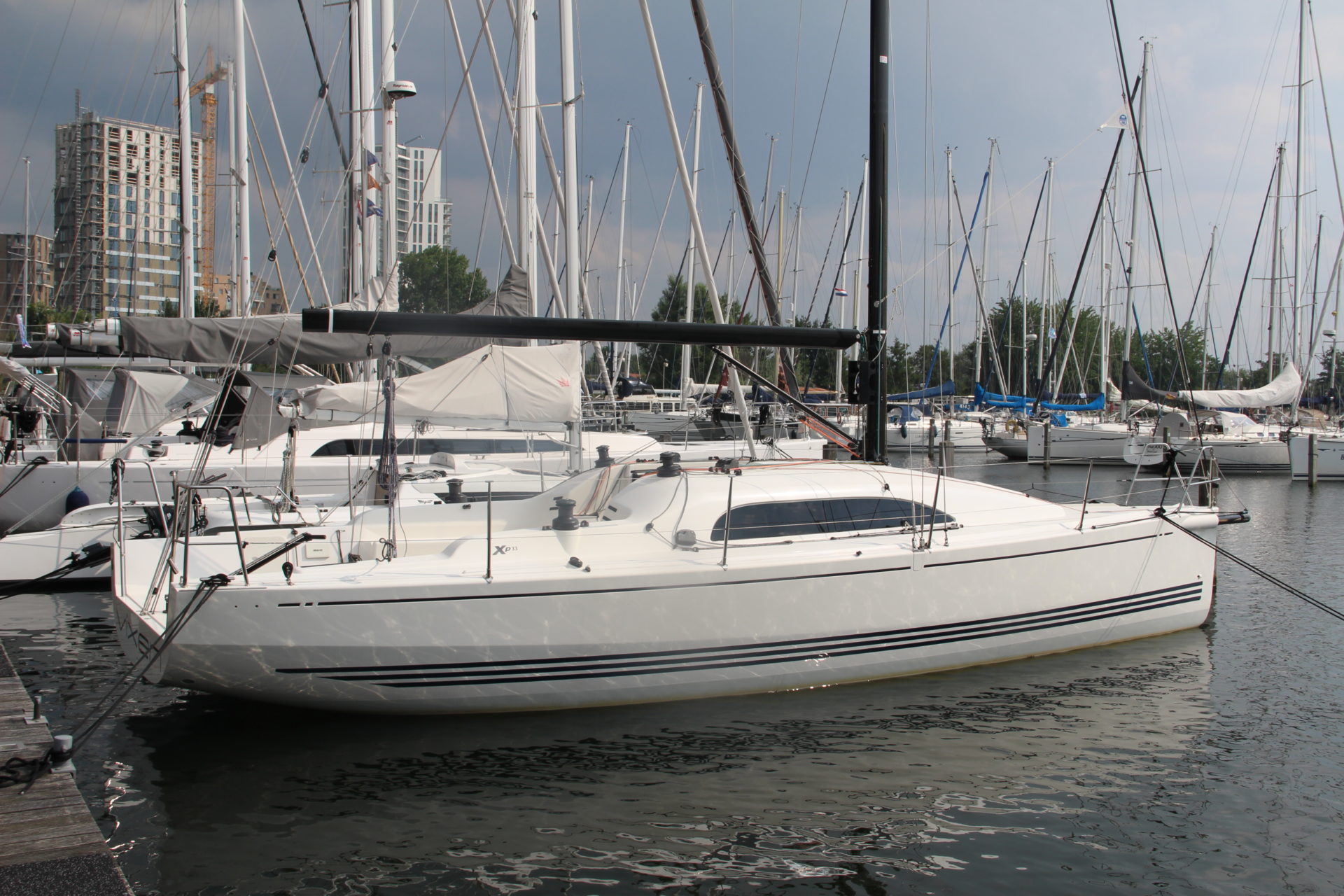

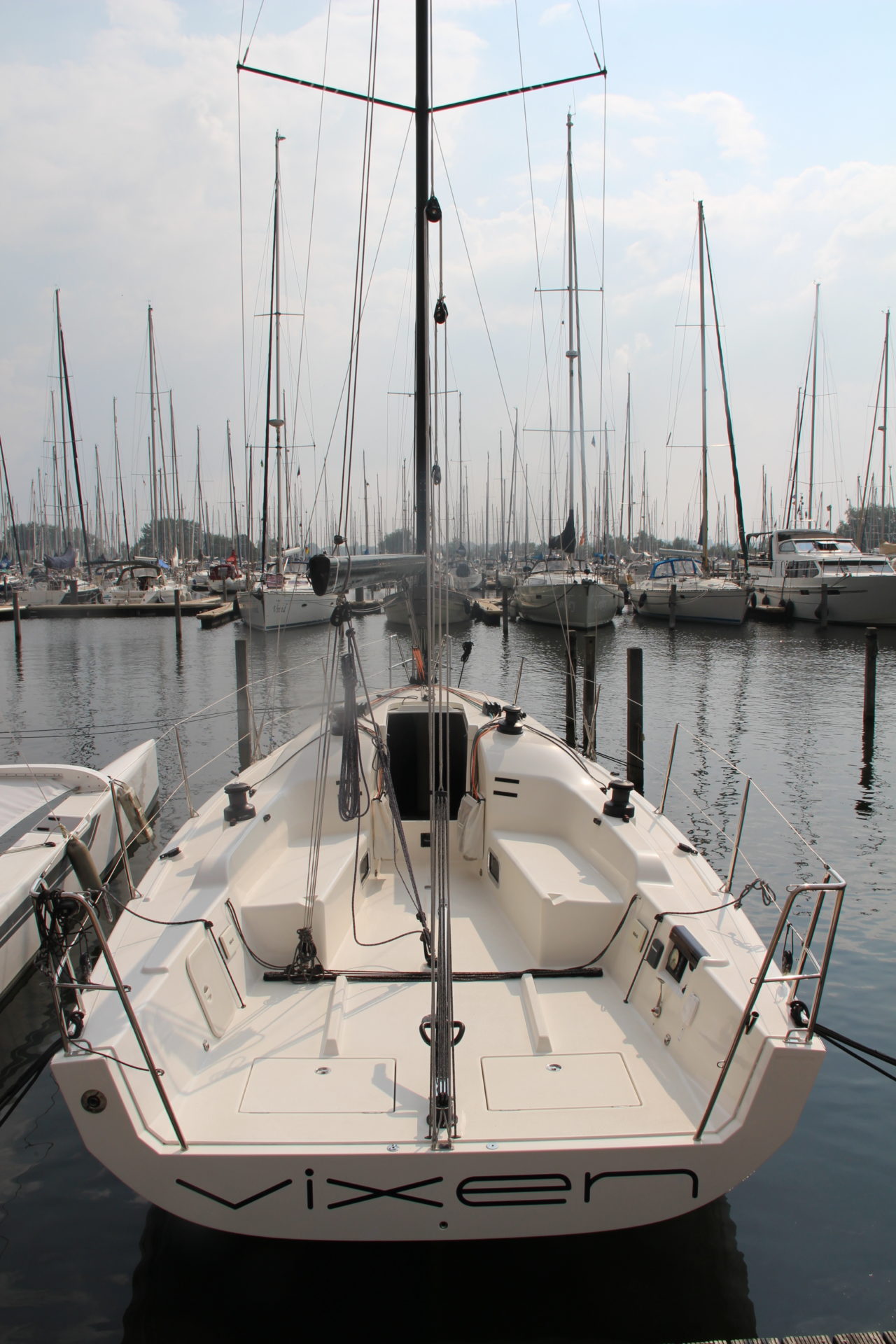

Splendid Xp 33 with all the must-haves for maximum fun on the water: carbon mast by Hall Spars, suit of 3Di sails from North, big gennakers and all the running rigging to match it. Pair that with a forward cabin and heating installation and you have the perfect 'fun machine' for a get away on the water.

Standard Specification

DesignerX-Yachts Design Team
Hull Length9.99 m32'9"
Waterline Length8.79 m28'10"
Beam (max)3.21 m10'6"
Draft1.90 m6'3"
Ballast - Std1,700 kg3,748 lbs
Displacement - Light4,300 kg9,480 lbs

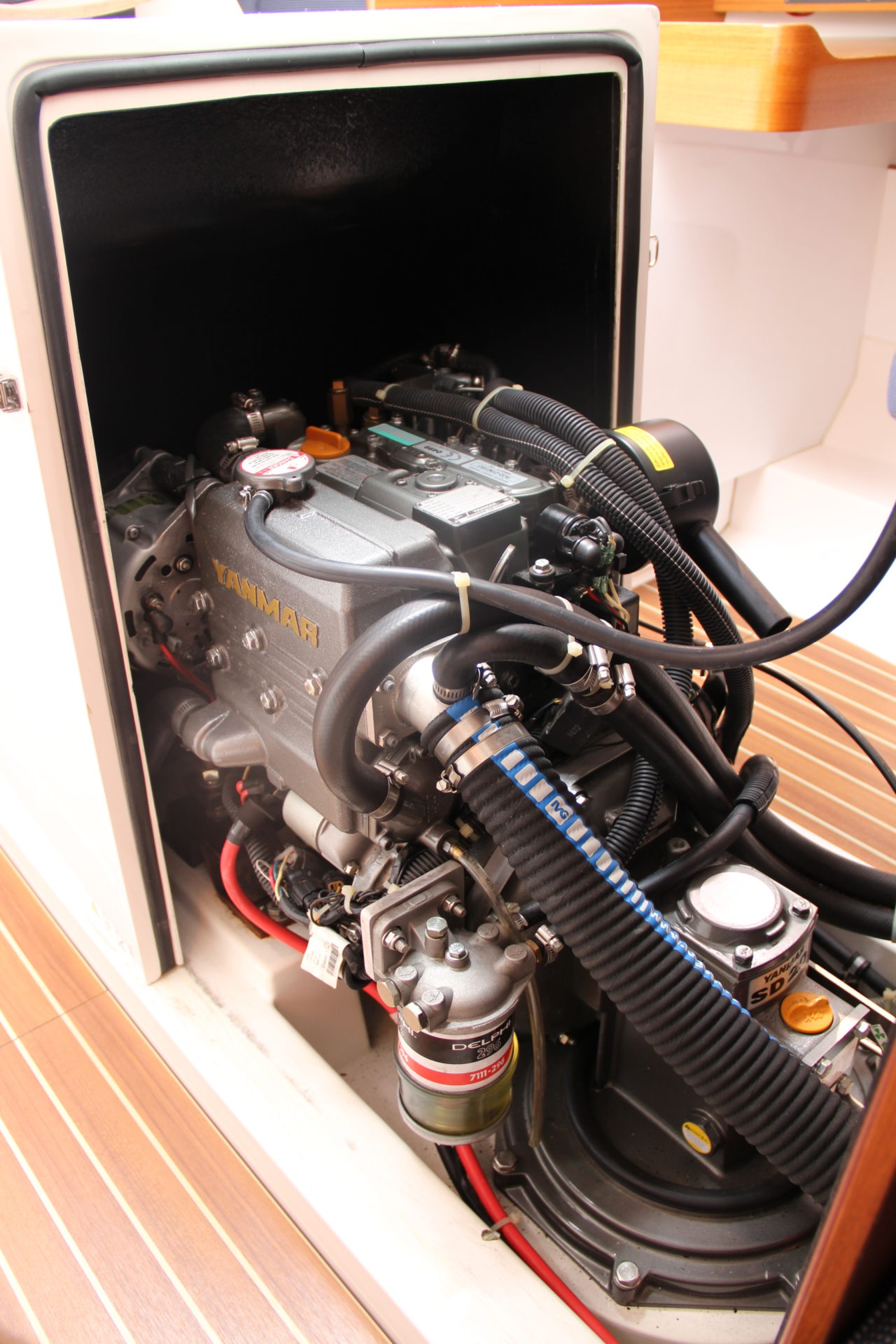

Engine Power15 kW20 hp
Fuel Tank - Std50 ltr13 gal (US)
Water Tank - Std110 ltr29 gal (US)

Standard Xp 33 brochure


Exterior Details


  • Additional fairing of details around hull-keel connection and around rudderstock
  • Bottom treatment from yard (3x epoxy and antifouling)
  • Antifouling last applied spring 2020
  • Bathing ladder on transom
  • Gori racing 2-blade folding propellor

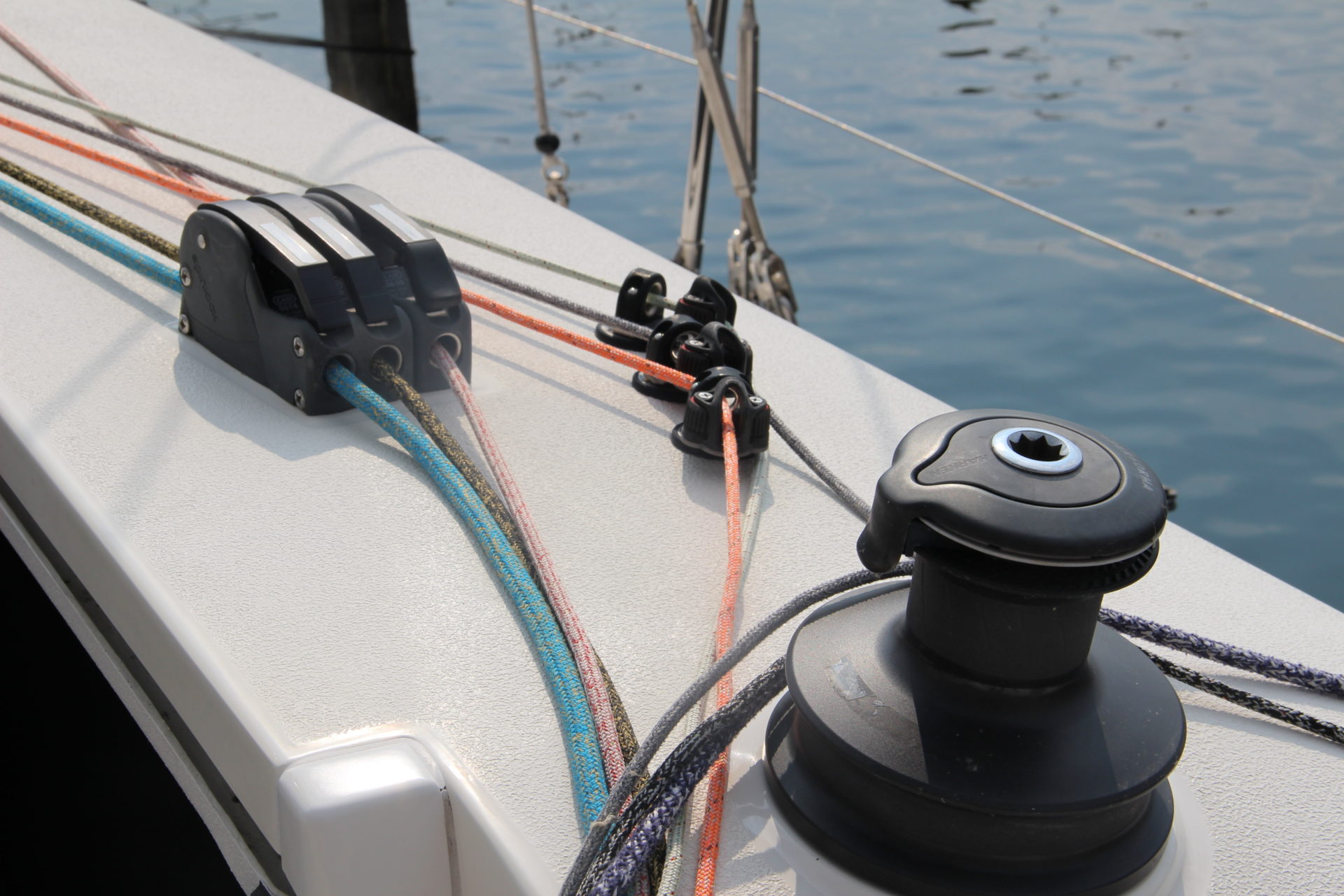

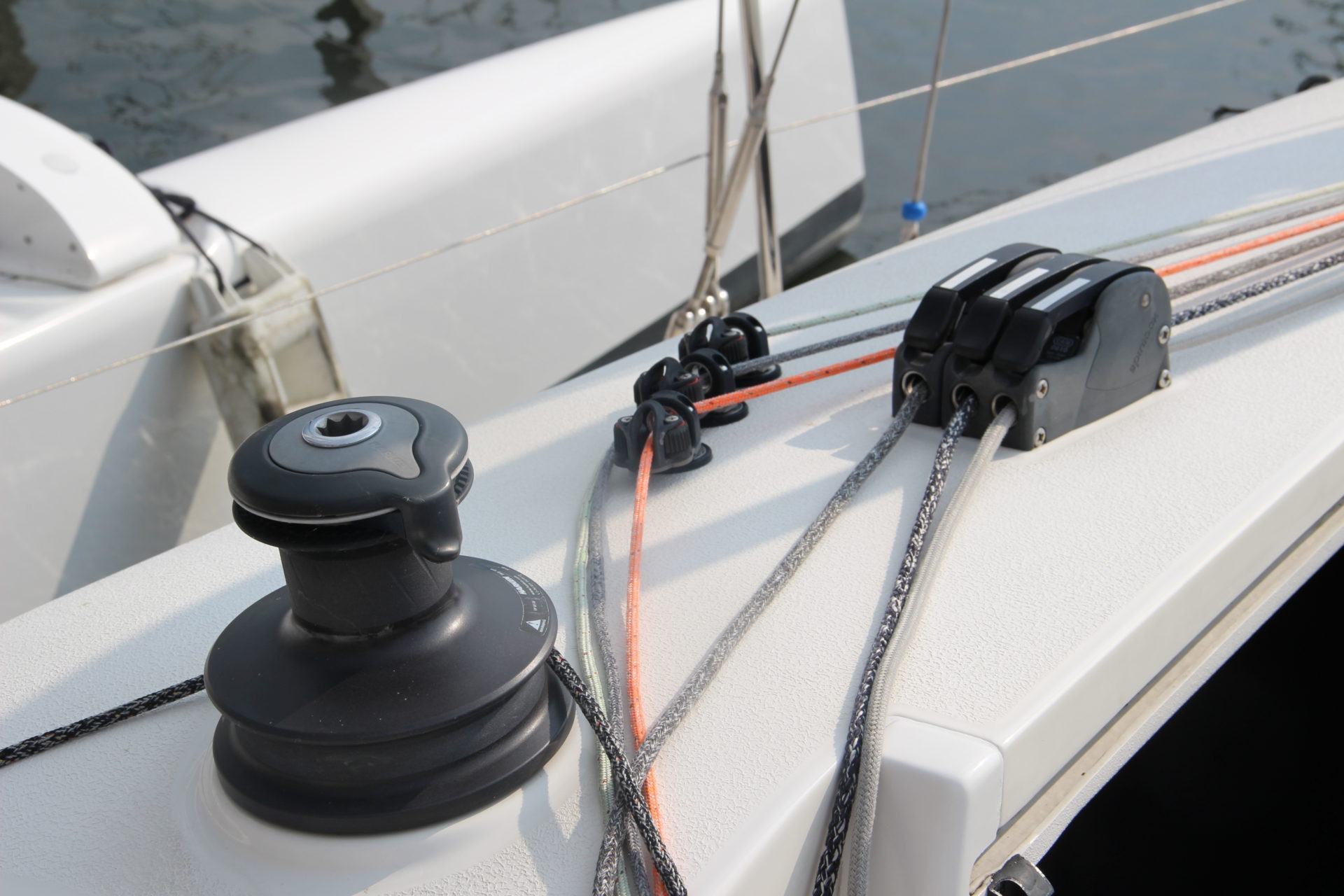

  • Upgrade to Harken Performa 46.2 primary winches with self-tailing
  • Upgrade to Harken Performa Quatro halyard winches
  • Control lines for vang, cunnigham and outhaul on both sides of the coachroof
  • Purchase for job inhauler system on central swiveling cleat

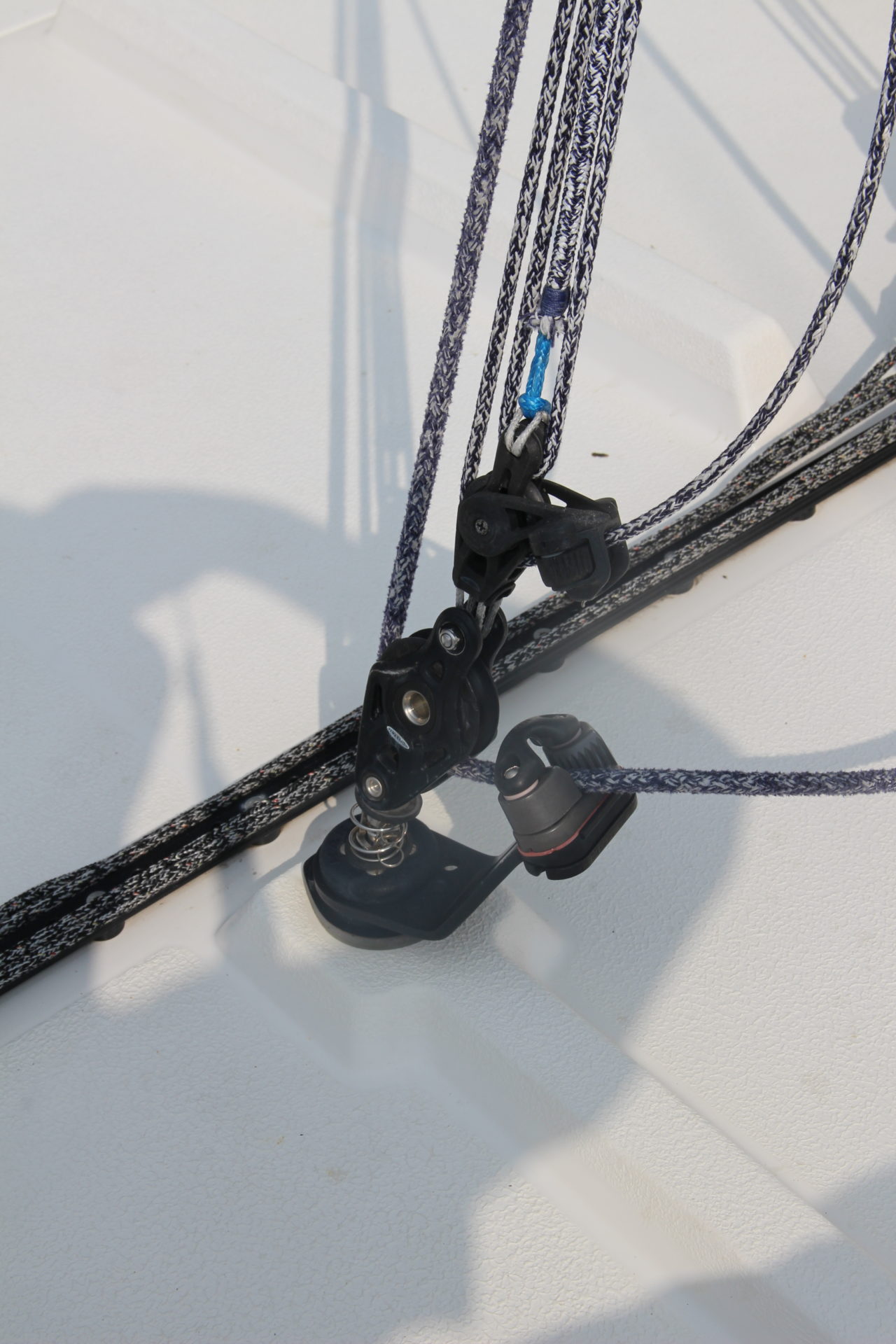

  • Mainsheet with fine-tune purchase on Harken central swivel base
  • Backstay adjustment led to mainsail trimmer's position
  • Full deck package for asymmetric sailing including barberhaulers on the sheets
  • Carbonfiber retractable bowsprit

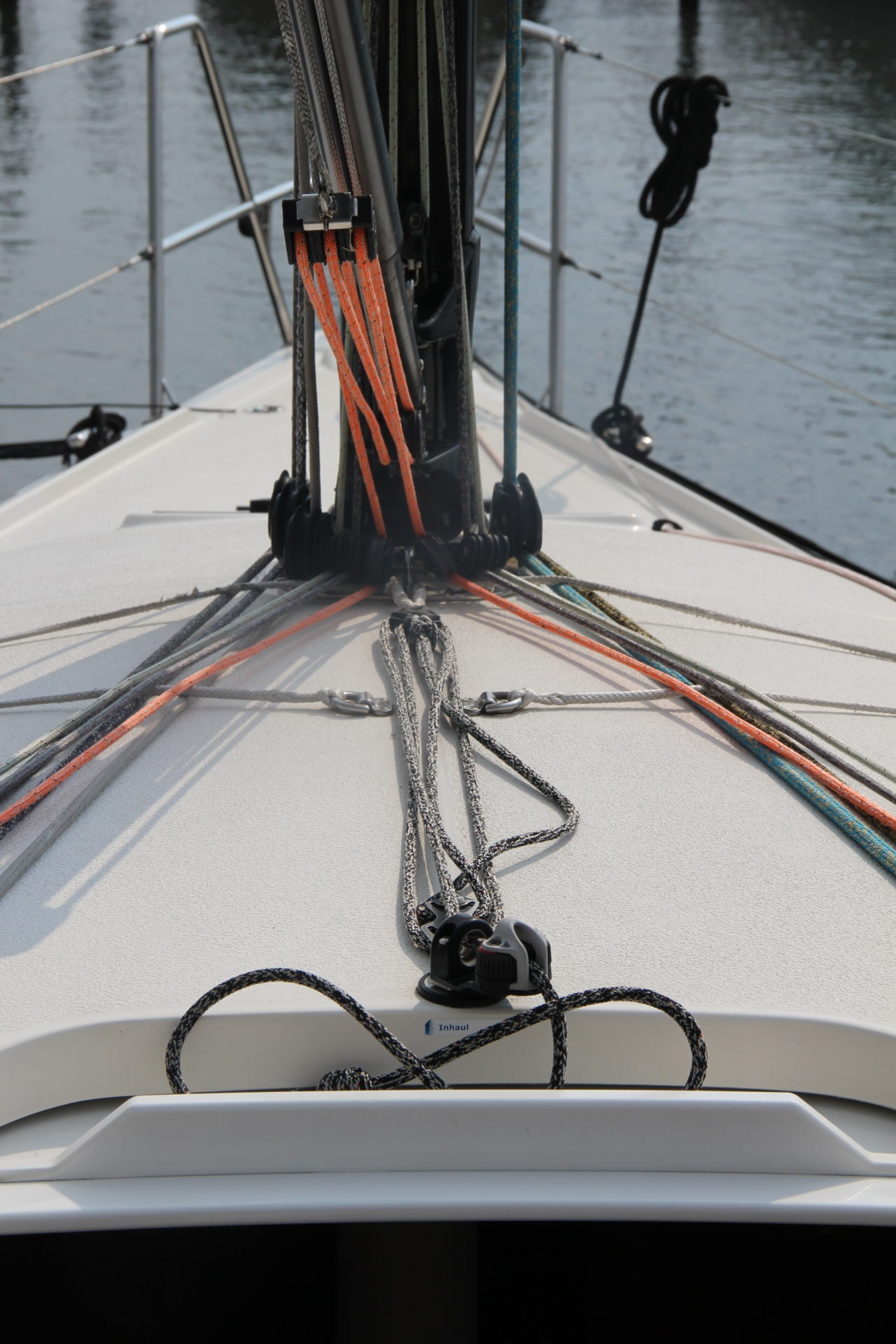

  • All running rigging and control lines are custom spliced
  • Safety toerail incorporated in deck design forward, tapers down aft for comfortable hiking

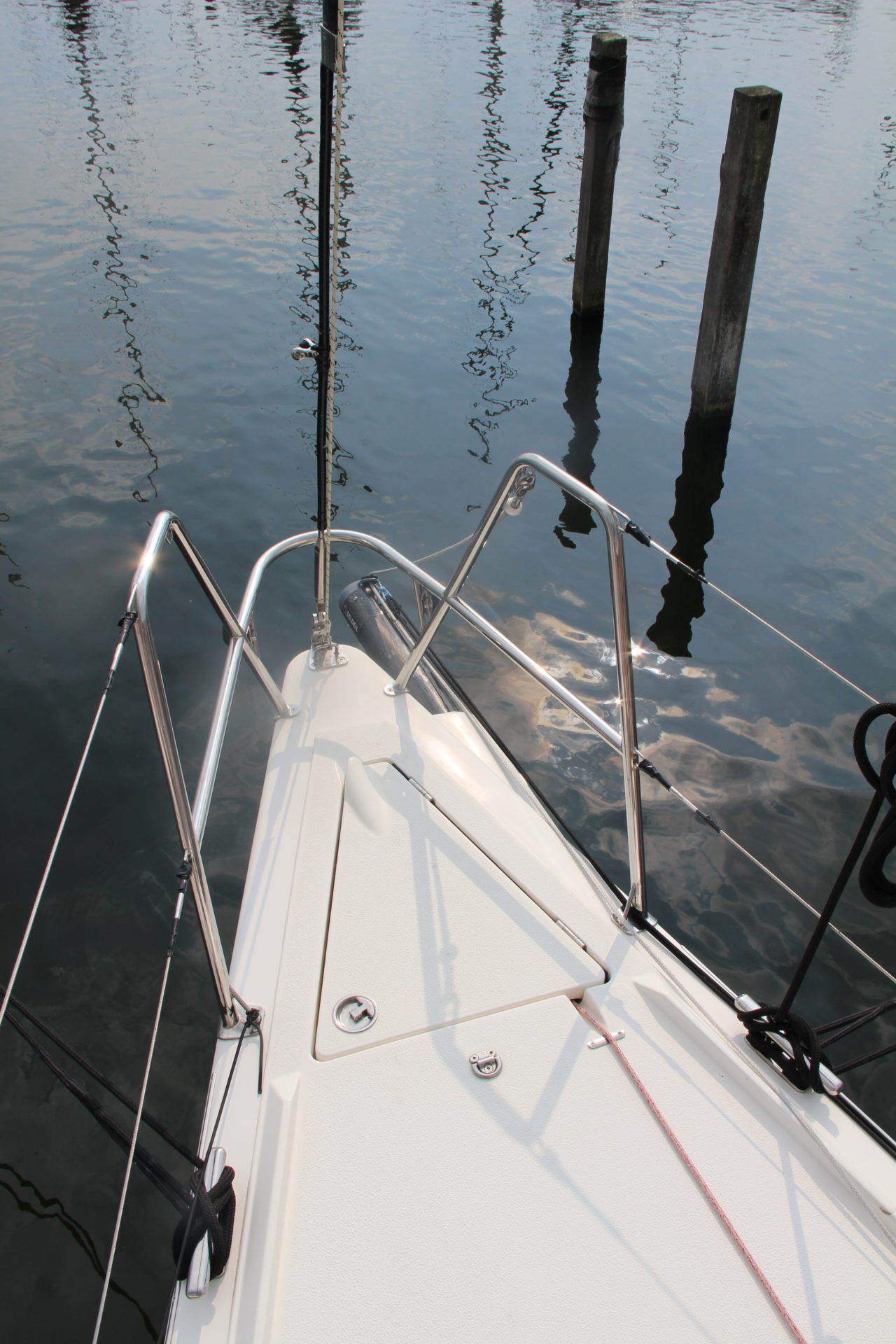

  • Anchor locker - drained compartment with space for anchor & anchor warp/chain
  • Additional pad-eye on foredeck for spinnaker staysail


  • New set of racing sails from 2016 and hardly used:
  • North Sails mainsail in 3Di black
  • North Sails medium jib in 3Di black
  • Original set of racing sails:
  • North Sails mainsail in 3DL 680 with smoke film
  • North Sails light jib in 3DL 680 with smoke film
  • North Sails medium jib in 3Di light grey
  • North Sails heavy jib in 3DL 680 with smoke film
  • North Sails asymmetric spinnaker A2 in Superkote 75
  • North Sails asymmetric spinnaker A1.5 in Superkote 60
  • North Sails straight-luffed A3 reacher in Superkote 130
  • North Sails asymmetric spinnaker A4 in MaxiLite 150
  • North Sails spinnaker staysail in polyester laminate 1.7NL
  • Mainsail cover

Mast & Rigging

  • Hall Spars carbonfiber mast and boom, specially designed for Xp 33
  • Combined 3-colour/anchor light in top of mast (with LED bulb)
  • Harken Carbofoil profile on forestay
  • 2 masthead gennaker halyards (both custom spliced)
  • Mainsail halyard with 2:1 purchase

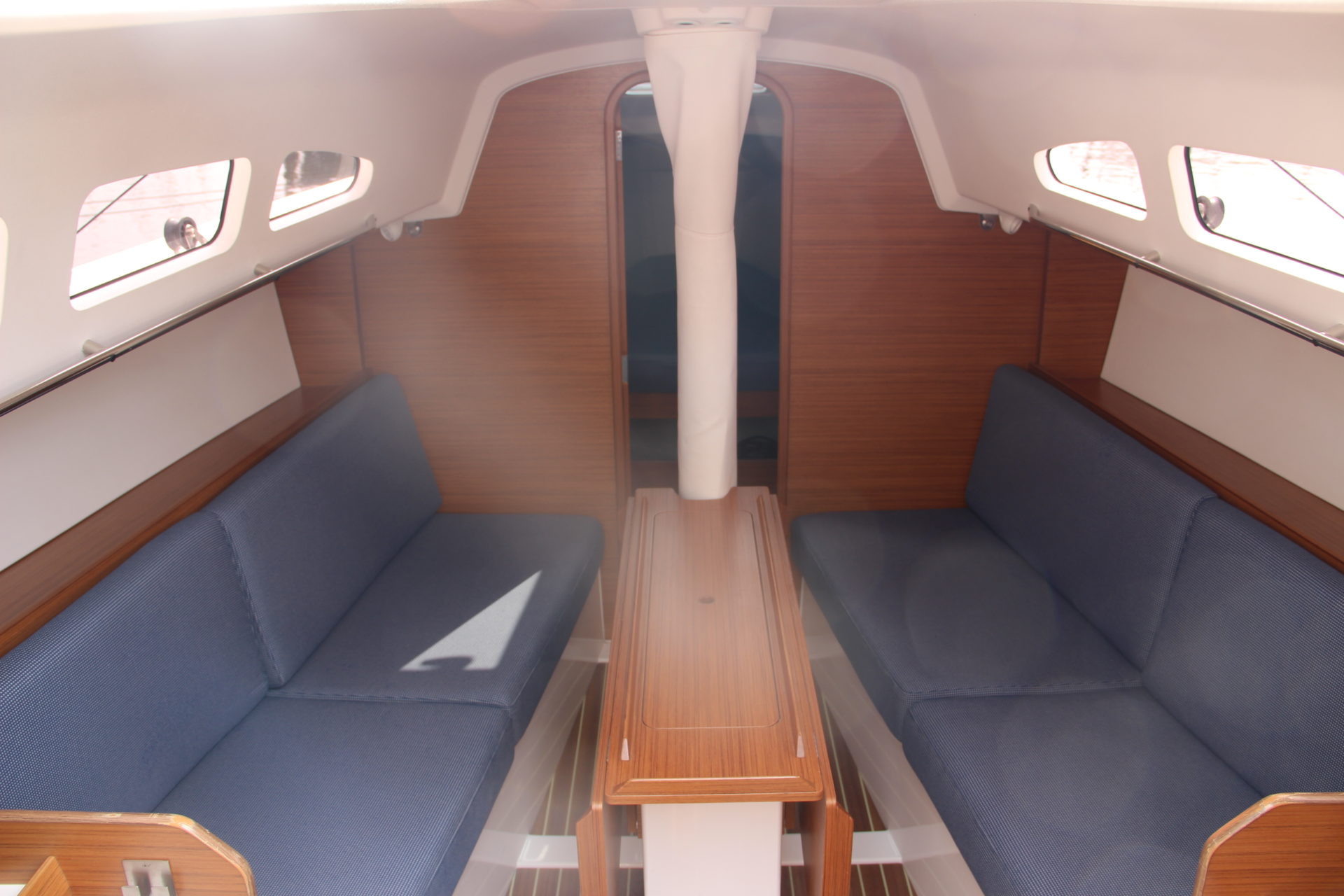

  • Main cabin
  • Removable table mounted on stainless steel bar
  • Two sofas each 1900 mm long with comfortable double density cushions
  • Companionway with steps of unvarnished teak
  • Forward facing nav. station, and below is a locker with 3 shelves
  • Webasto AirTop 2000 heating system, with vents in main cabin and aft cabins

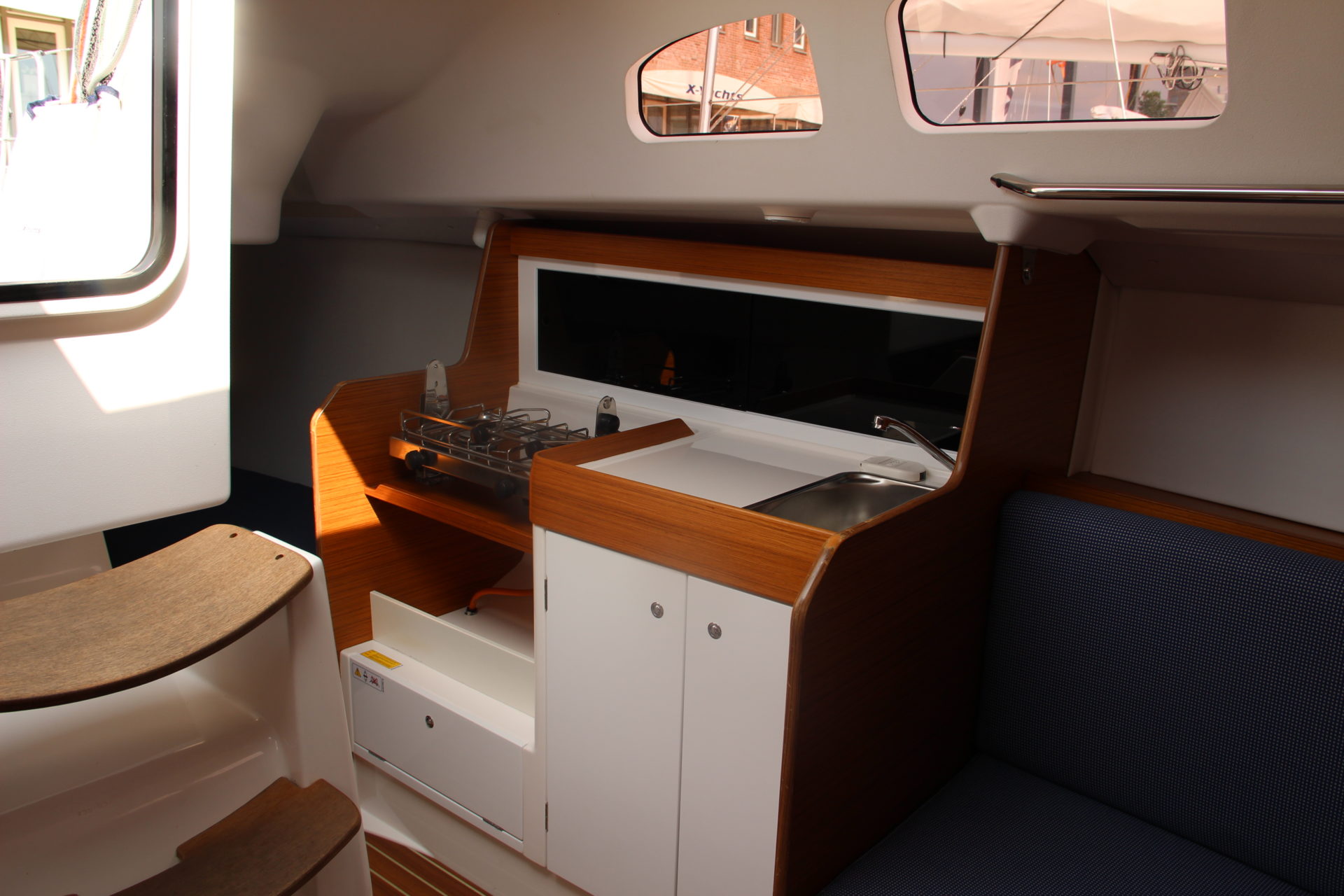

  • Galley
  • Galley, high gloss white composite moulding with stainless steel sink and single lever mixer tap
  • Integrated space/shelves for crockery/pot/pan in the front of the galley
  • Top cupboard outboard with smoke coloured 5 mm sliding Plexi doors
  • Gimballed gas cooker - 2 Jet

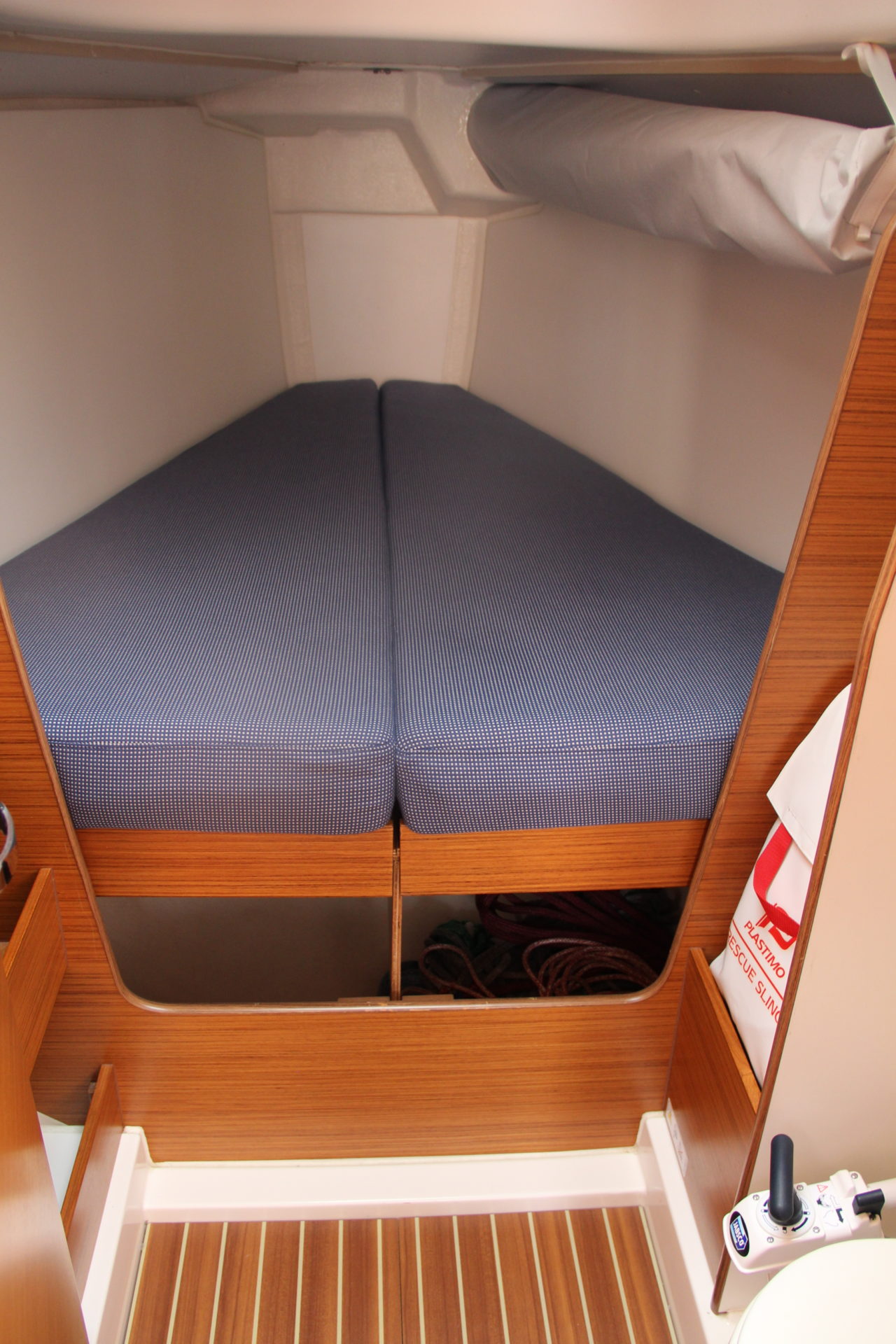

  • Fore peak cabin
  • 2 wardrobes, one for hangers, one with shelves
  • Removable forepeak double berth, incl 120 mm foam mattress

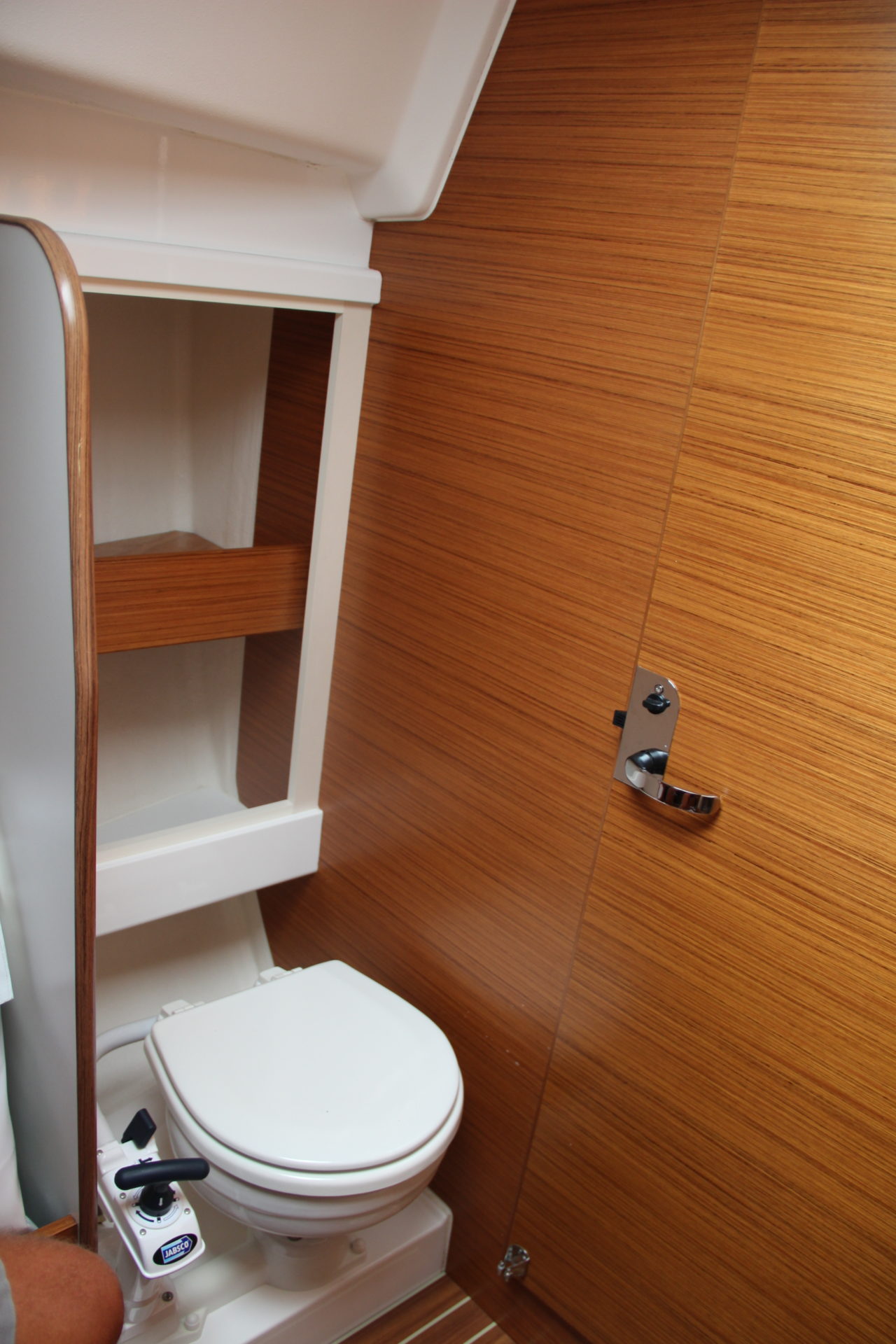

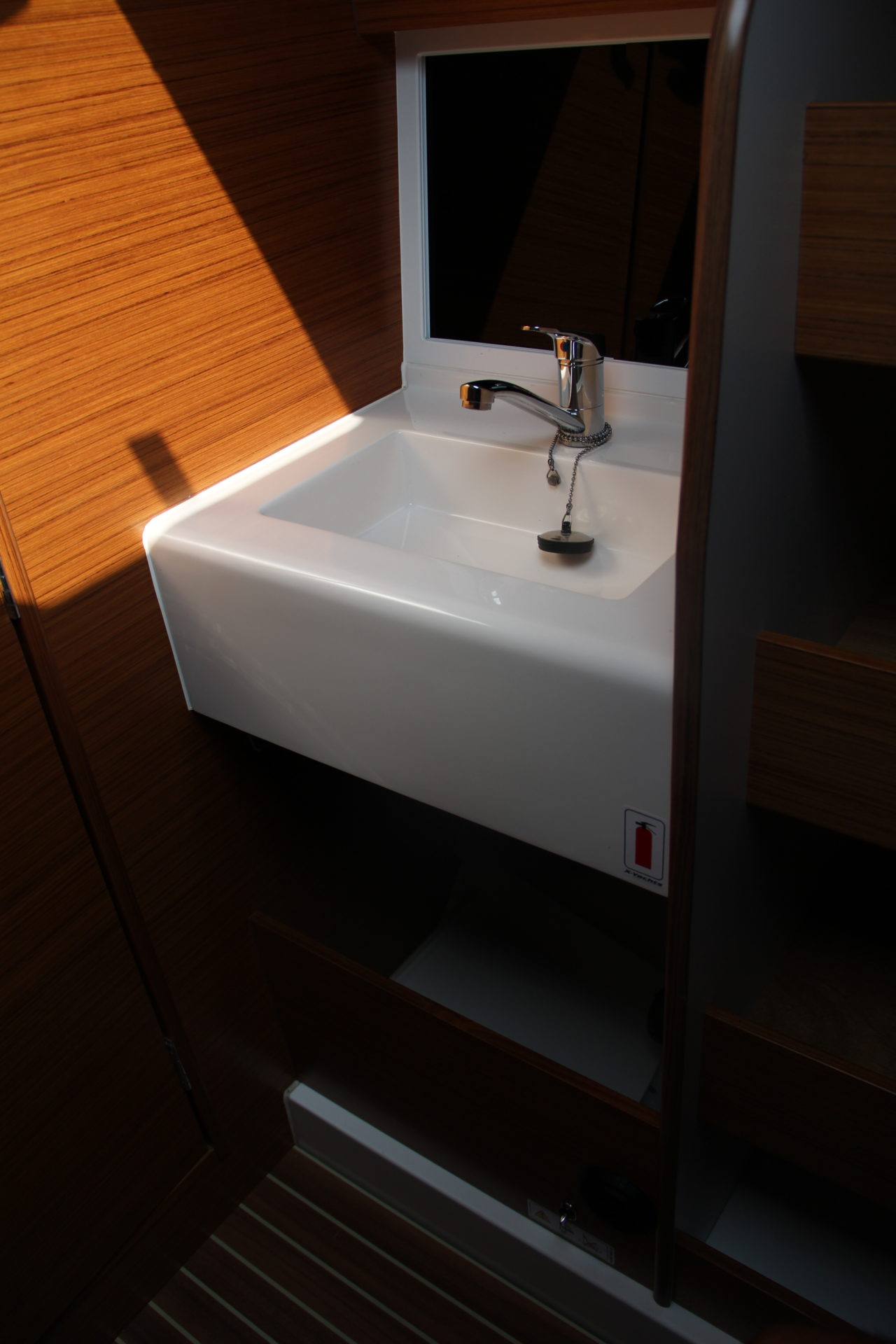

  • Head Compartment
  • Tabletop and sink in a white composite moulding
  • Mixer tap, single lever for sink
  • Towel hooks and toilet roll holder
  • Mirror above sink

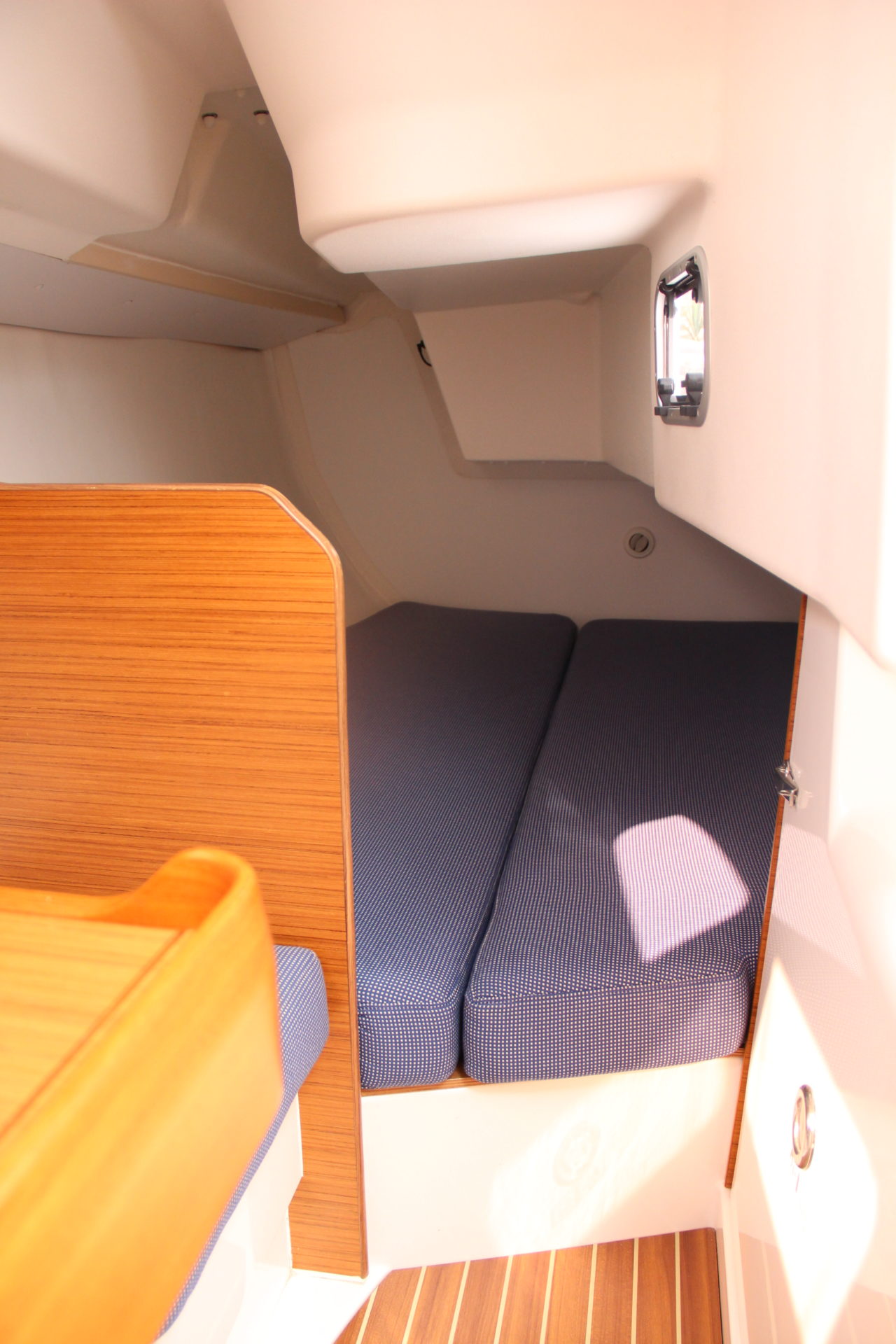

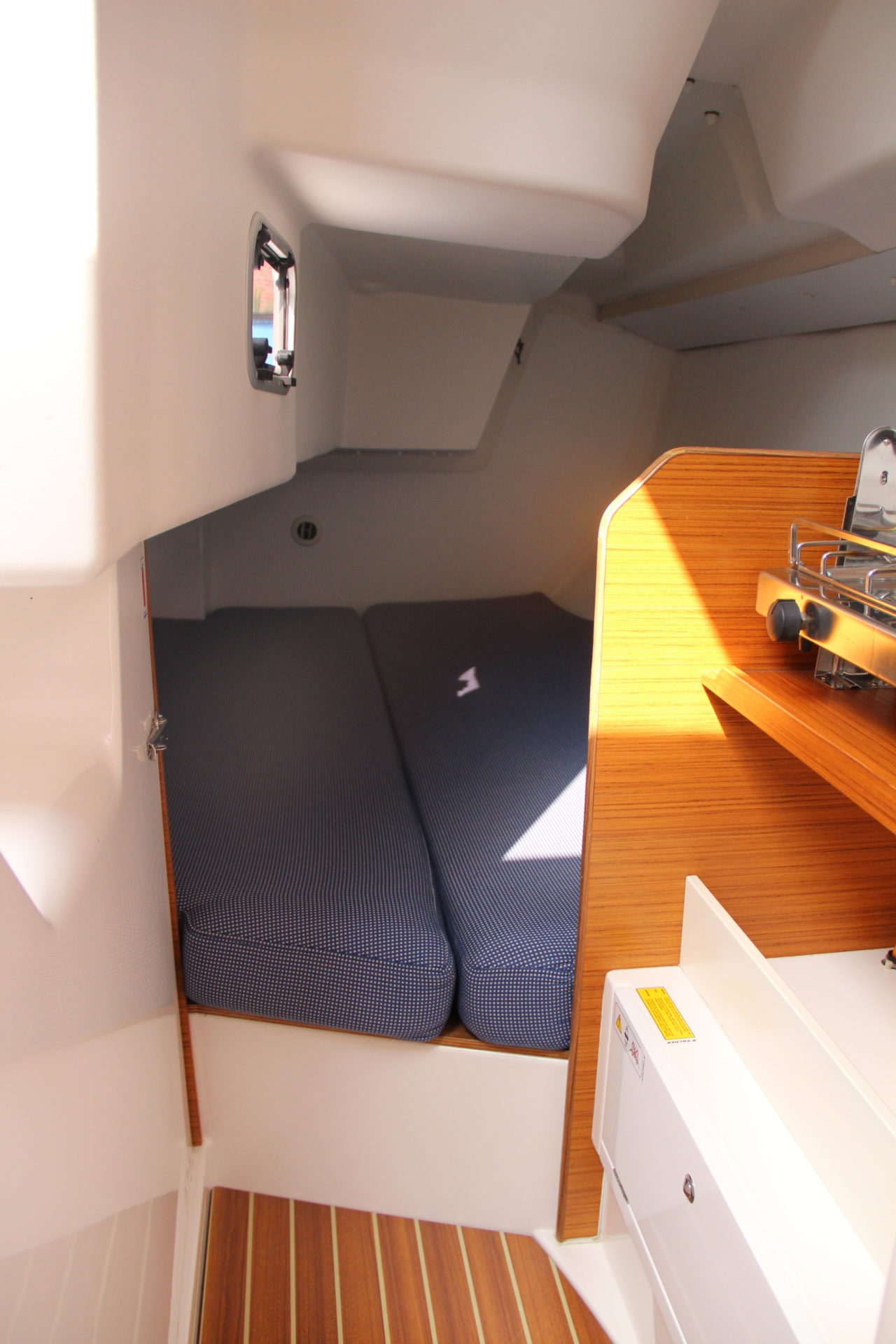

  • Aft Cabins
  • Each having a double berth with 120 mm mattresses

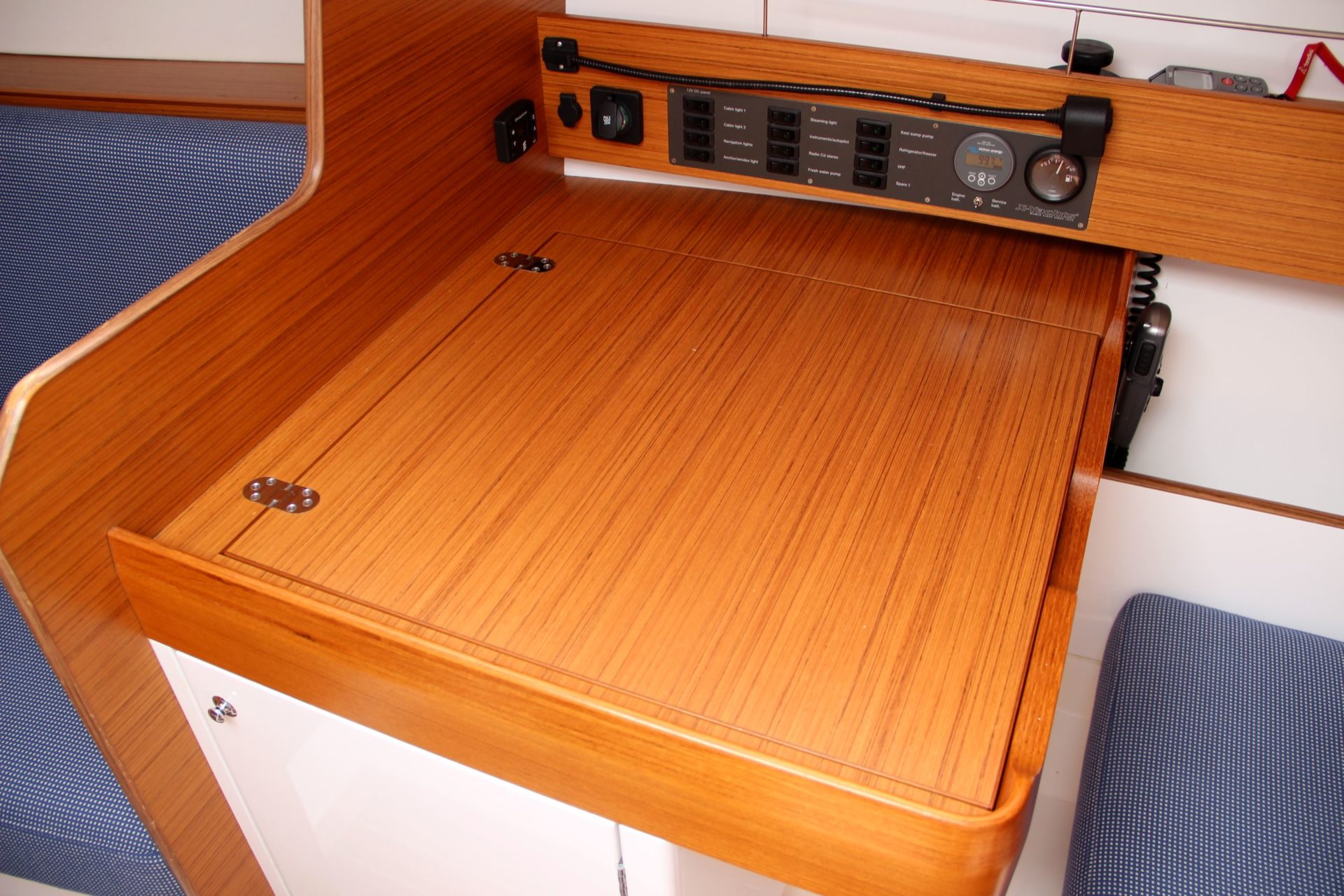

  • X-Yachts main switch board with automatic fuses and 2 analogue meters for fuel level and battery voltage level
  • AGM battery (93 Ah) securely mounted in saloon SB forward
  • AGM engine battery (70 Ah)
  • Shore power connection with 15A charger
  • Additional 12V socket at nav station
  • Victron battery monitor at nav station

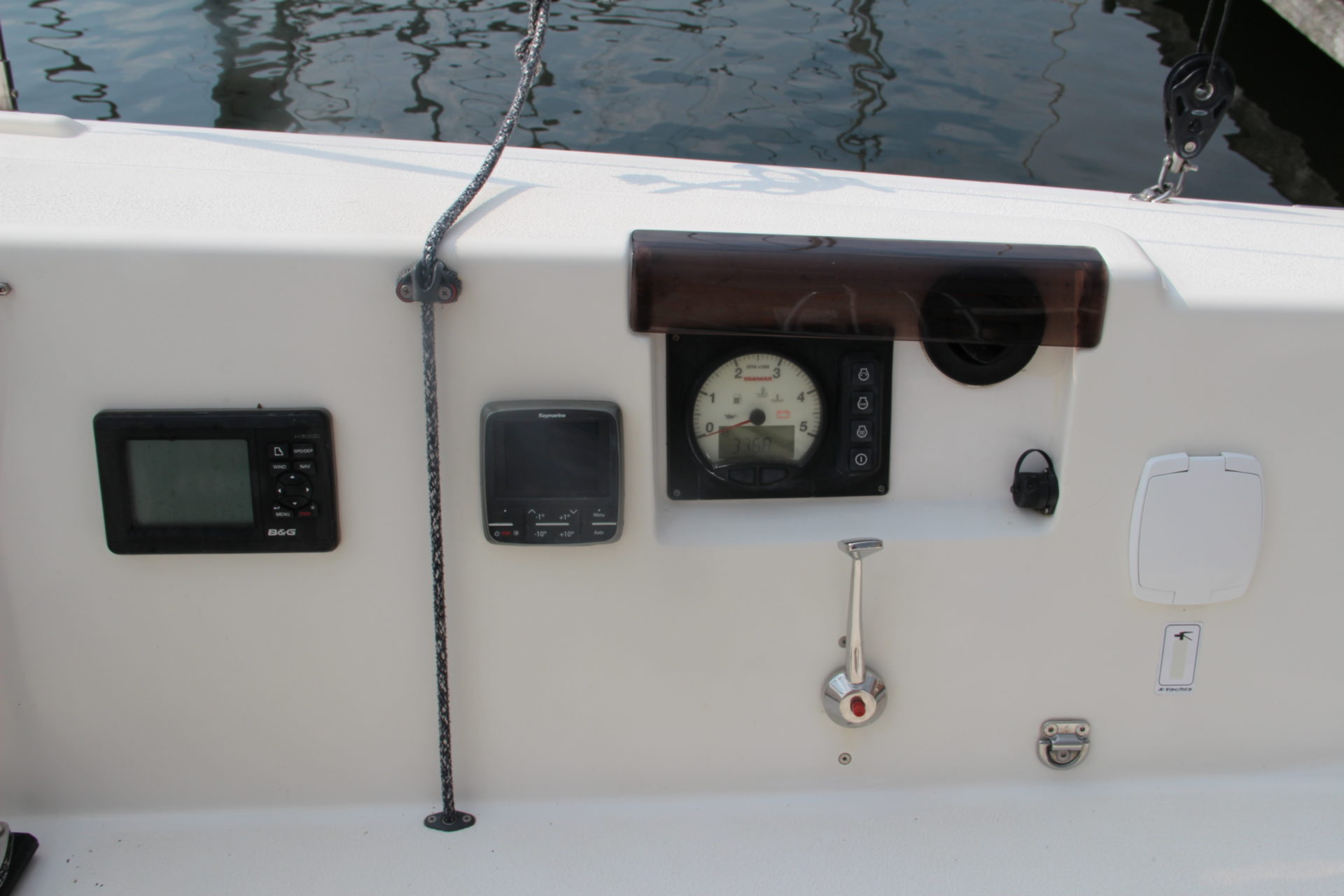

  • B&G H3000 base instrument package with:
  • Hydra CPU

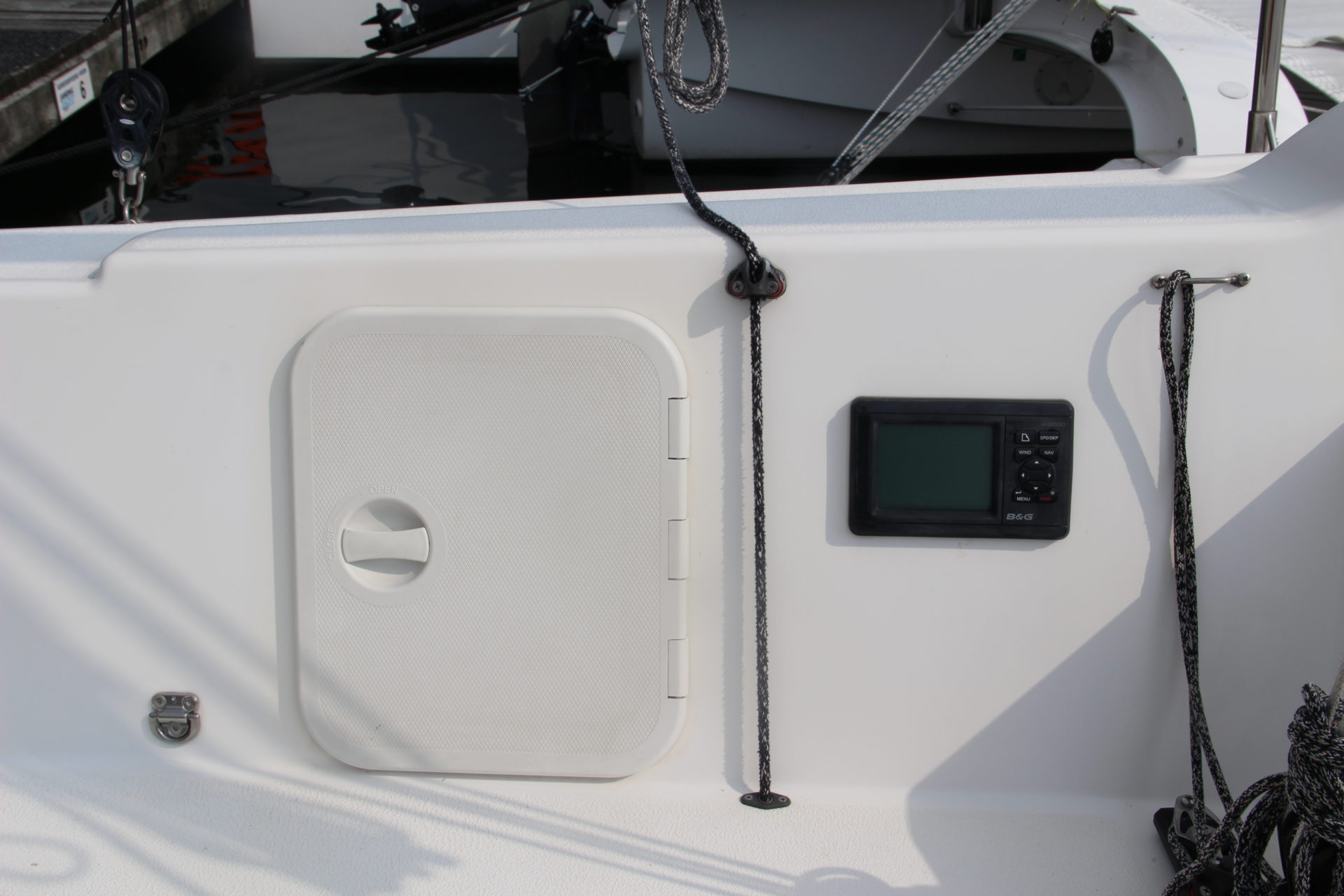

  • 2x GFD display mounted in side of cockpit
  • hull transducers for speed and depth
  • vertical wind transducer
  • Halcyon 2000 electronic compass
  • GPS antenna

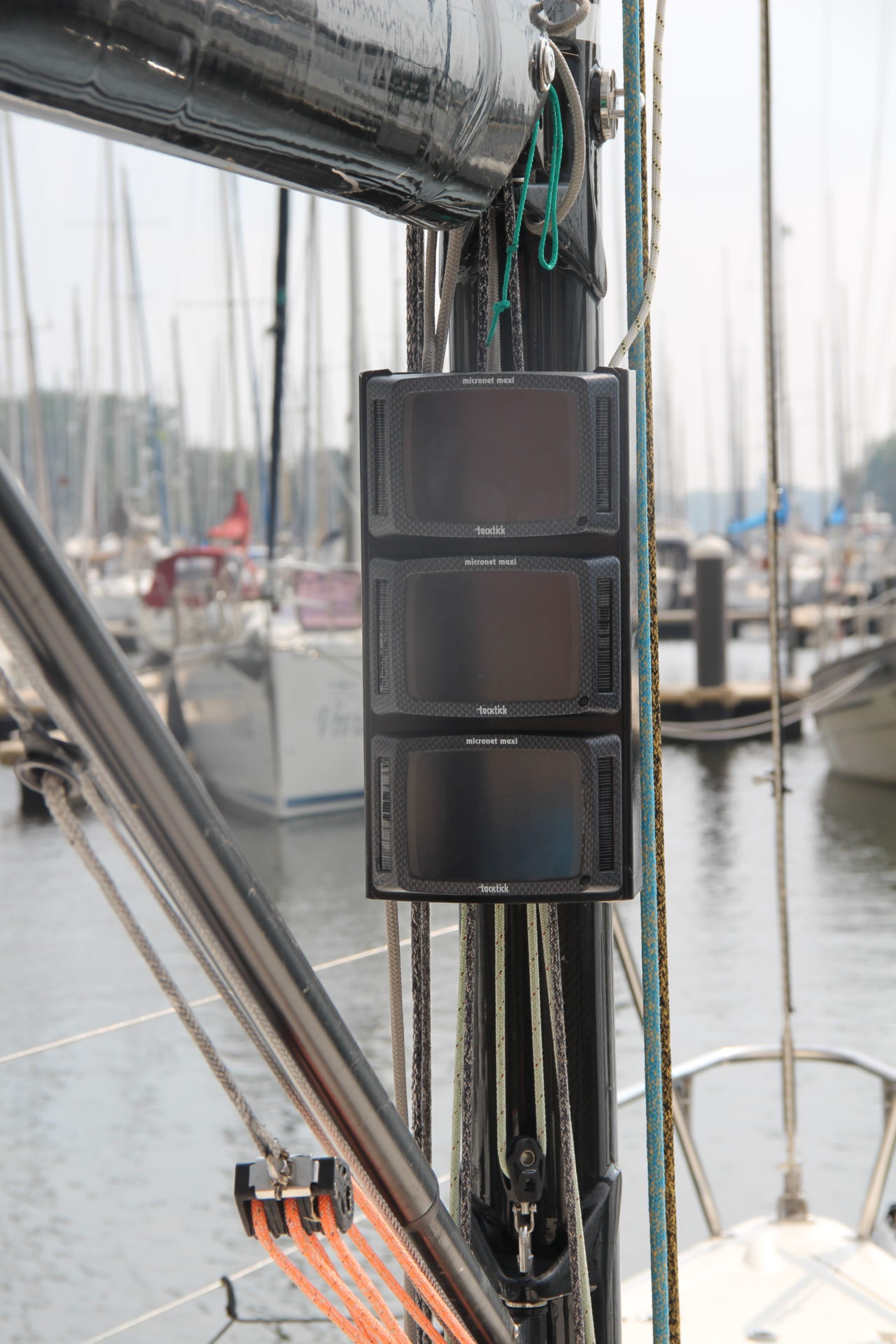

  • In bracket at mast:
  • 3x TackTick display
  • Separate remote control (with display) for the TackTick system
  • In cockpit:
  • Raymarine EV-200 autopilot, with p70 display and below-deck drive
  • Magnetic compass Silva 70P below companionway
  • At nav station:
  • Garmin 300i VHF with integrated AIS receiver
  • ShipModul multiplexer to connect an iPad to the instruments and AIS

Additional Information

  • Fortress anchor in bag
