Details

Exterior Details

Hull

• Construction Sandwich vinylester in infusion.
• Monolytic stratification around the keel, rudder and saildrive
• Hull color white RAL 9010 3 waterline in blue RAL 5011
• Rudder in sandwich construction with structural foam core.
• Aluminum rudder stock with welded comb for added rigidity and safety
• Wick mounted on self-aligning needle bearings to minimize friction
• Composite tiller with stick

Deck

• Polyester sandwich construction, structural foam core
• Plain and biaxial E-glass fabrics deposited for an optimization of the solidity
• Deck covered with white Gelcoat (RAL 9010)
• Molded deck and cockpit locker covers for a high quality surface finish
• Bulwark integrated into the hull-deck junction offering a safe foothold and a comfortable recall position
• Anchor locker with drains
• Gas compartment for 2 bottles of 2 kg, evacuation to the sea
• Space for life raft in aft cockpit floor
• Two cockpit lockers near the helm
• 4 sheet and halyard storage bags
• Wichard survival knife on the bar
• Navigation compass
• Custom aluminum helmsman footrests
• Return of the following settings to the helm stand:
• - Backstay tackles
• - Mainsail trolley
• - Mainsail end hoist
• Returned the following settings :
• - Spinnaker pole vang
• - Genoese tanks
• - Spinnaker barbers
• Dyneema sheathed Dyneema rear lifelines with carabiners
• Storage bag on rear lifelines
• Automatic crown buoy
• 2 waterproofs enclosure

Sail Handling

• Harken Performa 40.2 PTP genoa sheet winches or similar (x2)
• Harken Performa 40.2 STP halyard winches, self-tailing or similar (x2)
• Mysplice performance preparation
• Solo and full crew offshore regatta equipment including:
• Genoa tucks and spreaders
• Full spinnaker rigging
• Complete Code 0 Rig
• Spinnaker barbers
• Barton composite boom vang
• Tylaska carabiners
• Karver and Harken hardware
• Carbon bowsprit with Dyneema underbarb and spinnaker tack and Code 0
• Facnor Code 0 hook integrated in the mast
• Dyneema-sheathed Dyneema textile lifelines with crew member socks and coxswain straps
• Removable stainless steel mooring roller + complete cruise mooring
• Cousin Constrictor Blockers
• 2 Harken winch handles
• 1 short winch handle for use under the hoo

Sails

• Cruise Pack :
• - Mainsail Dacron All Purpose
• - Genoa with vertical battens genoa on furler All Purpose 2020 and sock + bag
• - Code 0 laminate with Karver KF1 furler and bag
• Regatta pack:
• -Mainsail Alta Sails 2020 (Excellent condition, participation in only 2 regatta "tour des ports de la
• manche") Taffeta membrane
• -Solent Alta Sails 2020 (same like mainsail)
• membrane
• -Spinnaker Max "Voilerie Granvillaise" 2019

Mast & Rigging

• Matt Axxon carbon white
• 2 spinnaker halyards, 1 topping lift / genoa, 1 genoa, 1 Code 0 hooked, 1 Mainsail
• Lazy jacks
• Soromap racing boom painted white
• 1 reef
• 1 border with tackle in the boom
• Lateral guying Rod
• Forestay Dyform (2020)
• Facnor racing retractable profile racing reel (2020)
• Backstay Dyneema SK99 (2022) + hoist
• Sparcraft carbon pol

Keel

• Standard 1.90 m “T” keel
• Cast iron keel fin and antimony hardened lead bulb
• Bolted keel on carbon reinforced fram

Systems

Engine

• 20 HP 3-cylinder Yanmar engine, seawater/freshwater heat exchanger cooling, Sail-drive transmission
• Engine compartment with special sound insulation
• Easy engine access by removing the engine cover
• 2-blade bronze folding propeller
• Control panel and gas handle on starboard cockpit coaming
• Aluminum diesel tank, analog gauge, separator filter, shut-off valve and deck fille

Electrical

• Mastervolt converter 12/220
• Dock socket
• Fusion car radio

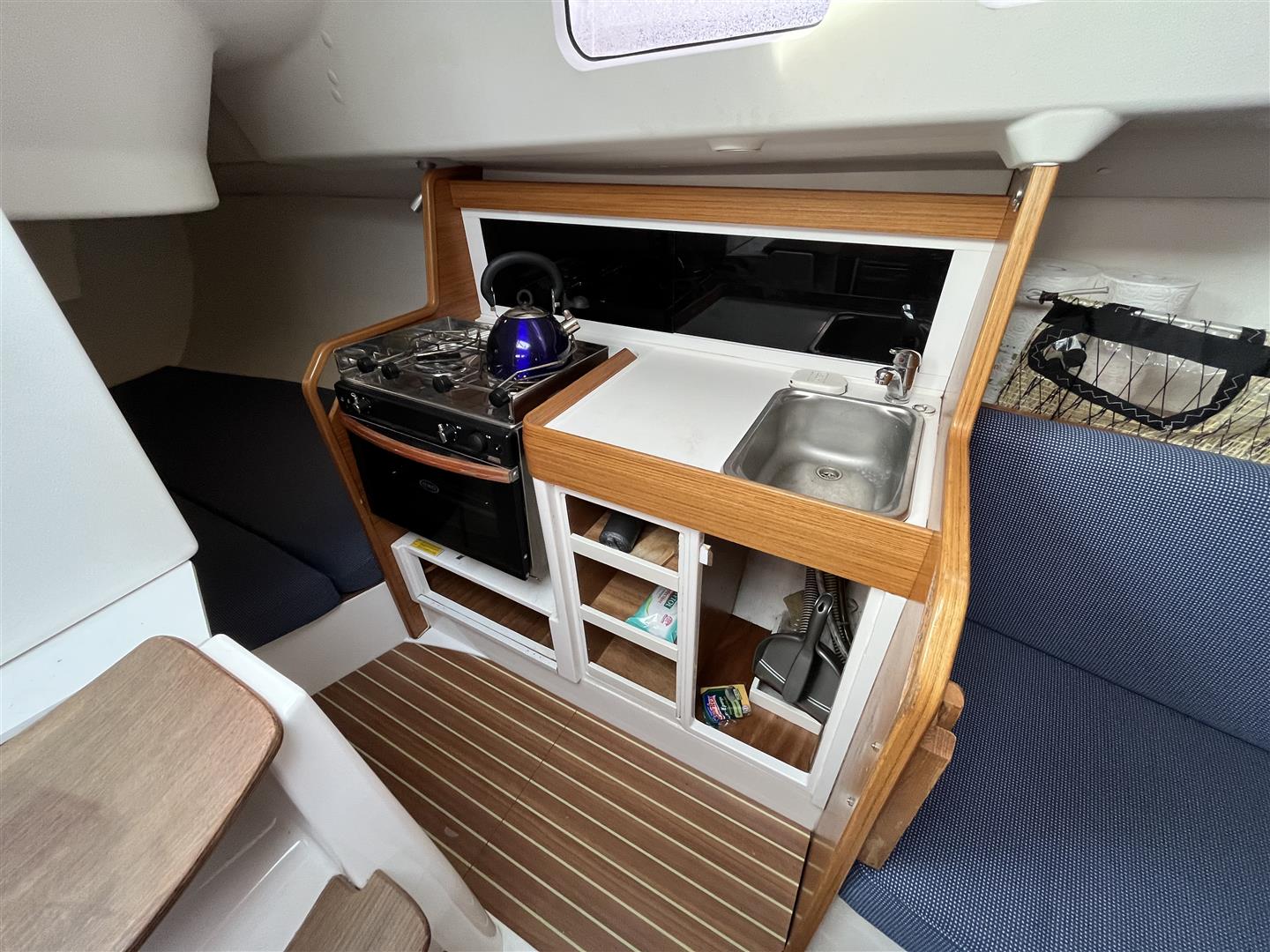

• Gas cooker 2 burners on gimbals + oven
• Waeco COOLMATIC CR 50 Refrigerator

Electronics

• Mast foot support with 3 displays
• Raymarine GPS screen in cockpit
• Masthead elements (Anemometer vane)
• DST 800 analog depth/speed/temperature transducer
• iTC 5 sensor converter
• nmea interface/PC output E8501
• E22158 converter (seatalk network)
• VHF
• Raymarine autopilot with linear actuator and P70* control box
• New Raymarine pilot order (July 2022)
• AIS transmitter and receiver
• Optional computer: Surface Pro 4 with MaxSea Time Zero + 12 V cigarette lighter power supply +
• Protective case and Velcro for fixing chart table = 750 €

Thrusters

• Security equipment 6 Pers (raft in bag, automatic vests, compulsory armament etc…)
• Set of mooring lines (4) and fenders (6)
