Details

Exterior Details

Hull

• Hull
• Epoxy infused White Hull, Blue stripes
• Std keel (2.10 m)
• Hull recessed portlights - Rectangular (6 pcs
• Epoxy coats + antifoulling MICRON 350

Deck

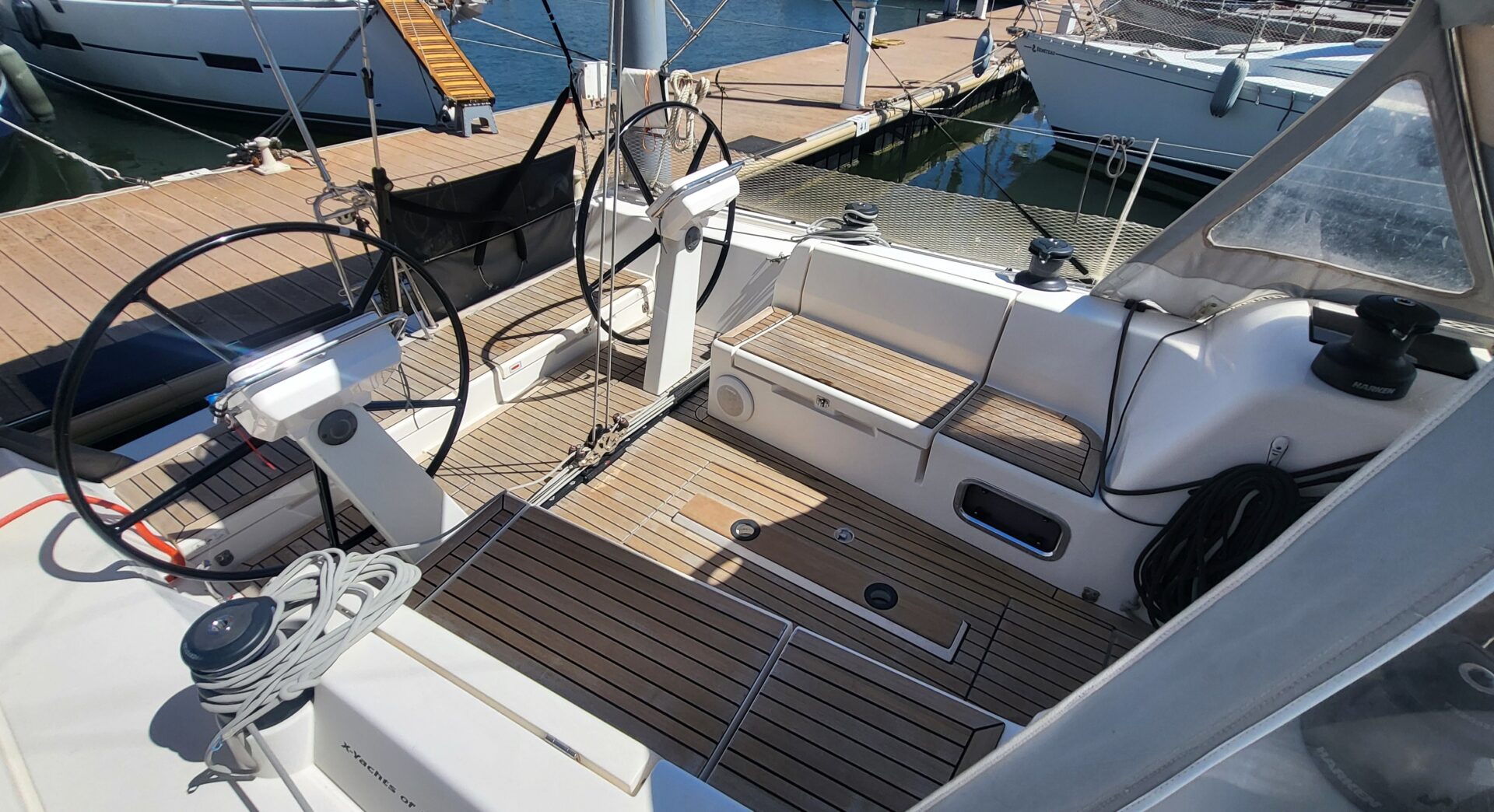

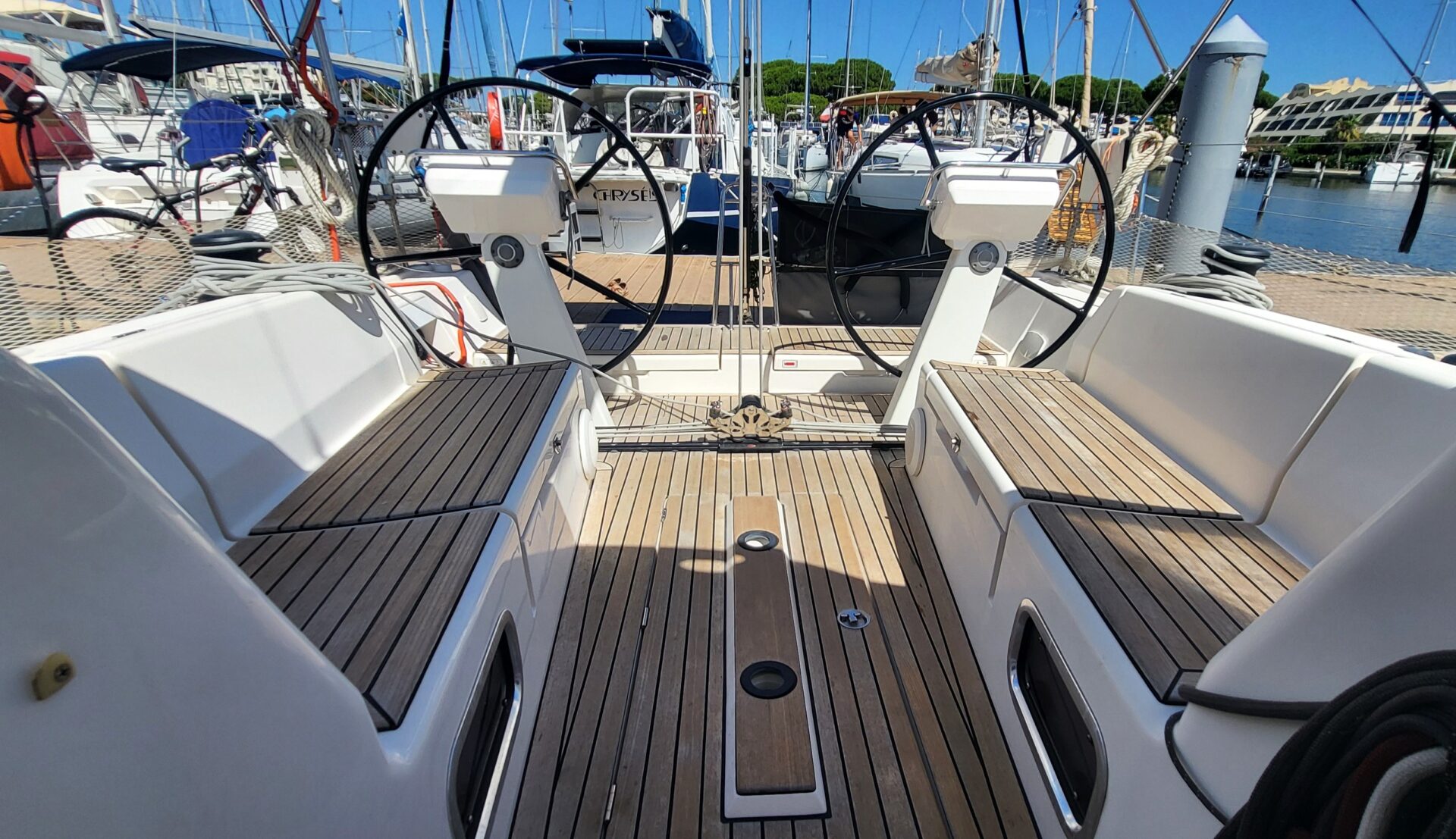

• Teak vacuum applied 9 mm on cockpit seats and floor
• Removable cockpit table concealed in cockpit floor
• Electric windlass QUICK 1000 W with SPADE anchor
• Cockpit shower
• Assymetric spinnaker hardware + inhauler and barber

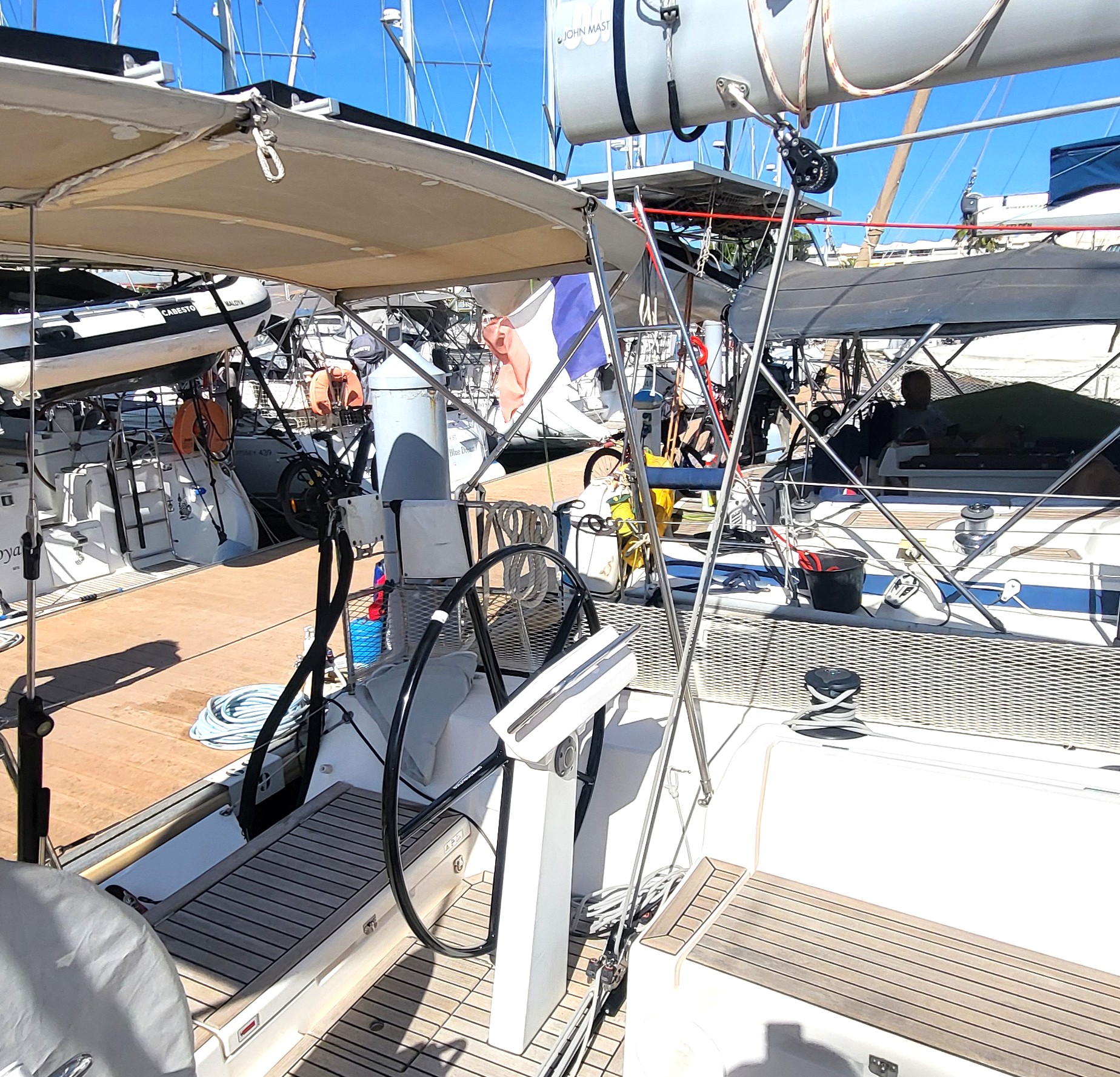

• Sprayhood on stainless steel frame
• Bimini with steel frale

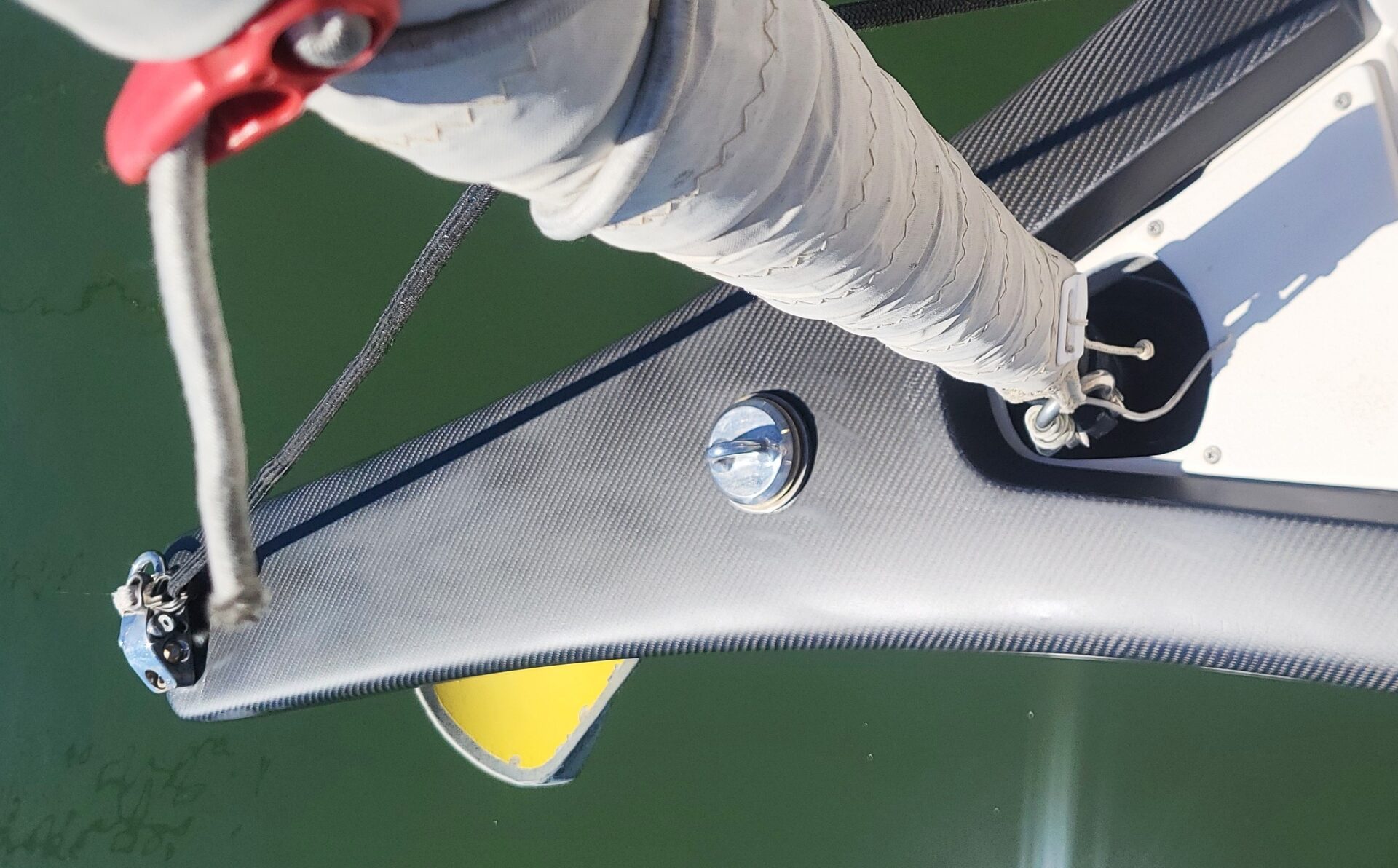

• Carbon bowsprit
• Innerstay deck fitting

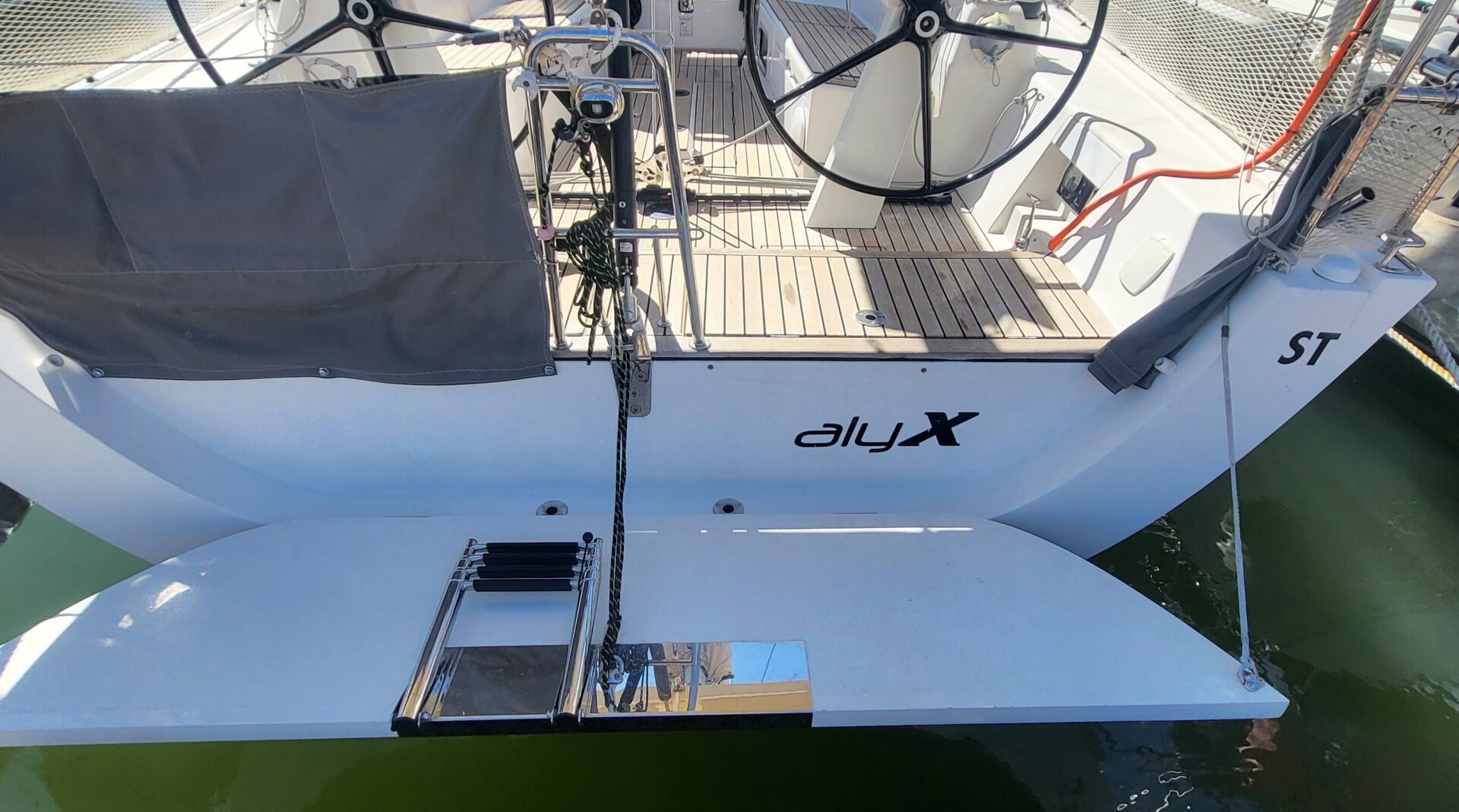

• Carbon bathing platform
• Cockpit cushions
• Console Mini with stainless steel protection

Sail Handling

• HARKEN 50.2 ST primary winches
• HARKEN 46.2 ST for Geman Mainsheet system including one electric
• HARKEN 46.2 for halyards,
• Furling forestay drum below deck.
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines and inhaulers
• Asymetric spinnaker hardware and rigging
• Hydraulic tensionner for backstay

Sails

• Main EY TRILAM 5 full batten 48 5 m2 2 reefs

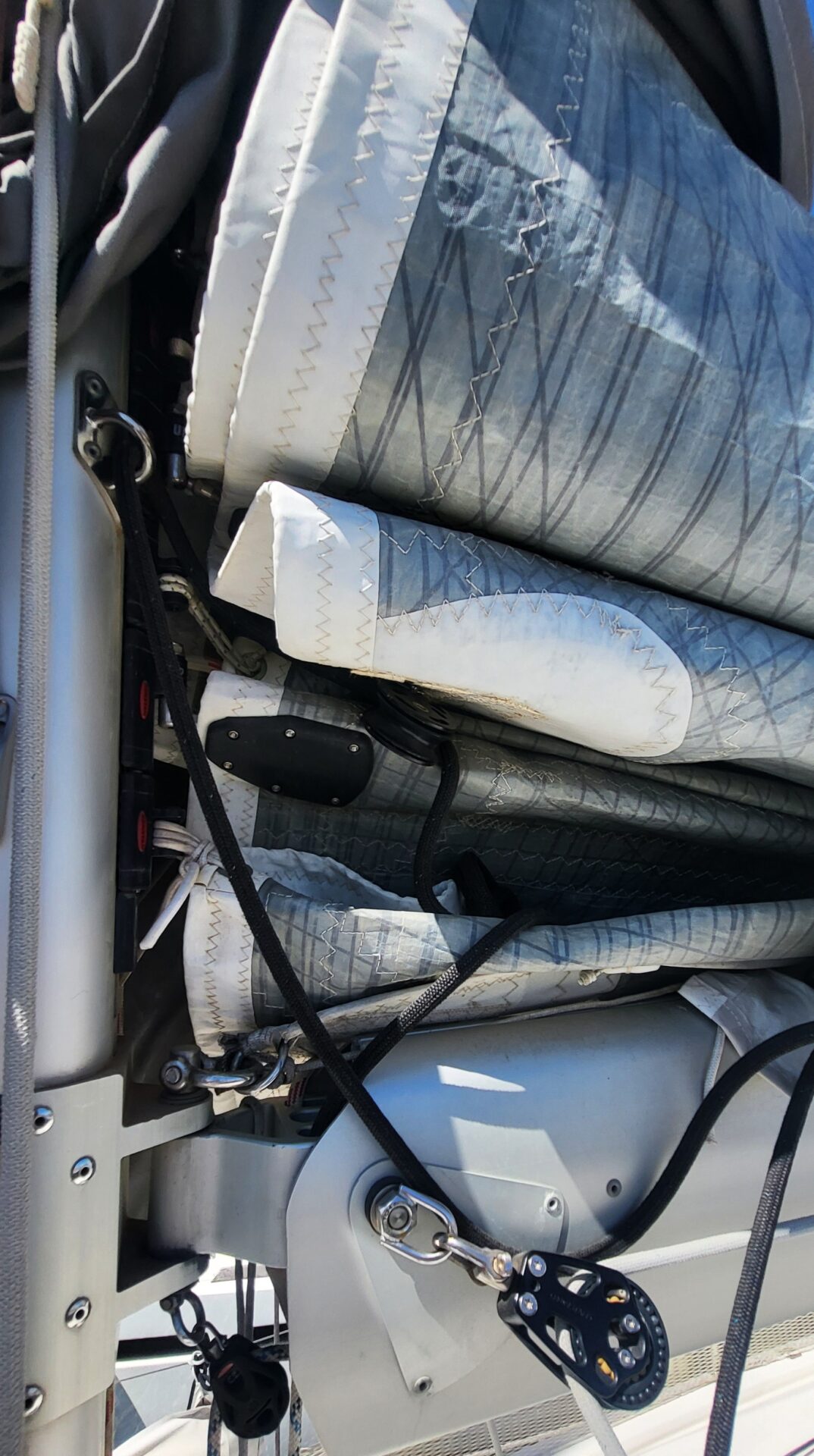

• Lazybag and lazyjack
• Furling Genoa 10 8 % EY TRILAM 4 verical battens 38.5 m2

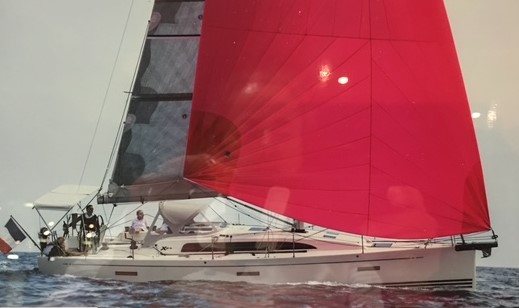

• Code E 105 m2 NYLON Pink color with furler with renforced bag
• Furling jibe

Mast & Rigging

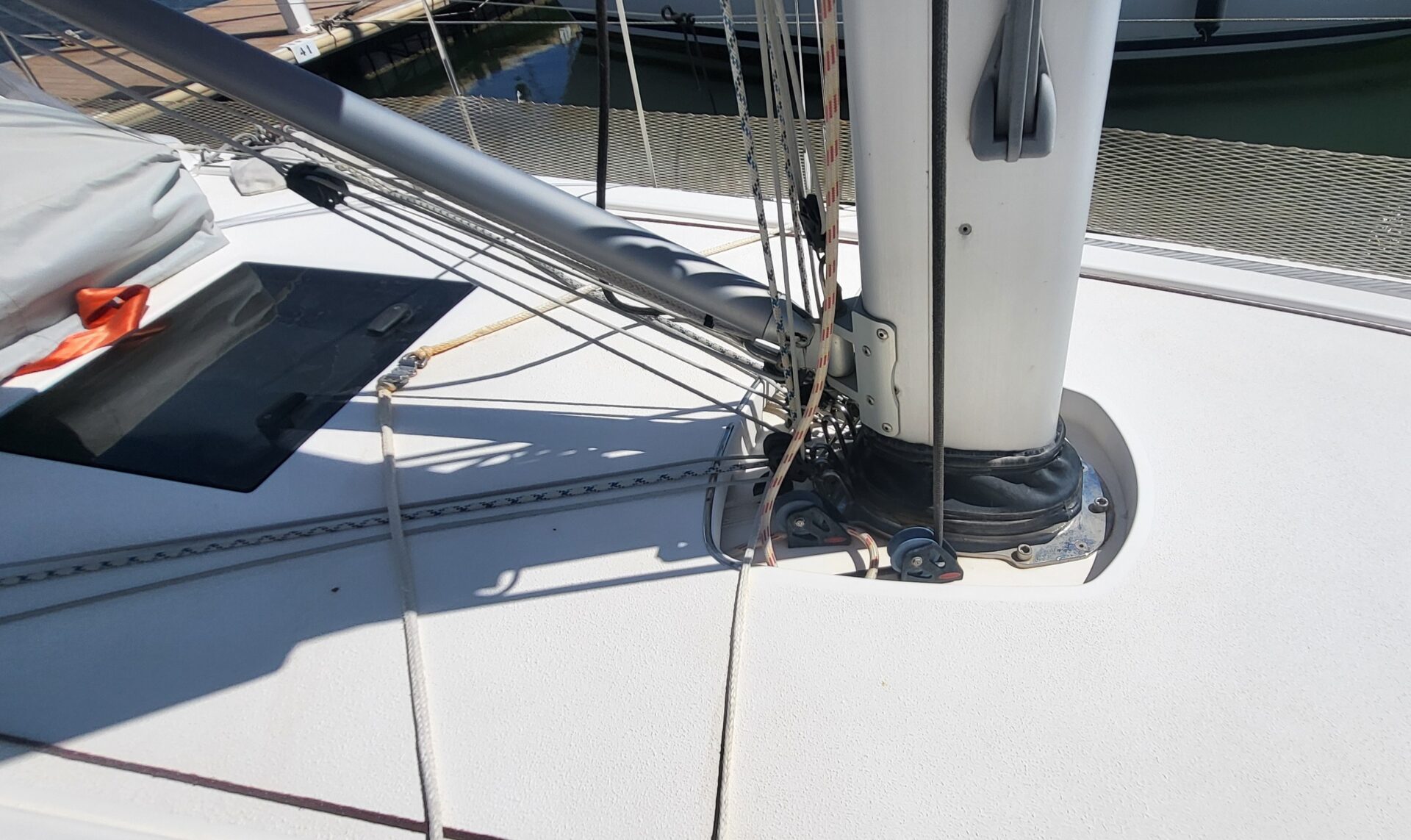

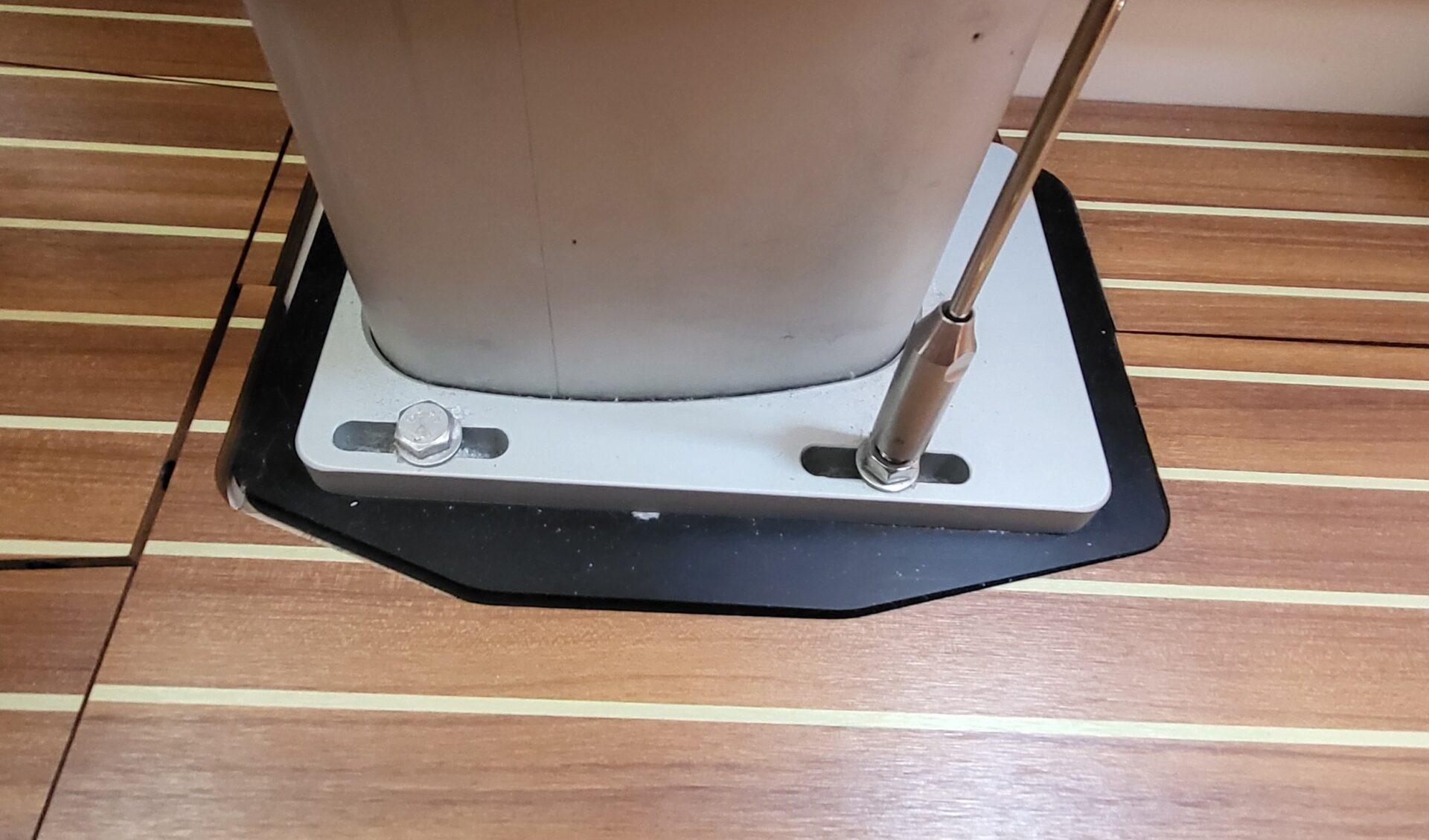

• JOHN MAST aluminium mast and boom
• Roller RONSTAN ballslide serie 6
• Rod rigging
• Rigid vang
• Furling forestay drum below deck.
• Tricolore ligtht on mast top

Keel

• Standard keel T shape with bulb 2.10 m
• Approx 2 760 kg

Accommodation

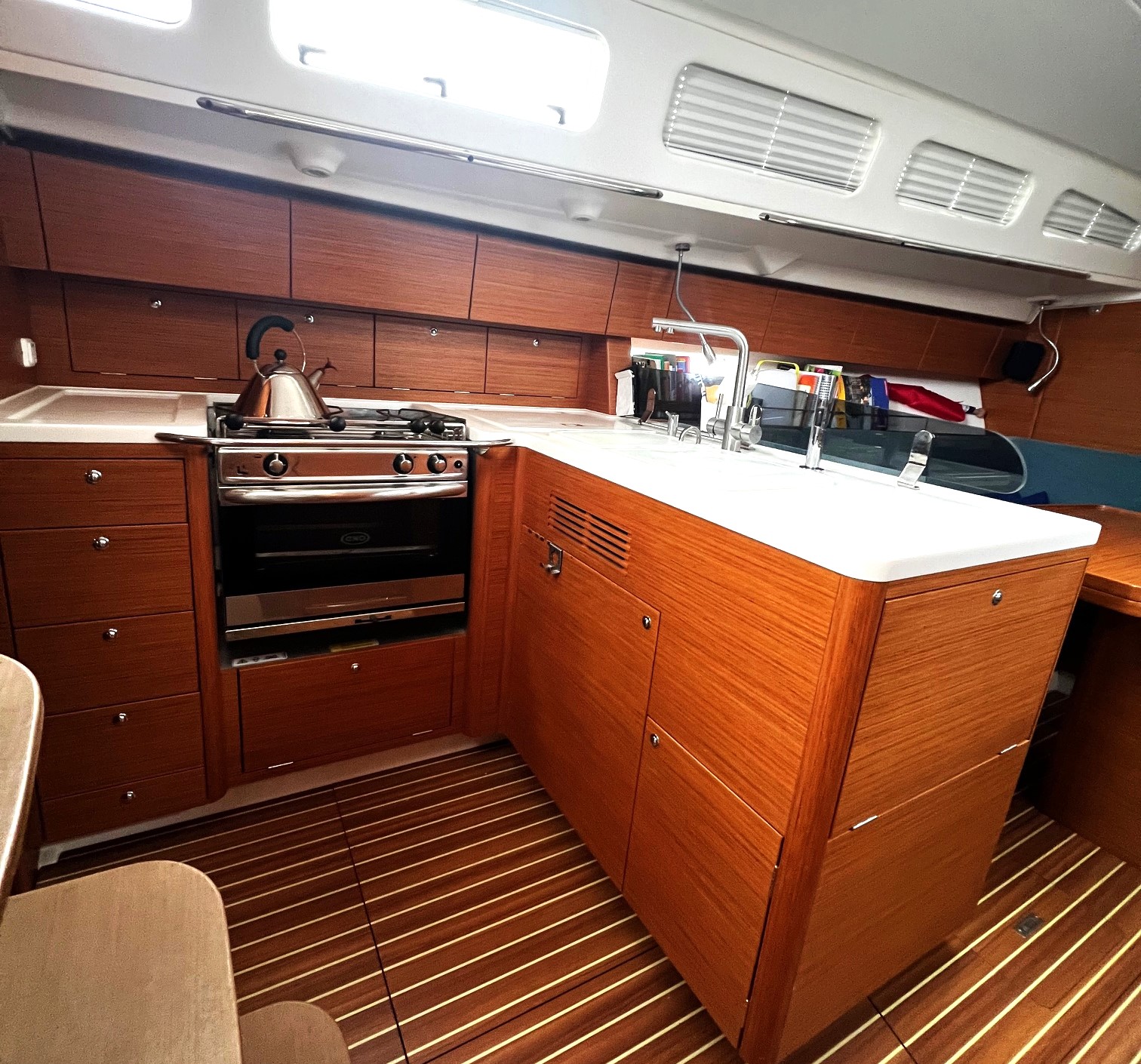

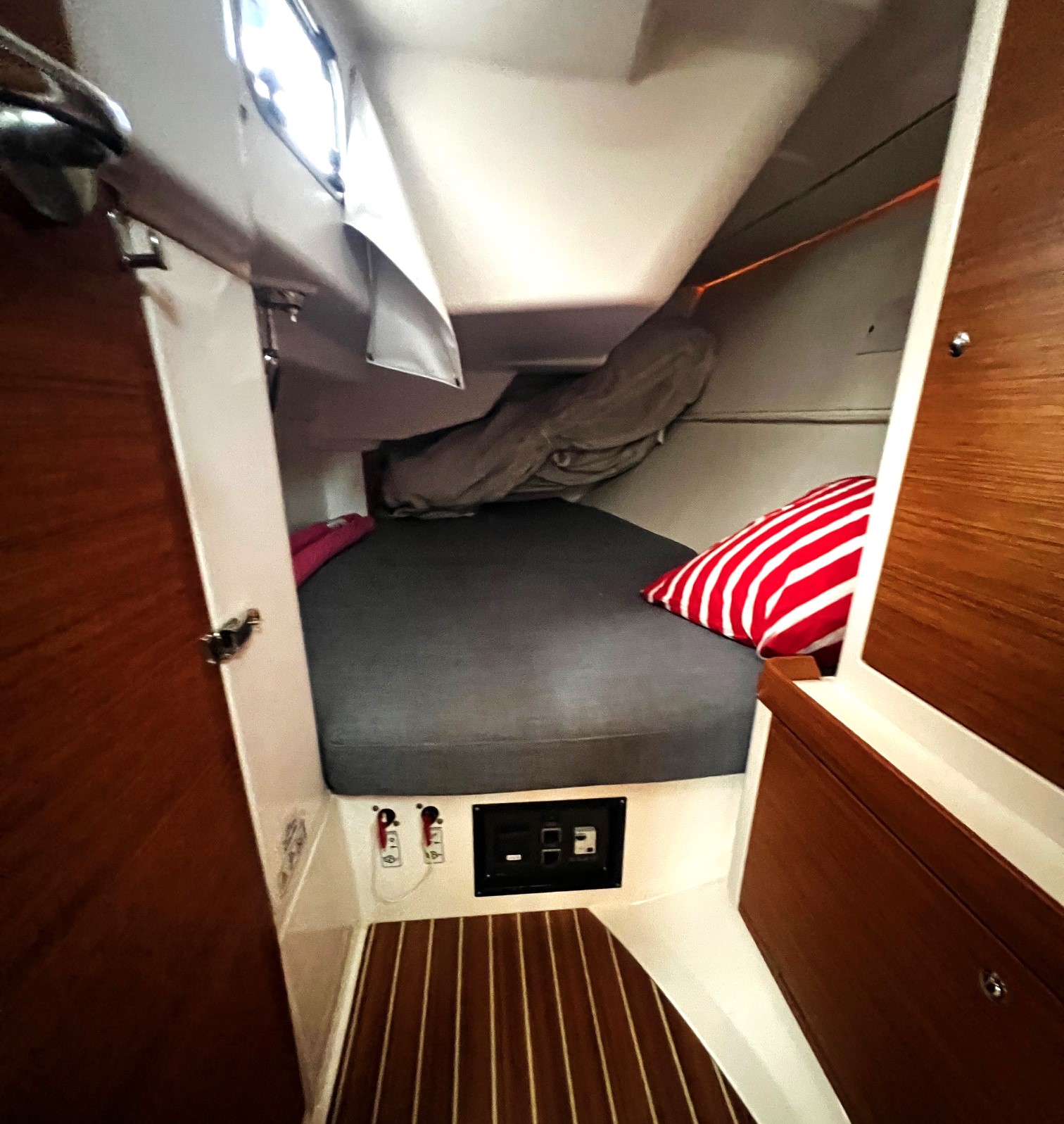

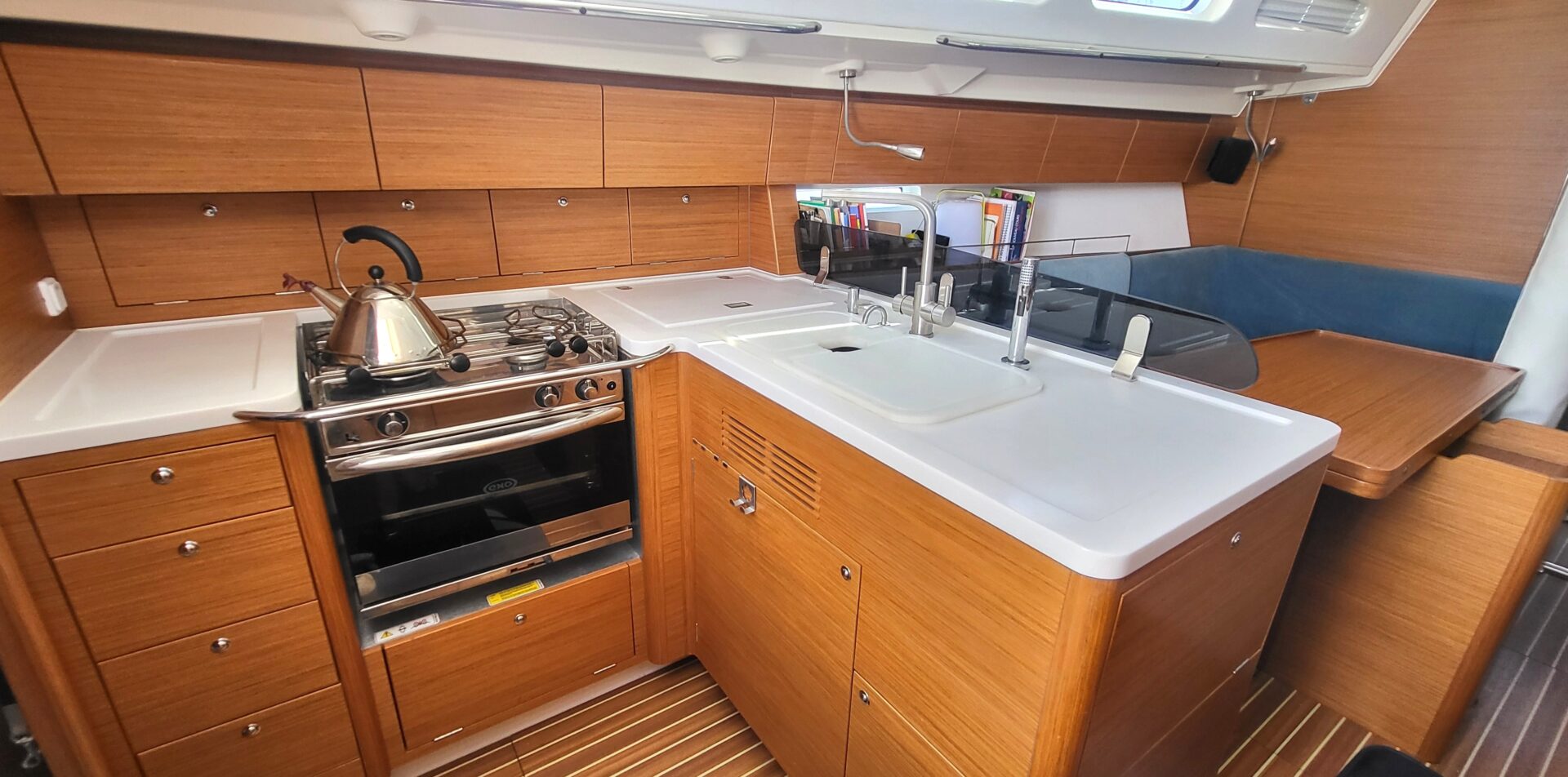

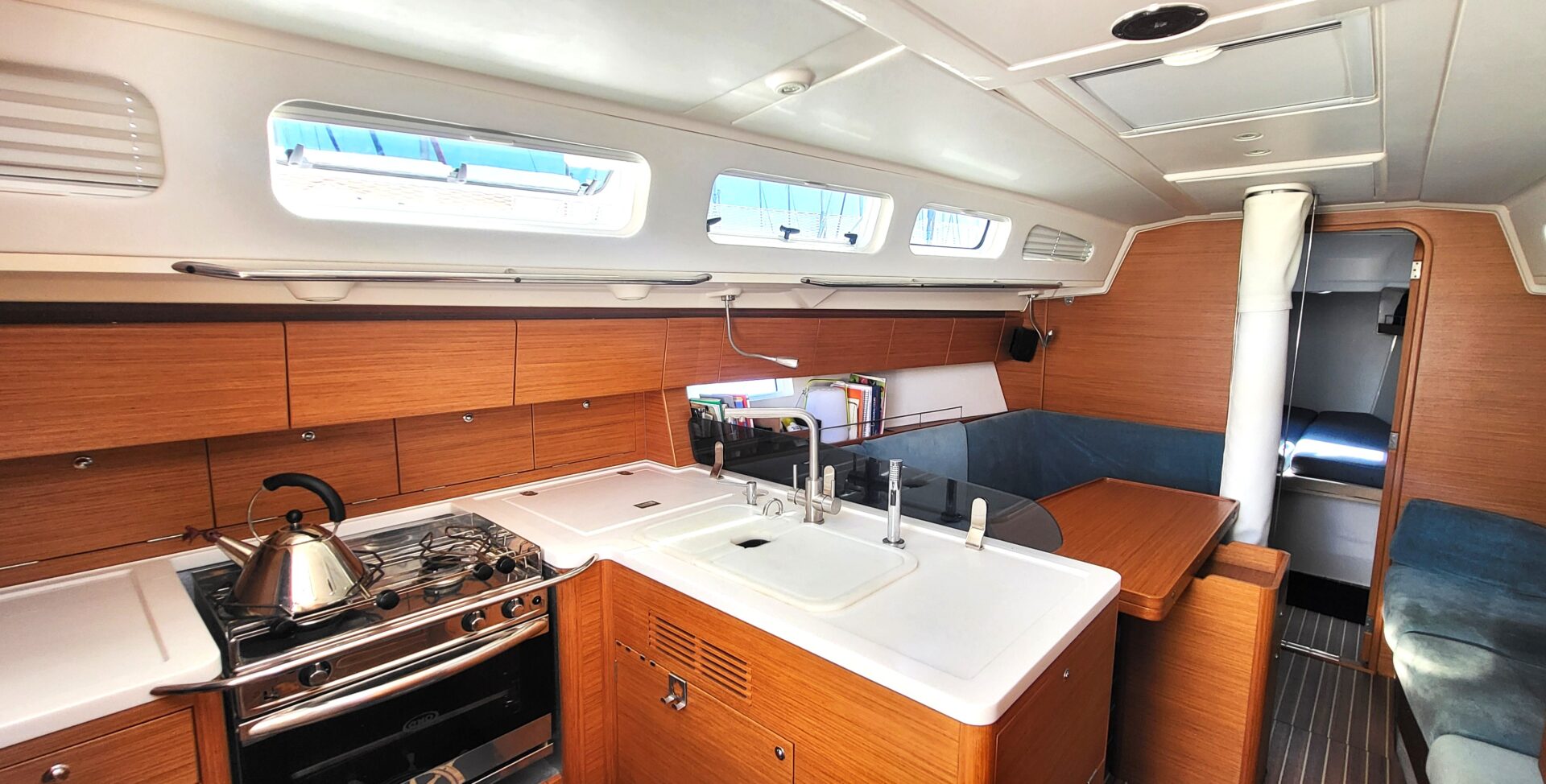

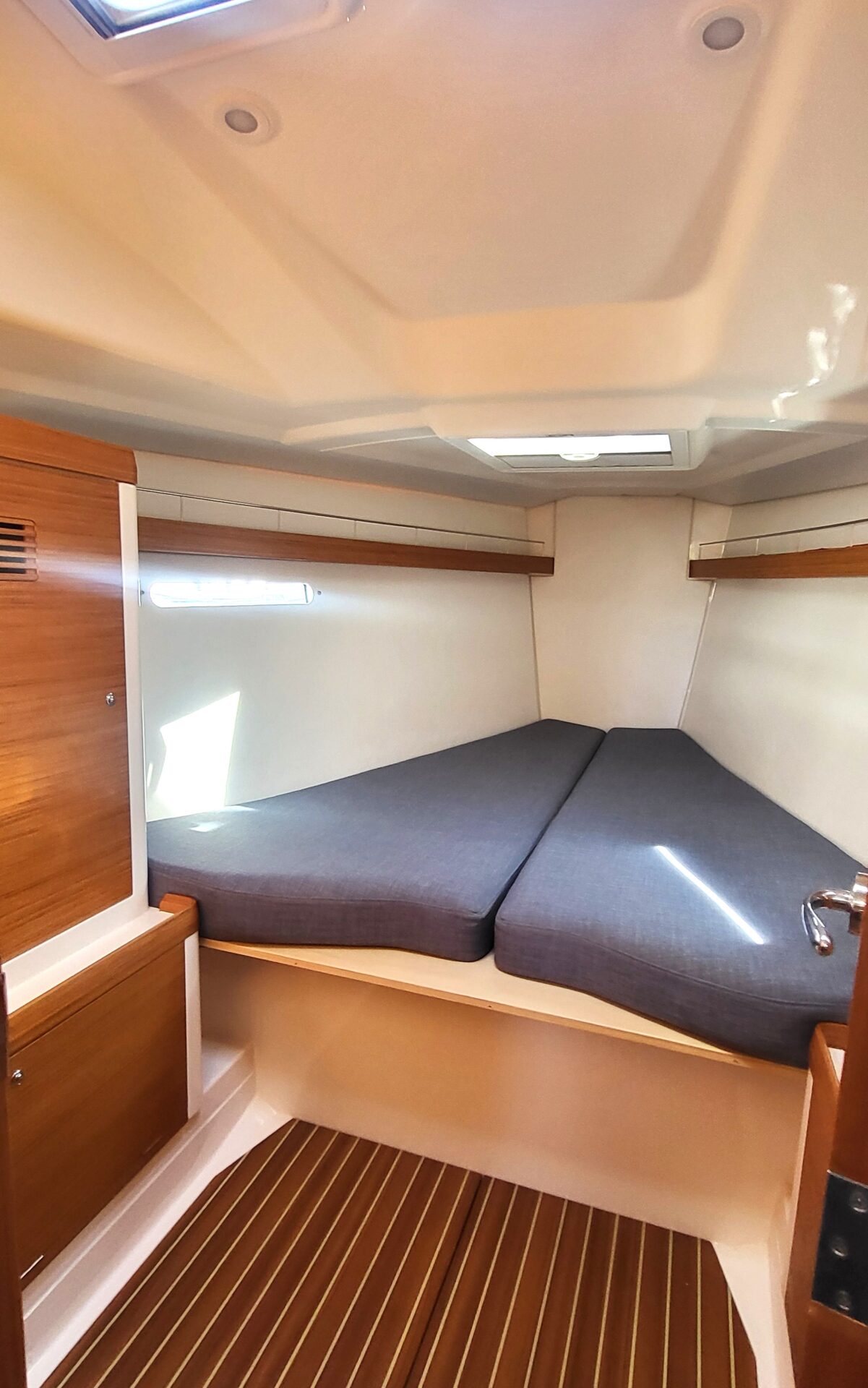

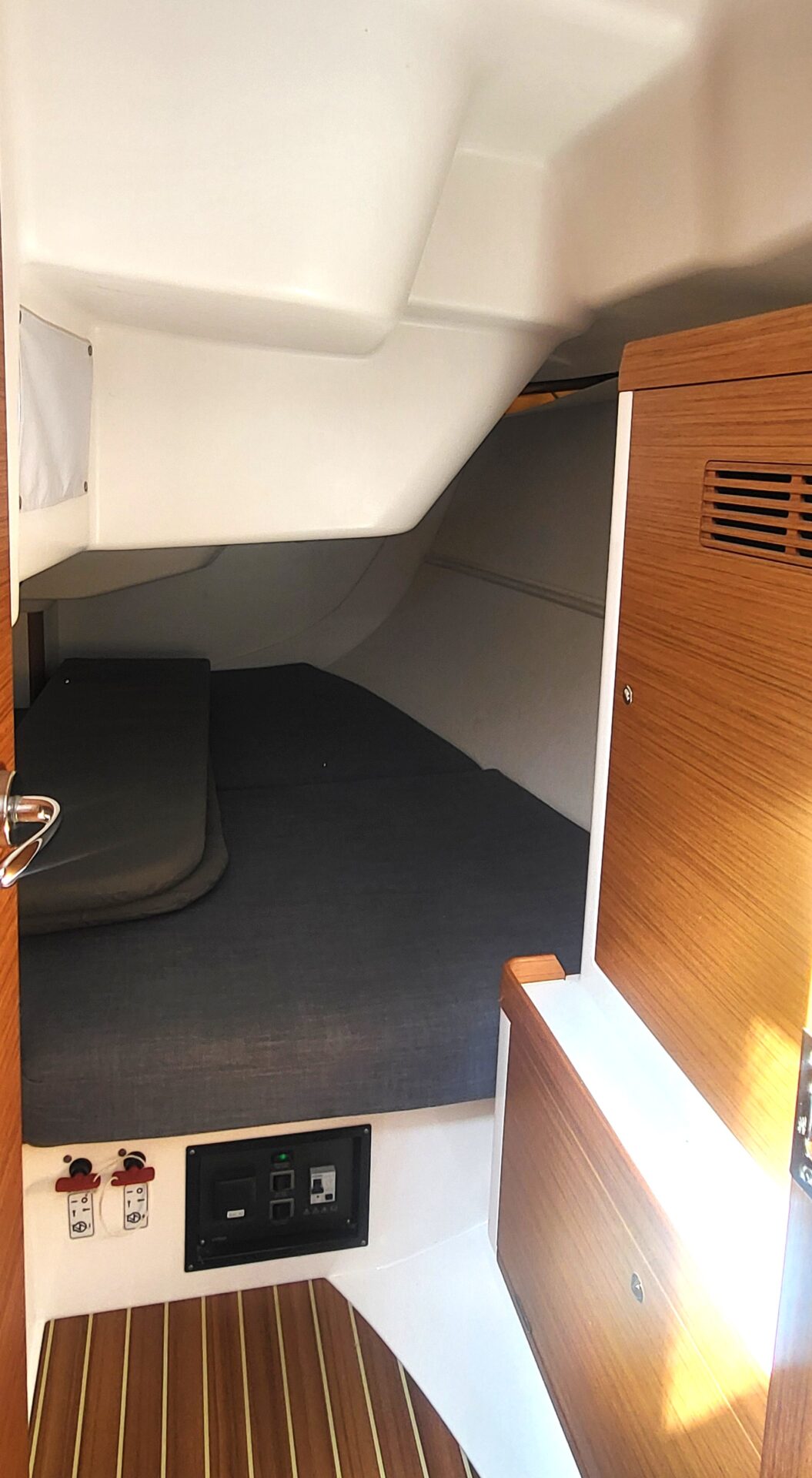

• 3 cabins, wooden galley with white Corian worktop,

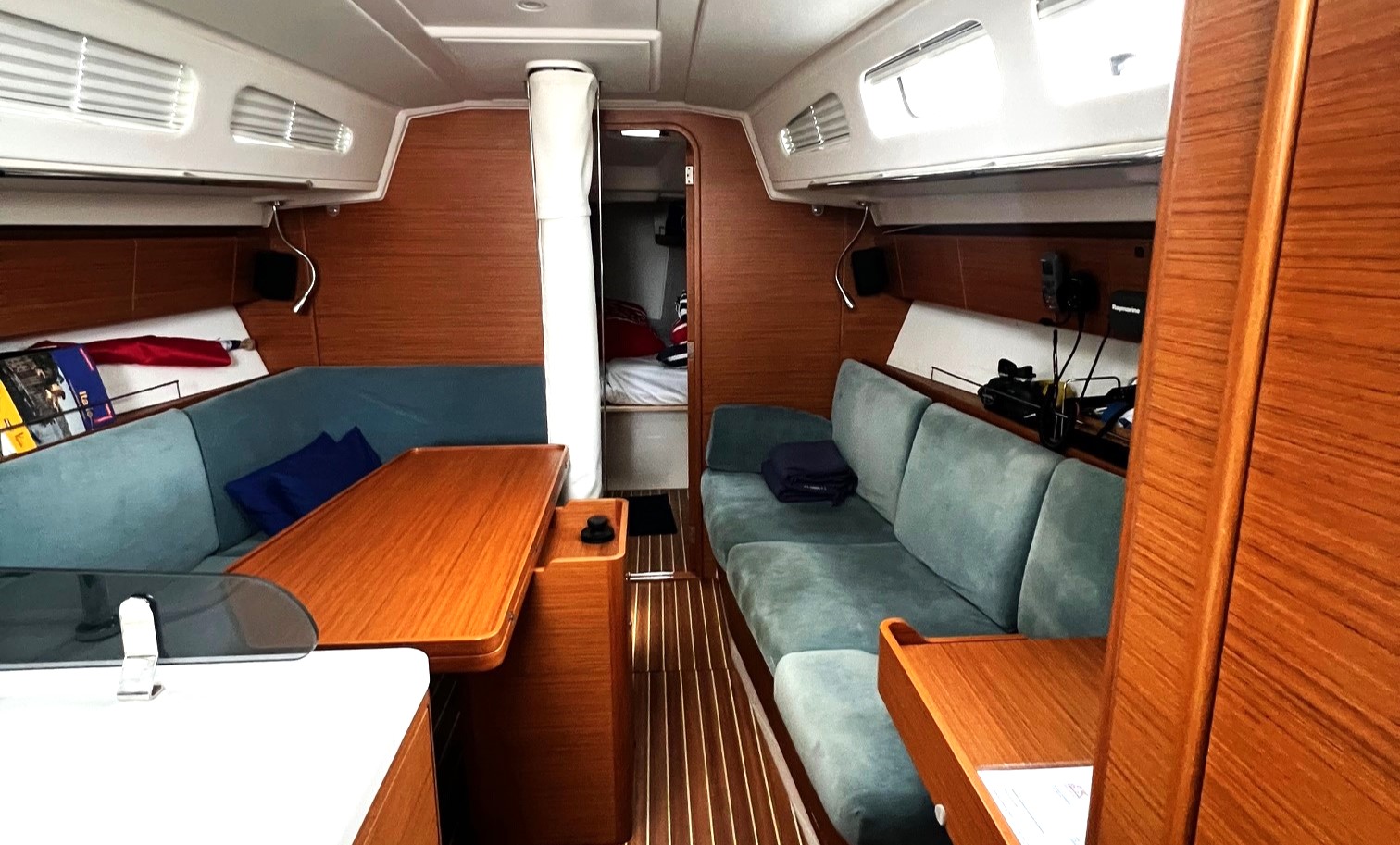

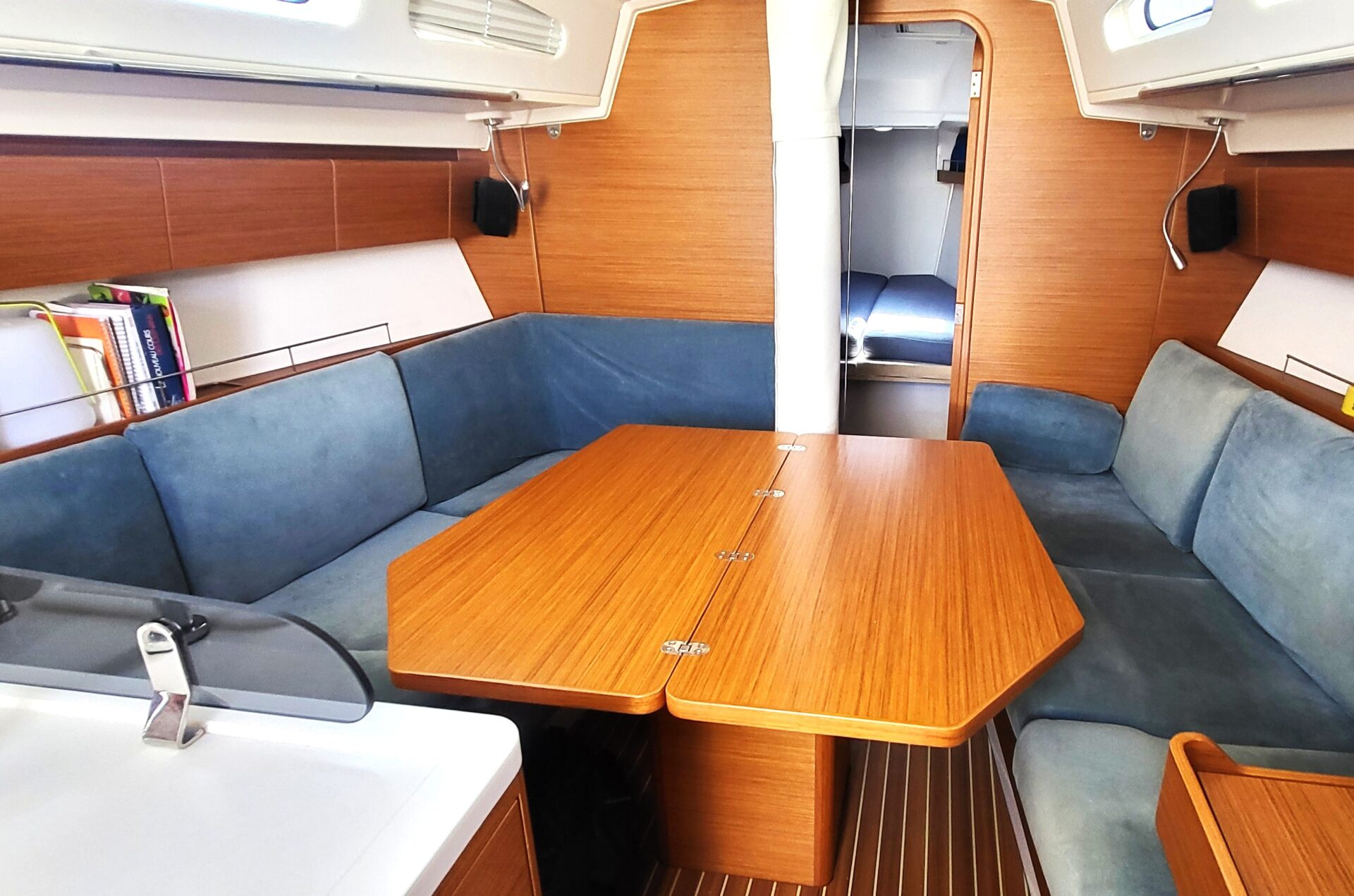

• Saloon table with centre box, aft facing chart table

Systems

Engine

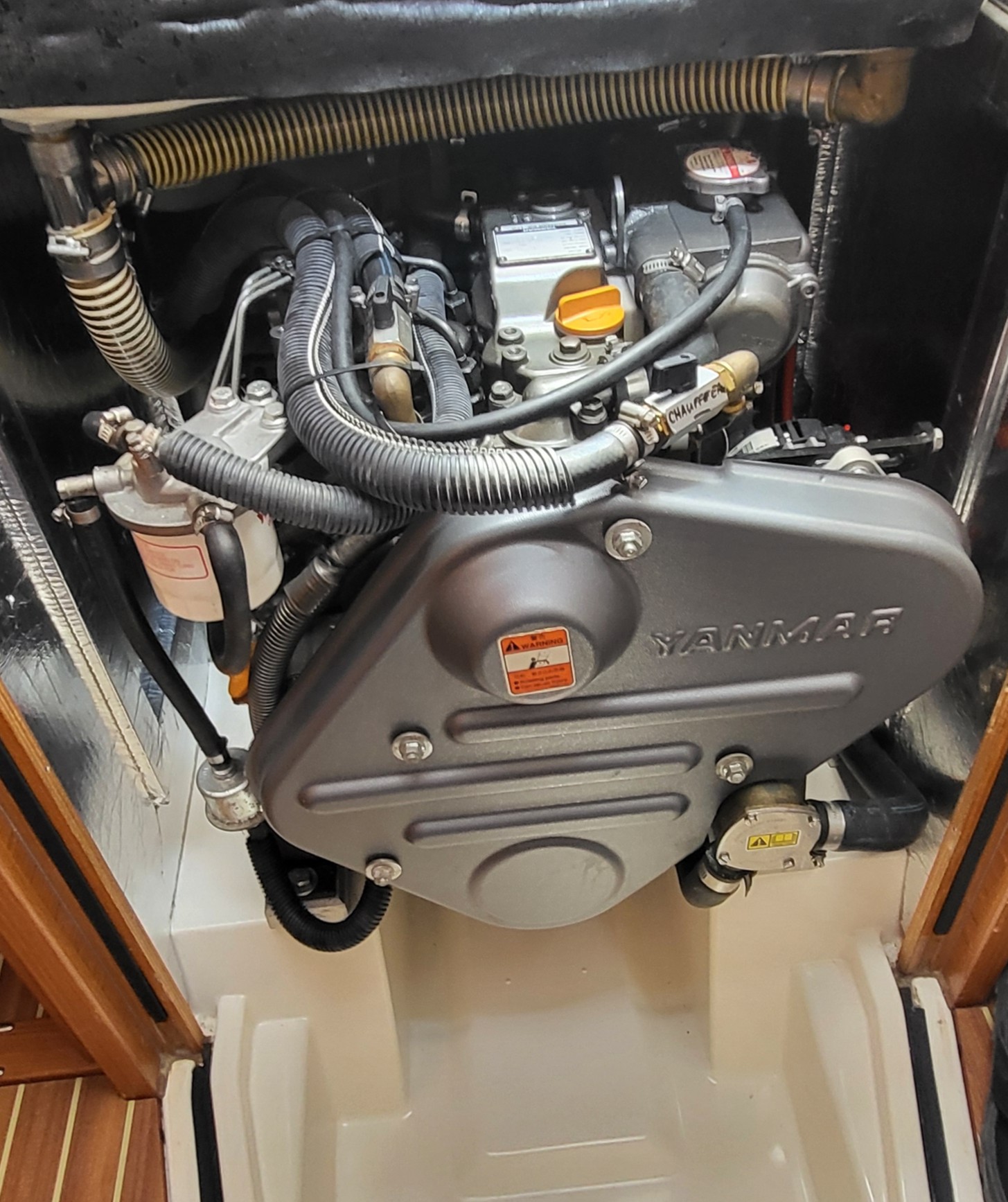

• YANMAR 3JH5E 39 HP
• 3 blades folding propeller
• Gas oil tank 175 L

Plumbing

• Seacocks and through hull fittings flush mounted
• Fresh water in plastic (260 litre) below saloon sofa. VDO analogue tank level gauge, inspection hatch and deck fill
• Hot water tank Isotherm 30 l. Tank can be heated either by main engine or immersion heater connected to shore power
• Holding tank, l, with tank level watch with self-draining outlet and deck outlet
• Pressurized freshwater system for hot and cold water throughout yacht
• Deck shower fitted at bathing platform with hot/cold freshwater
• Fridge top opened , accumulator plate sea water cooled Danfoss compressor
• Gimballed Gas cooker - Eno cooker with oven

Electrical

• 12 V DC installation
• Engine battery (70 Ah, 12 V),
• Service battery bank 3 x 100 Ah 12 V)
• Alternator12V/125A
• Combi charger inverter 1600 W / 60 Amp Battery monitoring Mastervolt

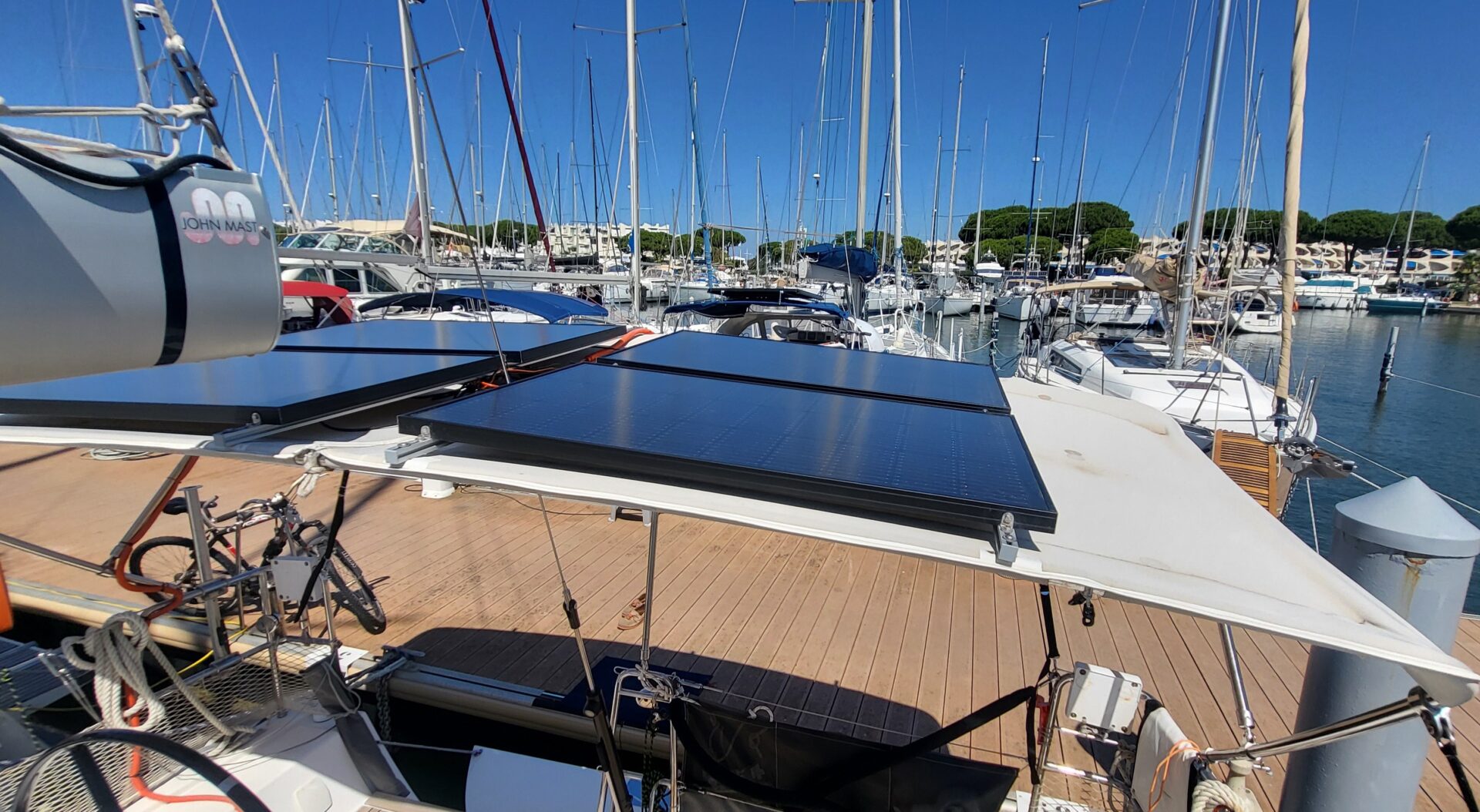

• Solar pannels 3 x 100 W monted on the bimini with VICTRON 50 Amp MPPT
• Galvanic isolator
• Add 12 V sockets
• TV LED + multimedia FUSION MS -AV700i with HP in the saloon and cockpit
• En option chargeur-convertisseur 12V-2000W/60A installé dans la salle machine.
• Tableau électrique principal avec disjoncteurs automatiques et cadran tactile 3" pour niveau de gazole,
• d’eau et tension des batteries.
• Prise 12 V à la Table à Cartes
• Toutes terminaisons dans boitier polyester étanche au ruissellement derrière le panneau principal.

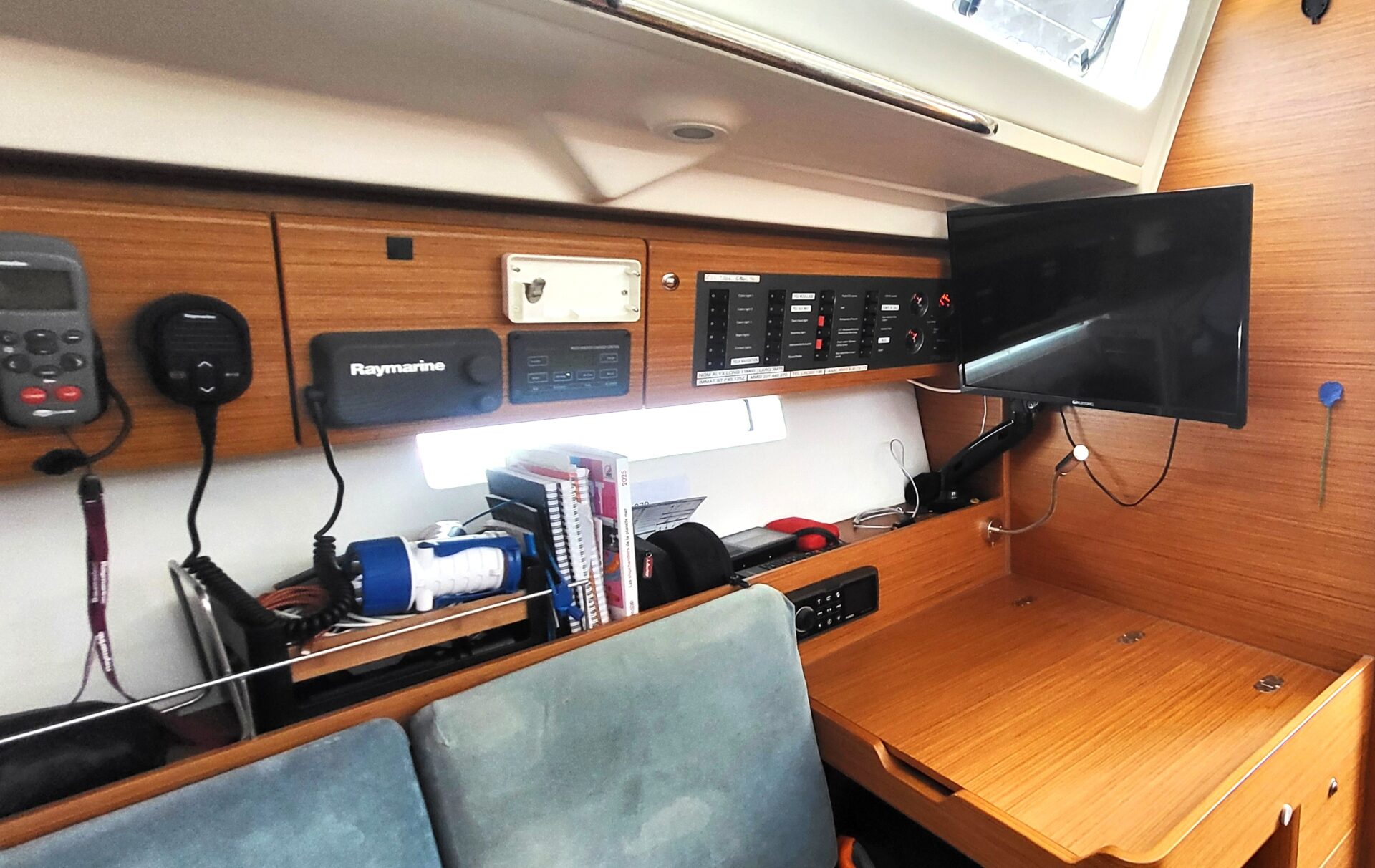

Electronics

• RAYMARINE electronic
• I 70 MFD with deepth, speed and wind sensors
• Autopilot EV200 with linear drive, smart controller and wireless command
• AIS Class B emetter and receiver
• VHF RAY (à
• GPS chart plotter AXIOM 9 "

Thrusters

• Safety equipment with liferat PLASTIMO 6 P
