Details

Exterior Details

Hull

• Hull epoxy infused in female moulds for optimum consolidation and high quality surface finish
• Built in sandwich construction with structural foam core, Bi-directional and uni directional E-glass
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Structural liner molding laminated into hull. Carbon fiber reinforcements to absorb all loads from keel and mast
• Outer surface of hull in white sprayed white Gelcoat with 3 grey waterlines
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing ladder in stainless steel mounted on transom
• Structural bulkheads laminated to hull
• Hull recessed portlights - Rectangular (6 pcs)
• Racing 'T' keel 2.65 m prepared with template, draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• Keel securely bolted to carbon reinforced keel structure
• Deck built in sandwich construction with structural foam
• E-glass with bi and uni-directional cloth, white gelcoat
• Rudder blade of sandwich construction laminated
• Rudder stock mounted with needle and self aligning bearings

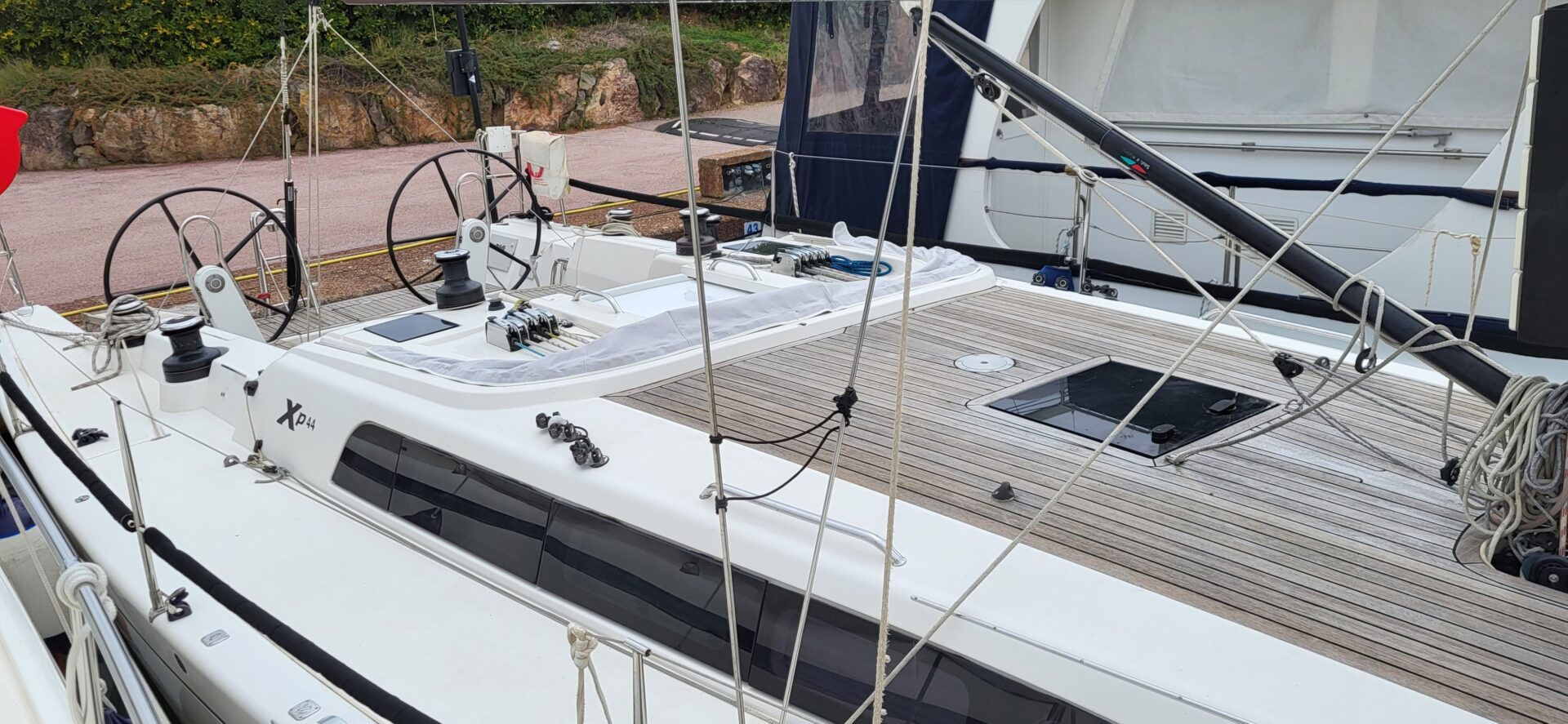

Deck

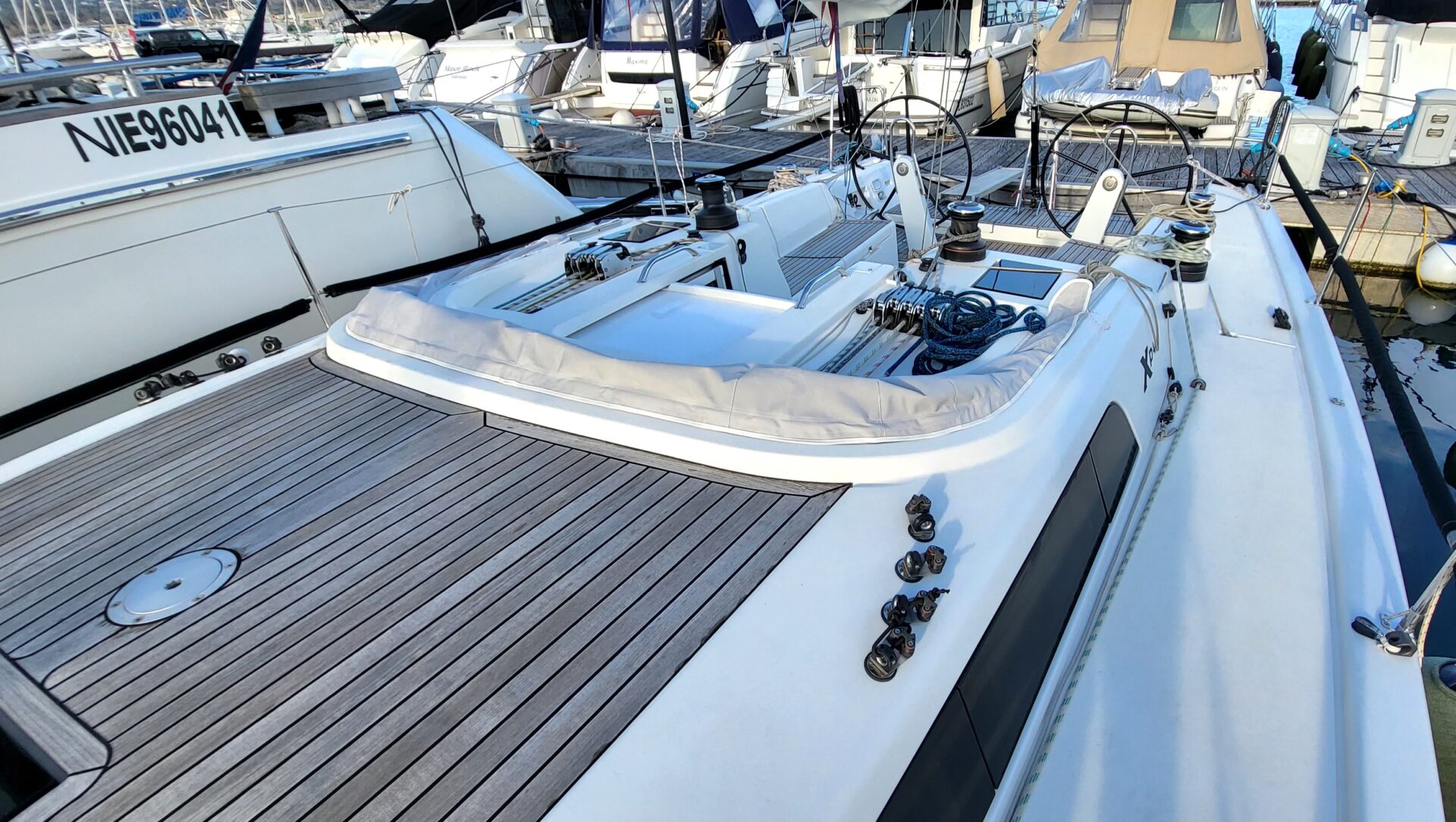

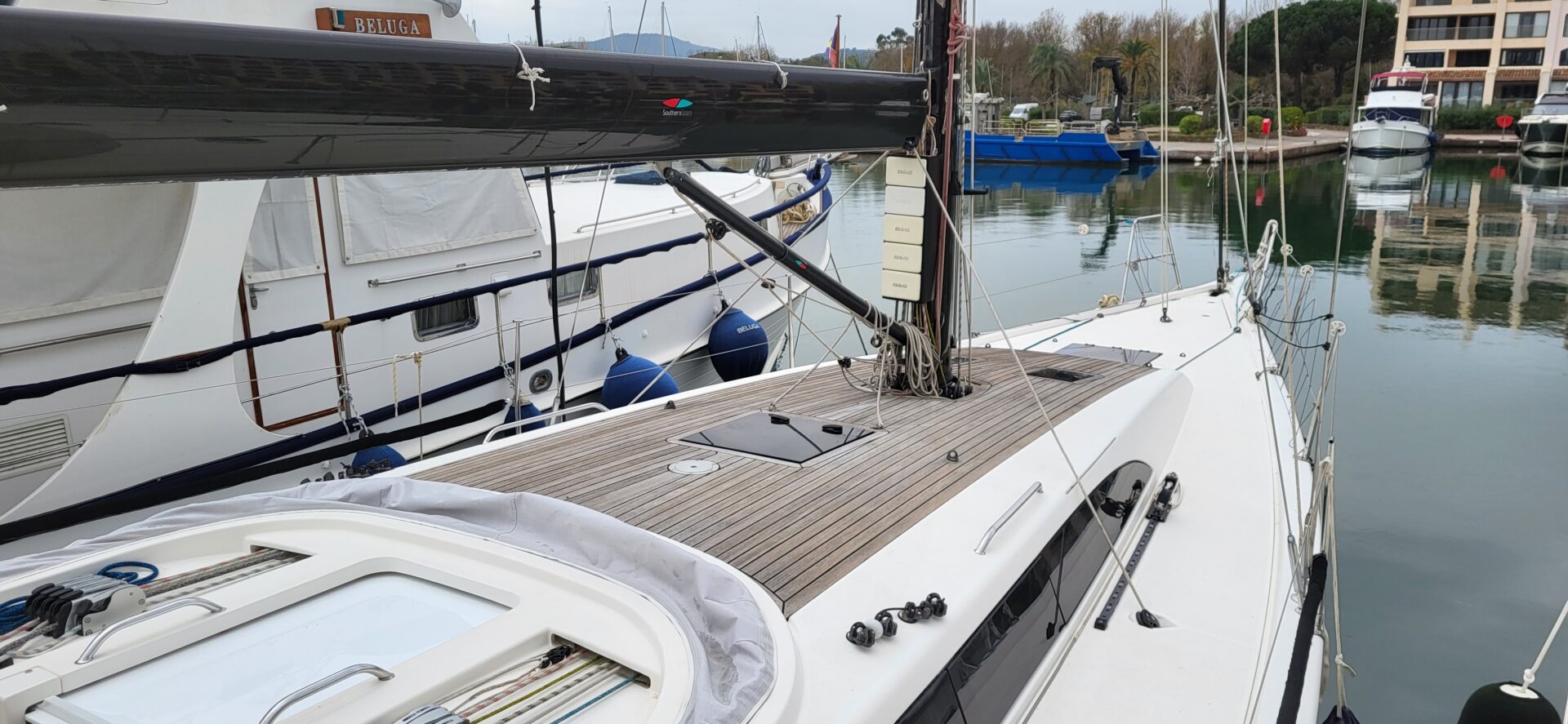

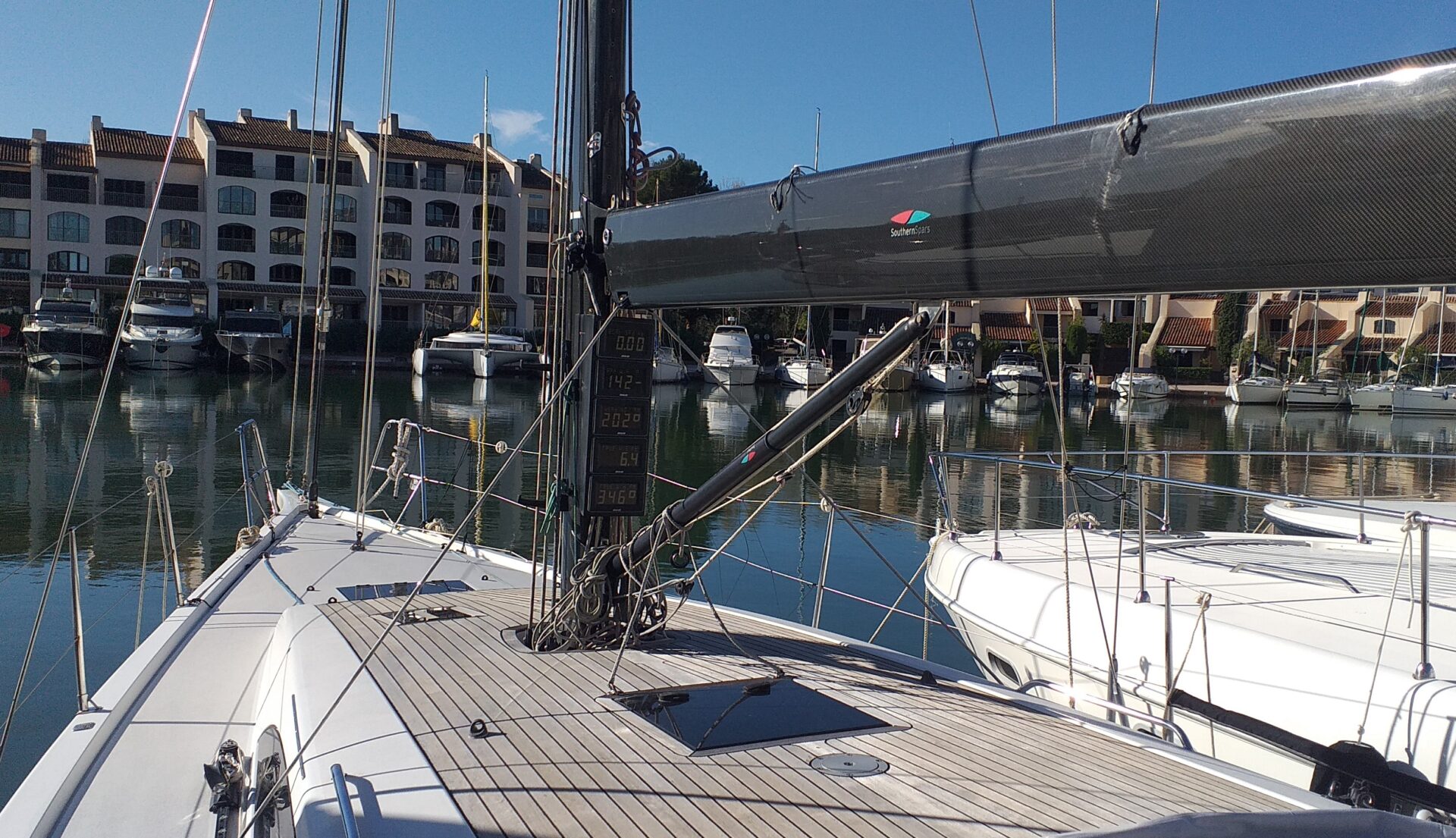

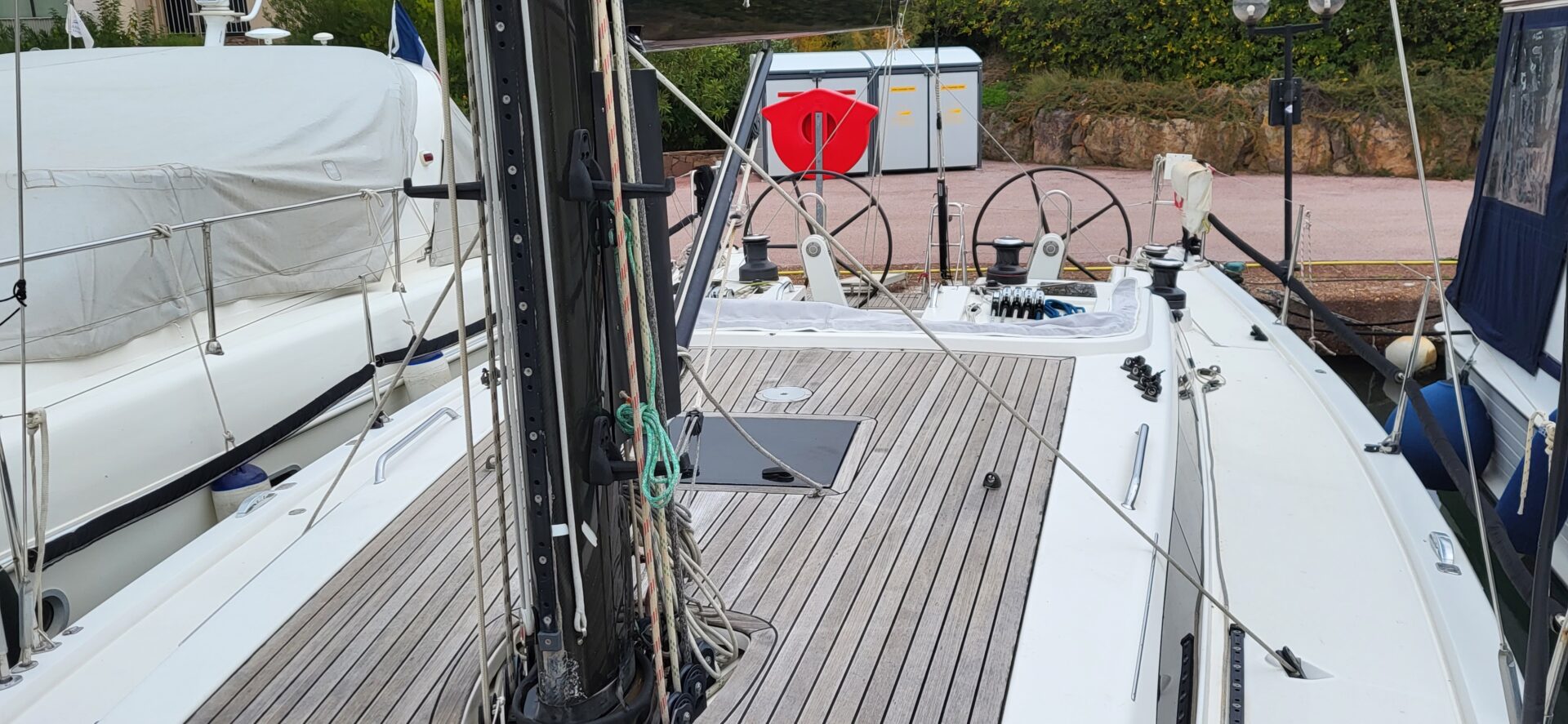

• Teak, vacuum applied, 9 mm nominal thickness on cockpit sole, seats and coach roof

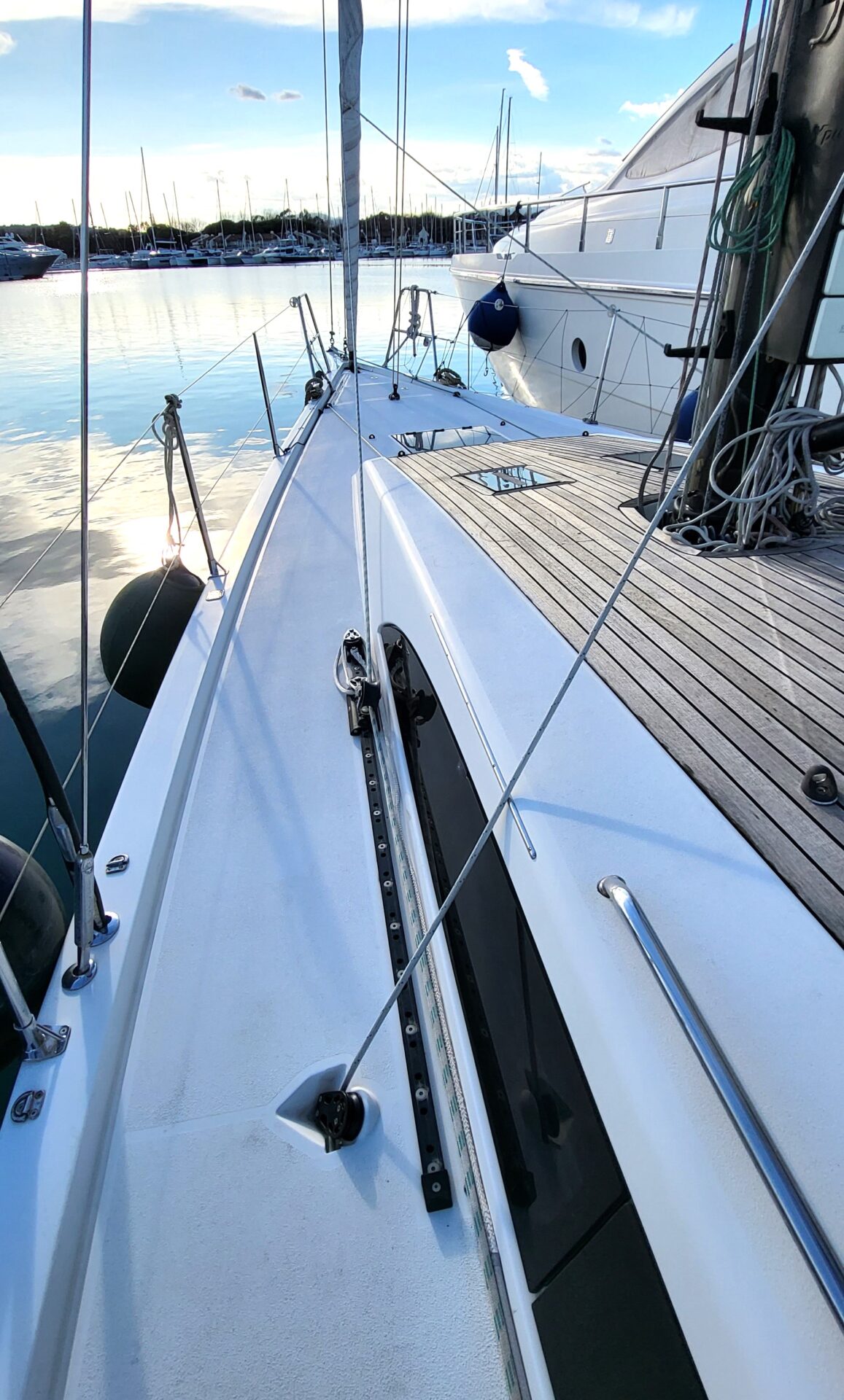

• Variable height bulwark incorporated in deck/hull design

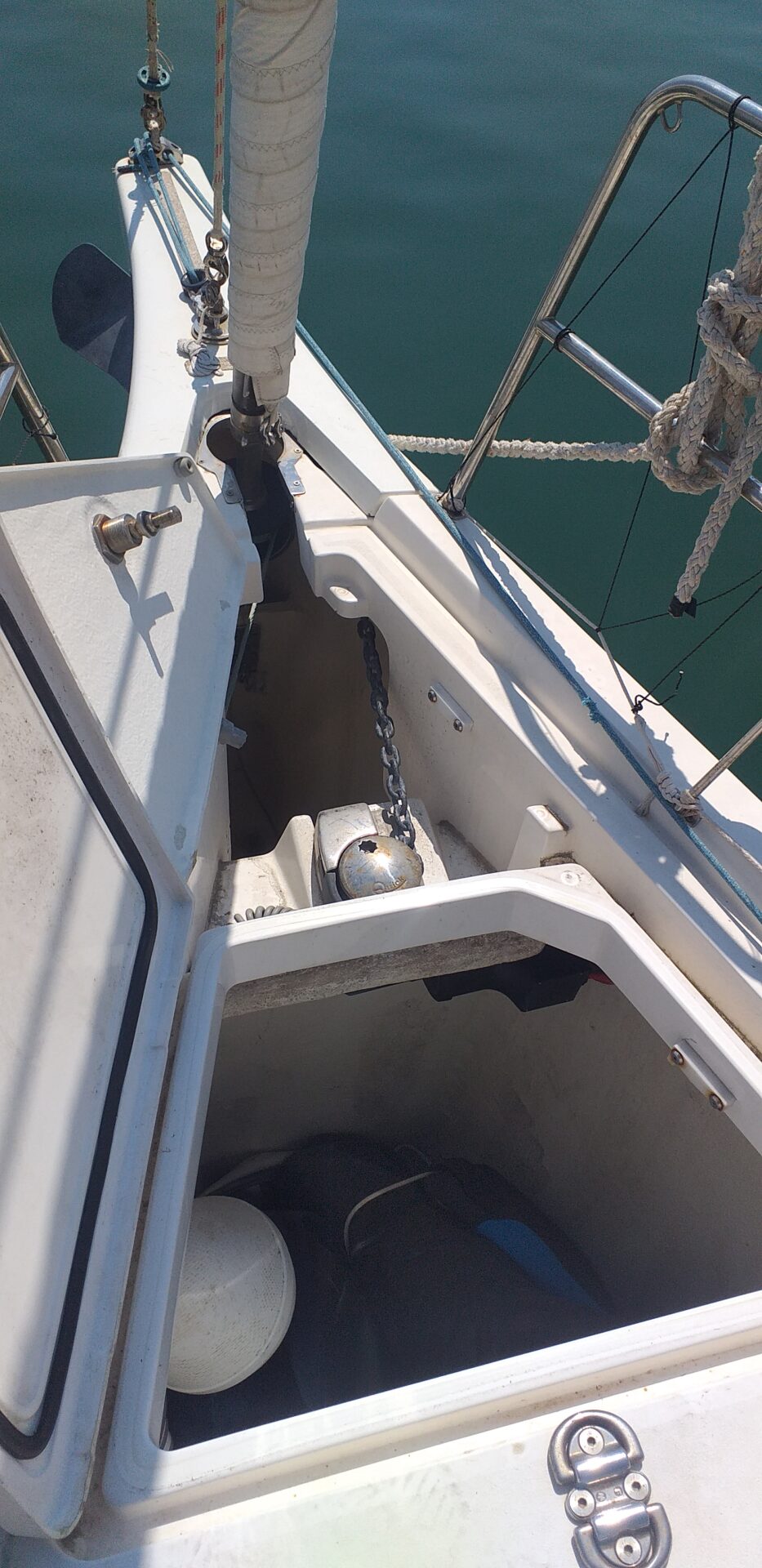

• Anchor locker - drained area with 1000 W Quick electric windlass
• Delta Anchor with chain and ropes

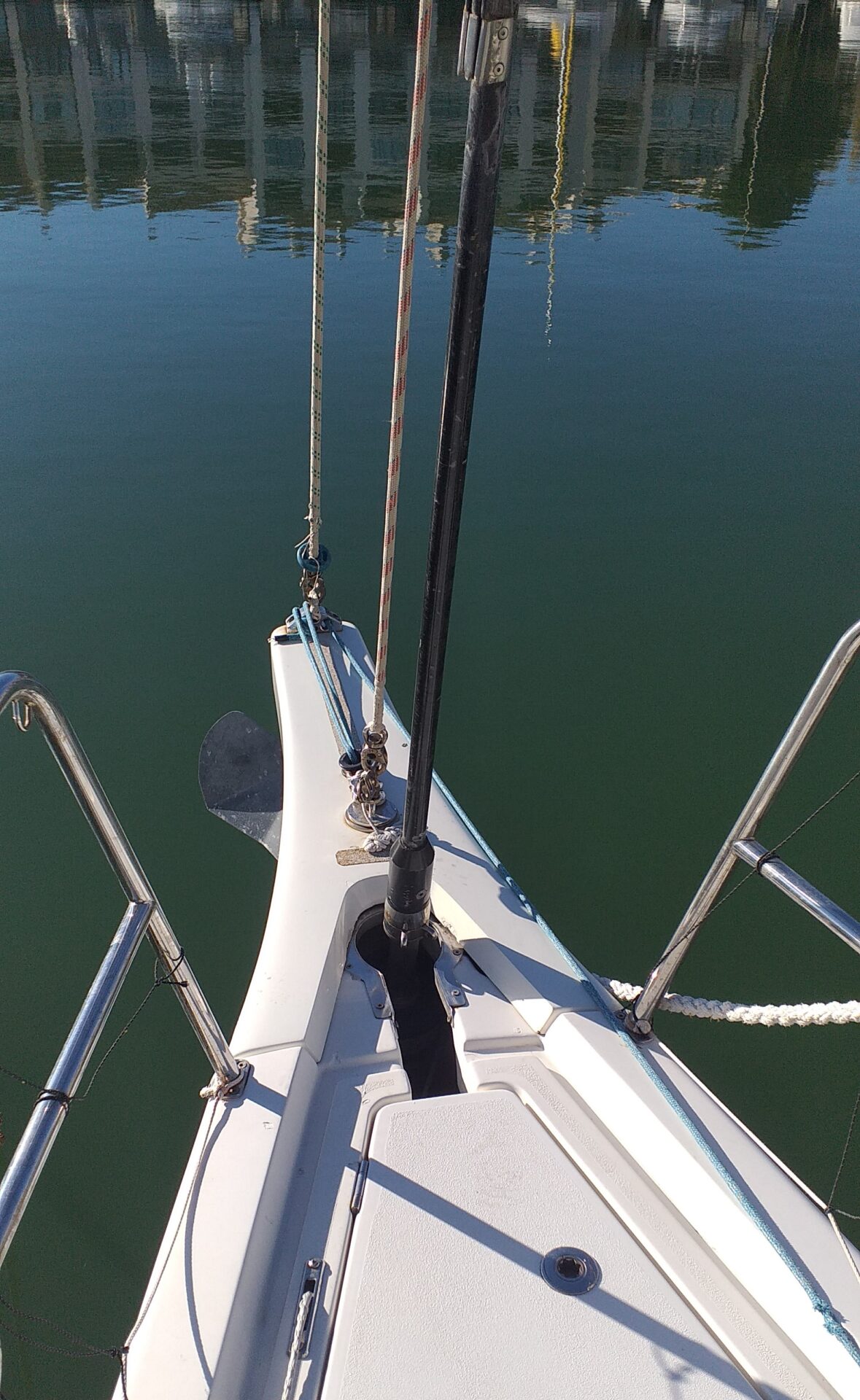

• Second carbon fibre extended bow sprit, for asymmetric spinnaker and Code 0's, accommodating the standard removable stainless steel anchor roller fitting,
• Gas spring fitted to forward and both aft cockpit lockers
• Halyard locker recessed into cockpit floor
• Cockpit table with cockpit floor locker storage
• Race stanshions
• Bathing ladder in stainless steel integrated in transom platform
• Adittionnal stainless Steel handrails
• Sprayhood on stainless steel arch

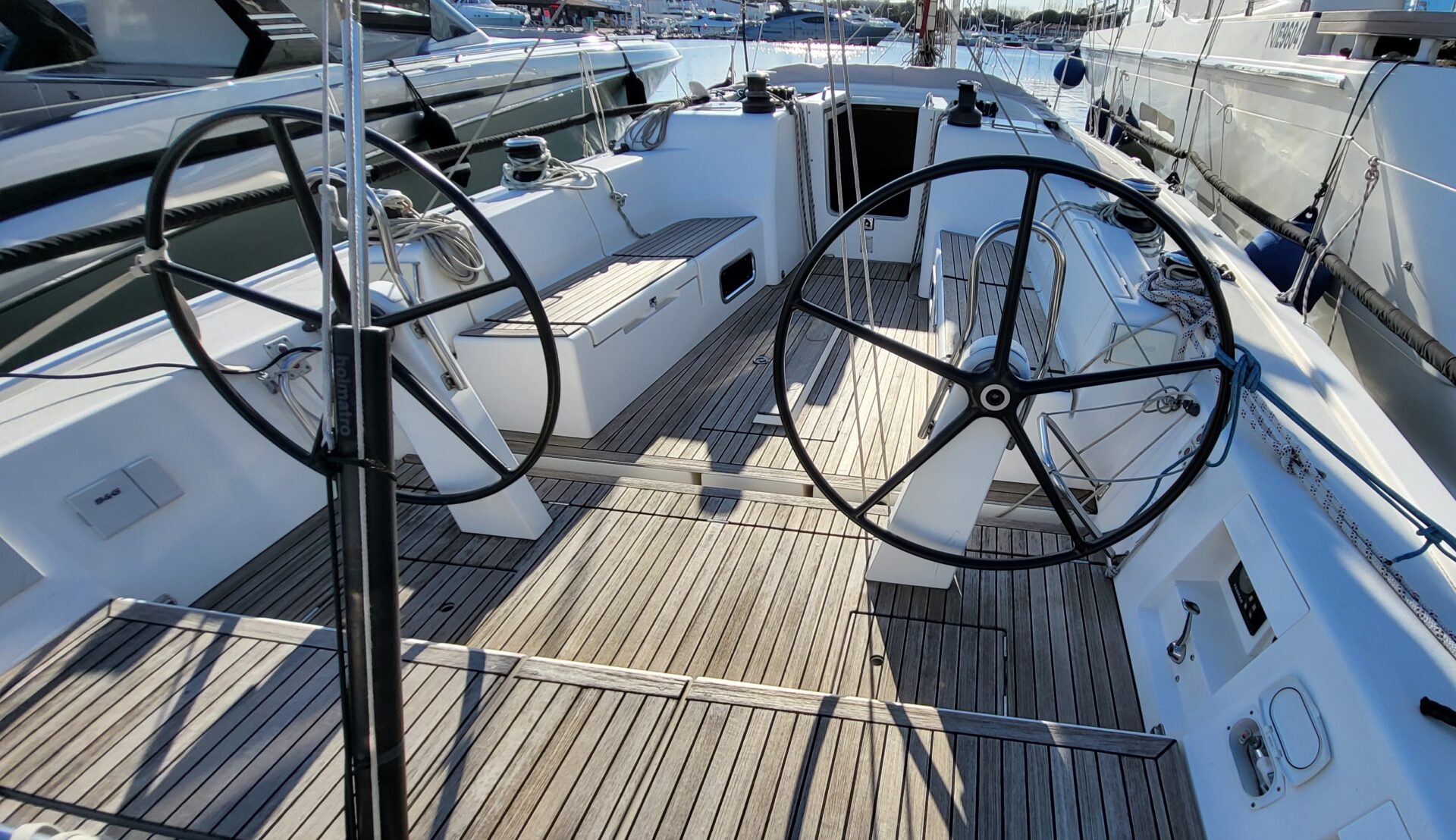

• Composite GRP wheels in black

Sail Handling

• HARKEN 58.2 ST primary winches
• HARKEN 46.2 ST for Geman Mainsheet system including one electric
• HARKEN 46.2 for halyards, including one electrical
• Spinlock Jammer/clutches for halyards/control lines/reef lines (x10)
• Racing with racing deck hardware
• Mainsail track recessed into cockpit floor forward of the helm position
• RECKMANN Carbon furling forestay drum below deck.
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines and inhaulers
• Asymetric and symetric spinnaker hardware and rigging

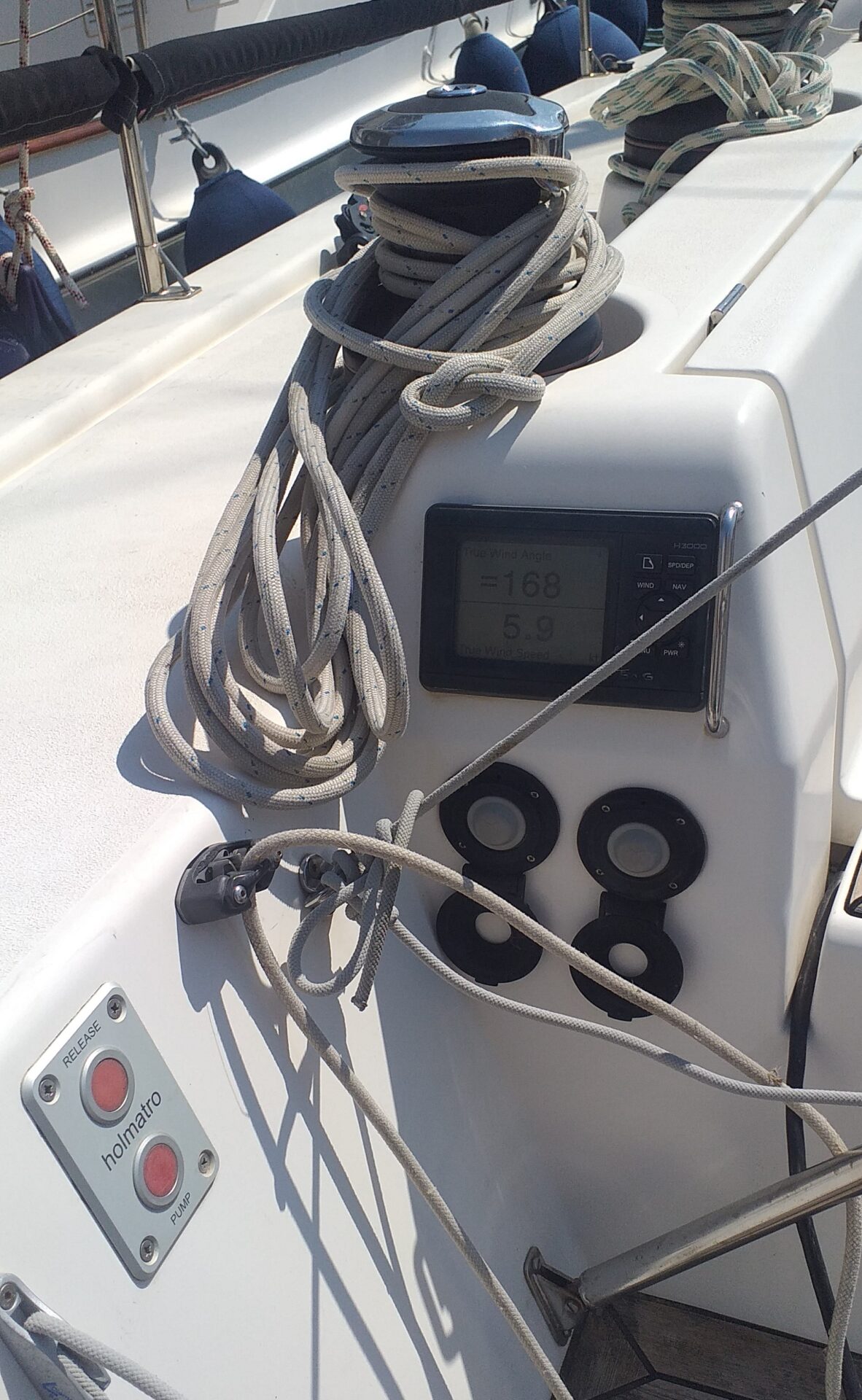

• HOLMATRO electro hydraulic pump for backstay with command in the cockpit
• Racing running rigging
• Carbon spinnaker pool

Sails

• NORTH SAILS 3DL Main and Genoa

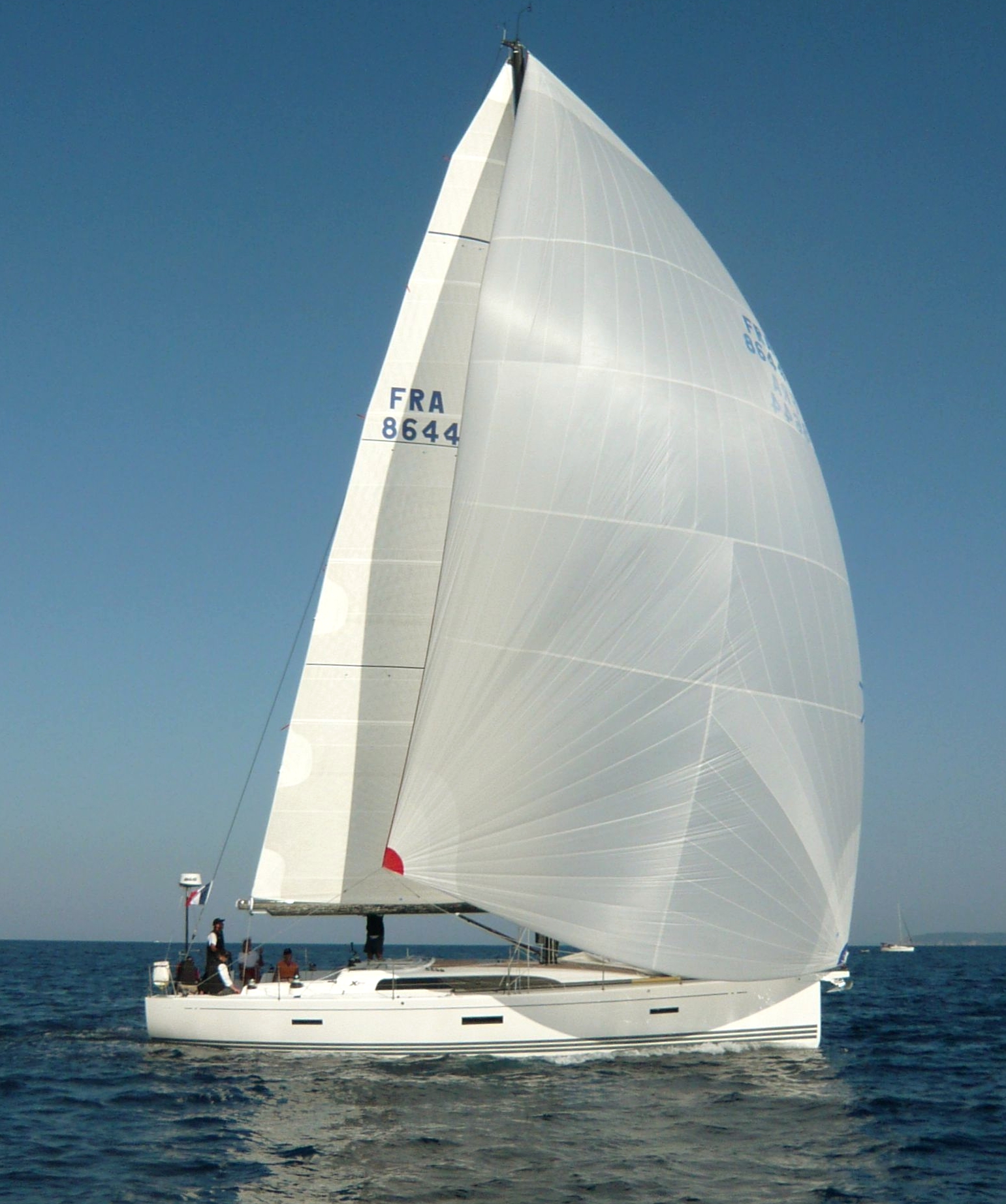

• Asymetric spinnaker
• Cruising Main 3 reefs
• Lazybag and genoa
• Racing sails NORTH 3DI

Mast & Rigging

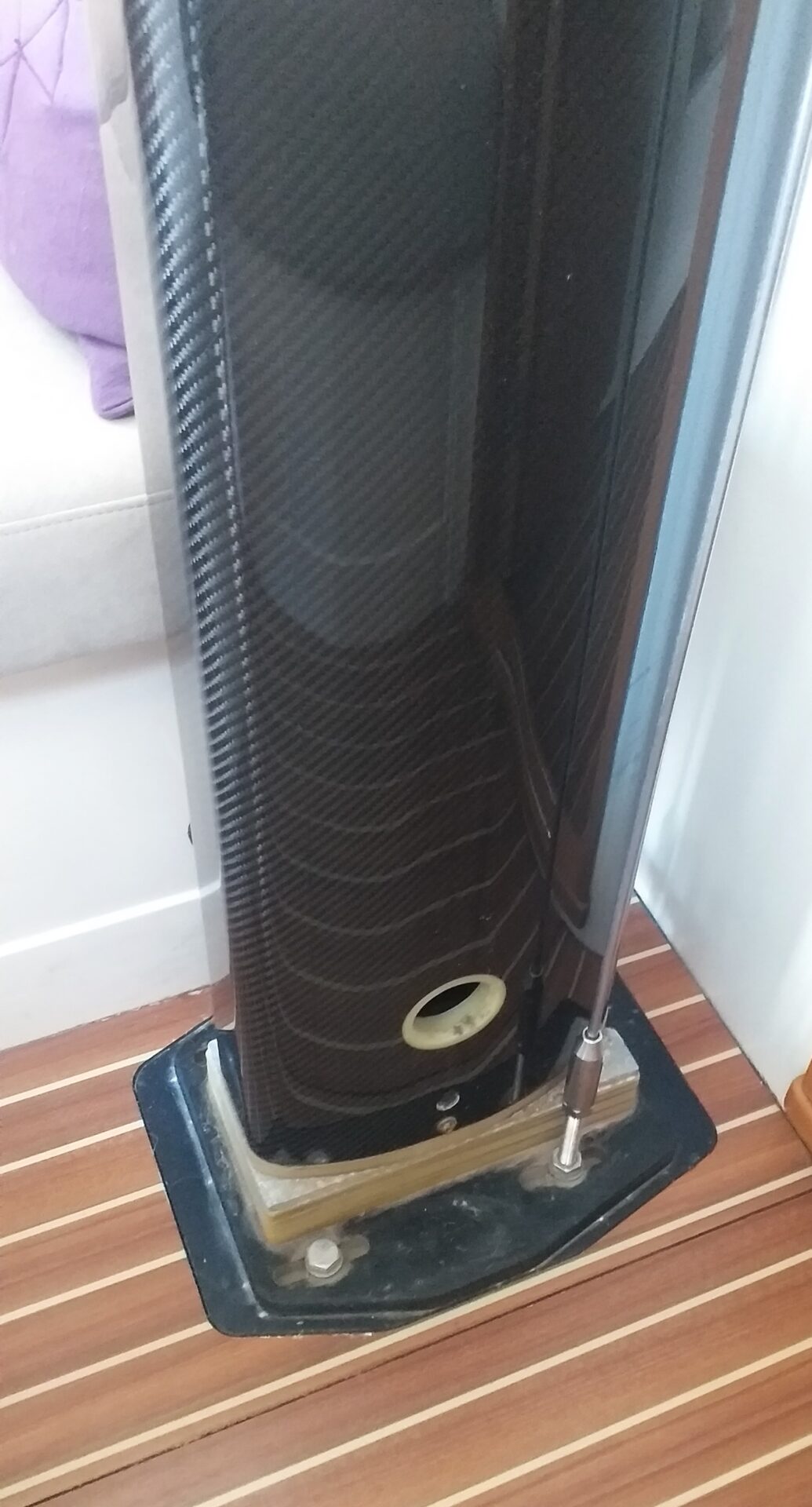

• Carbon mast and boom SOUTHERN SPARS
• Carbon spinnaker pole with track
• Aditional "custom" made bow sprit 1.30m
• Additional halyards
• Textile backstay
• 2.1 halyard for furling jibe
• RECKMANN Carbon furler

Keel

• Deep draft

Accommodation

Interior

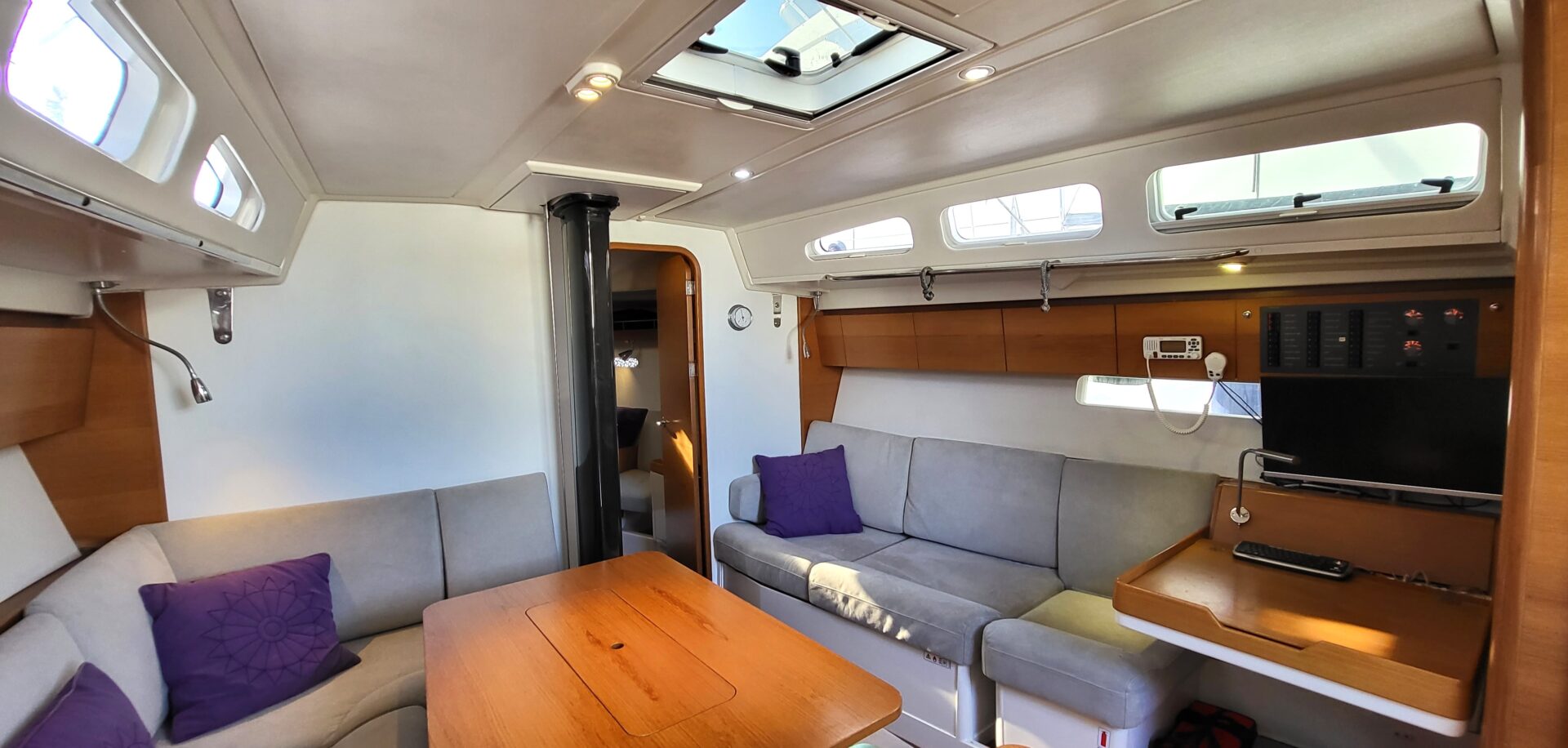

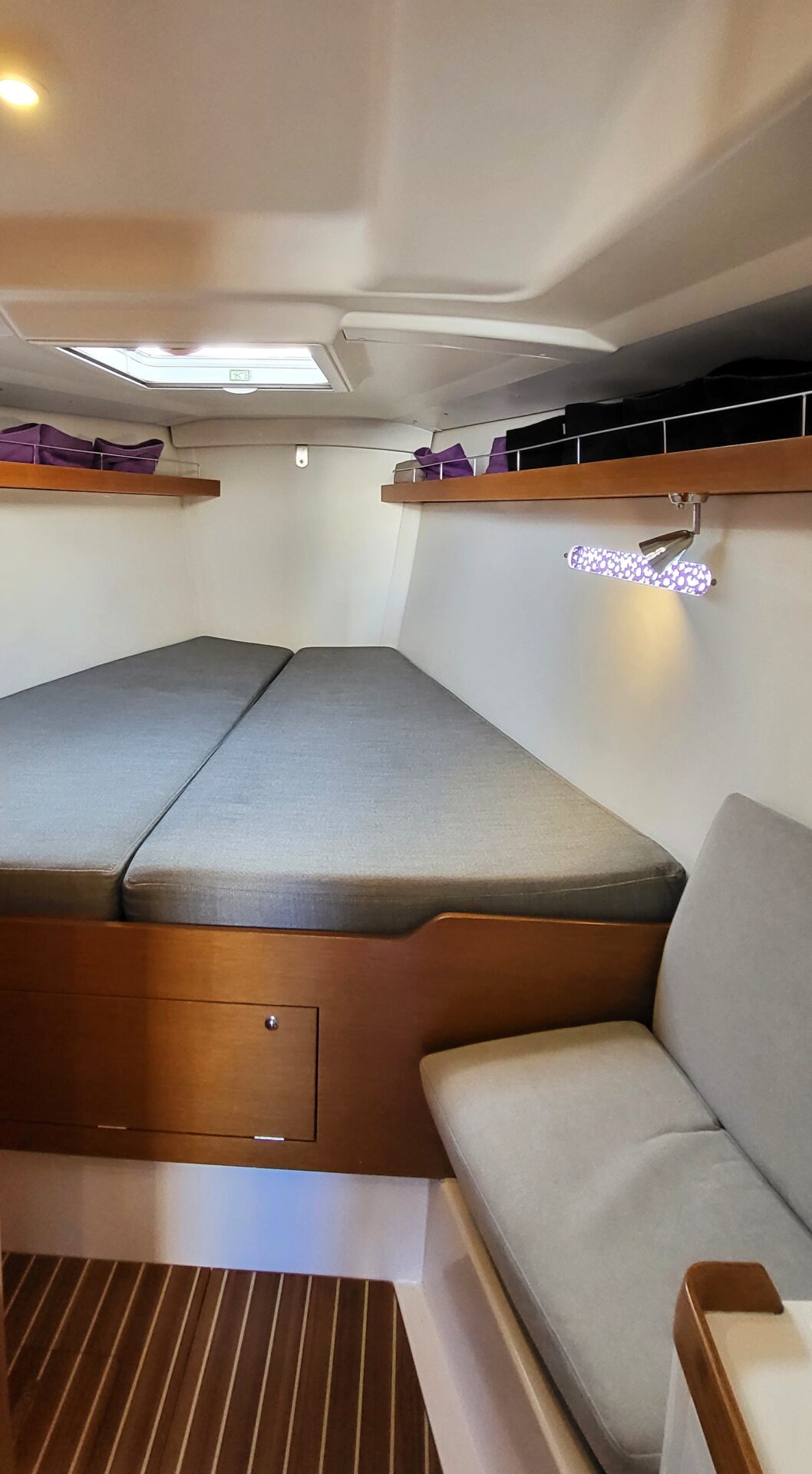

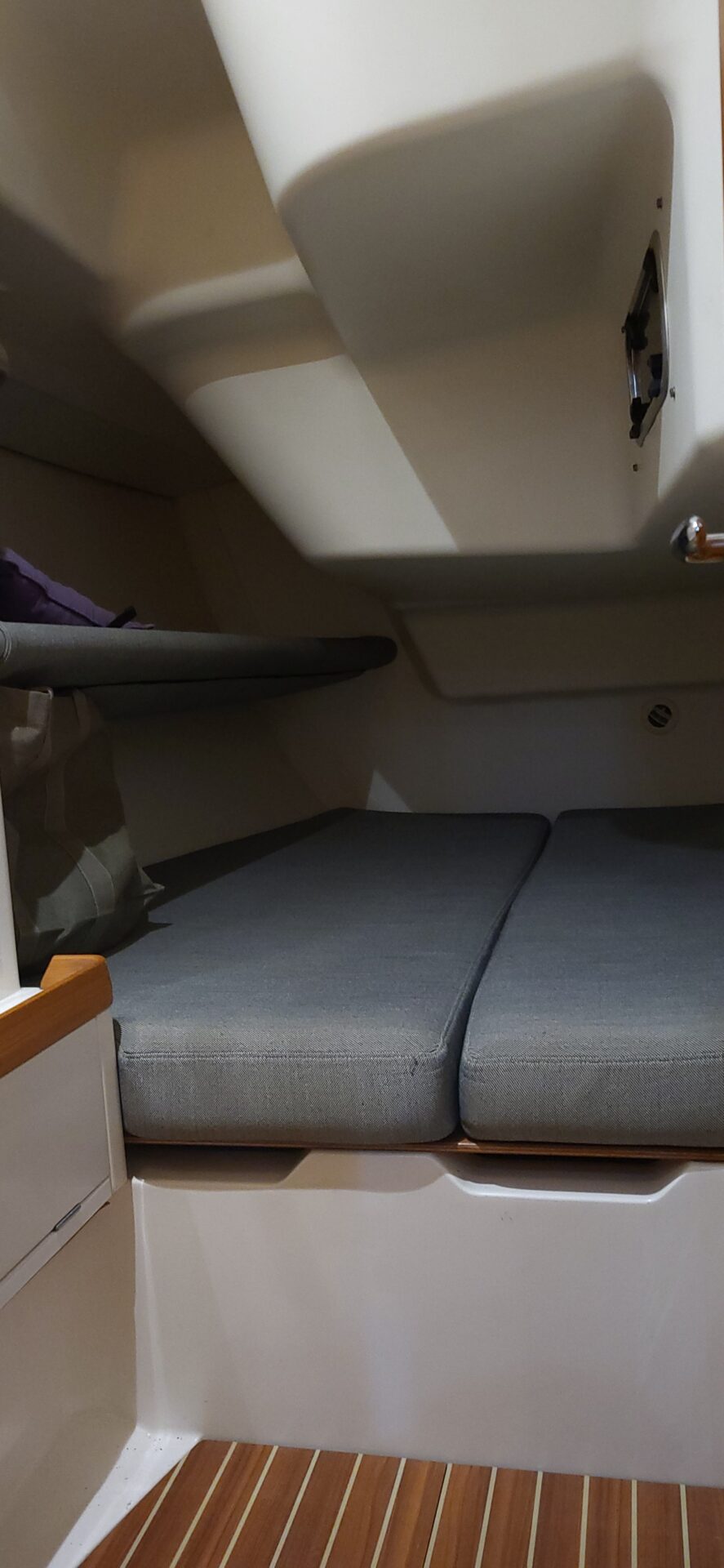

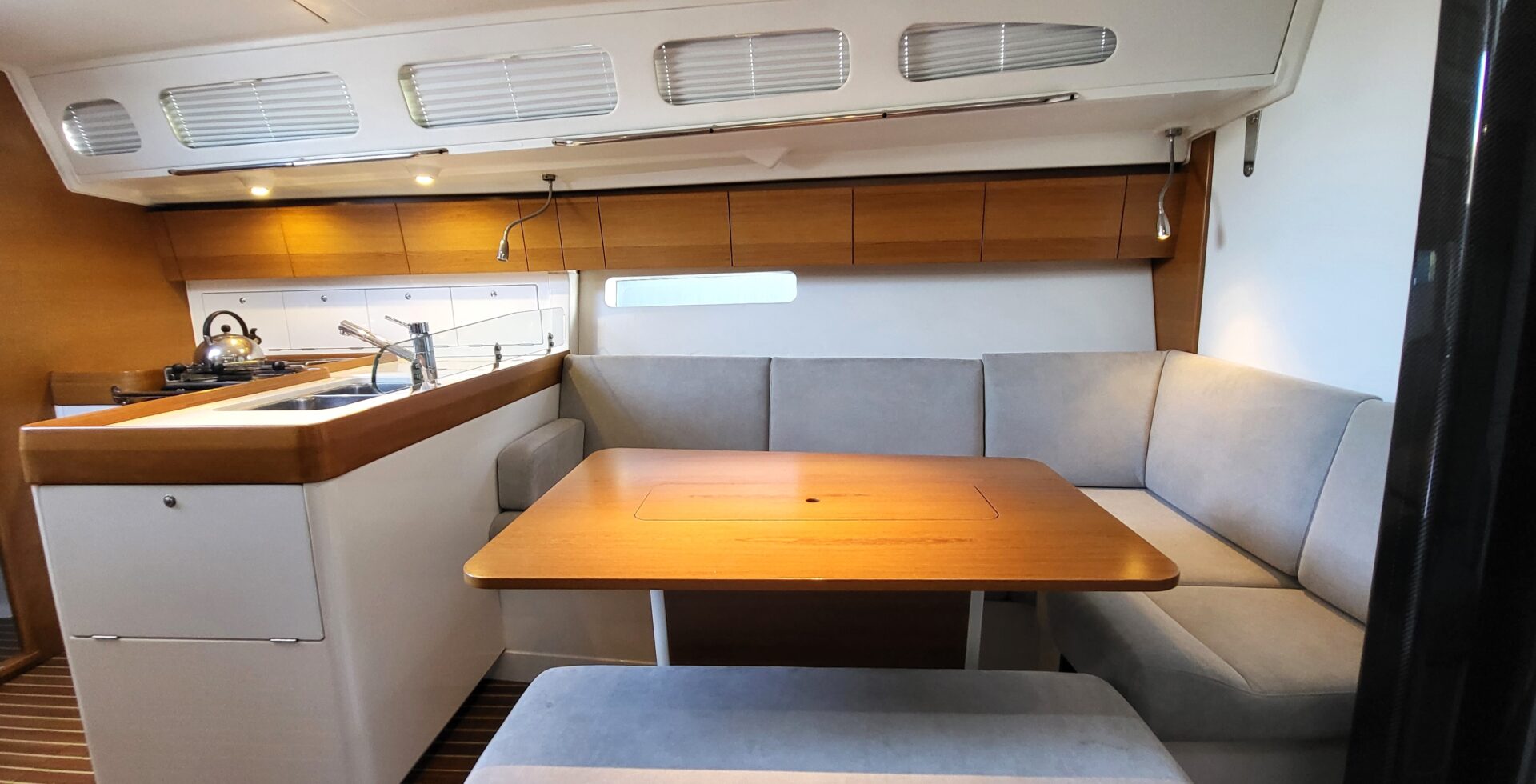

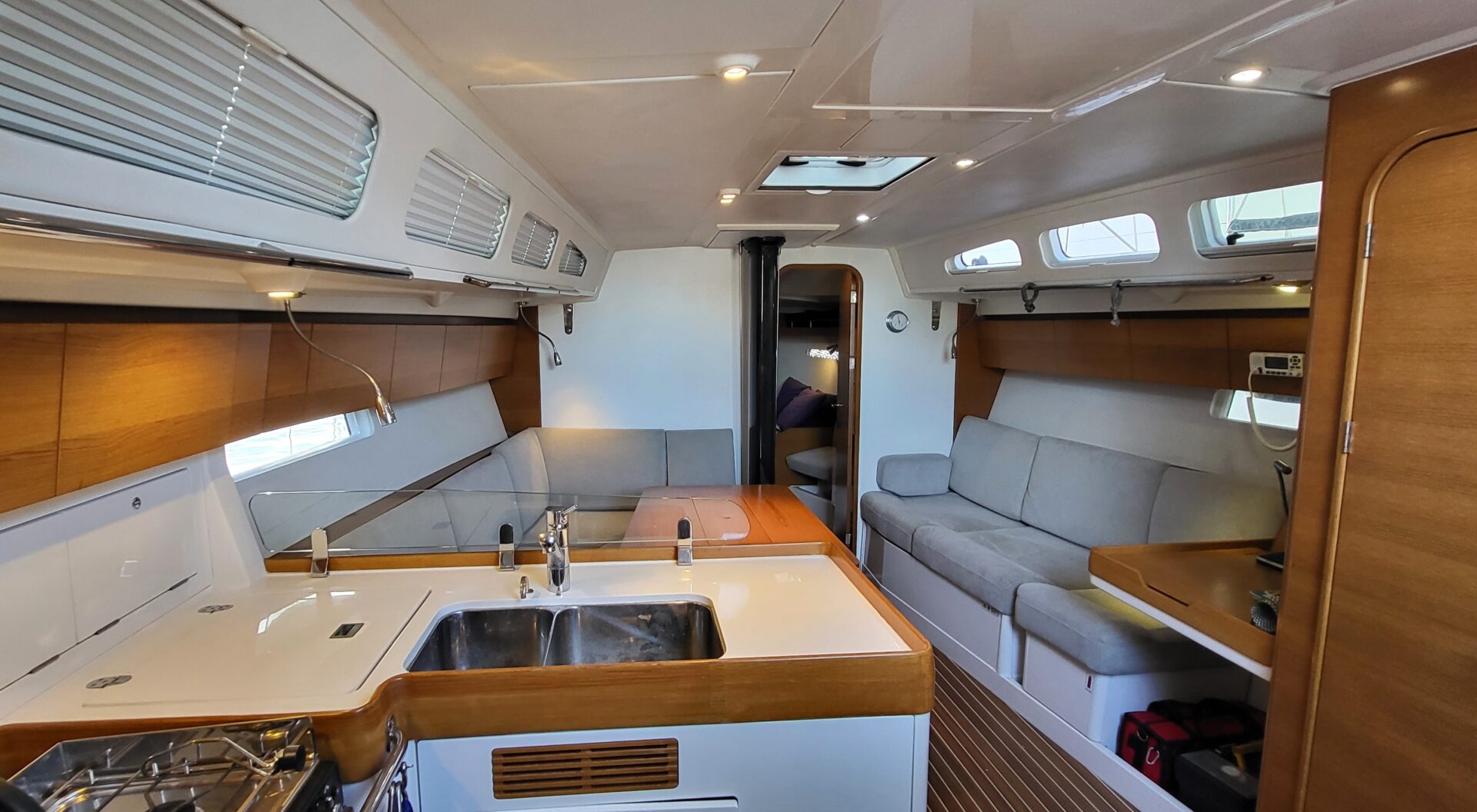

• Standard 3 cabins with ALCANTARA uphostery
• White bukckead in the saloon (special customer wishe)

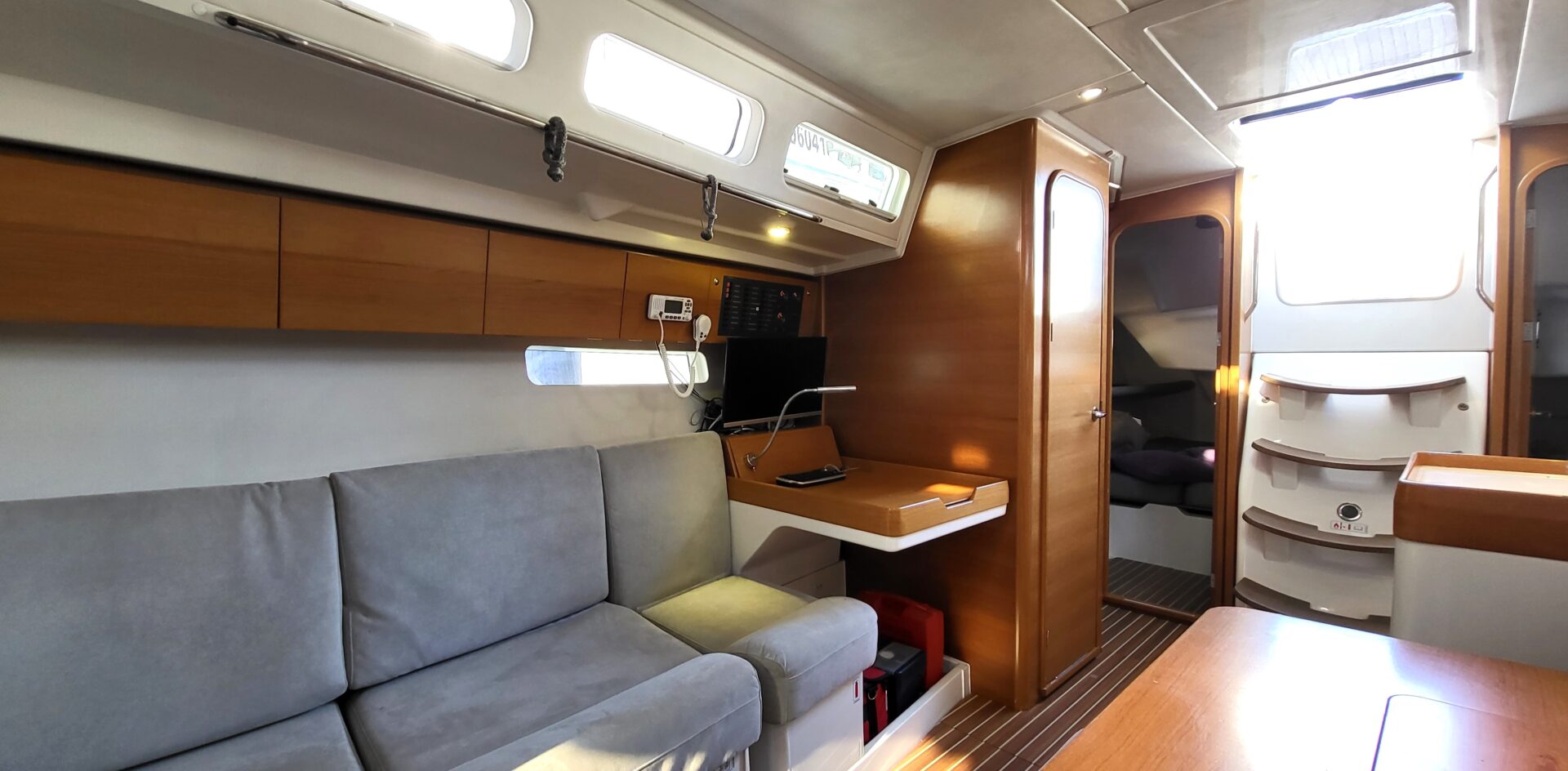

• Multi position chart table

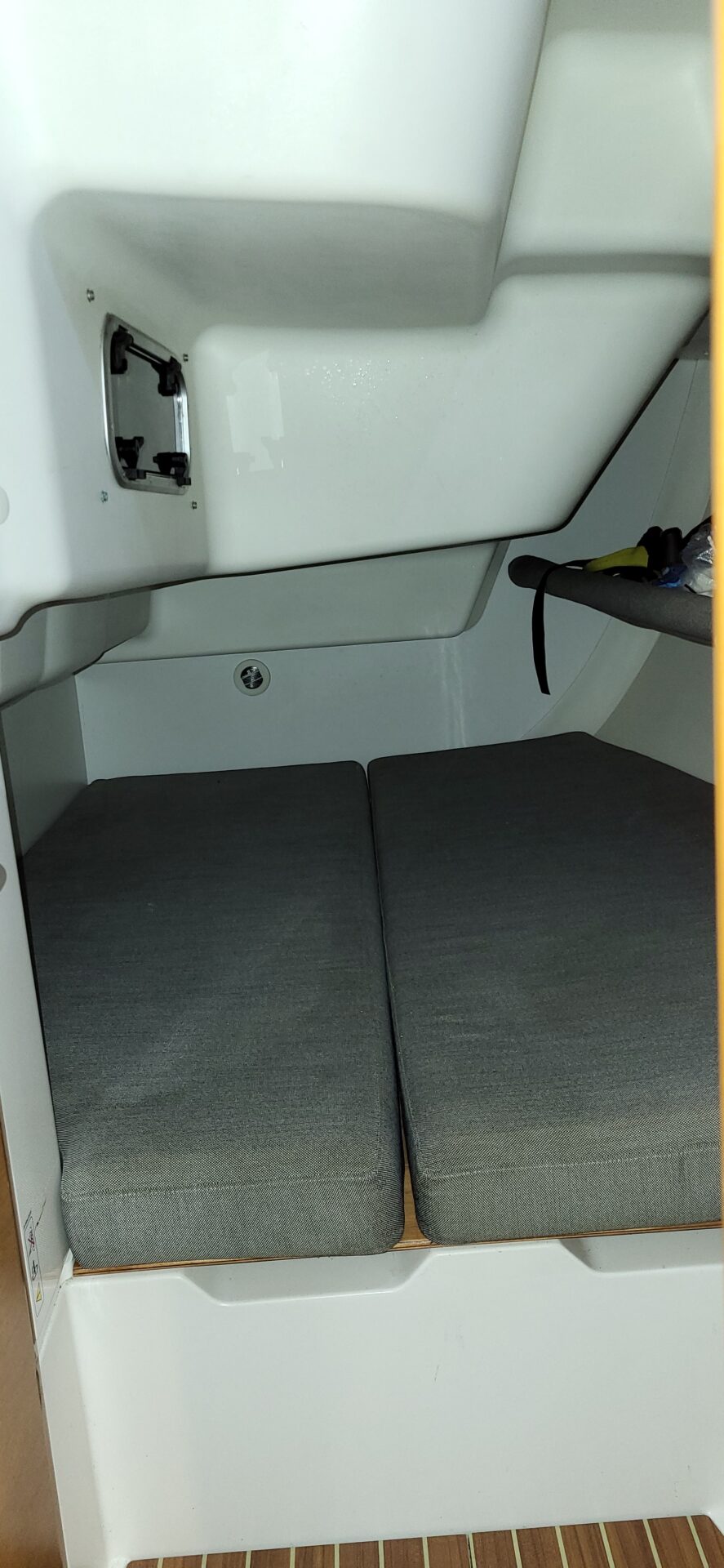

• Additional hung sea berths in aft cabins

Systems

Engine

• Yanmar 4JH3CE 54 HP with MASTERVOLT alternator regulary maintened
• Saildrive and Maxprop 3 blades propeller

Plumbing

• Seacocks and through hull fittings flush mounted
• Fresh water in plastic (340 litre) below saloon sofa. VDO analogue tank level gauge, inspection hatch and deck fill
• Hot water tank Isotherm 30 l. Tank can be heated either by main engine or immersion heater connected to shore power
• Holding tank, 60 l, with tank level watch with self-draining outlet and deck outlet (2 pcs)
• Pressurized freshwater system for hot and cold water throughout yacht
• Deck shower fitted at bathing platform with hot/cold freshwater
• Fridge top opened 130 l built in Isotherm SP, accumulator plate sea water cooled Danfoss compressor
• Additionnal electrical fridge front opening

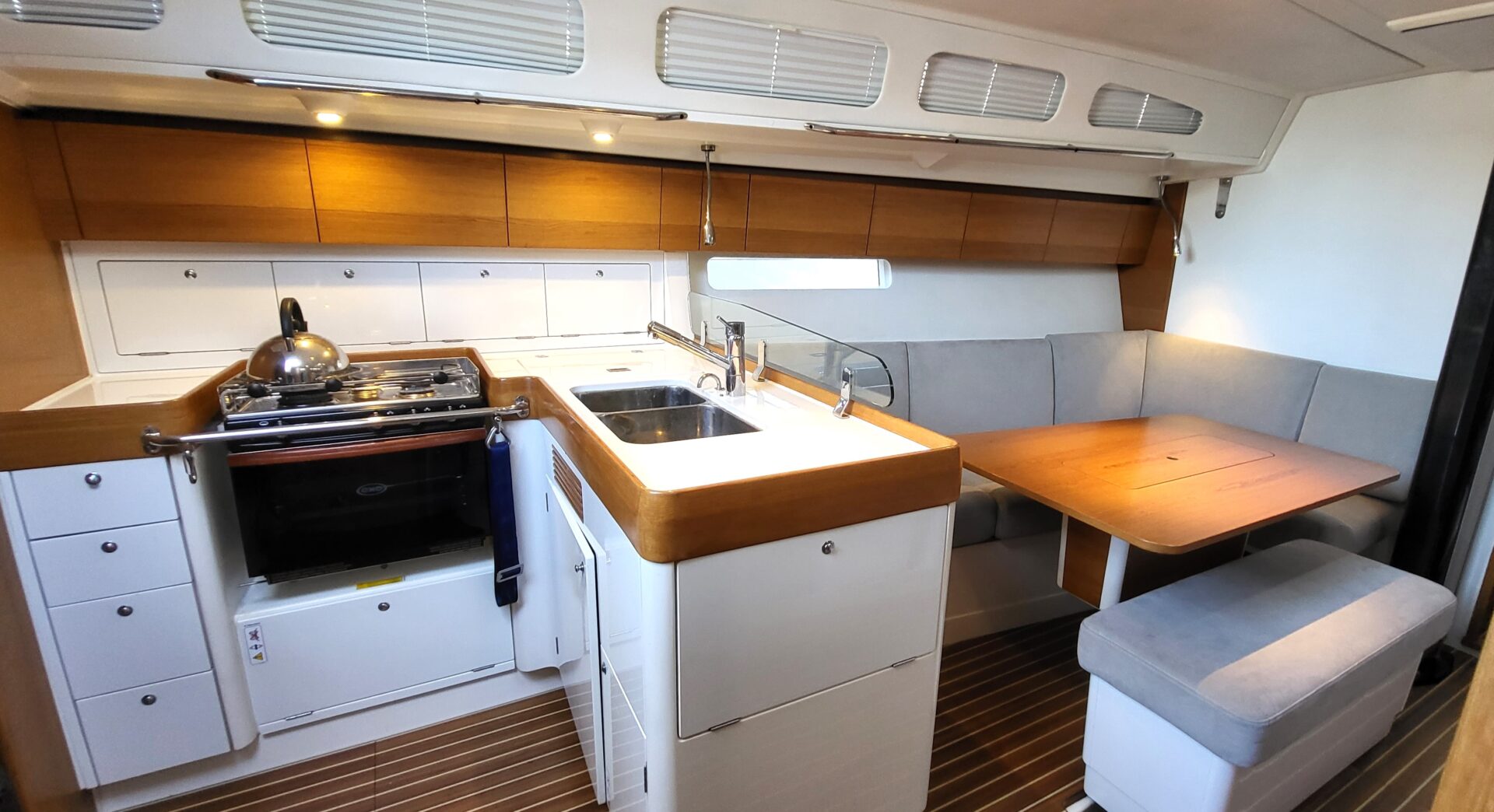

• Gimballed Gas cooker - 3 burner Eno cooker with oven

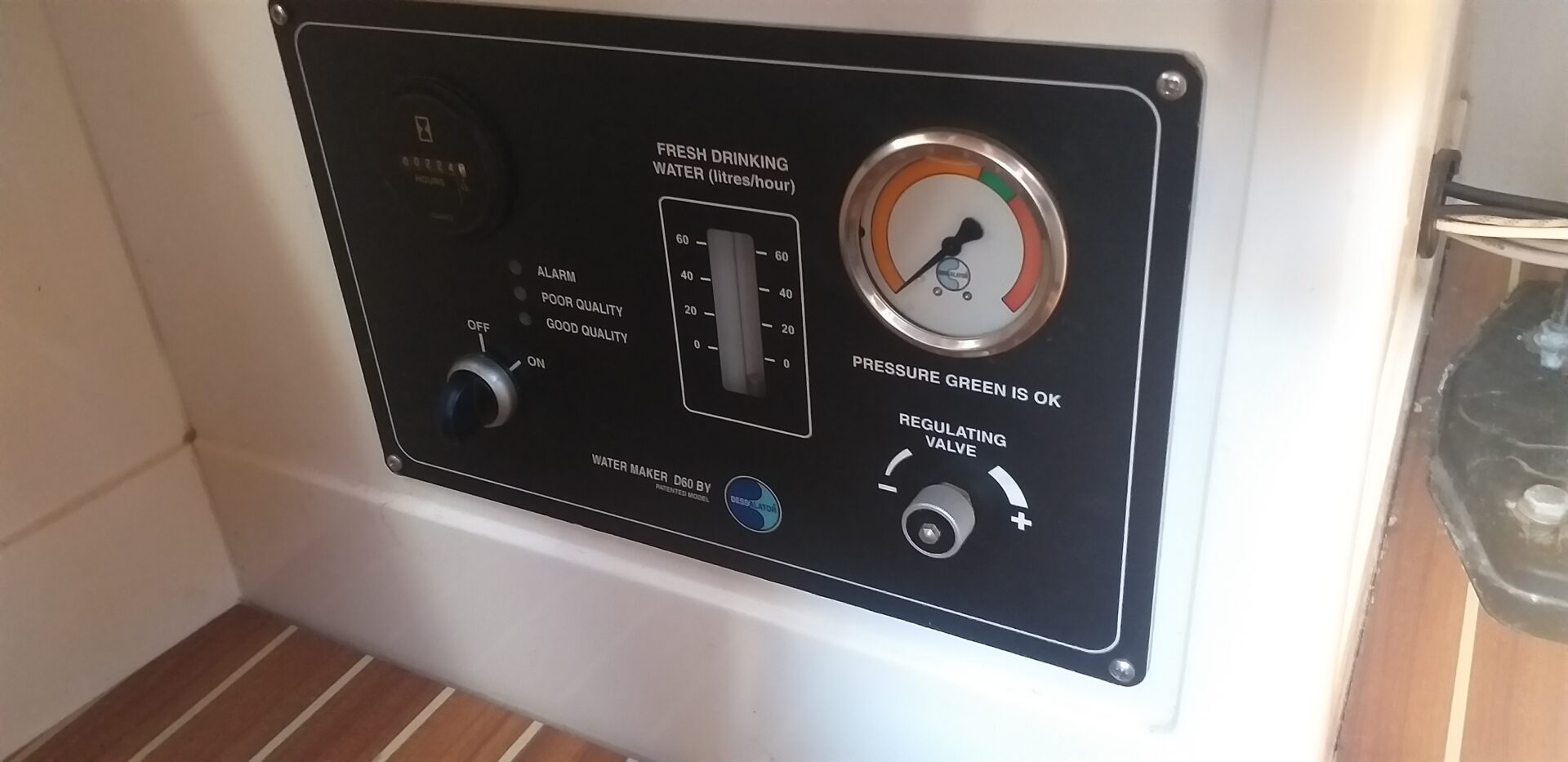

• DESSALATOR fresh watermaker 12V 60L/h
• EBERSPACHER heater D5

Electrical

• Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• Services batteries bank 3 x 120 Amp AGM 2020
• Separate engine battery (55 Ah, 12V
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• Galvanic isolator
• MASTERVOLT Charger 12V/50A 2019 + inverter

Electronics

• B&G H-3000 with 5 x 20/20 Jumbo on mast bracket
• B&G H-3000 x 2 MFD in the cockpit
• Log, speed, deepth sensors, carbon vertical MHU

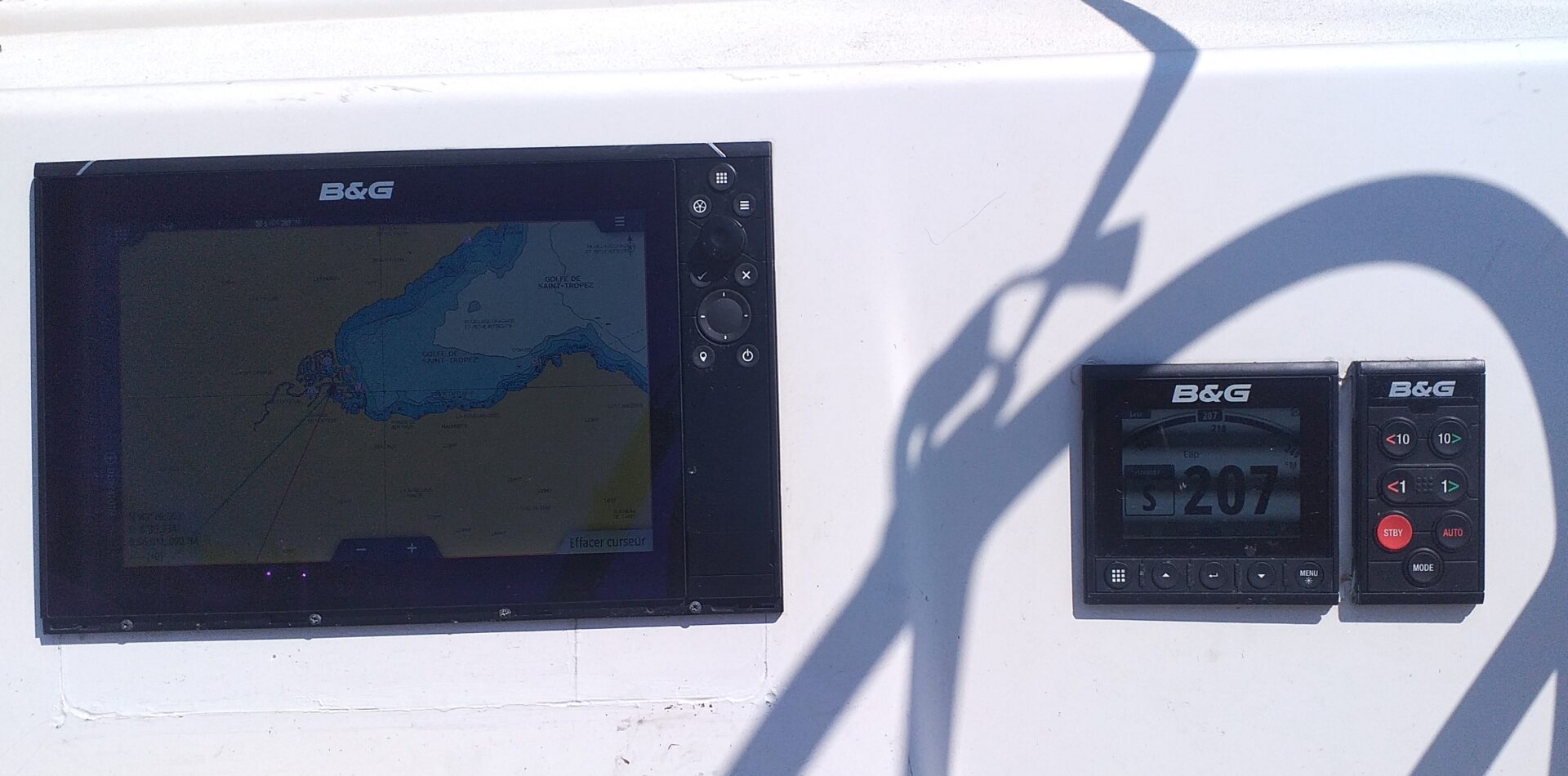

• B&G ZEUS 3 GPS color chart plotter
• B&G autopilot with dysplay and command in the cockpit
• VHF ICOM IC M323G
• AIS Emmeter and receiver
• Computer with MAXSEA Time Zero and large screen at the chart table
