Details

Exterior Details

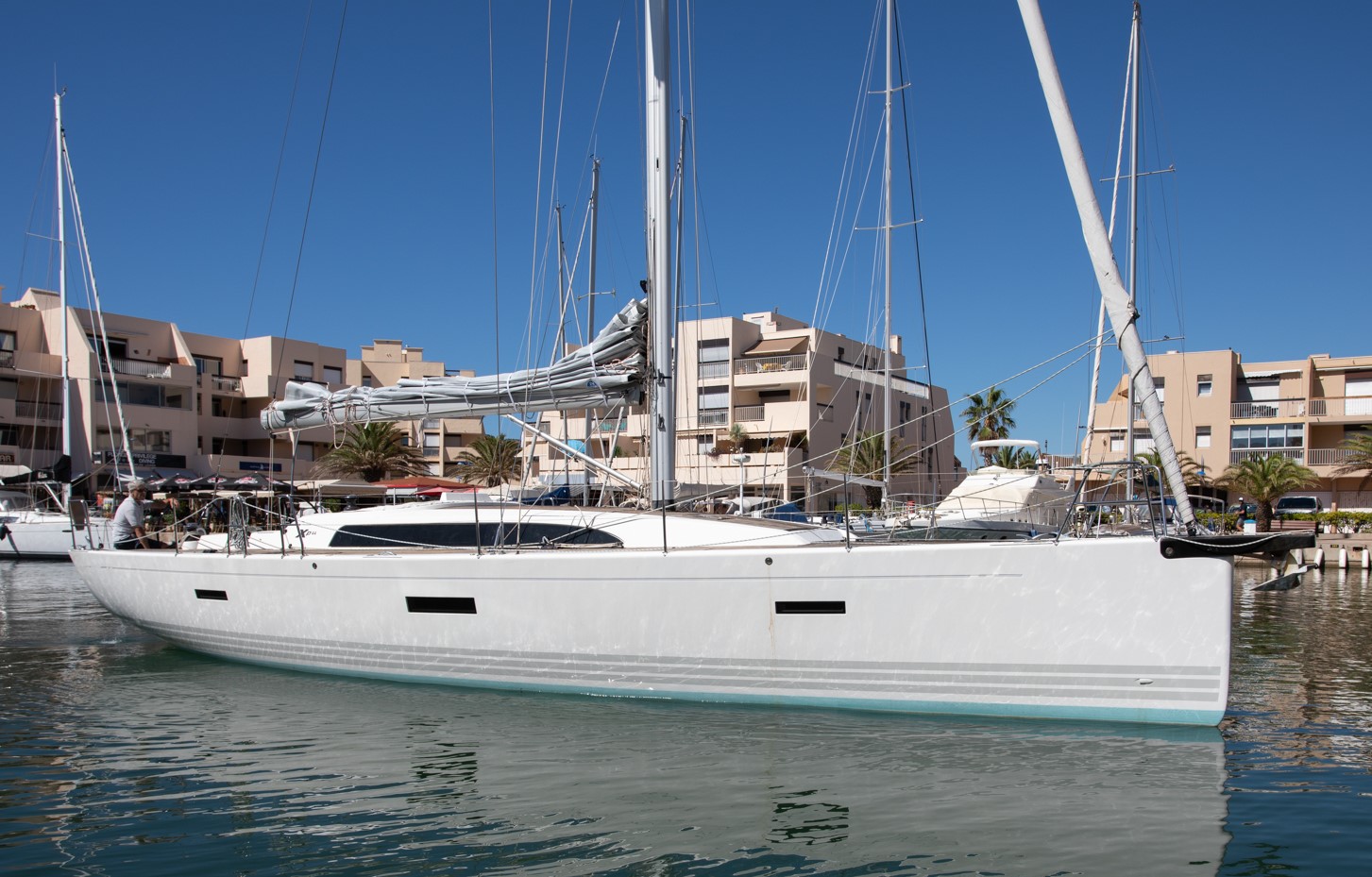

Hull

• Hull epoxy infused in female moulds for optimum consolidation and high quality surface finish
• Built in sandwich construction with structural foam core, Bi-directional and uni directional E-glass
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Structural liner molding laminated into hull. Carbon fiber reinforcements to absorb all loads from keel and mast

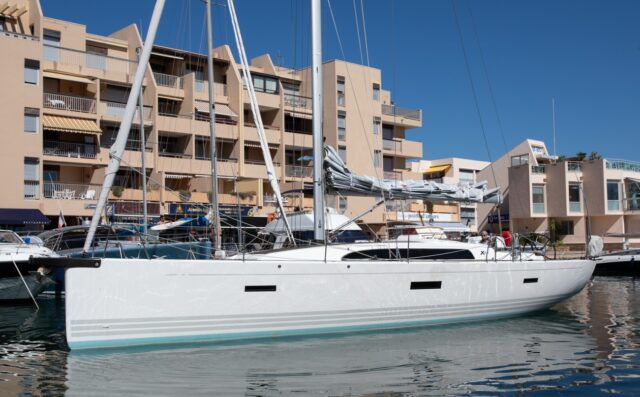

• Outer surface of hull in white sprayed white Gelcoat with 3 grey waterlines (on 3 blue gelcoat stripes ! )
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing ladder in stainless steel mounted on transom
• Structural bulkheads laminated to hull
• Hull recessed portlights - Rectangular (6 pcs)
• 'T' keel 2.30 m prepared with template, draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• Keel securely bolted to carbon reinforced keel structure
• Deck built in sandwich construction with structural foam
• E-glass with bi and uni-directional cloth, white gelcoat
• Rudder blade of sandwich construction laminated
• Rudder stock mounted with needle and self aligning bearings

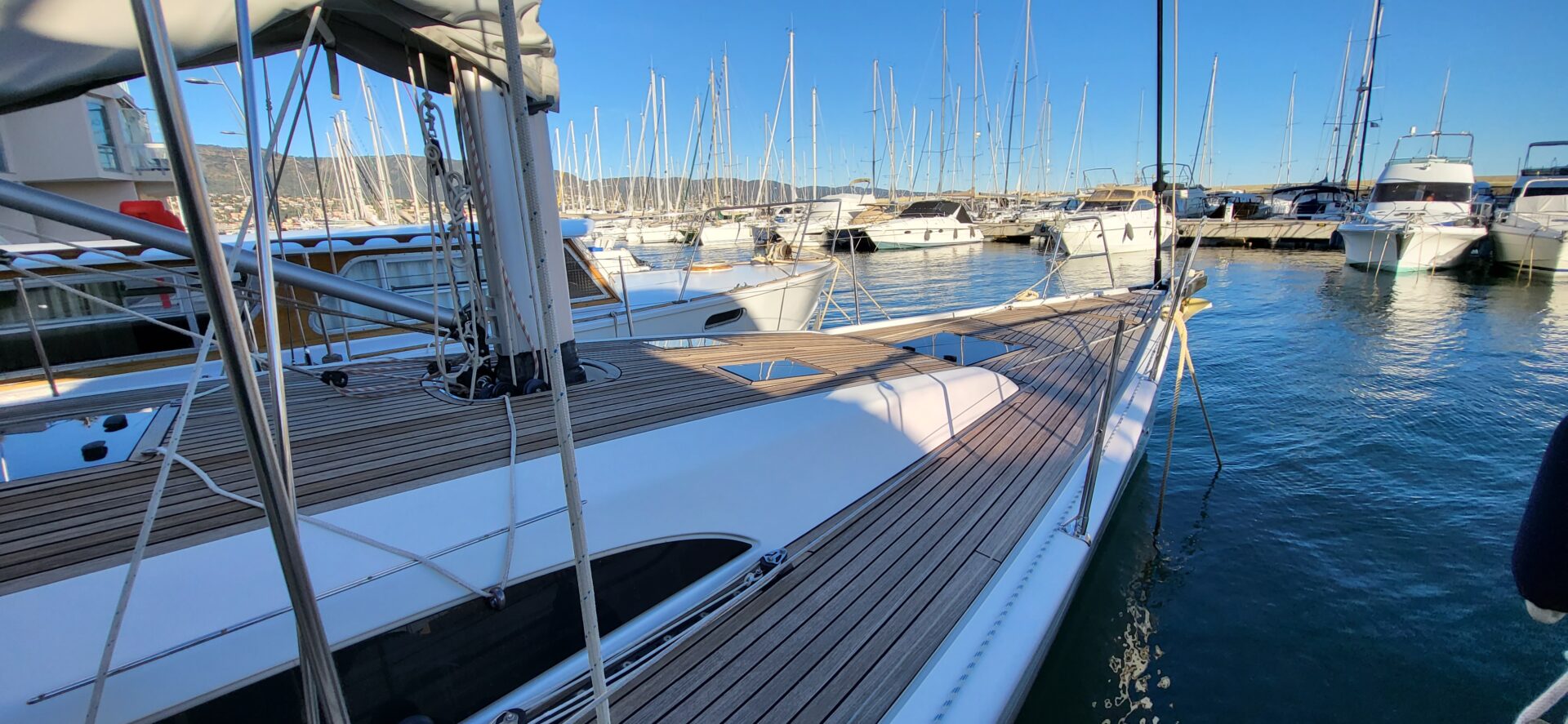

Deck

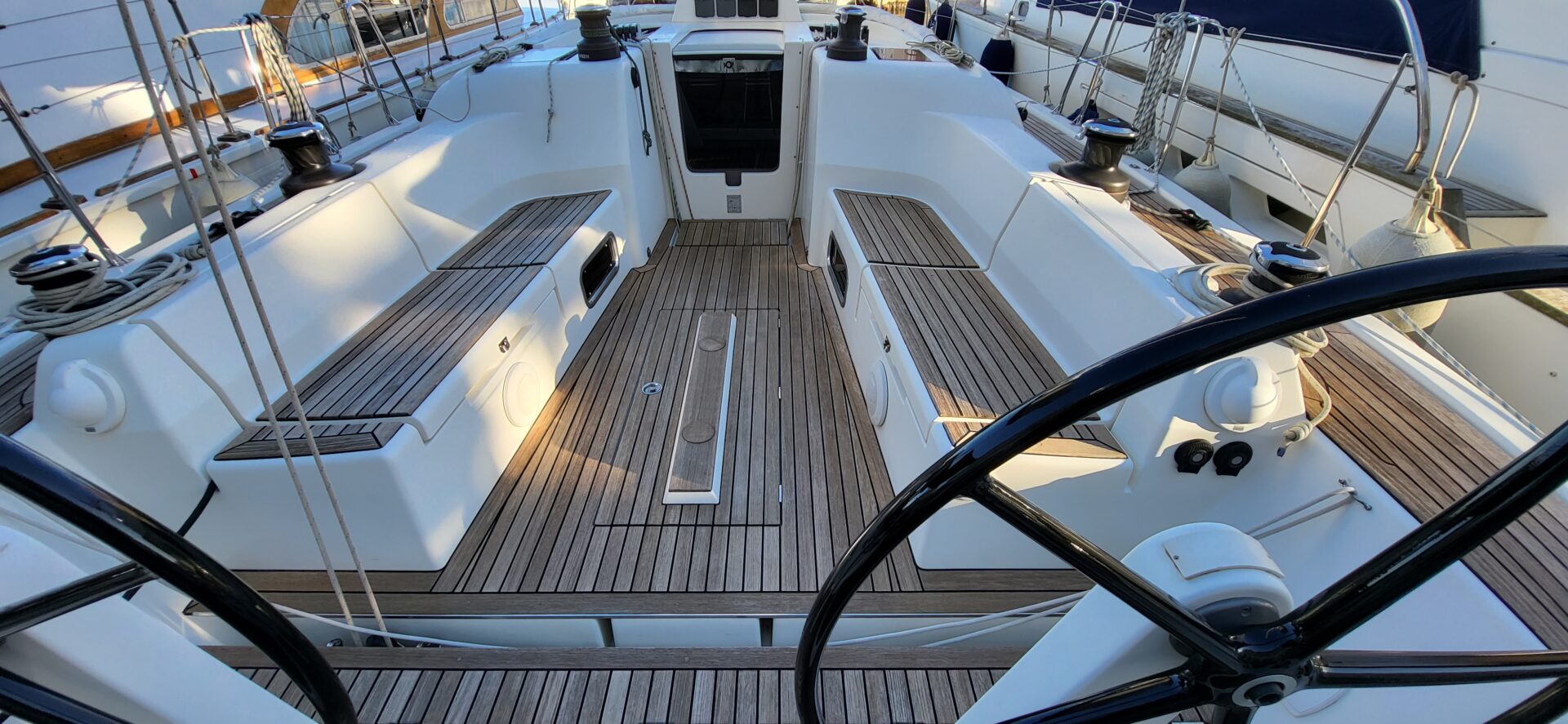

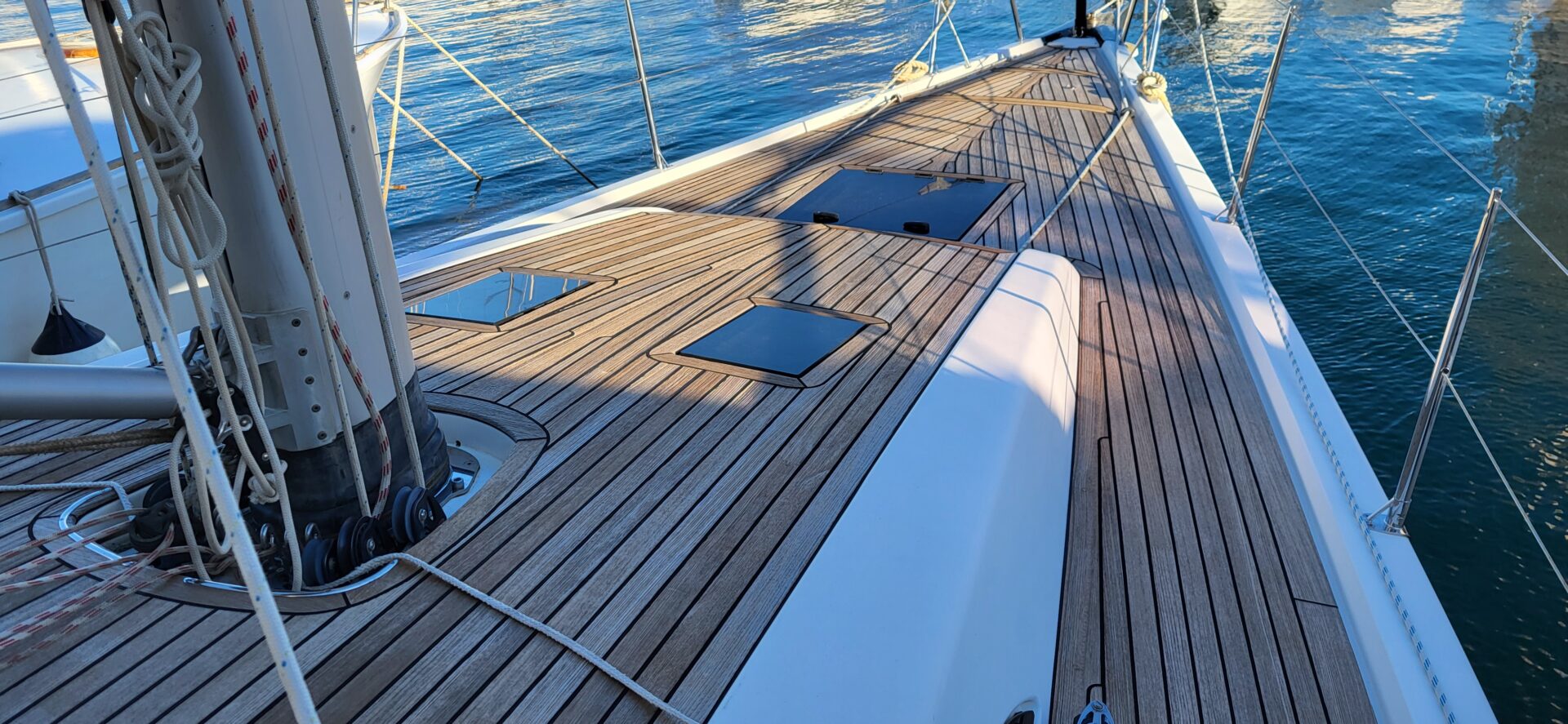

• Teak, vacuum applied, 9 mm nominal thickness on cockpit sole, seats, side decks and coach roof
• Variable height bulwark incorporated in deck/hull design
• Anchor locker - drained area with 1000 W Quick electric windlass
• SPADE Anchor with chain and ropes
• Bowsprit, for asymmetric spinnaker and Code 0's, accommodating the standard removable stainless steel anchor roller fitting,
• Gas spring fitted to forward and both aft cockpit lockers
• Halyard locker recessed into cockpit floor
• Cockpit table with cockpit floor locker storage
• Bathing ladder in stainless steel integrated in transom platform
• Sprayhood on stainless steel arch

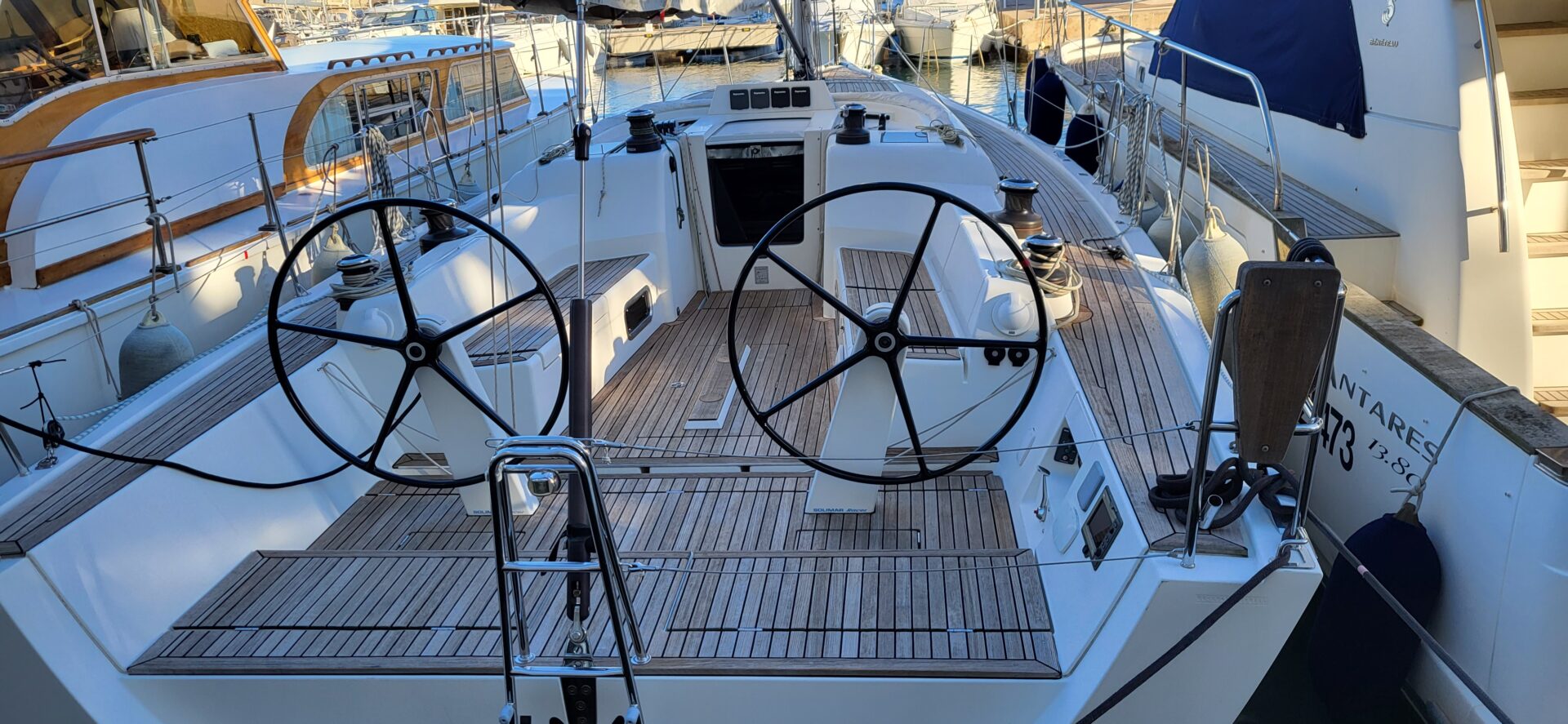

• Composite GRP wheels in black
• Folding morrings cleats
• Teak cockpit table

Sail Handling

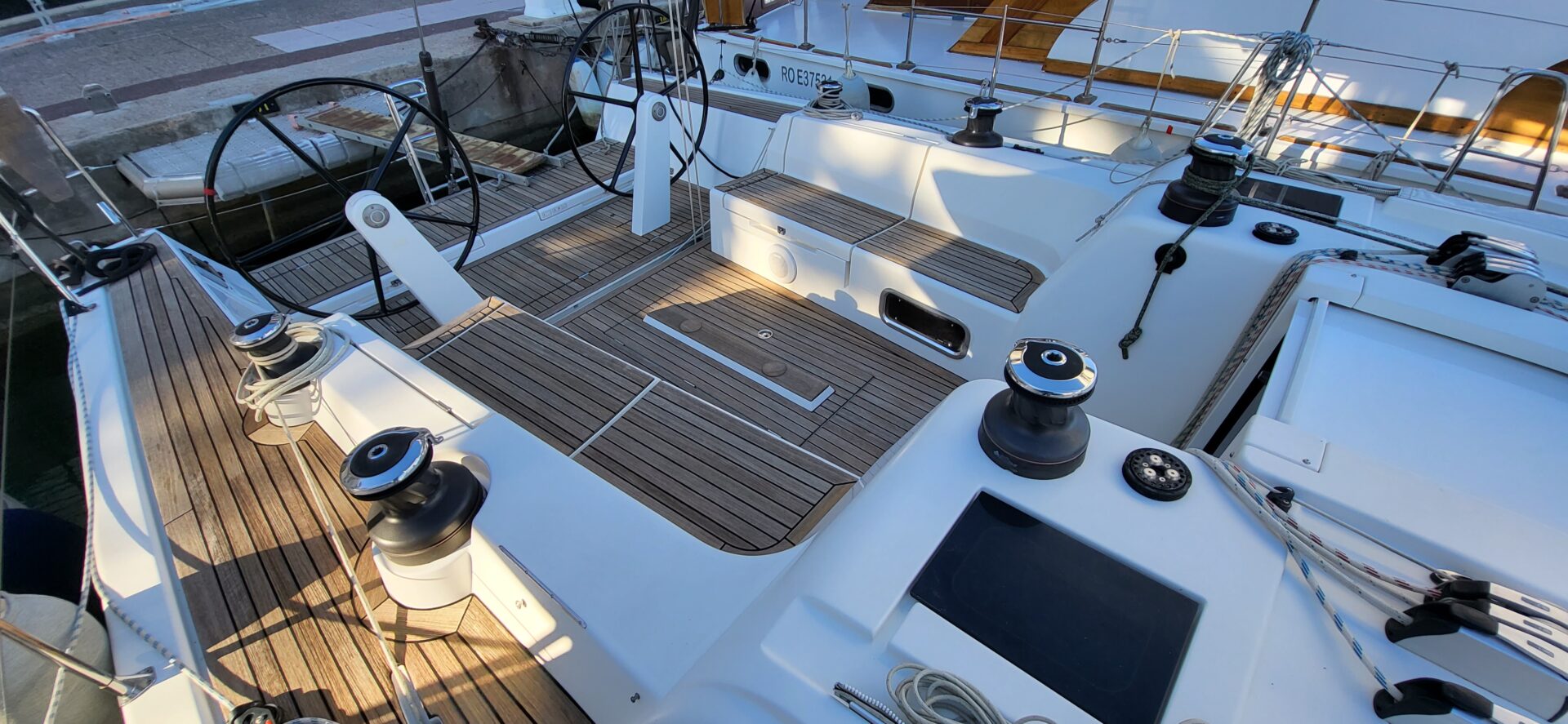

• HARKEN 50.2 ST primary winches
• HARKEN 46.2 ST Electric x 2 for Geman Mainsheet system including 1 electric
• HARKEN 46.2 for halyards, including 1 electric
• Spinlock Jammer/clutches for halyards/control lines/reef lines (x10)
• Mainsail track recessed into cockpit floor forward of the helm position
• PROFURL furling forestay drum below deck.
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines and inhaulers
• Asymetric spinnaker hardware and rigging
• NAVTEC hydraulic backstay tensionner
• Racing running rigging

Sails

• NORTH SAILS
• 2020 3DI full batten mainsail with Ronstan travellers
• 2011 3DL full batten
• 2020 3DI furling genoa with vertical battens and Uv protection
• 2011 3DL furling Genoa
• Assymetrical spinnaker Norlam 3.2 with snuffer
• Gennaker G2 Norlon 150 with FACNOR furler

Mast & Rigging

• Aluminium mast and boom JOHN MAST
• Rod rigging replaced new 2020
• Mast track and Ronstan travellers
• Rigid VANG, with gas spring 2021
• PROFURL headsail furler

Keel

• Standard keel, epoxy bottom coat

Accommodation

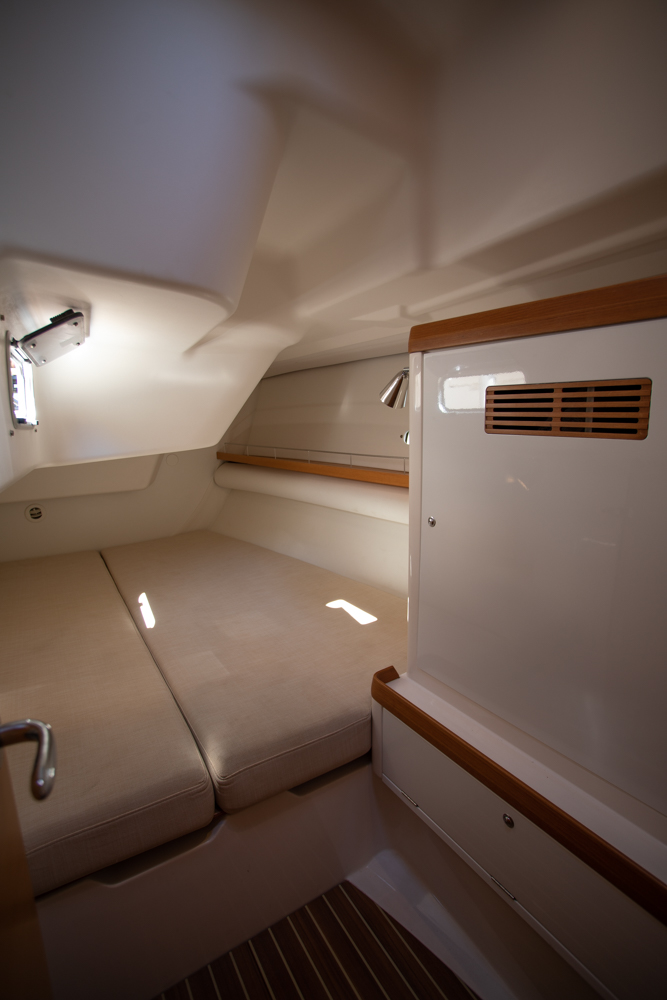

• Standard 3 cabins with leather uphostery

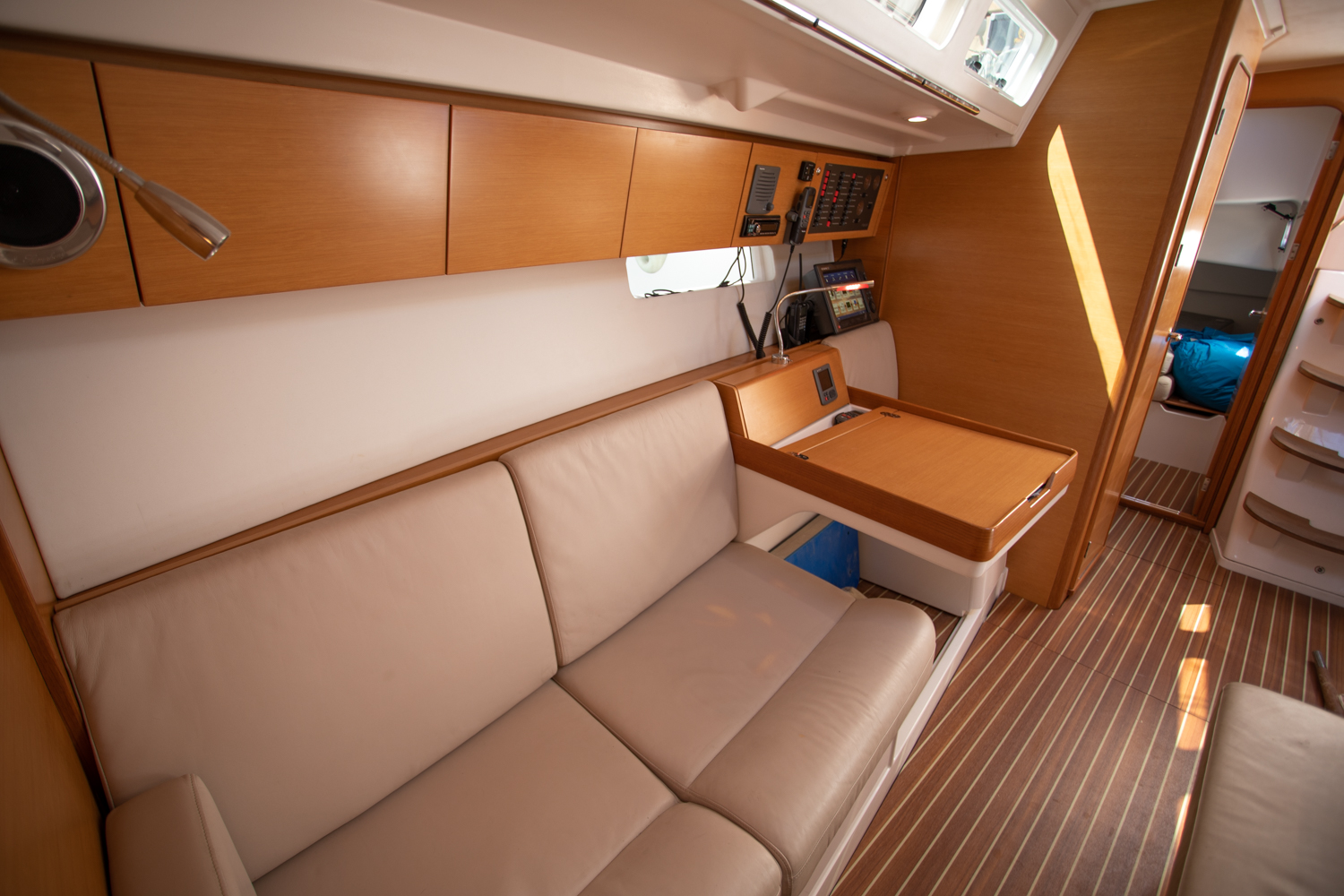

• Multi position chart table

Systems

Engine

• Yanmar 4JH3CE 54 HP with MASTERVOLT alternator regulary maintened
• Saildrive and 3 blades folding propeller
• Retractable MAXPOWER bowthruster

Plumbing

• Seacocks and through hull fittings flush mounted
• Fresh water in plastic (340 litre) below saloon sofa. VDO analogue tank level gauge, inspection hatch and deck fill
• Hot water tank Isotherm 30 l. Tank can be heated either by main engine or immersion heater connected to shore power
• Holding tank, 60 l, with tank level watch with self-draining outlet and deck outlet (2 pcs)
• Pressurized freshwater system for hot and cold water throughout yacht
• Pressurized saltwater pump in the galley
• Deck shower fitted at bathing platform with hot/cold freshwater
• Fridge top opened 130 l built in Isotherm SP, accumulator plate sea water cooled Danfoss compressor
• Additionnal electrical fridge front opening
• Gimballed Gas cooker - 3 burner Eno cooker with oven
• EBERSPACHER heater D5

Electrical

• Services batteries bank 2 x 120 Amp AGM 2020
• Separate engine battery (55 Ah, 12V
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• Galvanic isolator 30 A

Electronics

• RAYMARINE electronic navigation

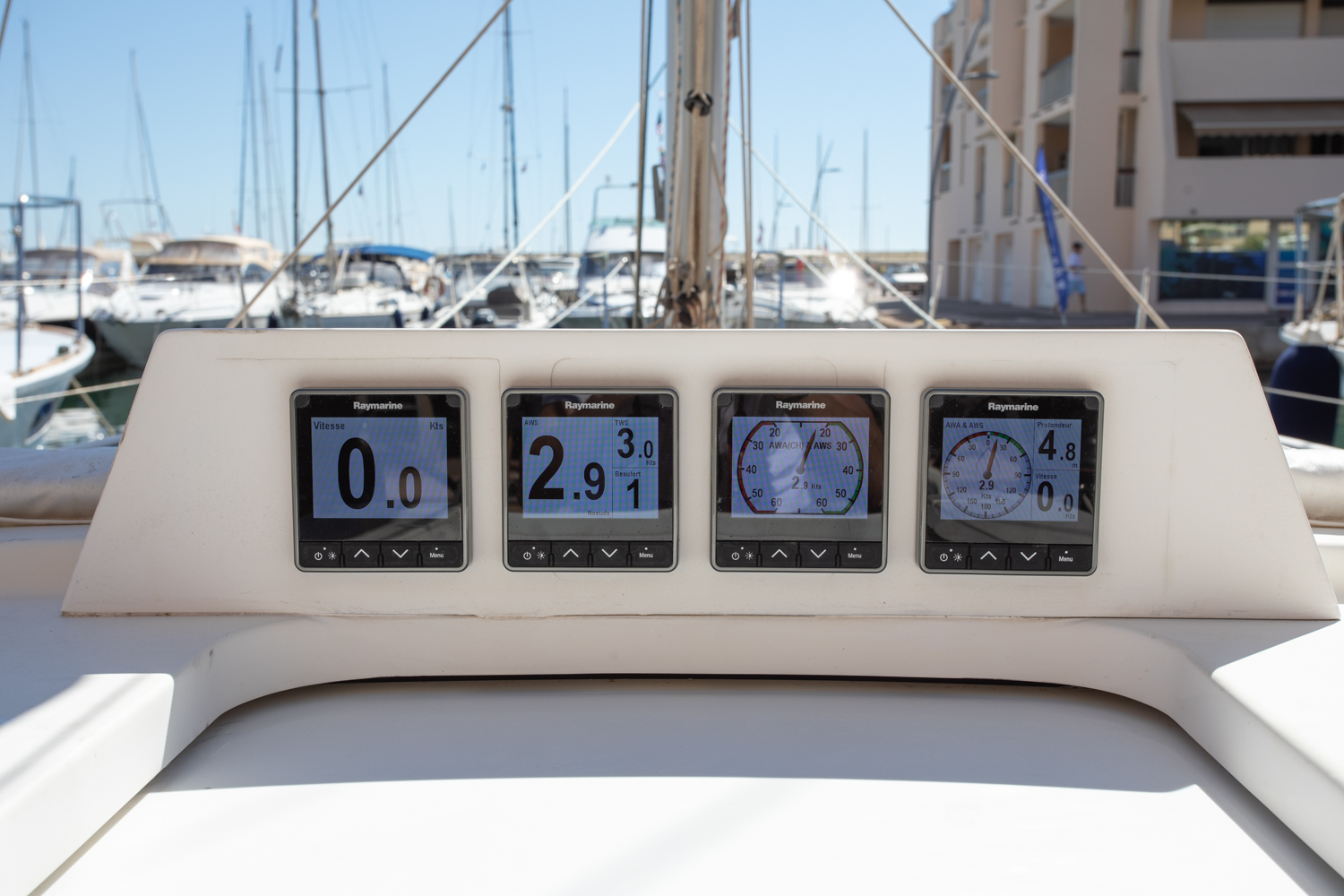

• 4 x I 70 + dysplays on the roof
• Log, speed and wind transducers
• Chartplotter E120 W color at the chart table
• GEONAV Color chart plotter in the cockpit
• Autopilot SPX30 Gyro with T2 ram
• VHF RAY 240 E
• AIS 500 Class B
• 1 ST 70 at the chart table
• Radio CD MP3 USB with HP int ext
