Details

Exterior Details

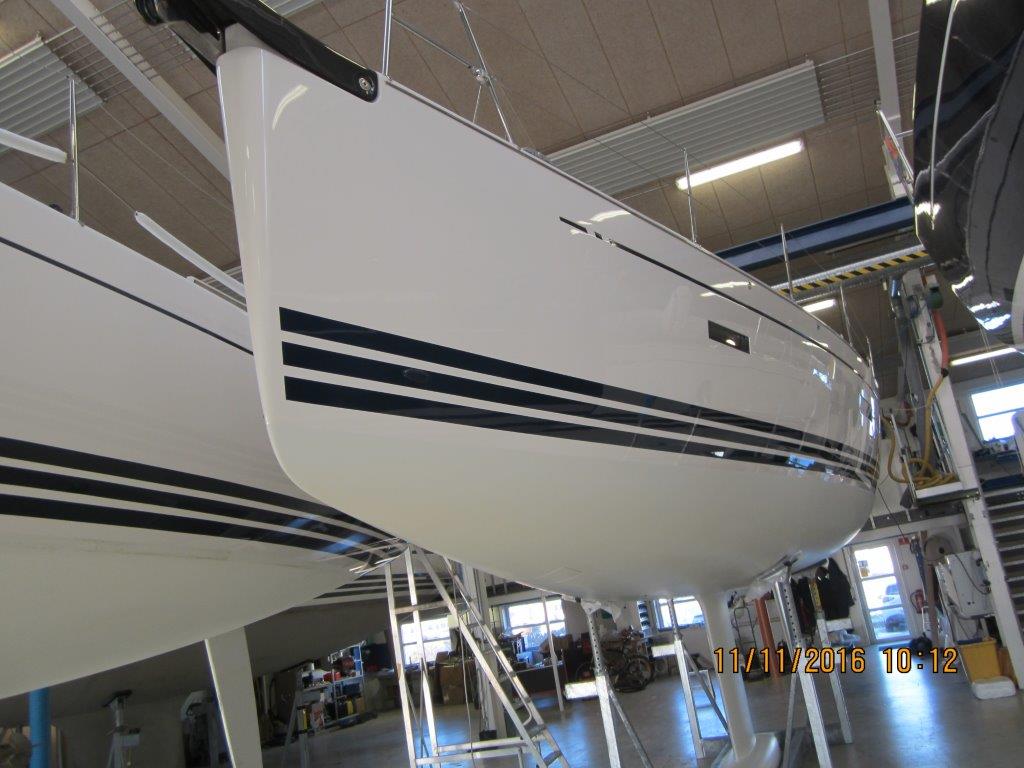

Hull

• Colours:
• HULL: White RAL 9010
• WATERLINES: Blue RAL 5011
• Stainless steel rail protection mounted on sheer line
• Bottom treatment with 3 x epoxy and 2 x anti fouling layers (new bottom treatment in November 2016)

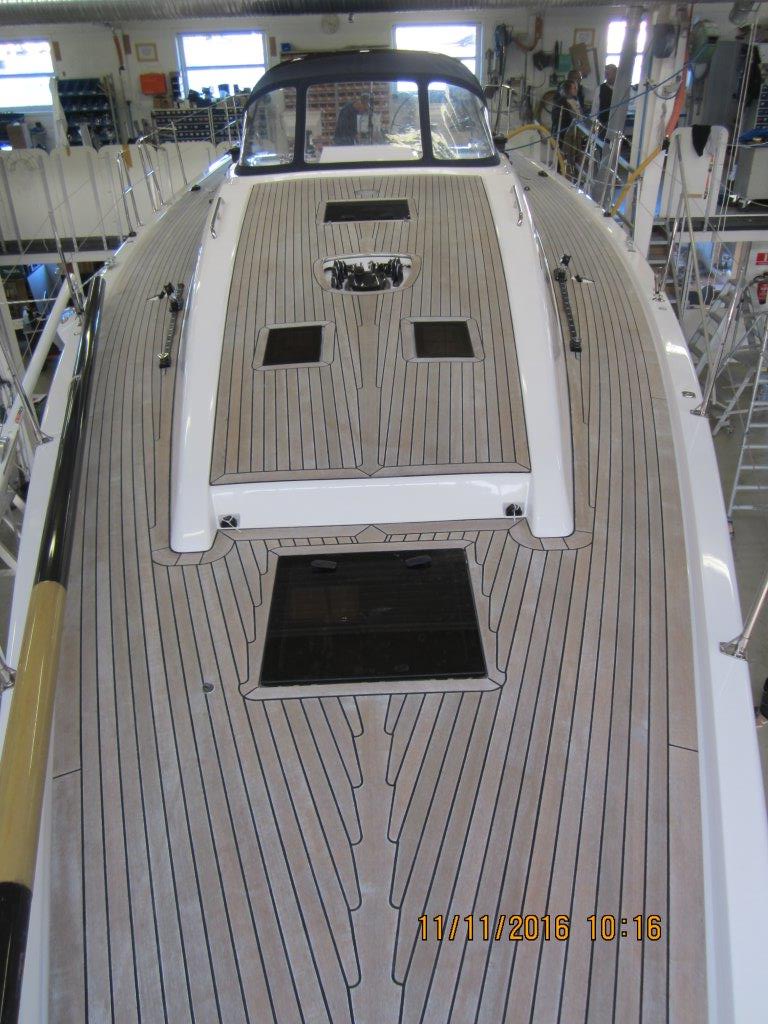

Deck

• Electric Halyard winch, Harken 900STA Unip., port side
• Teak, vacuum applied, 9 mm nominal thickness on coach roof top
• Teak, vacuum applied, 9 mm nominal thickness on side decks
• 2 x Folding mooring cleats (Nomen)
• Teak cockpit table with demountable aluminium legs - stored in recess in cockpit floor

Sail Handling

• Symmetric spinnaker equipment. 1:1 tack line and tack block, inhauler system 10:1 incl. 2 padeyes, padeyes for Genoa barberhauler

Sails

• Mainsail UK Sails, Tape Drive – laminate with Ronstan cars system
• Genoa 3 UK Sails, laminate with vertical battens
• Genoa 4 UK Sails, laminate with double taffeta
• Code 0 UK Sails, OZ Dimension Polyant, with selden CX25 furler system.
• Asymmetric spinnaker UK Sails, All-purpose light
• Asymmetric spinnaker UK Sails, All-purpose with snuffer

Mast & Rigging

• Lazy Jacks
• Combined deck and steaming light, LED
• Tricolour mast head light including anchor light – LED
• Carbon spinnaker pole, track and adjustable car on mast
• Extra Top Spi halyard, 2:1 SK90

Keel

• Standard keel, 2.30 m

Hatches / Portlights / Ventilation / Sprayhood

• Canvas:
• Sprayhood and cockpit tent in blue
• Boom cover
• Wheel and instrument covers, blue
• Forstay cover

Guard rail / Anchor / Stainless Steel Fittings

• Gate in guard-rail
• SS handrails mounted on couch roof
• Carbon bow sprit, clear-coated

Accommodation

• Spring mattress in owners. Cushion type: Alsace Blue 010
• Berths: Cushion type: Gaja 1190
• Galley:
• Gimballed Gas cooker - 3 burner Eno cooker with oven and grill
• Fridge, 65 ltr with ice cube compartment, front opened with ASU start-up technology, positioned under sink
• Electrical gas switch with solenoid valve fitted to the standard gas installation

Systems

Engine

• Engine 54 HP
• 3-blade propeller

Plumbing

• Heating system - Eberspächer D5 with 5 outlets in saloon, cabins and fwd head

Electrical

• Charger and inverter 12V/2000W/100A including MICC with remote multi control panel and galvanic isolator replacing standard 50 A charger
• Additional battery
• Galvanic Isolator 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion)
• 12V socket mounted in cockpit
• 12V socket for the cabin
• 3 x 230V sockets
• 12V socket at chart table

Electronics

• Raymarine Instrument Packet II:
• 2 x ST70+ Multi display
• 1 x ST70+ Instrument control
• 1 x ST70+ Sail pilot control
• 1 x Longer carbon wind transducer
• 1 x Combined log, lot and water temperature transducer
• 1 x SPX 30 course computer with linear drive
• 1 x Raystar 125+ GPS antenna
• 1 x Fibre glass instrument console over the companion way
• 2 x SS rails to protect the instruments
• 2 x Large instrument boxes on wheel pedestals
• 1 x C120W plotter at wheel pedestal
• 2 x Compass, Suunto B-95
• Raymarine AIS 650
• VHF RAY 240E DSC-D ATIS with handset
• VHF Ray 240 outside loudspeaker
• Hawk antenna VHF/DVD
• Entertainment:
• Blaupunkt Montevideo 4010 DVD multimedia radio
• Bose 131 Cockpit loudspeaker set connected to radio
• LED flat screen TV at chart table

Thrusters

• Bow thruster - Retractable 12V with control at starboard recess near steering wheel
