Owner's Comments

In very good shape continuously maintened, used for family cruising

Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging

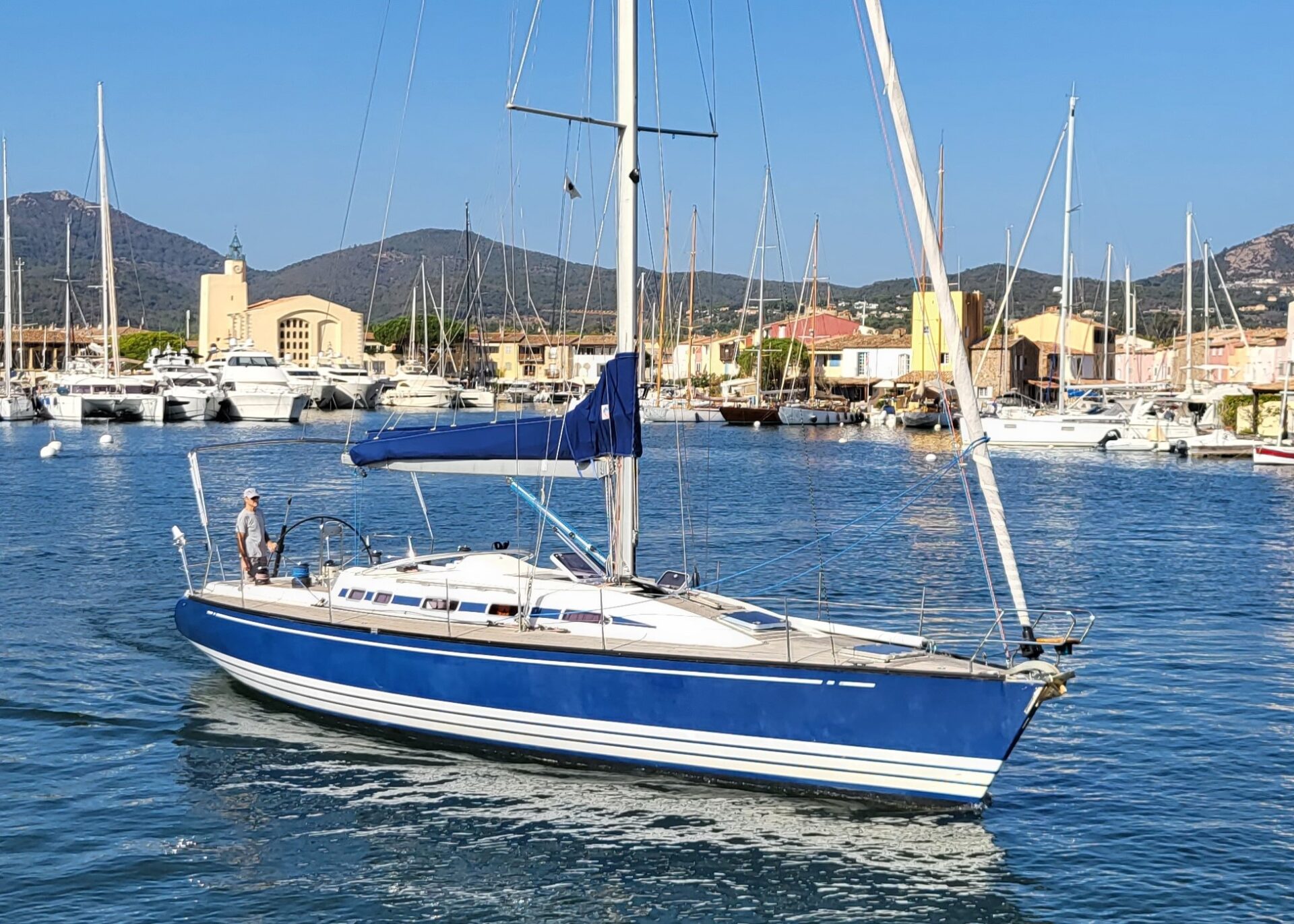

• ALW GRIP Navy blue hull repainted in 2009 with 3 white waterlines
• Single point hoist for easy and safe lifting and launching of the yacht
• Standard keel 2.50m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• Keel securely bolted to reinforced keel structure
• Deck built in sandwich construction with structural foam and bi and uni-directional E – Glass cloth, white gelcoat
• Rudder stock constructed of solid, high aluminium with welded wings

Deck

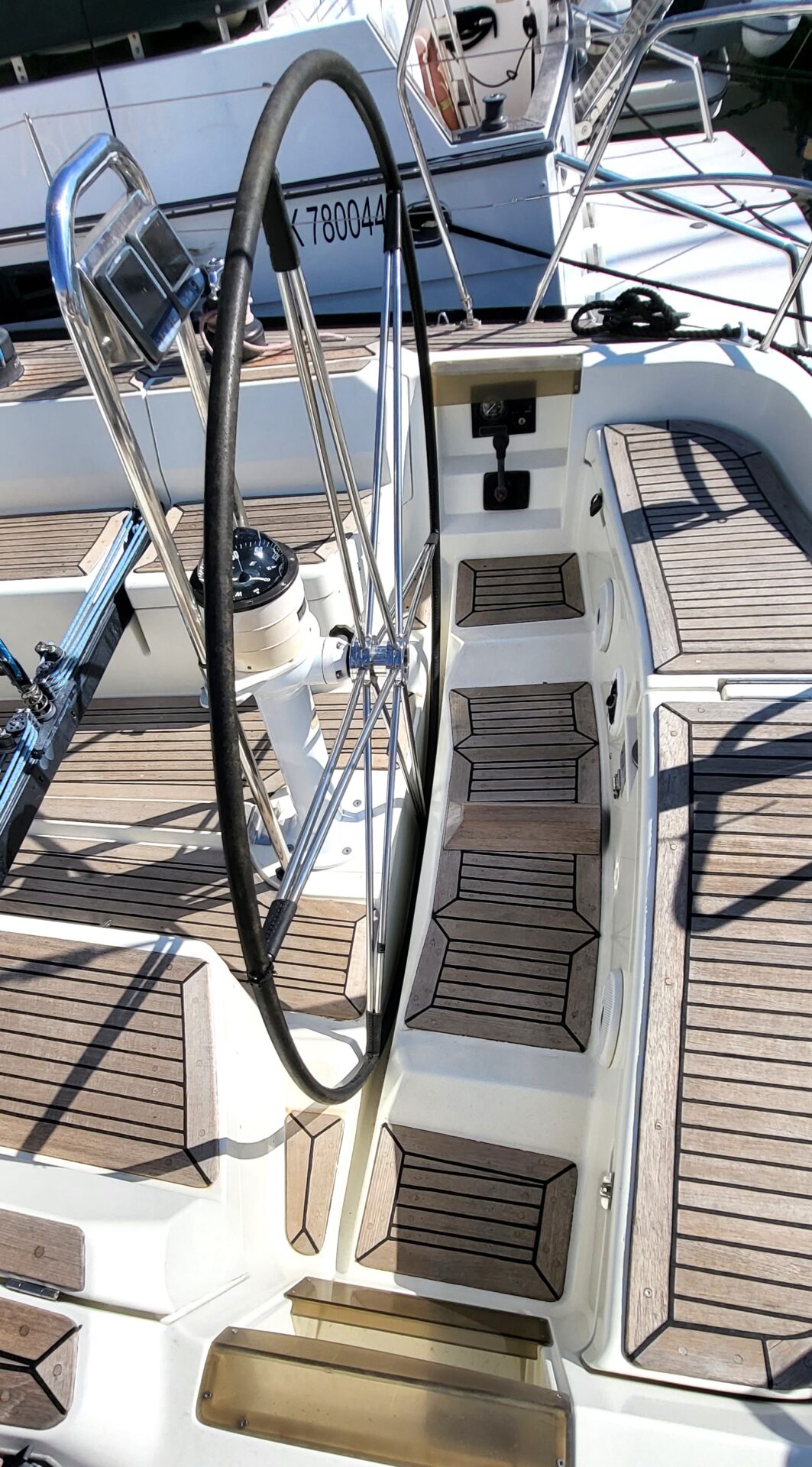

• Teak, on side deck, cockpit sole seats and transom, refitted in 2014.
• Anchor locker - drained area with CAIMAN 12 V 1000 W LOFRANS electric windlass
• SPADE anchor
• Sail locker accessible from deck hatch, plenty of storage space for sails and dinghy
• Bathing ladder in stainless steel integrated in transom
• Stainless Steel handrails on coachroof
• Outboard engine bracket on aft pushpit
• Sprayhood
• Bimini

Sail Handling

• Aluminium HARKEN 2 x B64.3 STA primary winches
• Aluminium HARKEN 2x 48.2 for spinnaker
• Aluminium HARKEN 2x 46.2 for halyards,
• RONSTAN Jammer/clutches for halyards/control lines/reef lines (x9)
• Mainsail track in the cokpit
• HARKEN furling forestay furling line led back to cockpit
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• Symmetrical spinnaker hardware and rigging with carbon boom

Sails

• Mainsail NORTH SAILS SRP75 Hydranet 2010 with bearing traveller 2010
• Genoa NORTH SAILS Triradial 108 % Norlam NLU 450 verticales battens 2017
• Cruising asymetrical spinnaker with snuffer 2012
• Symetrical spinnaker
• Stormjibe

Mast & Rigging

• SPARCRAFT aluminium mast and boom, 3 spreaders, mast head, Rod rigging.
• SPARCRAFT masthead, triple spreader keel stepped mast, tapered silver anodized aluminum
• Discontinuous rod rigging with rod turnbuckles replaced 2016
• Telescopic vang with outer purchase block system
• Harken mast track with mainsail travellers 2016
• Backstay fitted with hydraulic NAVTEC backstay adjuster 2014

Accommodation

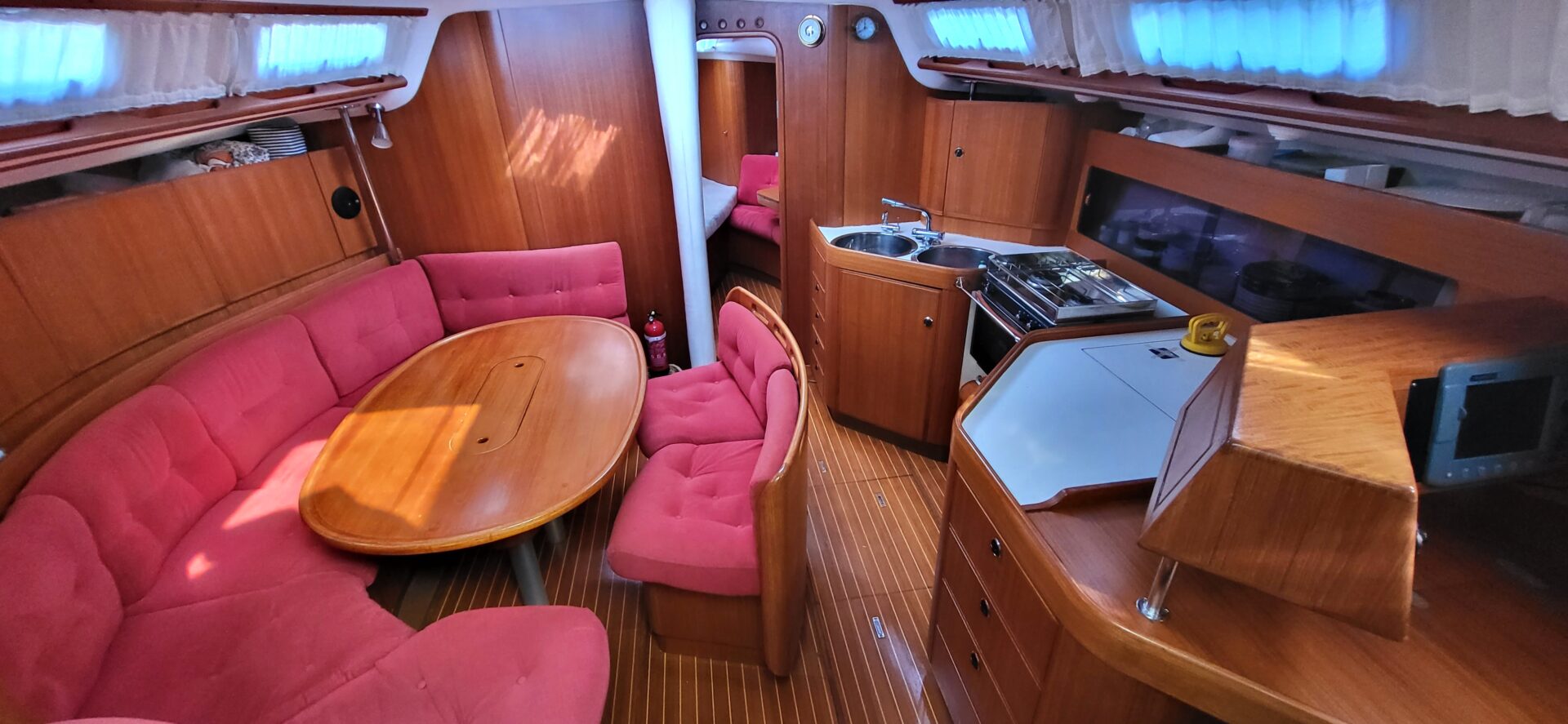

Version modern 3 cabins layout Teak wood inside

Systems

Engine

• Engine VOLVO MD22 53 CV refit 2023 water cooled diesel engine with S-Drive
• Special engine compartment with sound insulation
• Folding propeller 2 blades
• Separate engine Battery 74 Ah 2023

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• Additional Fresh water tank 150 L
• Hot water tank Isotherm 40 l. Tank can be heated either by main engine or immersion heater connected to shore power
• Holding tank, for front toilets
• Pressurized freshwater system for hot and cold water throughout yacht
• Deck shower
• Fridge top opened b and compressor
• Gimballed Gas cooker – 2x burner Eno cooker with oven

Electrical

• Main switch board with analogue meters for fuel, water and battery voltage
• Gel service batterie bank 2 x 200 Amp 2015
• Separate engine battery (74 Ah, 12V)
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• MASTERVOLT battery monitor
• Automatic battery charger DOLPHIN 12V/220 V 60 Ah

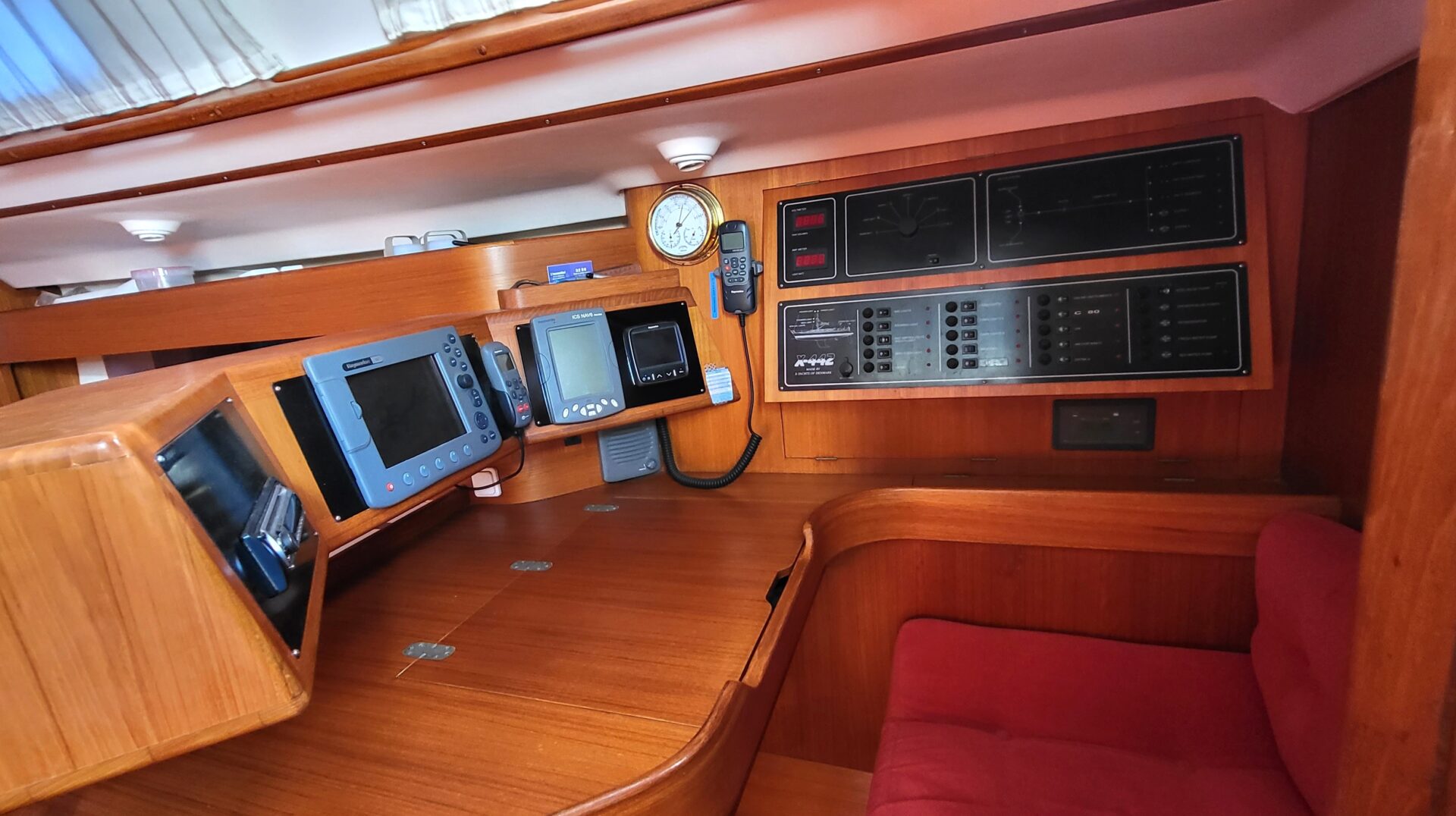

Electronics

• RAYMARINE electronic
• Autopilote RAYMARINE with wireless remote control
• Transduceurs for Loch- Sondeur- Girouette wind
• 3 display I 70 on the coachroof + 2 x I 70 at the steering wheel, 1 x I 70 at the chart table, 2014
• GPS Chart plotter RAYMARINE C80
• VHF RAY 240 E
• AIS transpondeur
• Radio CD + 2 HP in the saloon and 2 HP in the cockpit
