Owner's Comments

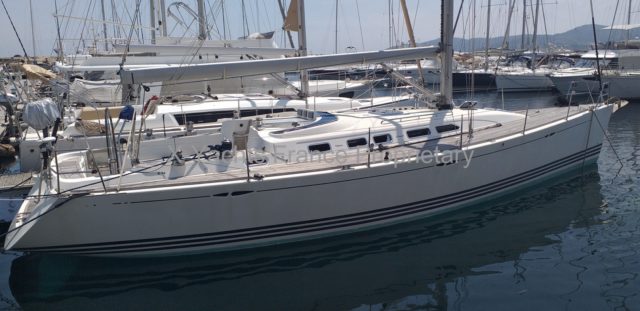

First handed X-46 perfectly equiped for short crew with blue water program !

Details

Exterior Details

Hull

• • Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Structural bulkhead in marine plywood varying of thickness from 12-28 mm.
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue waterlines

Deck

• • Teak, on side deck, cockpit sole seats and bathing platform.
• Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - drained area with 12 V 1700 W LOGRANS electric windlass
• • 24Kg SPADE Anchor with 80 m of 10mmm chain
• • Sail locker accessible from deck hatch, plenty of storage space for sails and dinghy
• • Gas spring fitted to forward and both aft cockpit lockers
• • Moorings cleats in stainless steel lounted fore, aft and amidships, including stainless steel protection rails
• • Sprayhood on stainless steel arch
• • Bathing ladder in stainless steel integrated in transom platform
• • Stainless Steel handrails on coachroof
• • Outboard engine bracket on aft pushpit

Sail Handling

• • Electric Stainless Steel Andersen 58.2 primary winches
• • Stainless Steel Andersen 46.2 for Geman Mainsheet system including one electric
• • Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Profurl furling forestay furling line led back to cockpit
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Symetric spinnaker hardware and rigging with aluminium boom

Sails

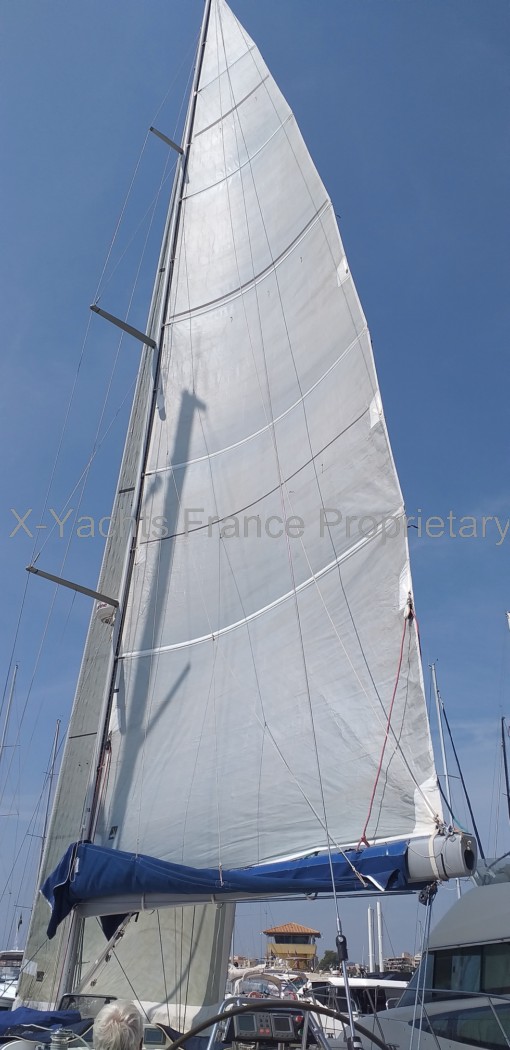

• • Mainsail full batten Trilam ALL PURPOSE 2011
• • Furling Genoa Trilam ALL PURPOSE 2011
• • Symetric spinnaker with snuffer

Mast & Rigging

• • SPARCRAFT fractional triple spreader keel stepped mast, tapered silver anodized aluminum
• • Discontinuous rod rigging with rod turnbuckles
• • Silver anodized boom with single line reefing and internal boom outhaul
• • HARKEN mast track with bearing travellers
• • Telescopic vang with outer purchase block system
• • Split backstay fitted with hydraulic NAVTEC backstay adjuster

Keel

• • Standard keel 2.40m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• • Keel securely bolted to reinforced keel structure

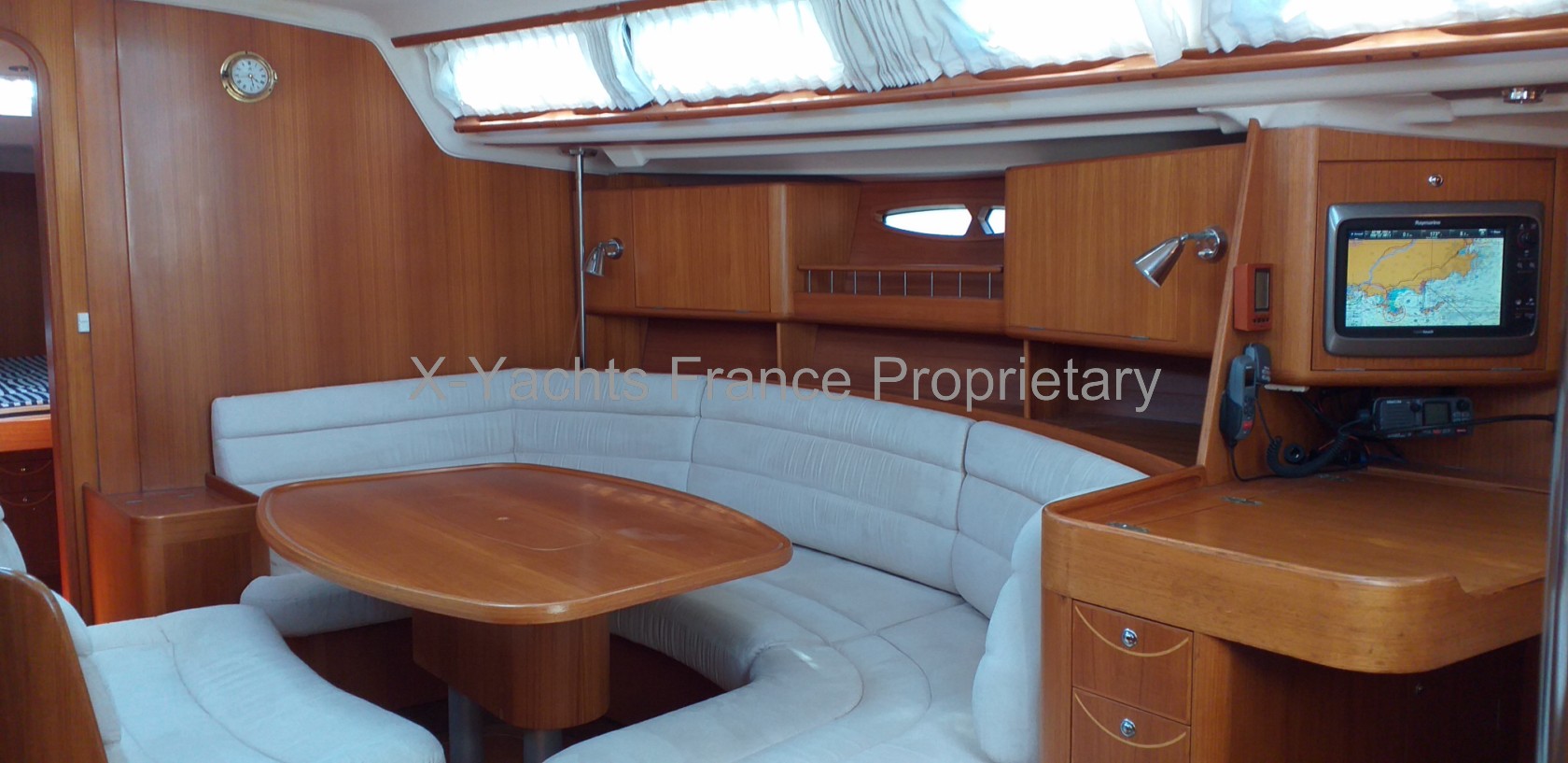

Accommodation

• • Top grade teak , varnished and hand polished satin finish
• • Modern layout 3 cabins 2 toilets
• • Companionway with steps of curved unvarnished teak
• • Handrails by entrance and alongside coach roof portlights in main cabin
• • Alcantara upohlstery in the saloon,

Systems

Engine

• • Engine VOLVO D2 55 Hp, water cooled diesel engine with S-Drive
• • Special engine compartment with sound insulation
• • MAX PROP propeller, 3-bladed bronze for S-drive
• • Retractable Max Power bowthruster VIP150

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank (380 litre)
• • Hot water tank Isotherm 40 l. Tank can be heated by main engine or immersion heater connected to shore power
• • Holding tank, for front toiletts and deck outlet
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Deck shower
• • Fridge top opened built in Isotherm SP, accumulator plate and compressor
• • Gimballed Gas cooker – 2x burner Eno cooker with oven
• • Pipe for for pulsed heater pre installation

Electrical

• • Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • VICTRON GEL services batteries 4 x 165 Amp 2016
• • Separate engine spiral-cell battery (60 Ah, 12V)
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • STERLING charging regulator
• • MASTERVOLT automatic battery charger 12V/80A
• • FISHER PANDAR generator 4.5 kw
• • DESSALATOR fresh water maker DUO 12V / 220 V 60 lh
• • General lights and dome spotlights integrated in inner liner

Electronics

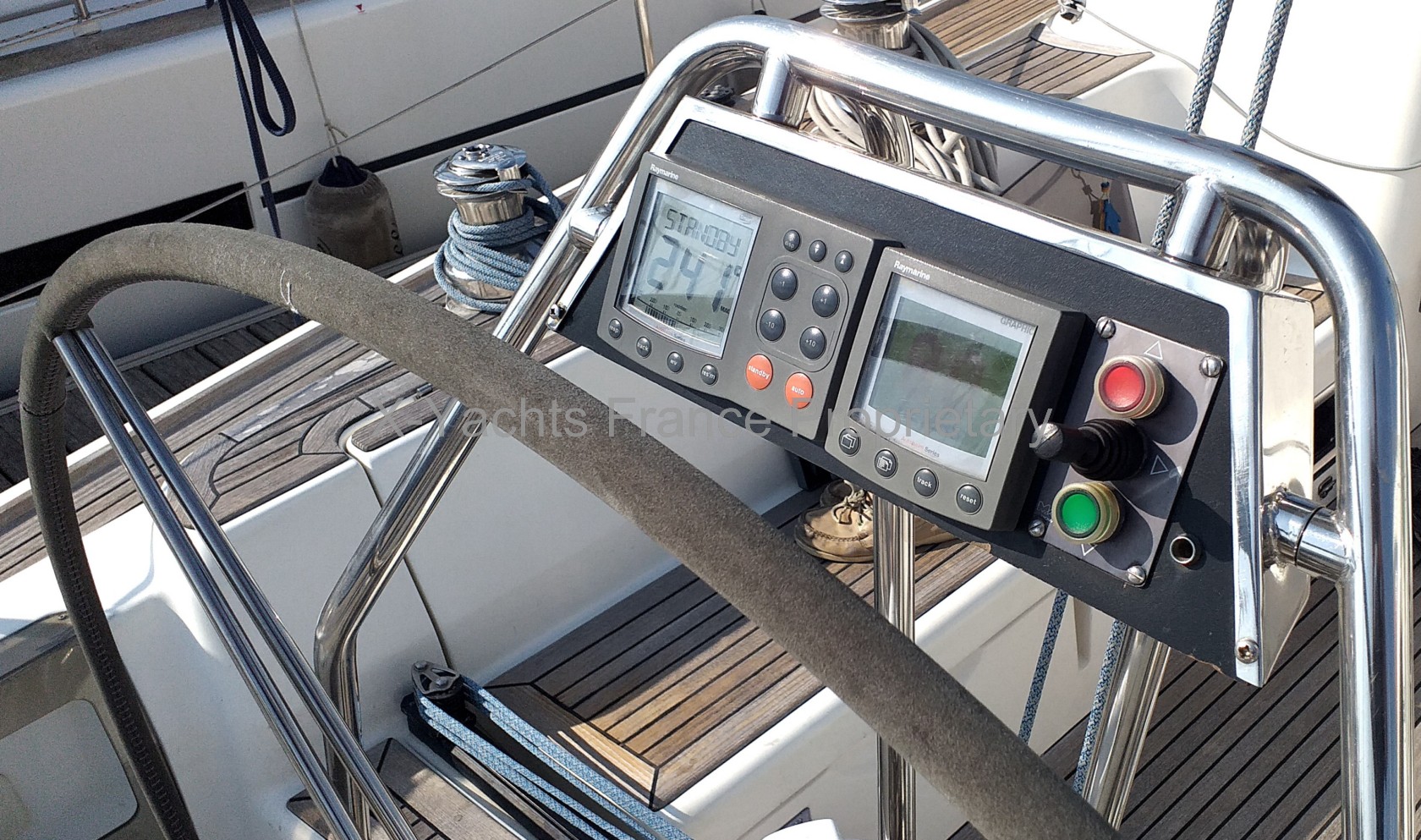

• • Raymarine ST60 Tridata with speed, loch and deepth transducxers
• • Raymarine ST60 wind with
• • 1 Maxiview ST60 display
• • 1 Mutigraphic ST 60 display
• • RAYMARINE 7001 Autopilot with S3 Gyrocompass and linear tiller type 2
• • RAYMARINE E127 tactile screen with deepth module at the chart table 2016
• • Radar antenna RD418 HD de 2016
• • AIS 650 RAYMARINE transducer
• • VHF
