Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• • Blue hull with white stripes
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Structural bulkhead in marine plywood varying of thickness from 12-28 mm.
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• • Bottom epoxy treated 2014
• • New rudder and JEFA bearings replaced 2021
• • Antifoulling august 2022

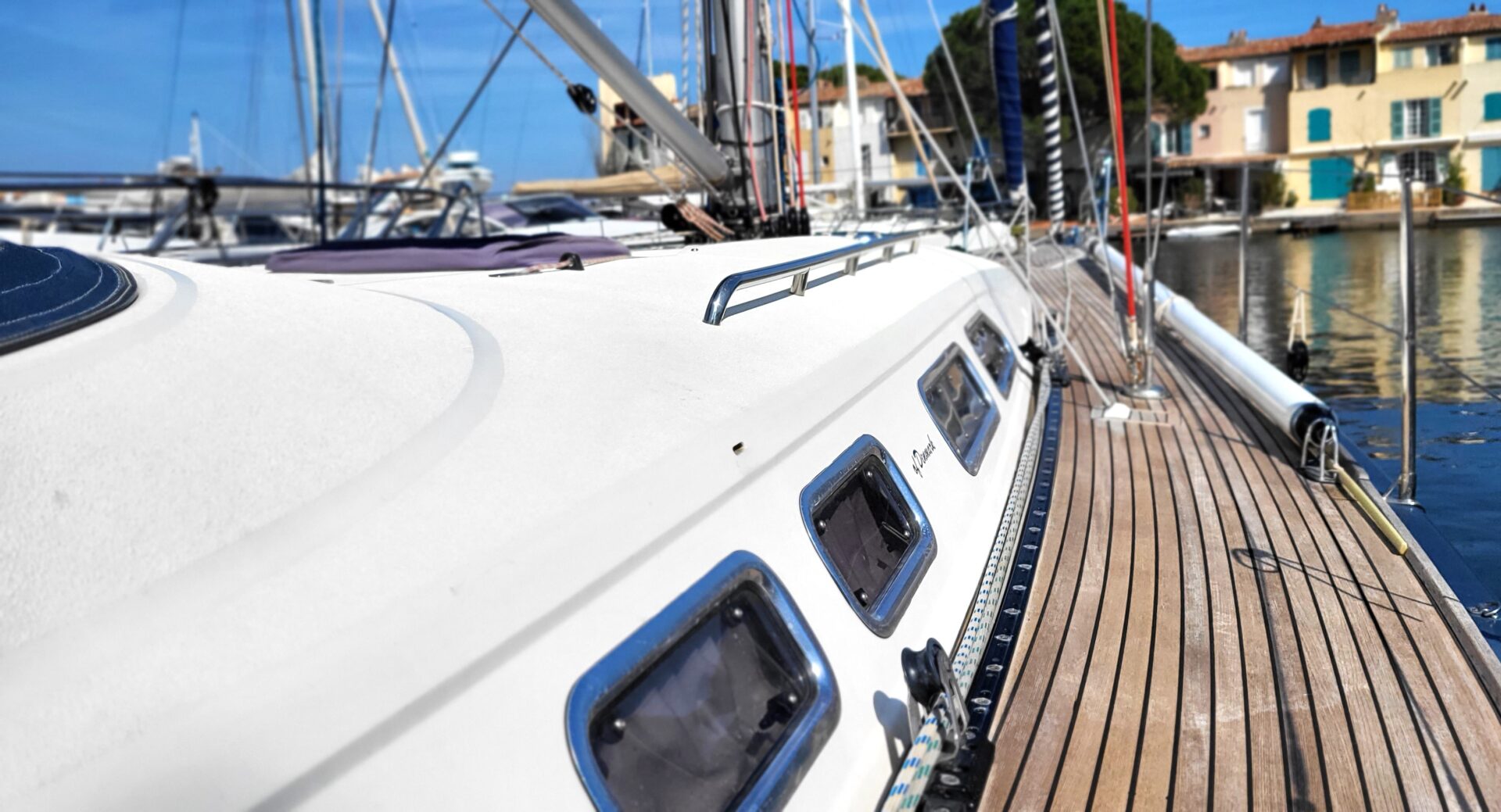

Deck

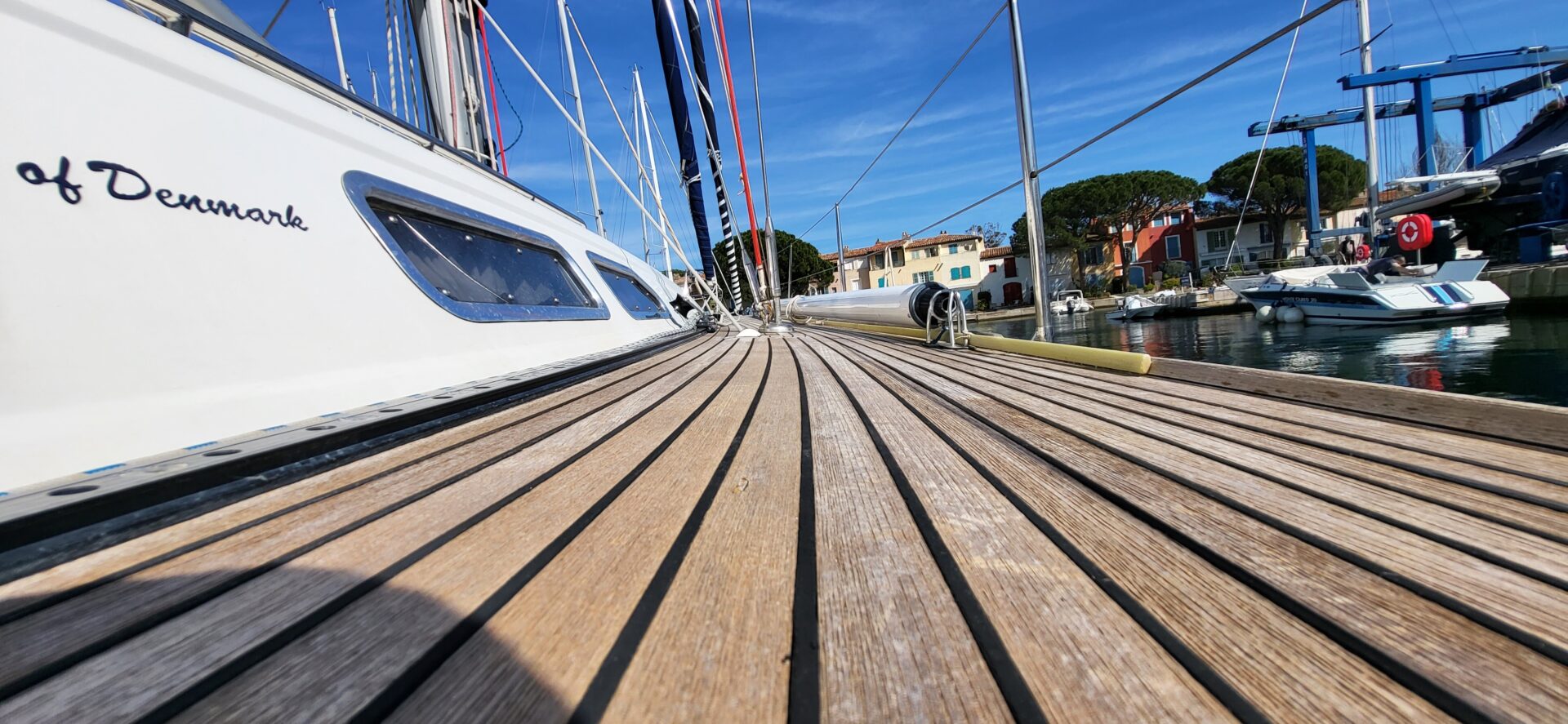

• • Teak, on side deck, cockpit sole, seats 2014 and transom.
• • Anchor locker - drained area with 12 V 1700 W LOGRANS electric windlass DELTA Anchor 80 m 10 mm chain
• • Starinless bowsprit (same model on the Xc-45) + ladder

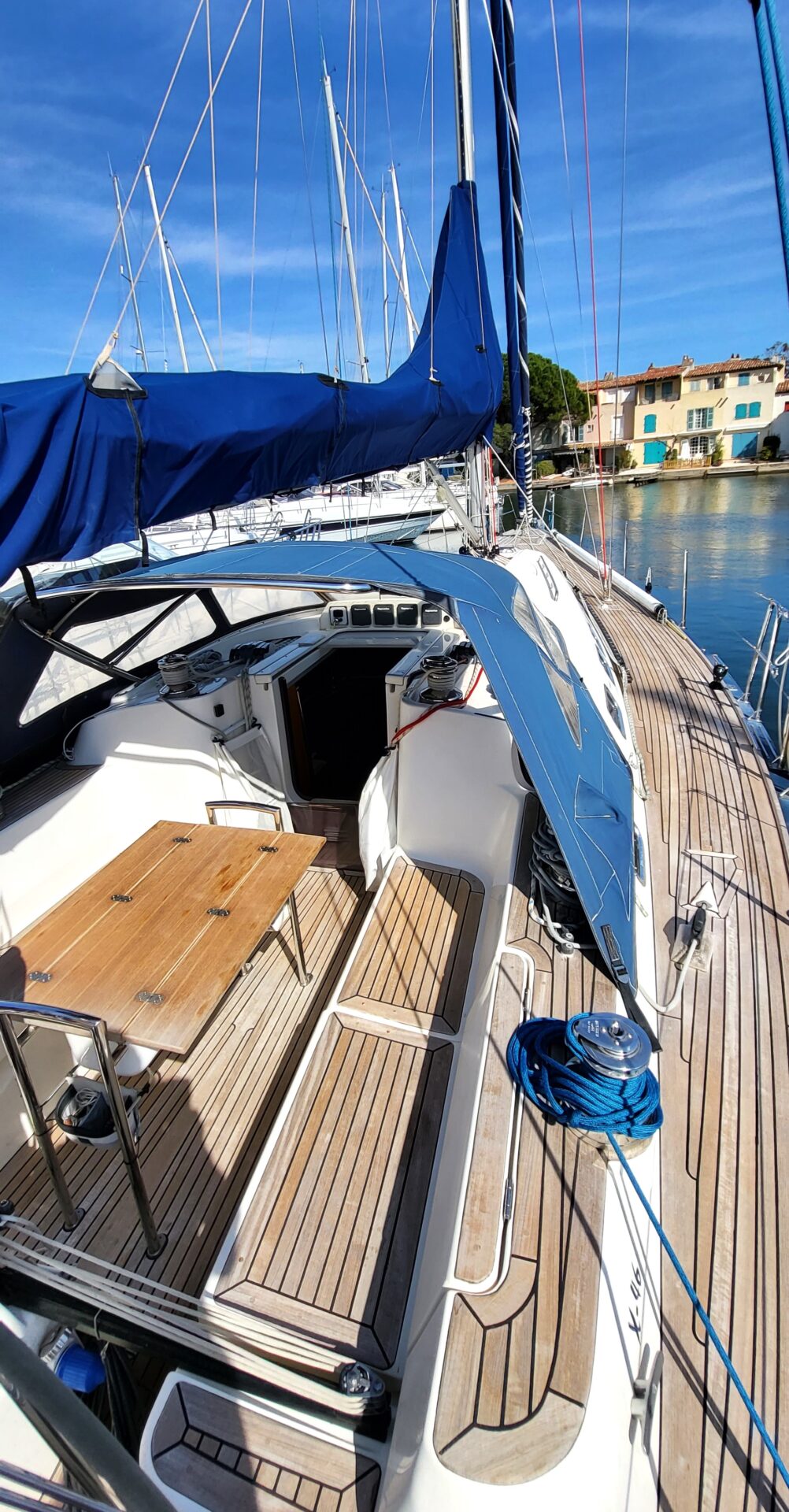

• • Cockpit table
• • Sail locker accessible from deck hatch, plenty of storage space for sails and dinghy
• • Gas spring fitted to forward and both aft cockpit lockers
• • Moorings cleats in stainless steel lounted fore, aft and amidships, including stainless steel protection rails
• • Sprayhood 2022on stainless steel arch
• • Bathing ladder in stainless steel integrated in transom platform
• • Stainless Steel handrails on coachroof
• • Outboard engine bracket on aft pushpit
• • Stern mooring with Bruce anchor

Sail Handling

• • 2 x Steel Andersen 62.2 primary winches
• • 2 x Stainless Steel Andersen 46.2 for Geman Mainsheet system
• • 2 x Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware with carbon spinnaker pool

Sails

• • Mainsail full batten ELVSTROM radial laminate 2014 3 reefs with HARKEN travellers
• • Furling Genoa 105 % DCX Heavy 2015
• • Storm bag DELTA VOILES
• • Furling jibe Hydranet 2019
• • Gennaker + furler 2017
• • Assymetric spinnaker +furler 2017

Mast & Rigging

• • SPARCRAFT fractional triple spreader keel stepped mast, tapered silver anodized aluminum
• • HARKEN mast track with travellers 2018
• • Discontinuous rod rigging with rod turnbuckles replaced 2019
• • Aluminium boom and vang replaced 2019
• • Profurl furling replaced 2014
• • Innerstay with PROFURL furler 2019

Keel

• • Standard keel 2.40m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• • Keel securely bolted to reinforced keel structure

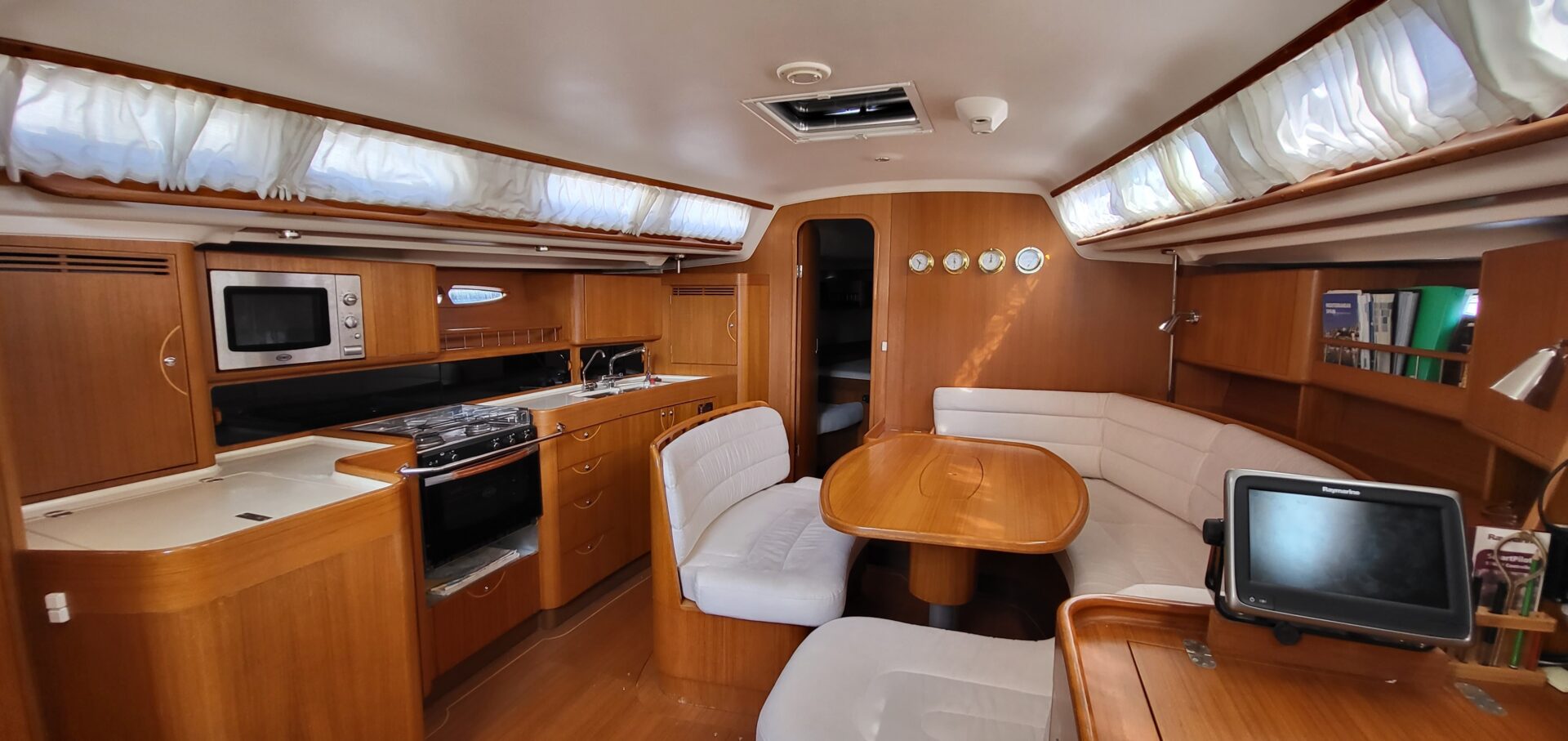

Accommodation

• • Top grade teak , varnished and hand polished satin finish
• • Modern layout 3 cabins 2 toilets
• • Companionway with steps of curved unvarnished teak
• • Handrails by entrance and alongside coach roof portlights in main cabin
• • Alcantara upohlstery 2014 in the saloon and cabins

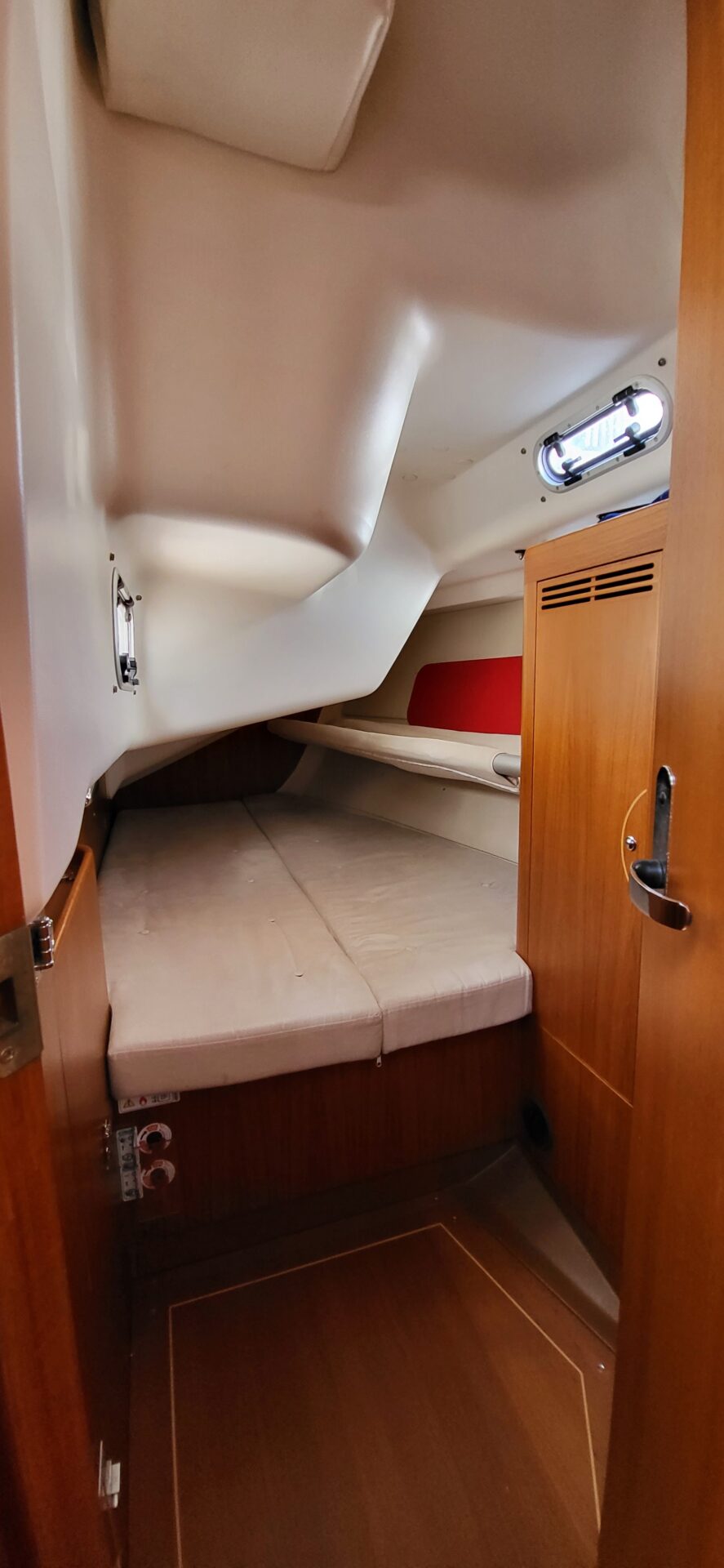

• • Aft cabins with sea berth

Systems

Engine

• • Engine VOLVO D2 55 Hp, water cooled diesel engine with S-Drive Regulary maintened
• • MASTERVOL Alternator 130 Amp 2017
• • Gas oil tank 200 L
• • Special engine compartment with sound insulation
• • FLEXOFOLD propeller, 3-bladed bronze 2017
• • Retractable Max Power bowthruster VIP150

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank (380 litre)
• • Hot water tank Isotherm 40 l. connected to the engine end shore power replaced 2019
• • Holding tank replaced 2018 for front toiletts and deck outlet
• • Pressurized freshwater system for hot and cold water throughout yacht, with SEAGULL Filter
• • Deck shower
• • Fridge top opened with compressor FD50 2018
• • Additional electric fridge with front opening
• • Gimballed Gas cooker – 2x burner Eno cooker with oven
• • Gaz switch
• • ENO Microwave oven 2014
• • EBERSPACHER heater D5 serviced 2018

Electrical

• • Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • AGM MASTERVOLT services batteries bank 4 x 130 Amp 2022
• • Separate engine gel battery (55 Ah, 12V)
• • MASTERVOLT Combi charger Inverter 12 V/2200/100 Amp + baterry controller
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • Galvanic isolator
• • Hydrogenerator 2017
• • Led navigation lights

Electronics

• • 3 x Raymarine Multifonction I70 2017 on the coachroof with speed, loch and deepth transducers
• • 2 x Raymarine Multifonction I50
• • Raymarine 2017 color chartplotter A97 at the chart table
• • Raymarine 2012 color chartplotter E127 on the coach roof
• • AIS 650 Emetter and receiver
• • RAYMARINE Autopilot with S100 remote control with JEFA drive
• • AIS 650 RAYMARINE transducer
• • VHF NAVICOM
• • EPIRB
• • IRIDIUM GO and EXTERN

Thrusters

• Liferat PLASTIMO
• Dinghy with HB MERCURY 3.3 HP 2017
