Details

Exterior Details

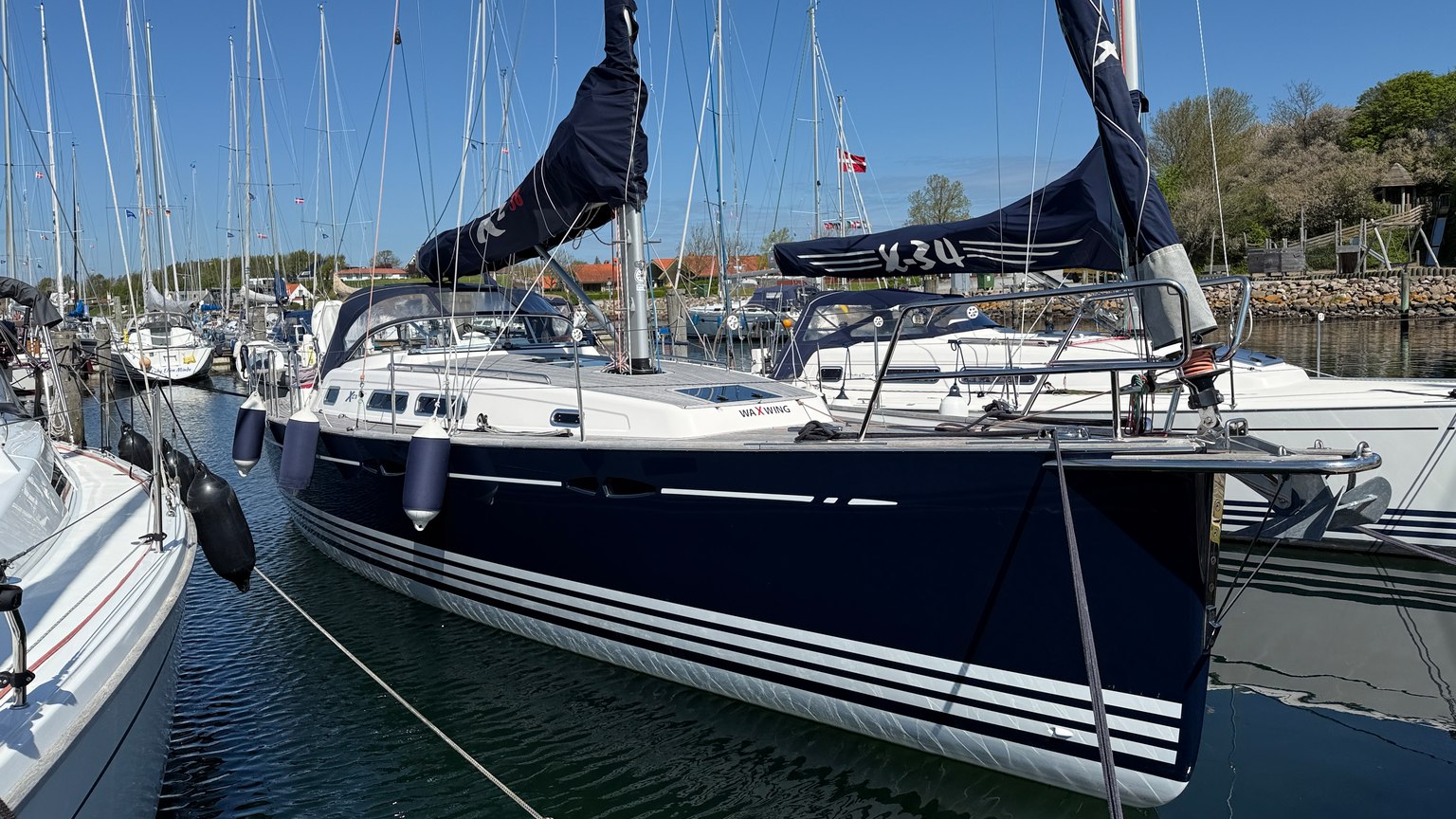

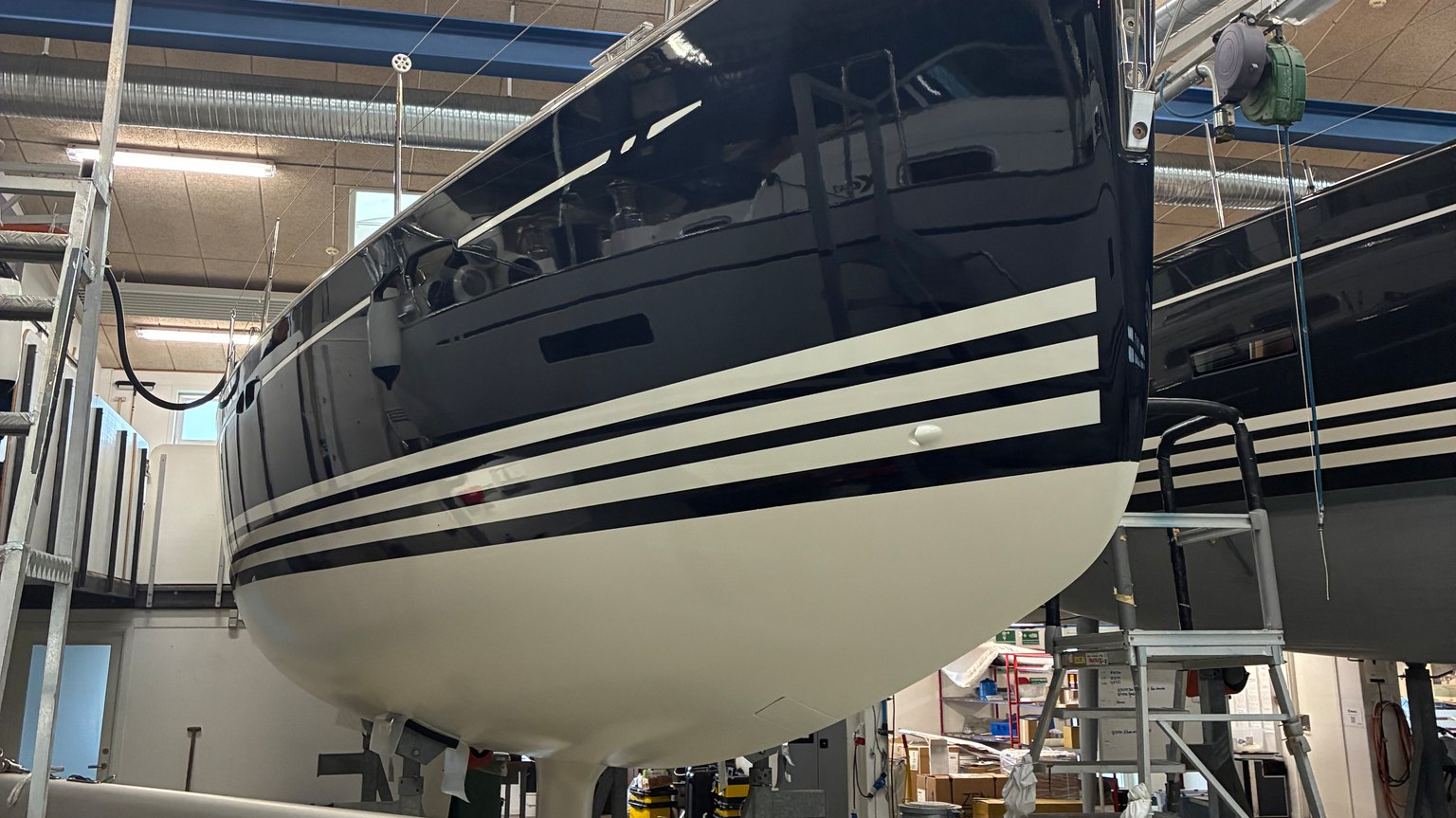

Hull

• Built in sandwich construction with structural compressed foam
• Solid laminate in high stress areas around keel and through hull fittings
• Steel frame - hot-galvanised, high strength, laminated into hull to absorb all loads from keel and mast
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing platform incorporated in transom port with hoisting and lowering system
• Bathing ladder in stainless steel mounted onto bathing platform
• Continuous stainless steel rail protection mounted on sheerline
• Hull recessed portlights, X-Yachts style

Deck

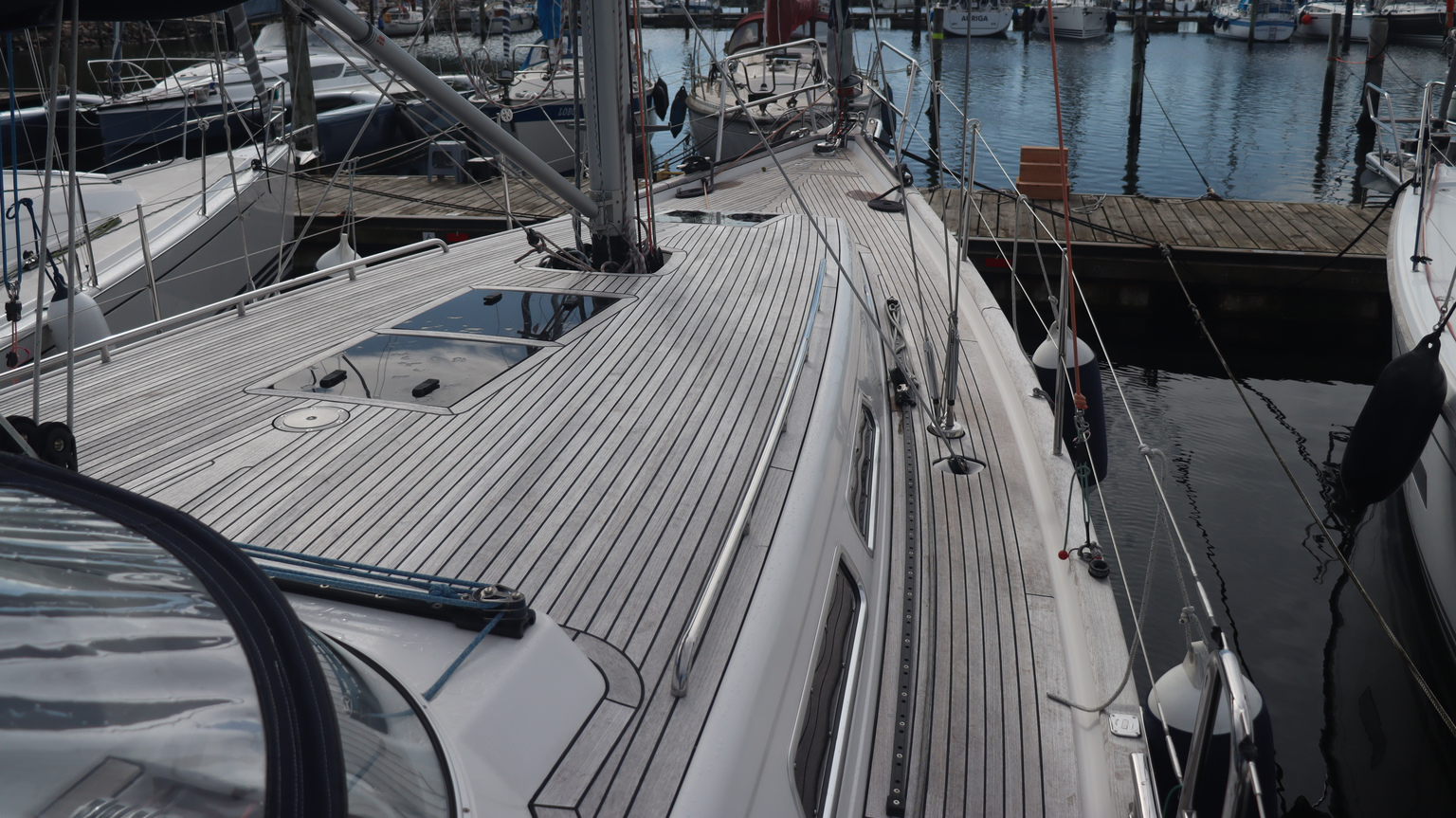

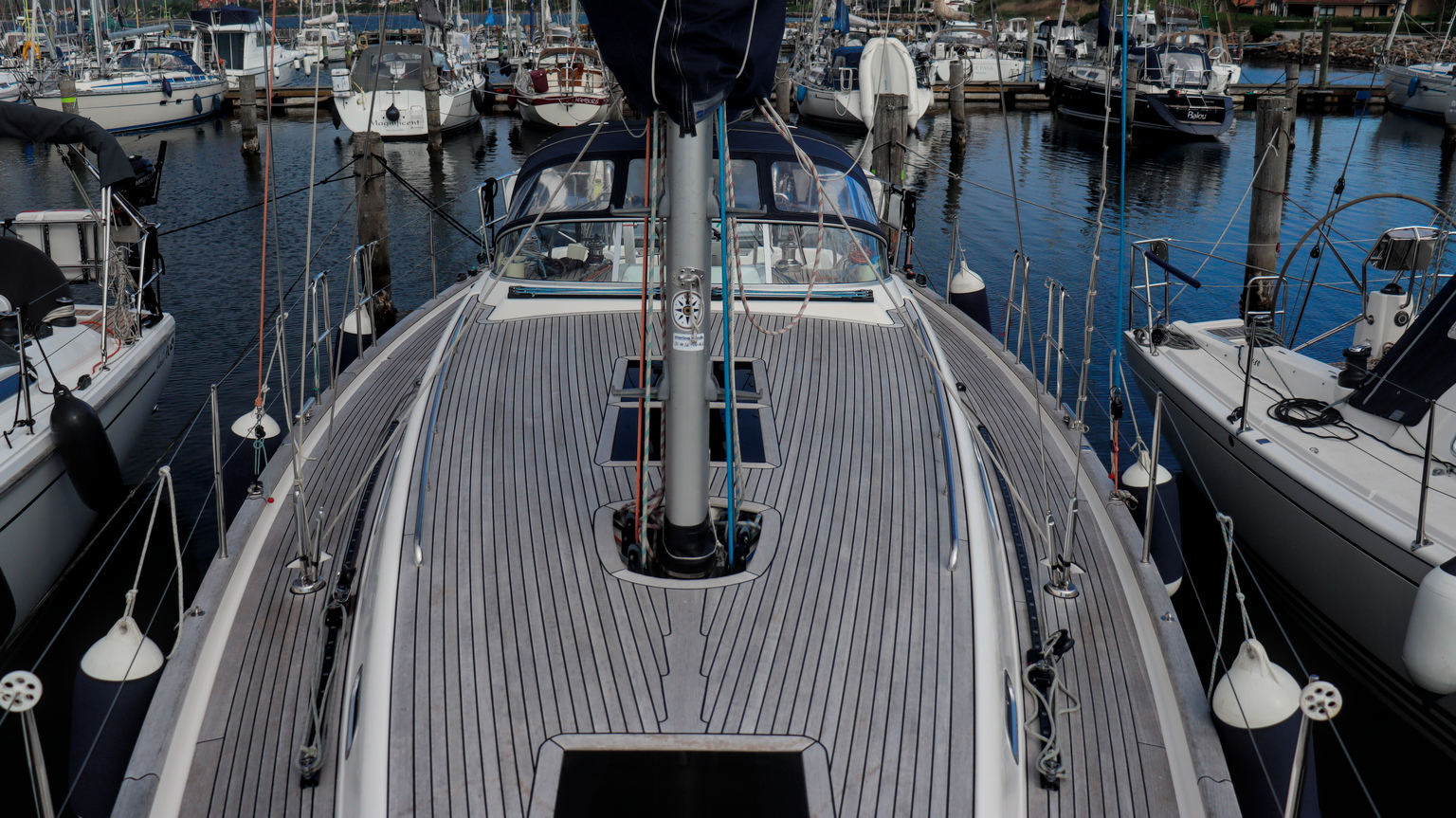

• Teak deck, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit sole, seats and
• bathing platform
• Teak on coachroof top aft of sprayhood / windshield and teak on top of the cockpit coamings outside the
• side benches
• Bulwark with teak capping incorporated in deck/hull design
• Anchor locker - drained with space for anchor chain
• Gas locker, hinged box for 2 x 3 kg gas bottle mounted in aft port locker
• Space for 6 man life raft – Life raft onboard, service has expired
• Gas springs fitted to all cockpit lockers

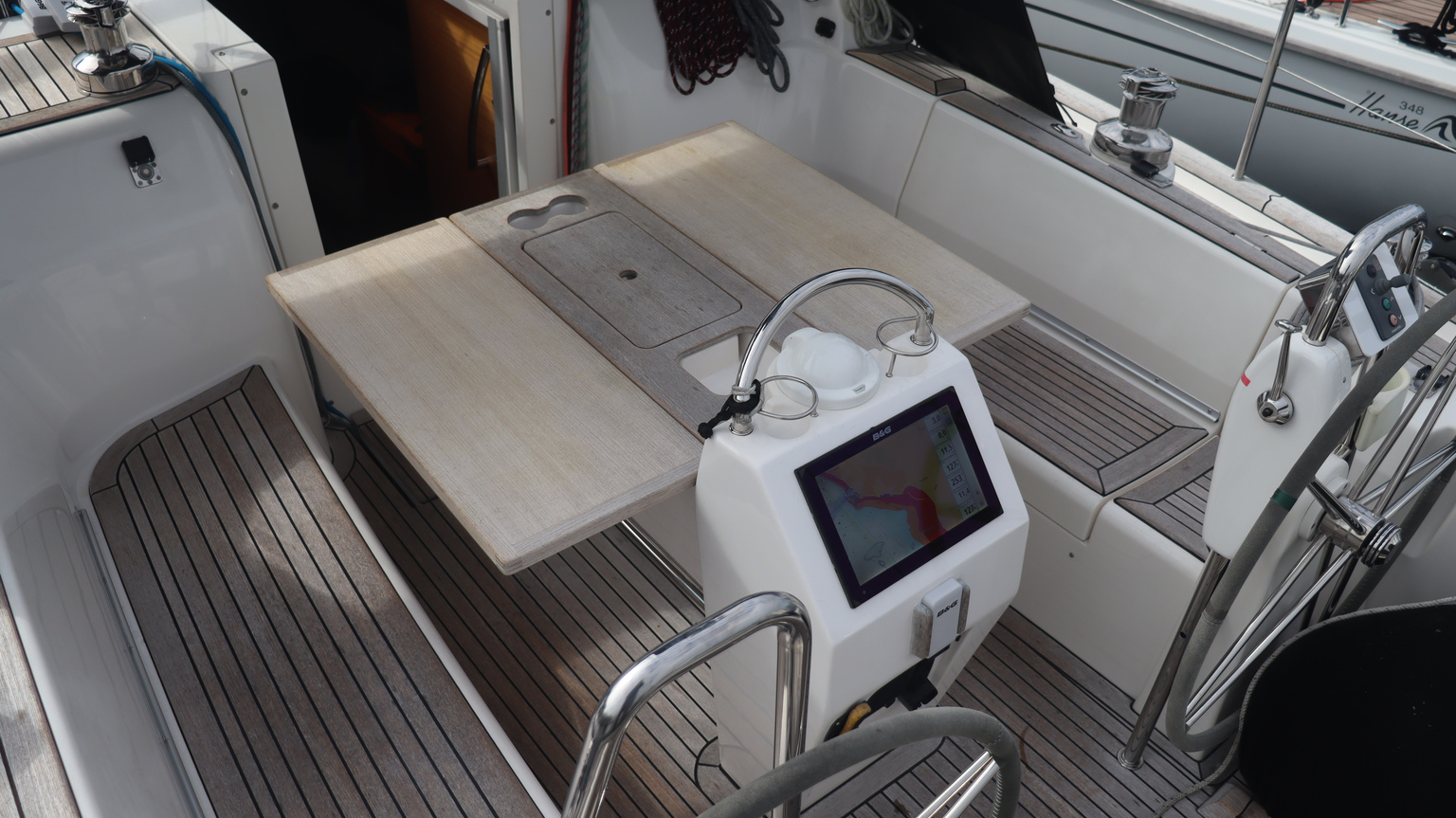

• Cockpit table with space for navigation instruments and compass
• Cockpit cushions 6cm thick in blue canvas mounted with push buttons

Sail Handling

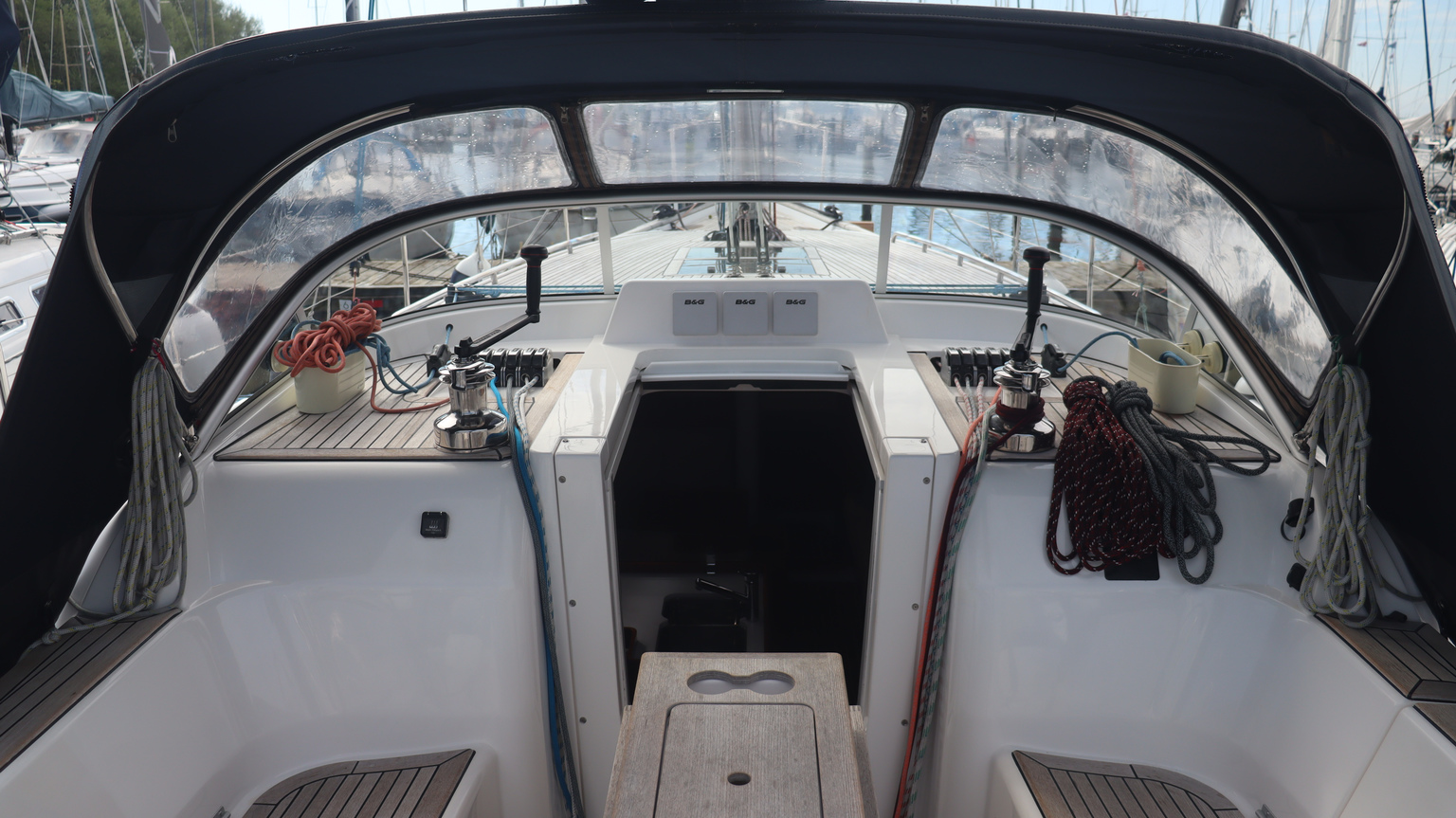

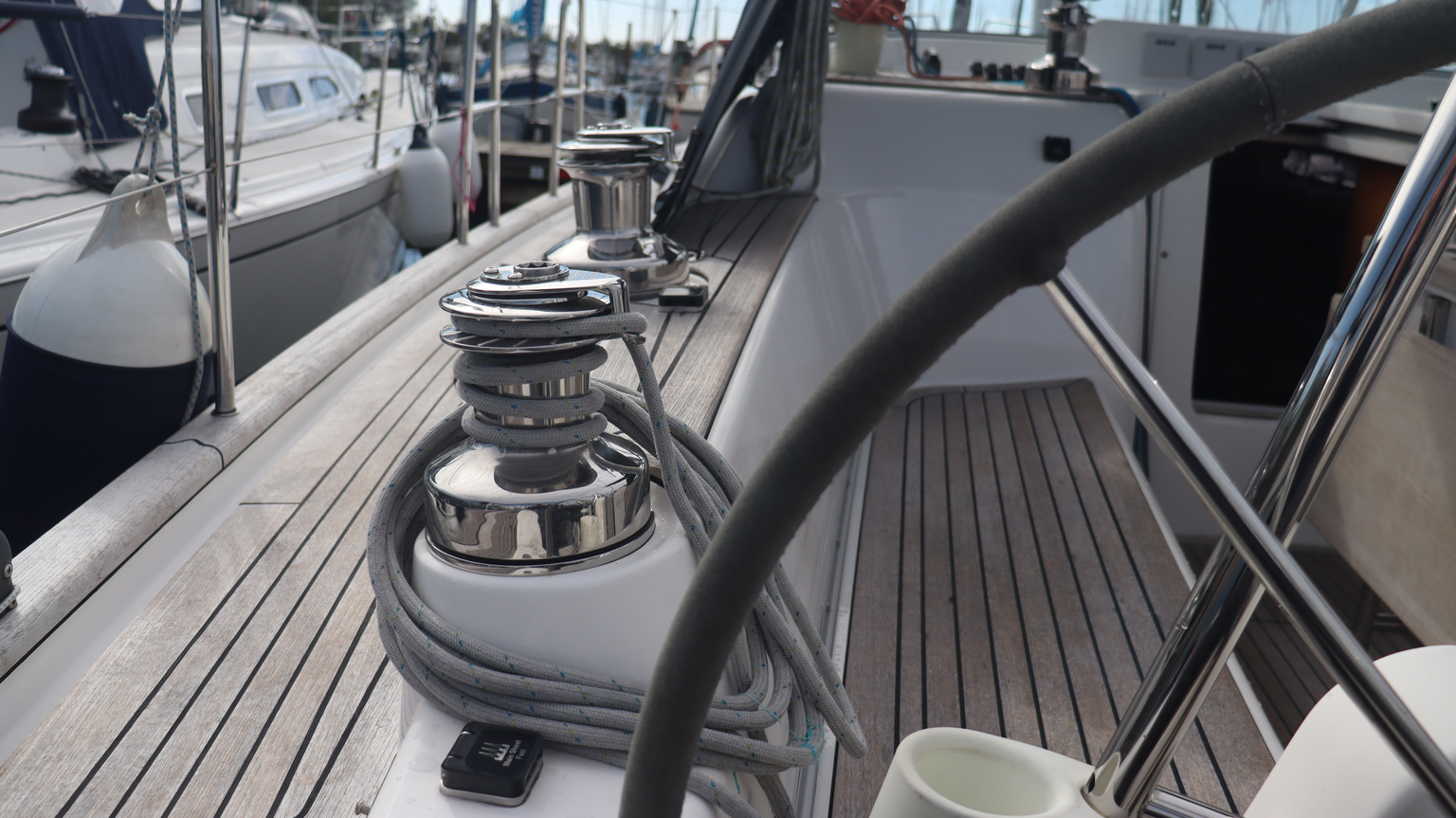

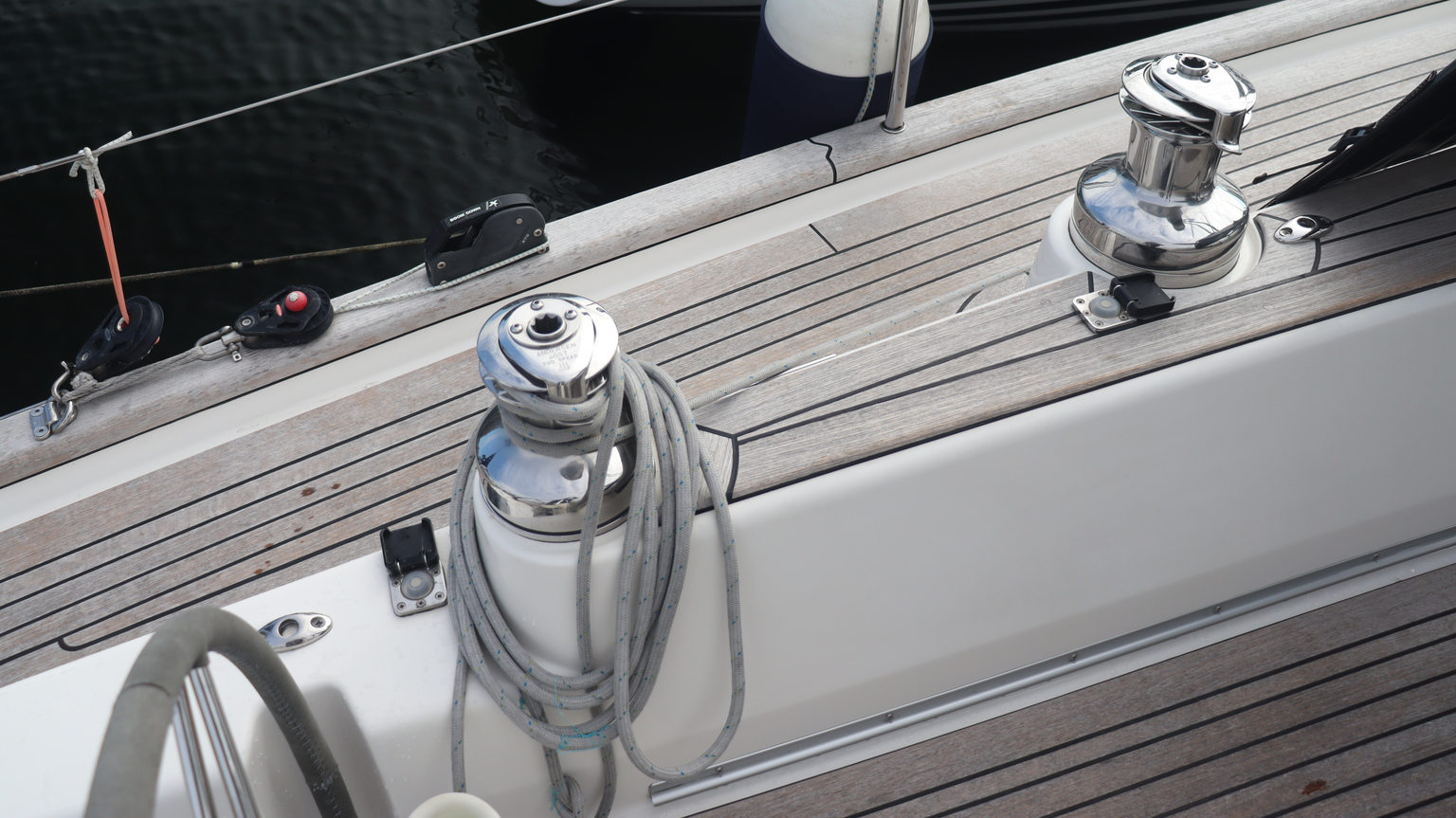

• Genoa winches, stainless steel, self-tailing, ANDERSEN 46ST - electrical
• Mainsheet winches, stainless steel, self-tailing, ANDERSEN 40ST - electrical
• Halyard winches, stainless steel, self-tailing, ANDERSEN 40ST port side electrical
• Asymmetric spinnaker equipment including 4 spectra sheets, 2 Ronstan spinnaker blocks, 2 Ronstan cleats
• and 2 Wichard shackles
• Spinlock Jammer/clutches for halyards/control lines/reef lines
• X-Yachts mainsheet system led under deck to winches placed in easy reach of helmsman

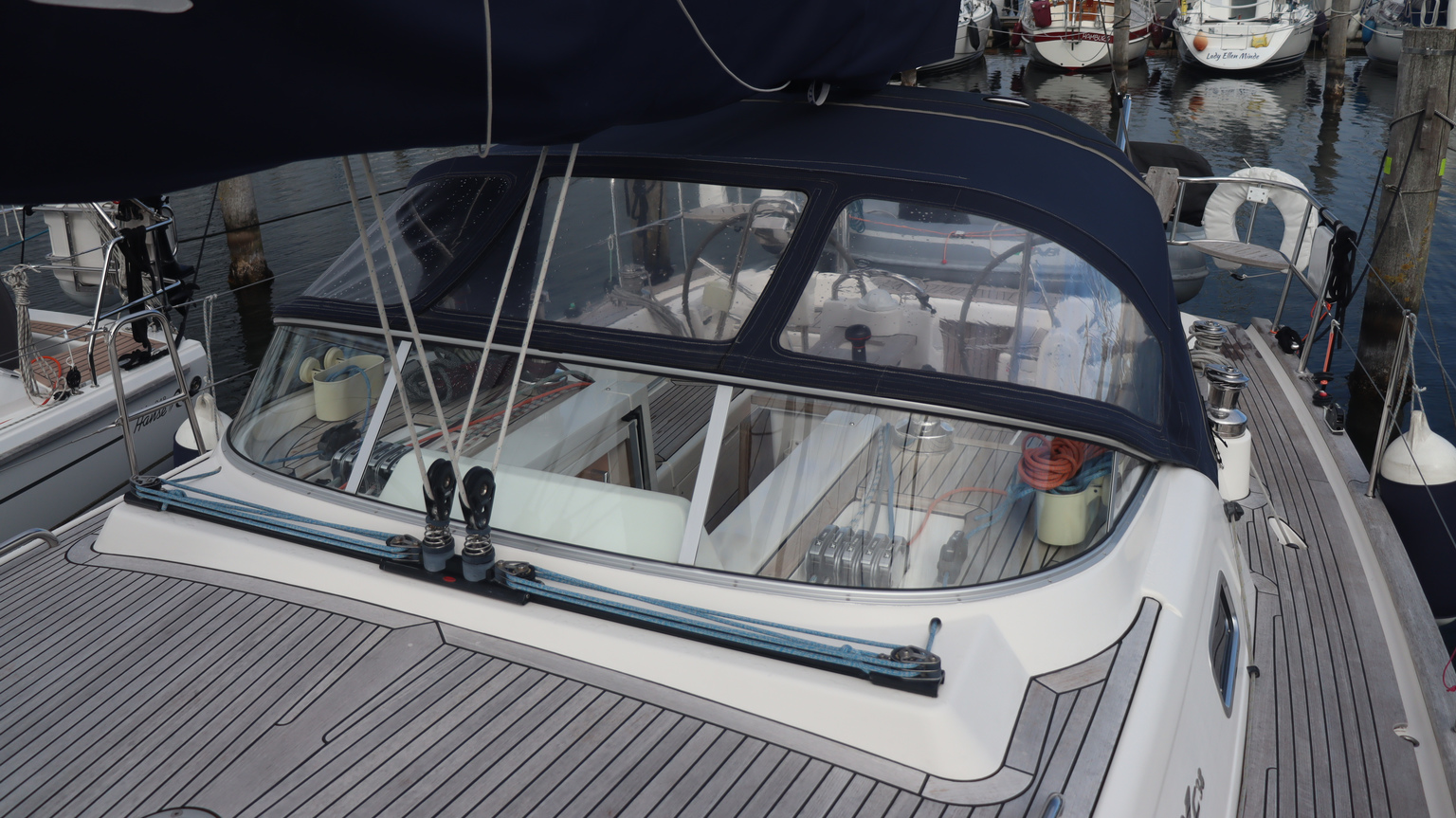

• Mainsail track in front of sprayhood for uncluttered cockpit and space for optional Bimini
• Furling forestay drum attached to bow fitting. Furling line led back to cockpit electrical winch for easy handling
• Genoa tracks mounted on deck with Genoa cars and control lines fitted
• Boom gybe preventer system, leading back to cockpit with extra block port side

Sails

• Note: All sails were professionally checked / serviced and maintained in 2024
• 2012 jib
• 2017 Main Sail North Sails Full Batten Mainsail NPL Tour UltraX NorLam NLU350
• 2017 jib North Sails NPL Tour UltraX NorLam
• 2017 Gennaker North Sails G2 Running Gennaker NorLon NO 7 110m2 with snuffer.
• 2017 Jib cover North Sails
• 2019 Code 0 North Sails Upwind Code 55 NPL Code Xi Xi09 CD 76 m2 incl. hardware
• 2019 Carbon spinnaker pole incl. storage bag on boom from North Sails

Mast & Rigging

• Fractional double spreader, tapered silver anodized aluminium mast stepped on steel frame and specially
• designed for Xc 38
• Combined deck and steaming light, Windex with light, Tricolour mast head light including anchor light, tube
• for additional electrical equipment and 4 mast steps fitted

Keel

• Keel consists of antimony hardened lead bulb bolted and glued to cast iron fin for high strength, low centre
• of gravity and comfortable sailing performance.
• Keel securely bolted to steel frame
• Keel protected with epoxy and fibreglass

Guard rail / Anchor / Stainless Steel Fittings

• Lifelines with stainless steel stanchions mounted on the bulwark
• Lifeline gates - mounted each side at max beam
• Aft pushpits in stainless steel with teak battened seats and integrated LED stern light
• Bow pulpit in stainless steel with integrated LED navigation lights
• Anchor 20 kg Delta with 50 m x 8 mm galvanized chain
• Electric bow anchor winch 1000W - 12 V on deck

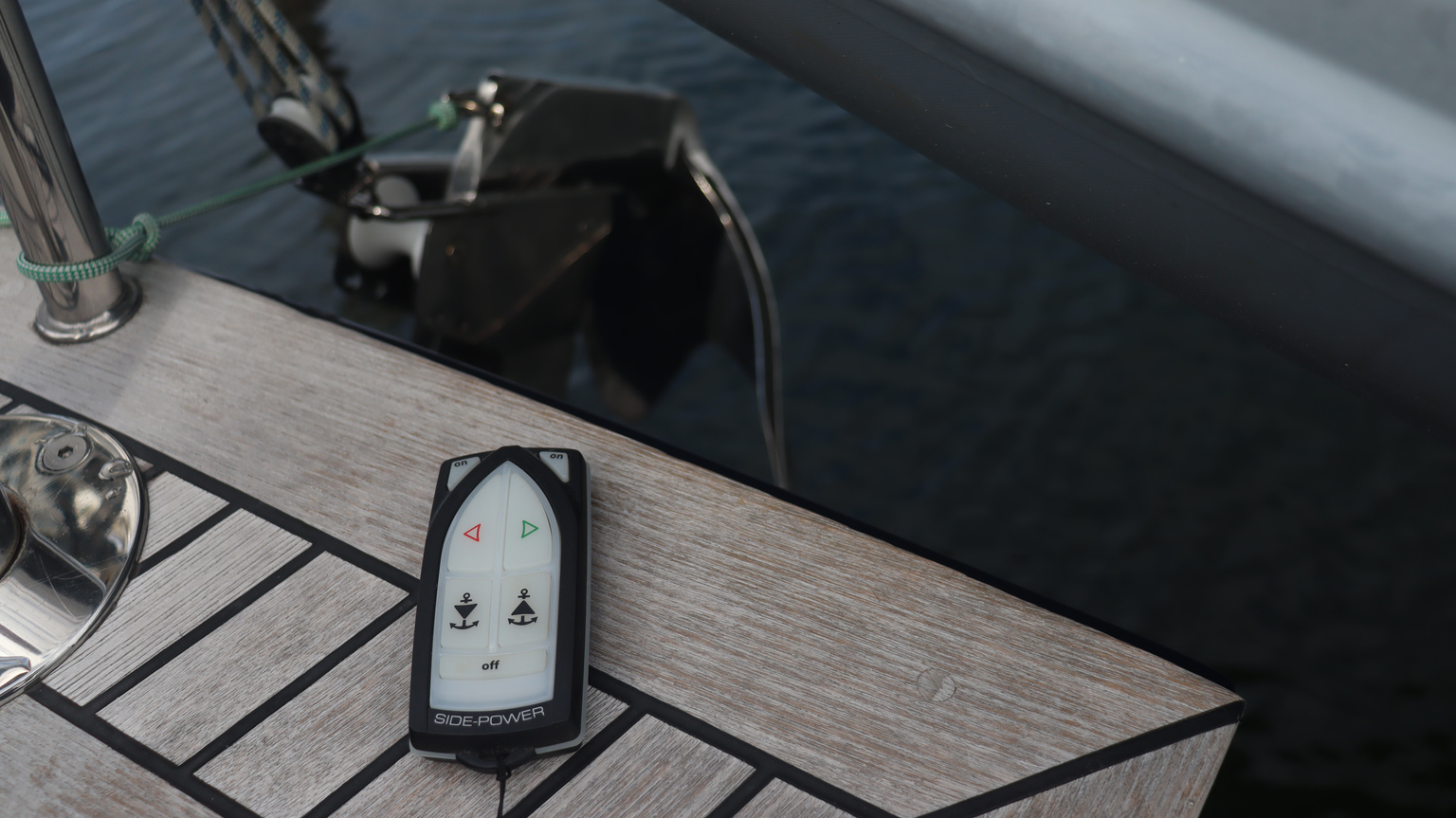

• Electric stern anchor winch - with remote & stainless steel 15 kg anchor incl. 50 m lead line
• Mooring cleats in stainless steel mounted fore and aft; and amidships, including stainless steel protection
• rails
• Pad eyes for safety harnesses mounted in cockpit, including side deck life lines (jack lines)
• A-Frame in stainless steel with teak planking and attachment point for asymmetric spinnaker, designed to fit
• around standard bow fitting
• Outboard engine bracket mounted on aft pushpit
• Davits to mount dinghy, mounted on aft deck
• Stainless steel fairleads on bow x 2
• Stainless steel grab rails forward of wheel
• 4 x Padeyes for Jackstays fitted on deck

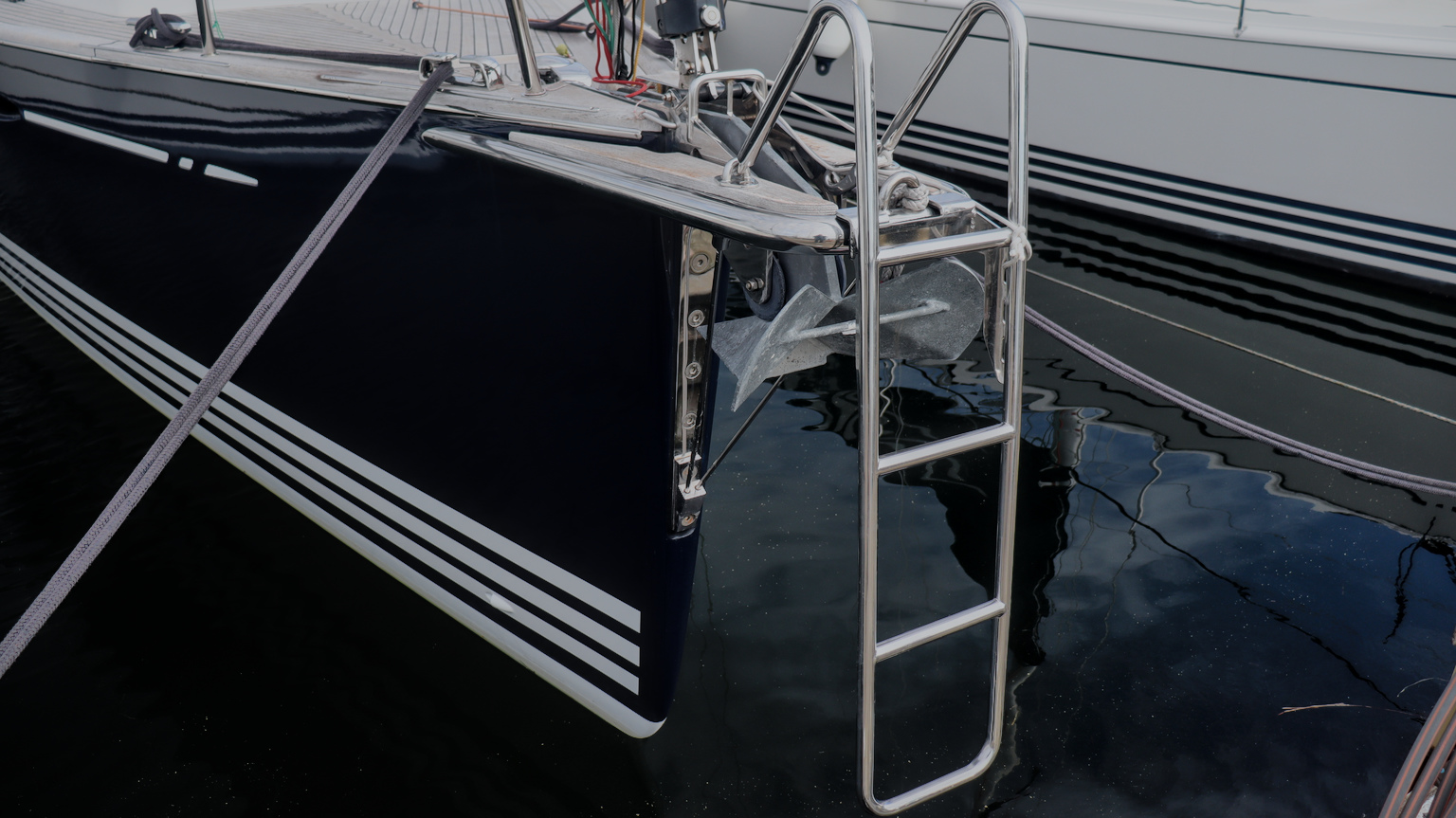

• Bow boarding ladder in stainless steel

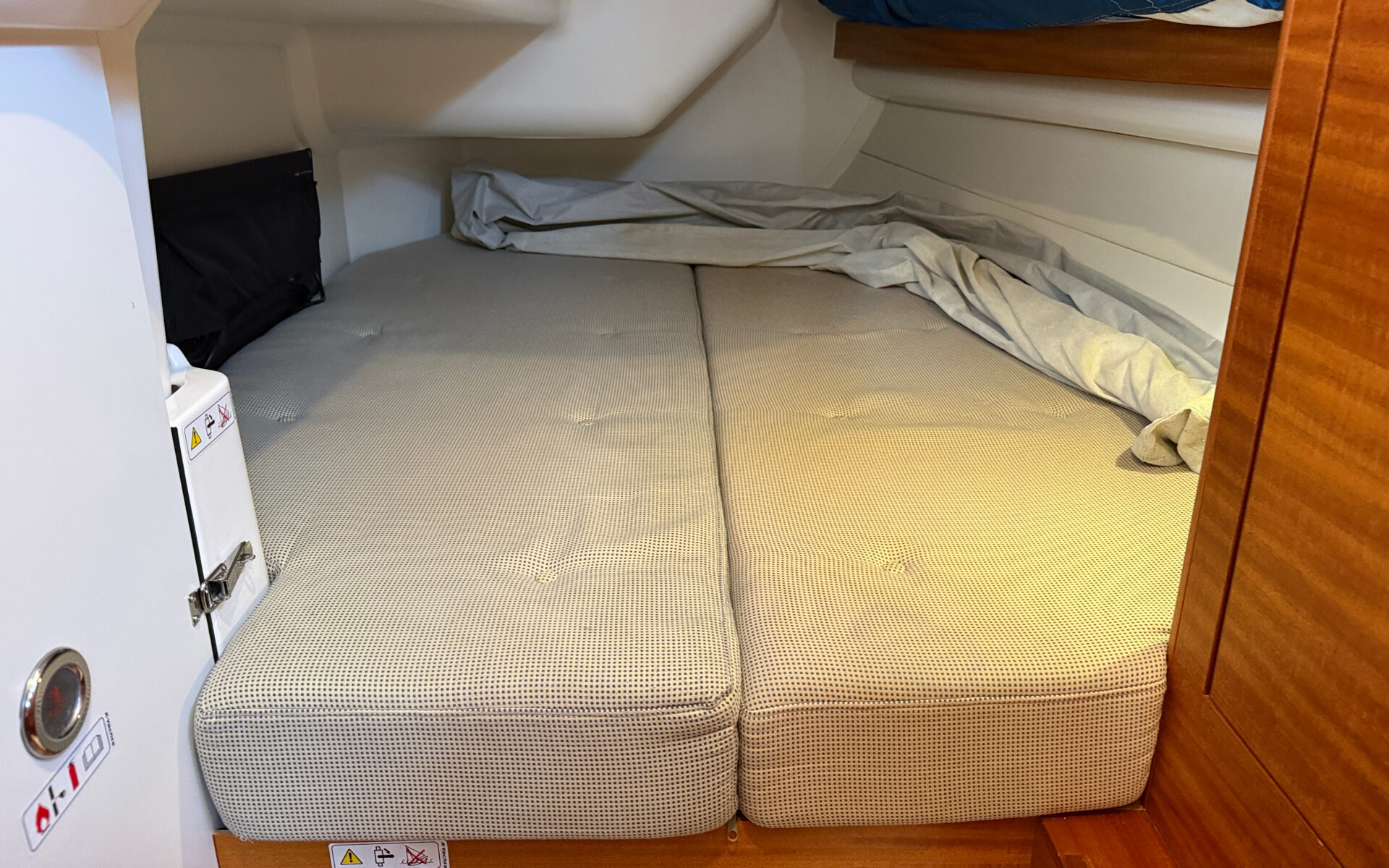

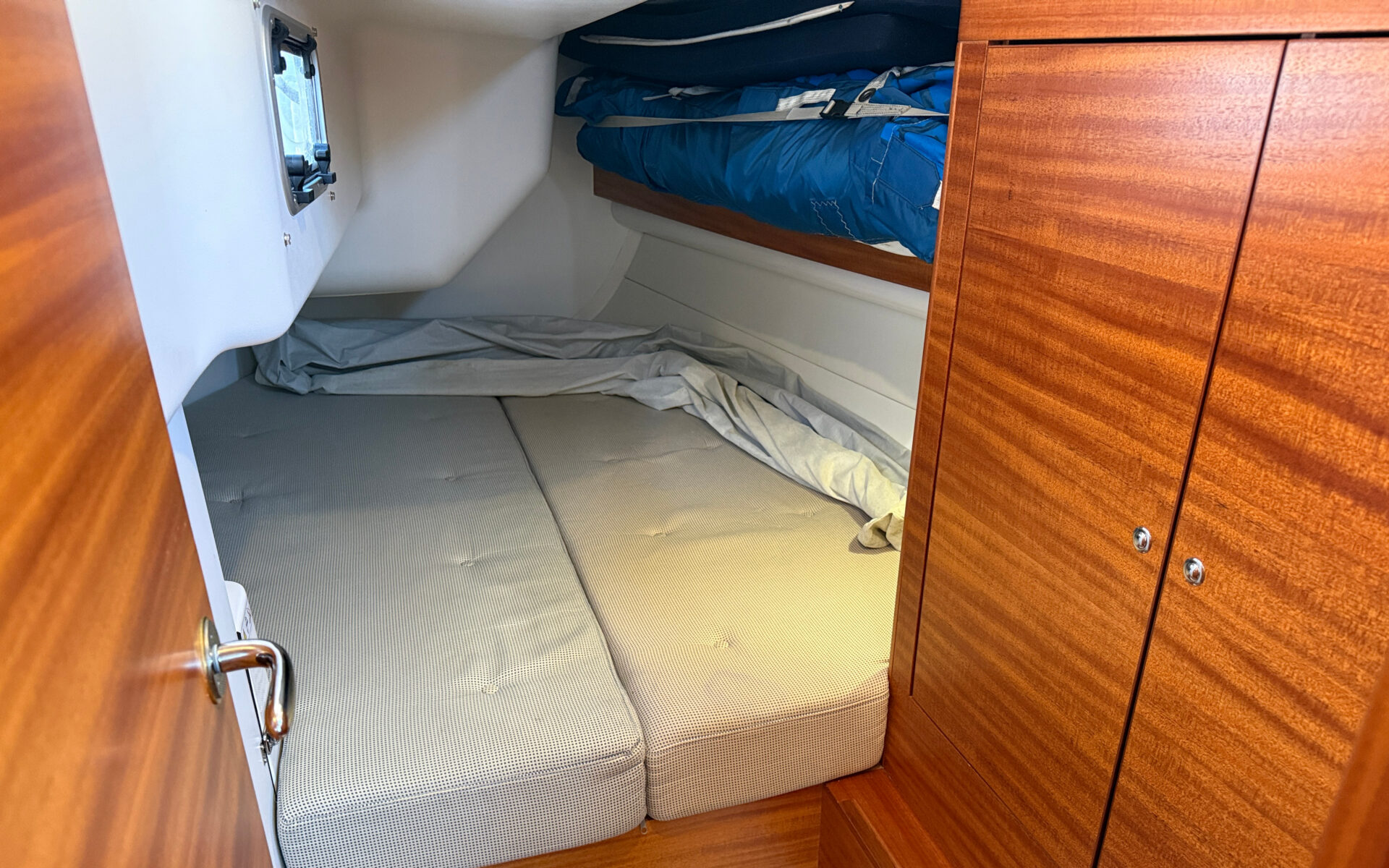

Accommodation

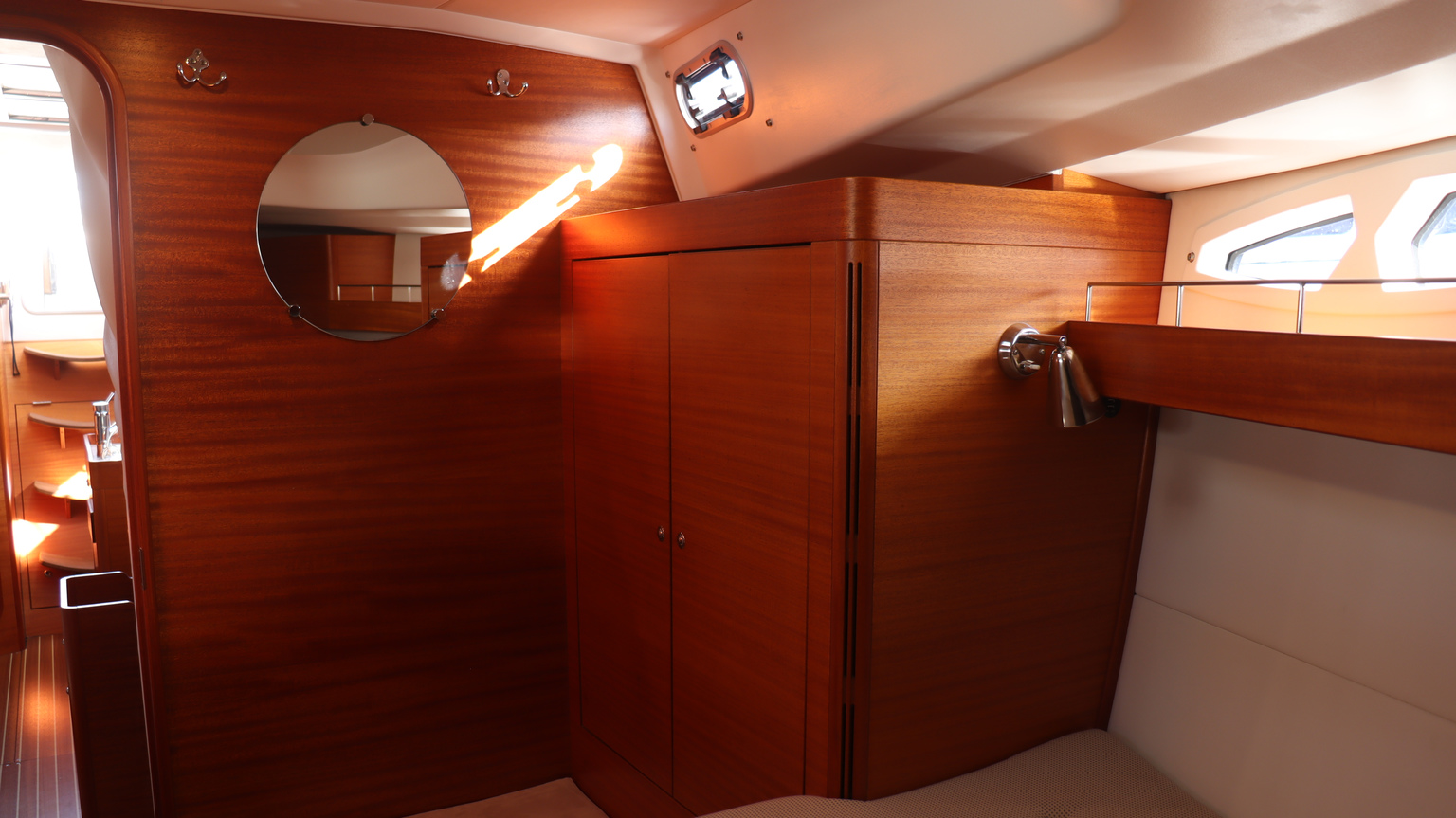

Xc 38 - two cabin layout

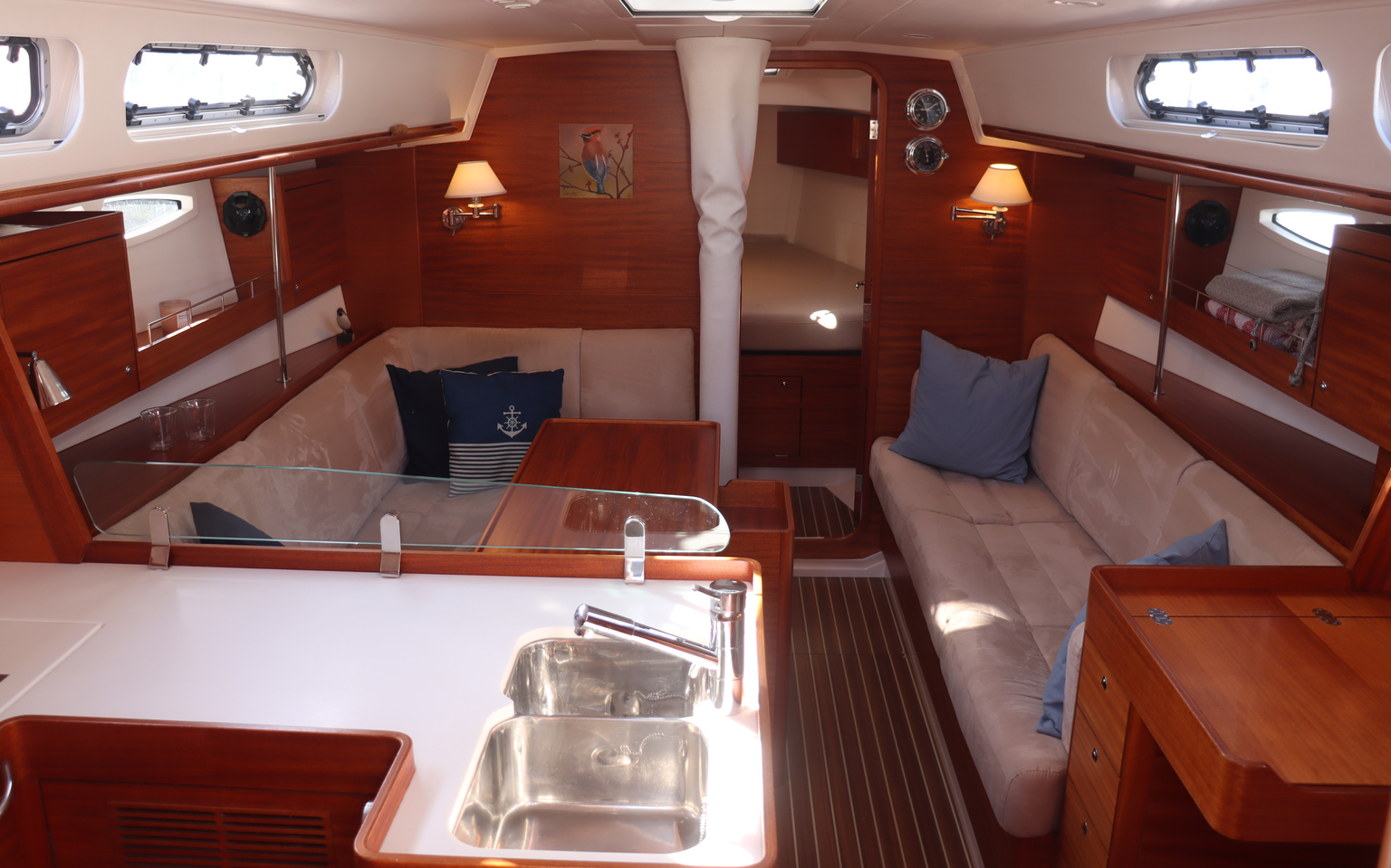

• First class craftsmanship characterizes wooden interior with minimum number of visible screws
• Pre-selected, top grade Mahogany veneer throughout yacht, hand polished and varnished to satin finish
• Bulkheads in various thickness bonded to hull
• Mahogany veneered bulkheads with recessed panel effect on main bulkhead
• White laminate Bulkheads used for anchor locker bulkhead, aft and longitudinal bulkhead of aft cabin
• Floorboards of 16 mm marine plywood with imitated teak and Gaboon plywood inlay stripes and inspection
• hatches to access bilge
• Fiddles in four lockers in saloon and galley

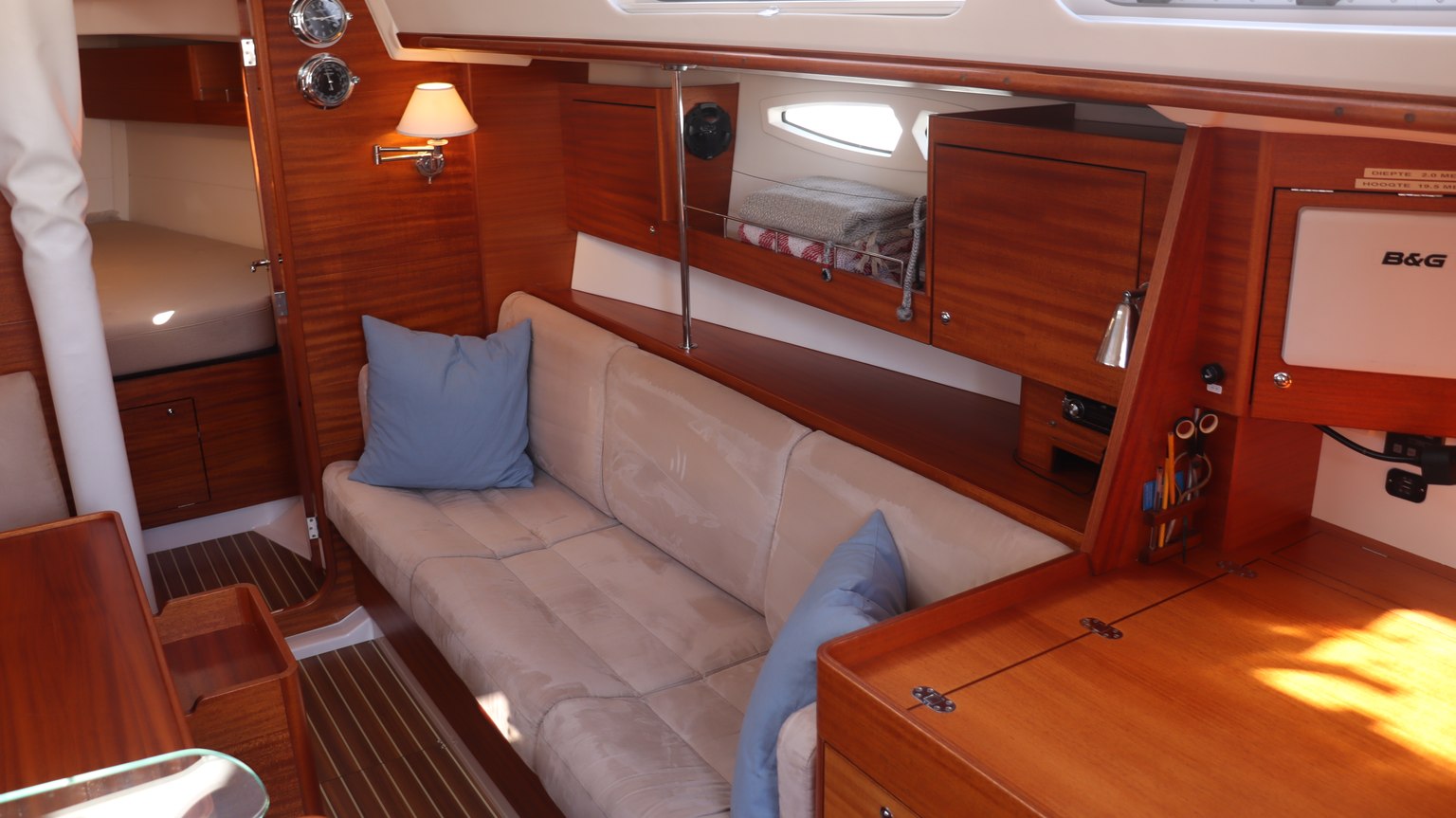

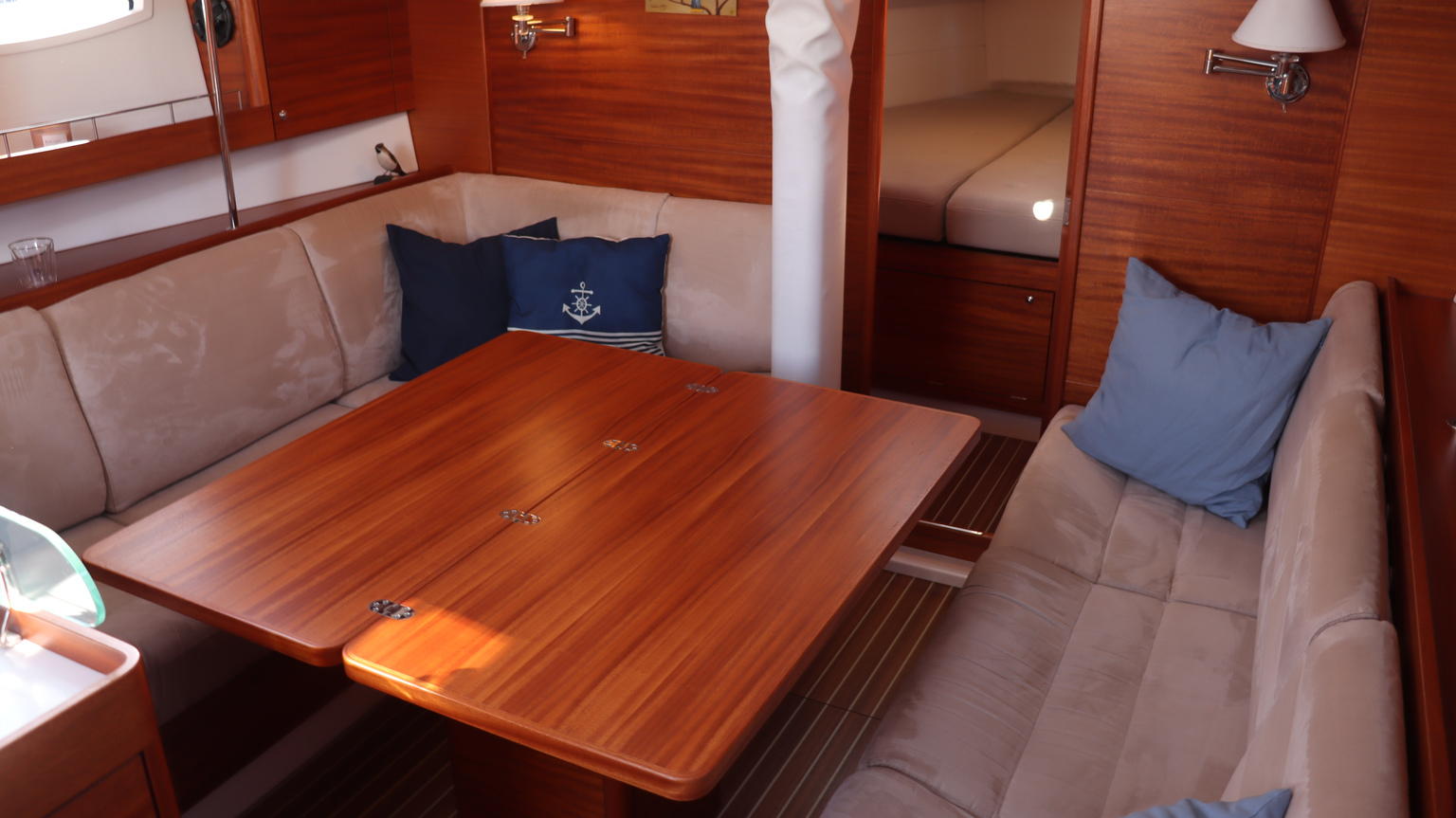

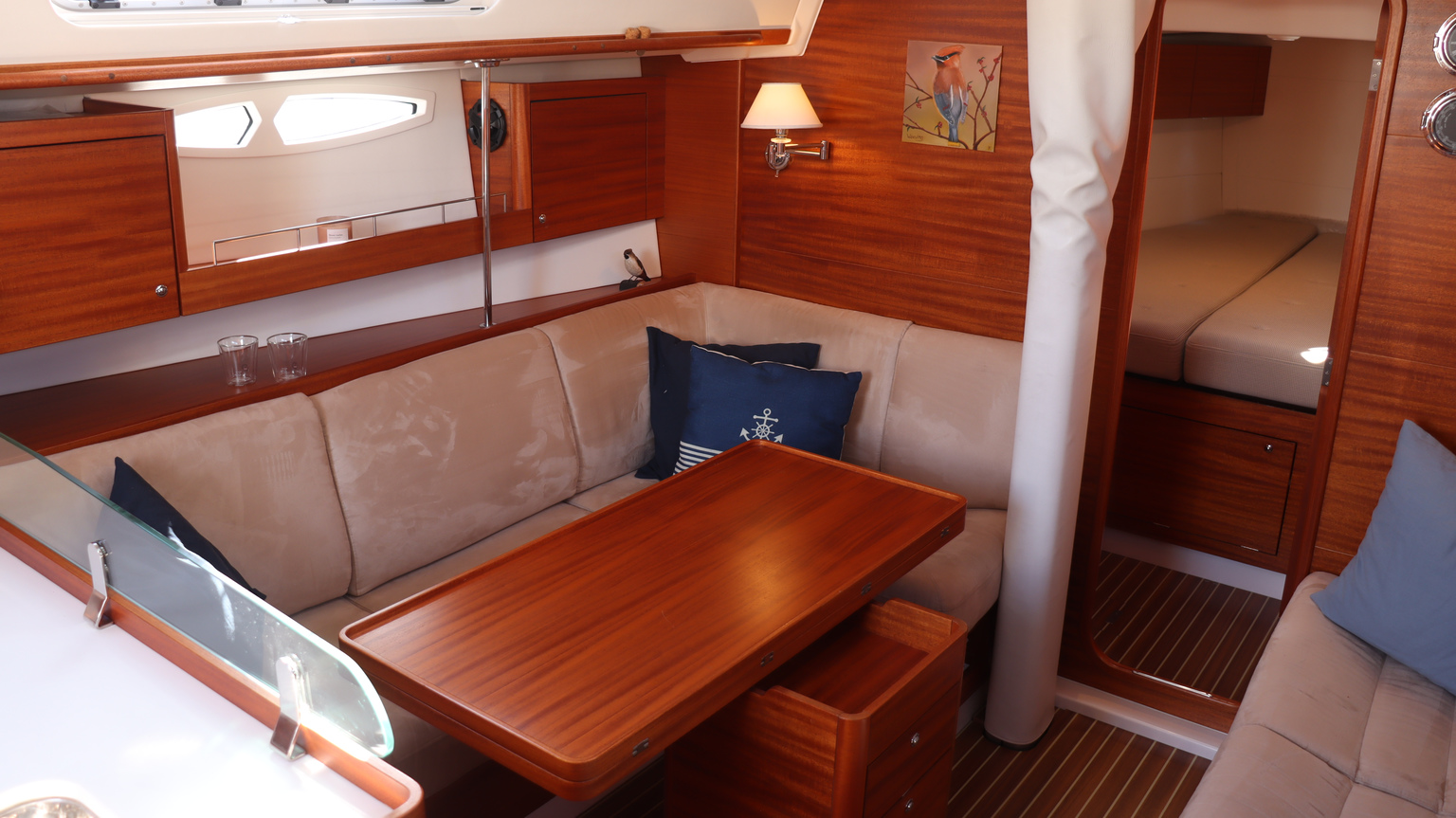

• Saloon upholstery: ALSACE SAGE

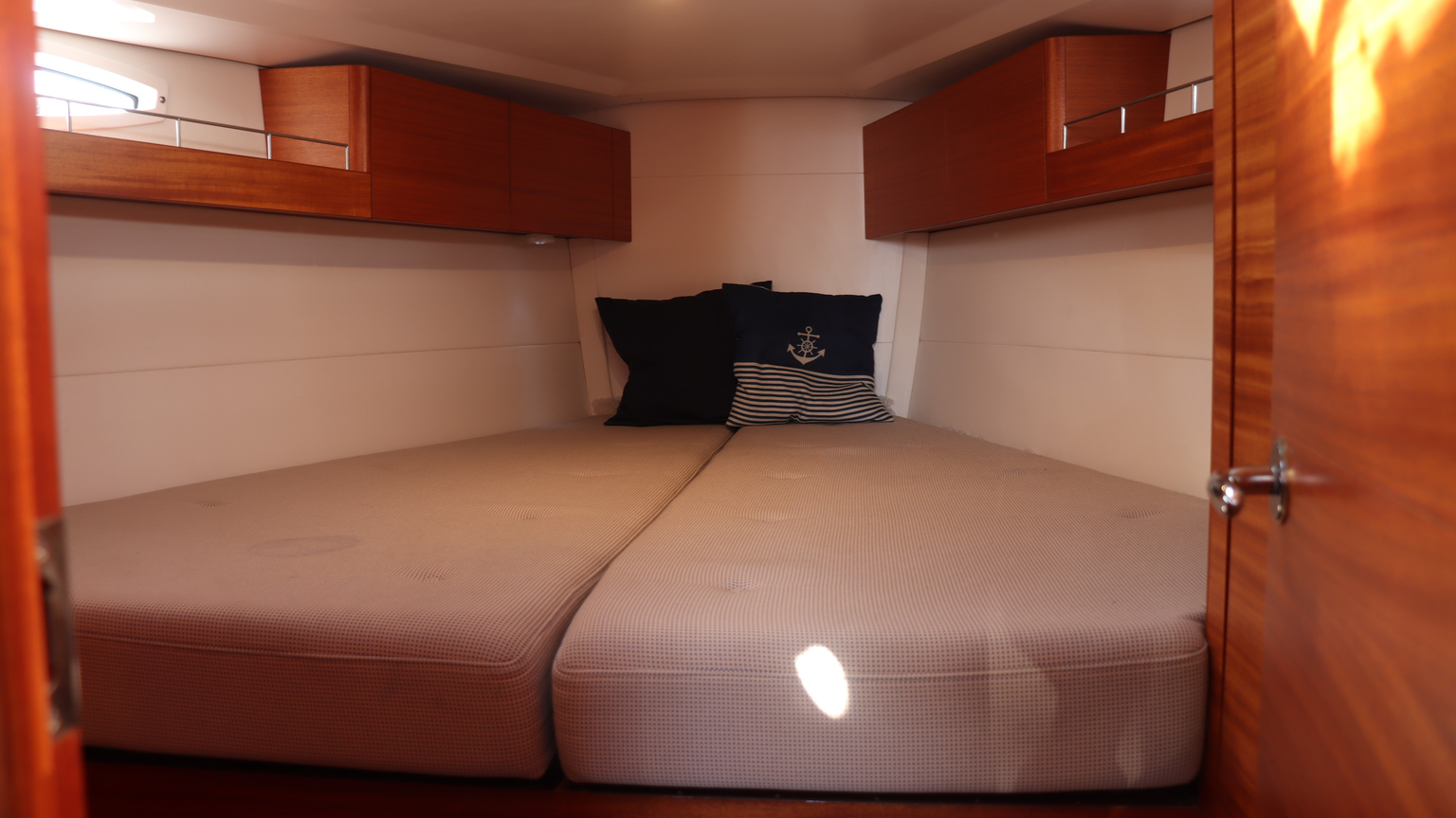

• Berth upholstery: ARON BEIGE

Systems

Engine

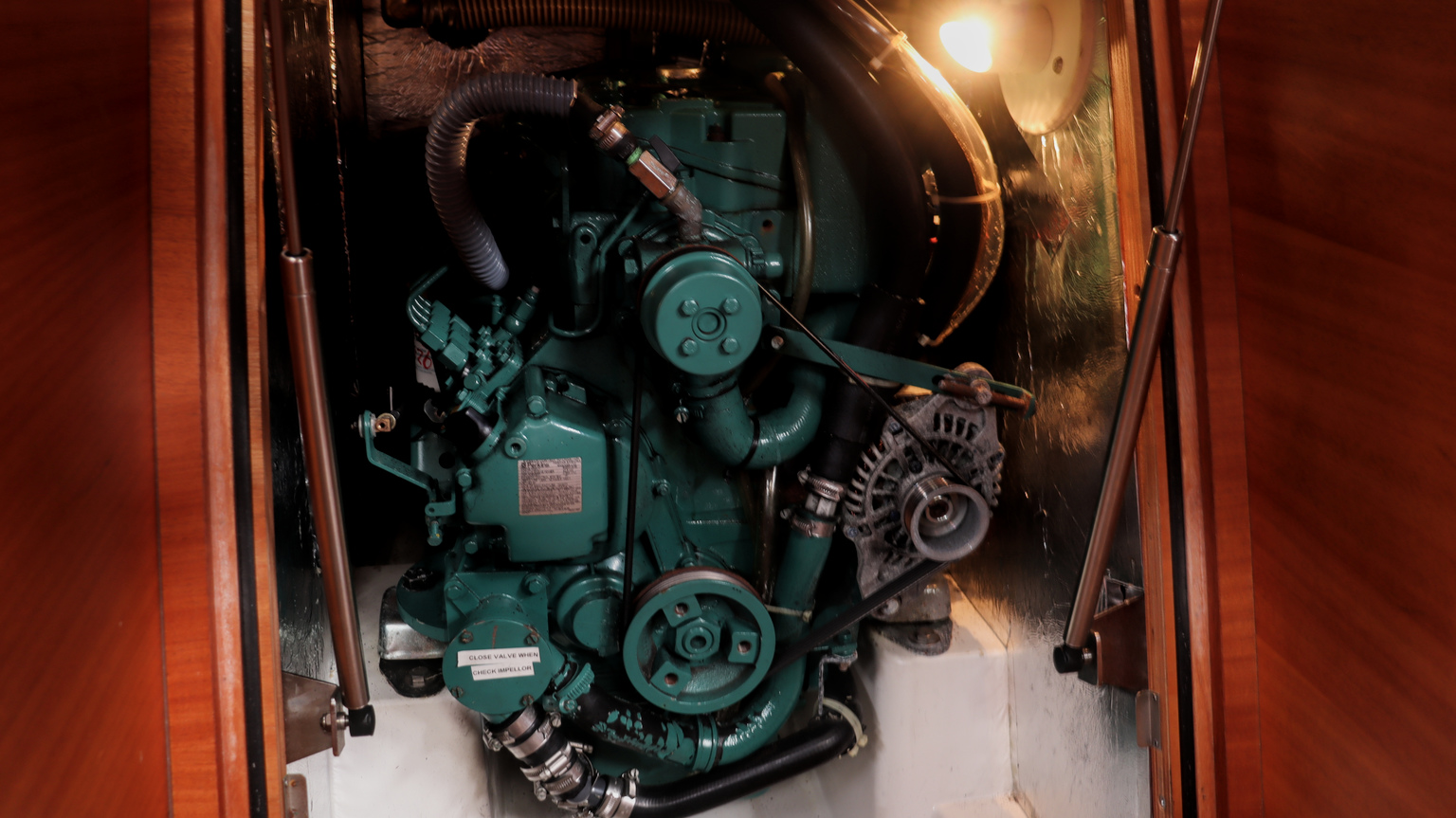

• Volvo Penta D2-55 Diesel (From new upgraded from standard 40 hp to 55 hp)
• Engine hours: 1143 h
• 3-bladed folding propeller
• Engine control panel and throttle/gear lever placed in starboard cockpit coaming
• All anodes replaced & every year for winter storage

Plumbing

• Seacocks and through hull fittings are made of composite material and flush mounted
• Fresh water in plastic tank (390 litre) below saloon sofa. VDO analogue tank level gauge, inspection hatch
• and deck fill
• Hot water tank Isotherm 30 l. Tank can be heated either by main engine or immersion heater connected to
• shore power

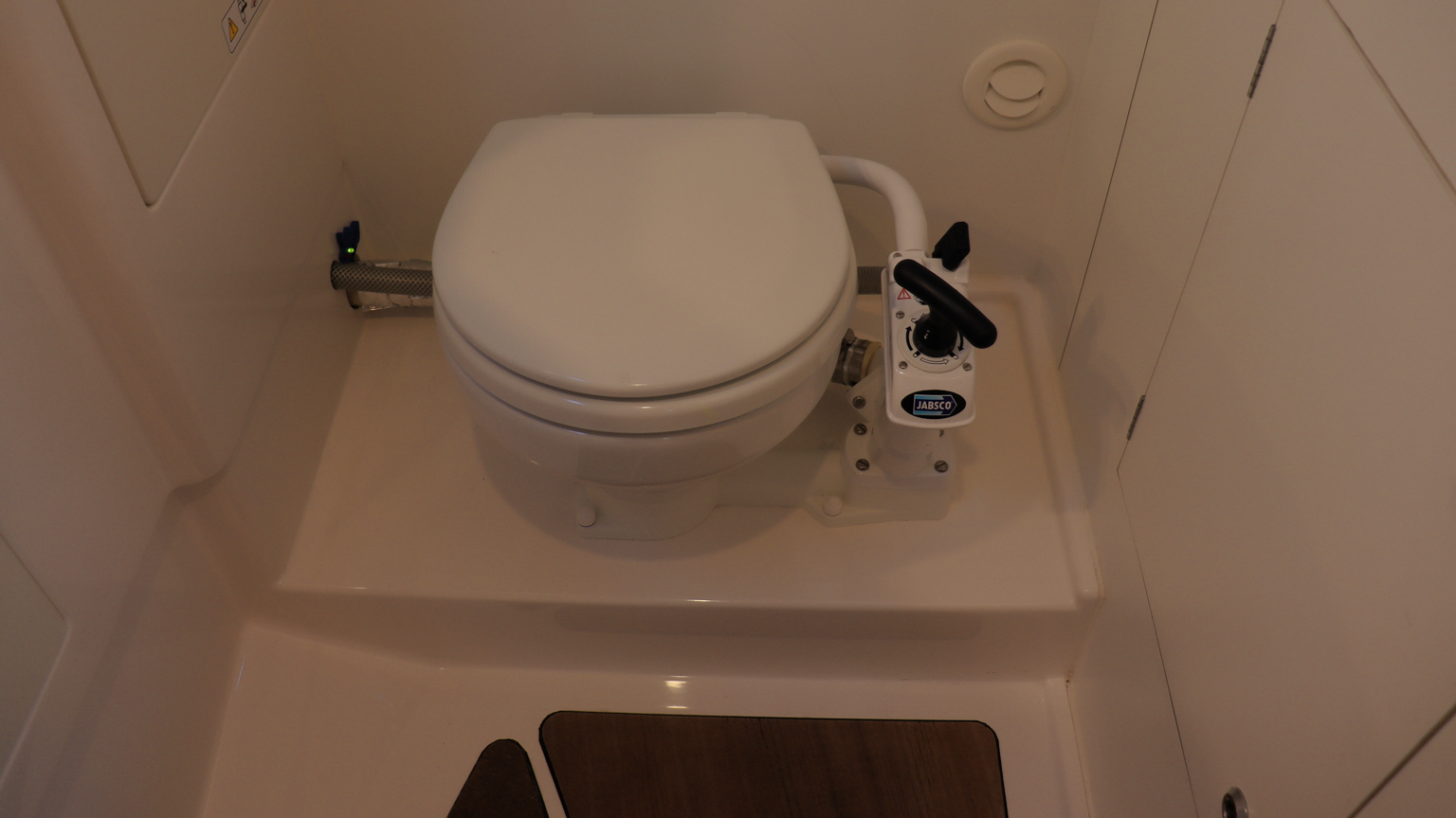

• Holding tank, 60 l, with tank level watch with self-draining outlet and deck outlet
• Pressurized freshwater system for hot and cold water throughout yacht
• Central bilge incorporated in keel structure
• Electrical bilge pump with sensor and manual ON/OFF or automatic switch at Nav station
• Manual bilge pump mounted in cockpit
• Deck shower fitted at bathing platform with hot/cold freshwater

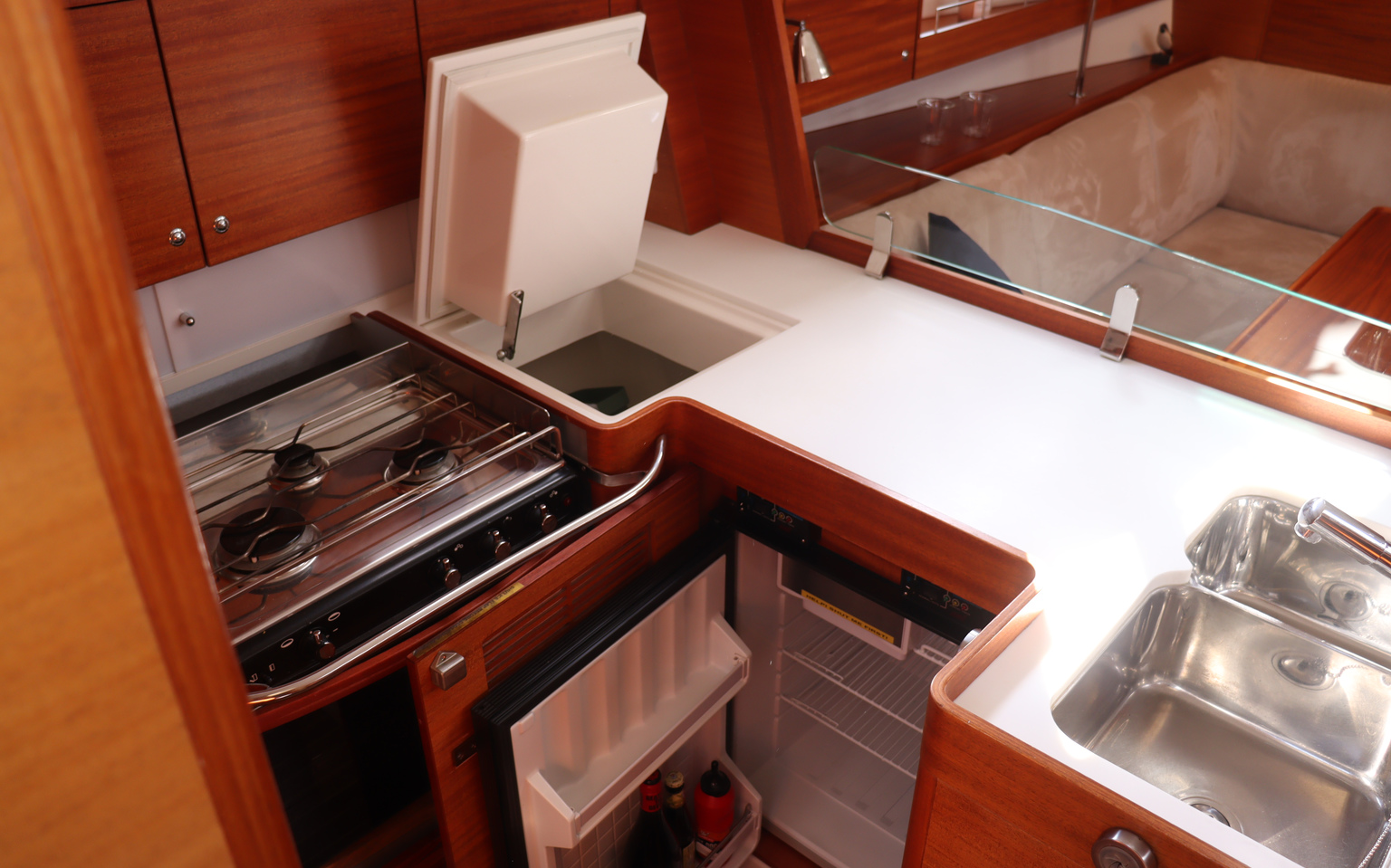

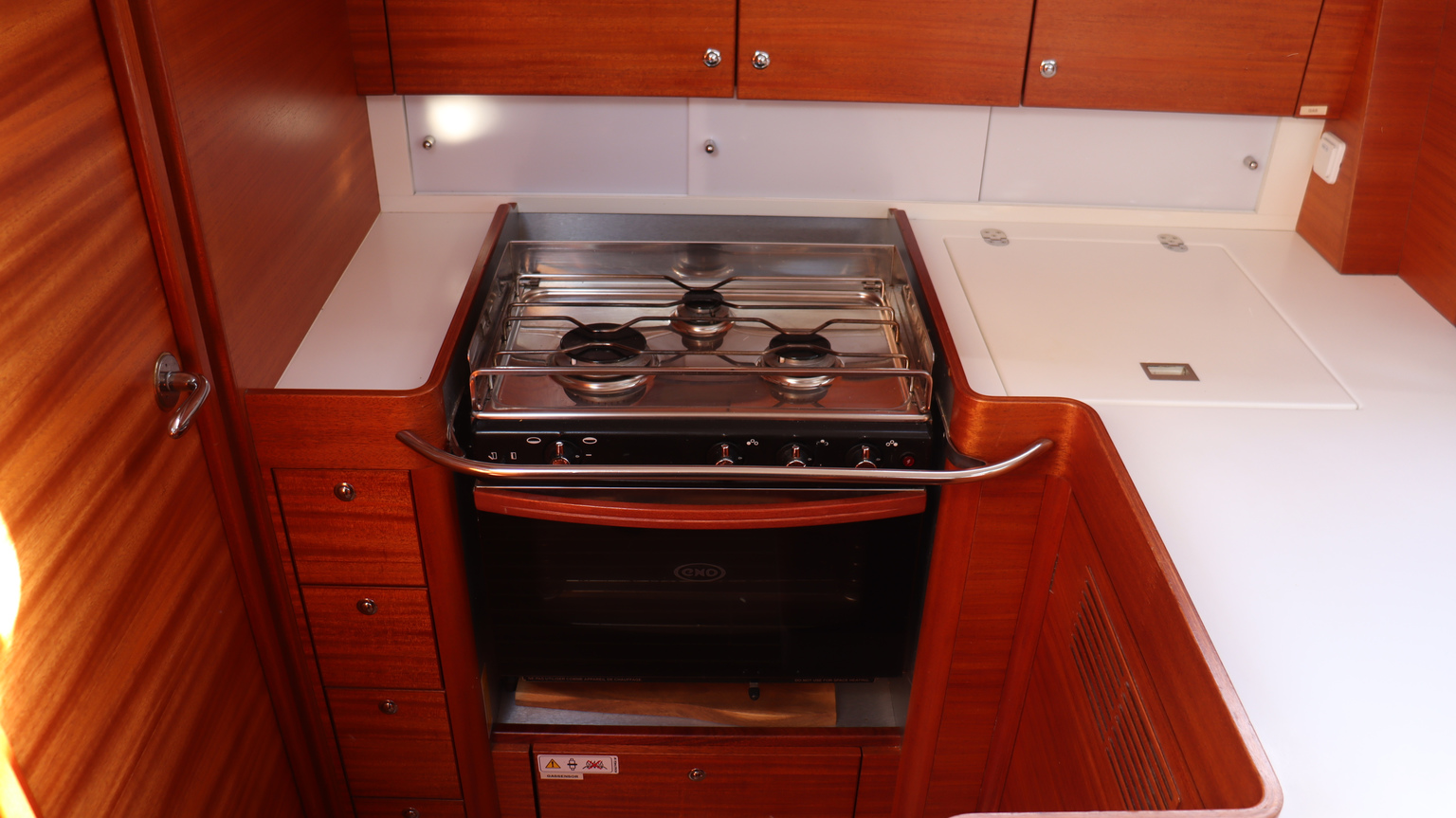

• Gas cooker - 3 burner cooker with oven and grill
• Gas detector alarm
• Extra Swedish gas bottle and quick shift system
• Electrical gas switch with solenoid valve
• GRP top opening 120 litre fridge with 100 mm insulation, built in Isotherm SP accumulator plate cooled
• by water cooled Danfoss/Secop compressor
• Fridge, Isotherm 85 L front opened with ASU start-up technology and Danfoss cooling compressor
• Seawater outlet in anchor locker to rinse deck and anchor
• Heating system – Eberspacher D5 with 4 outlets in saloon, cabins and head

Electrical

• 12 V DC system throughout yacht & 12 V DC system for main engine installation
• 12 V DC USB outlet throughout yacht

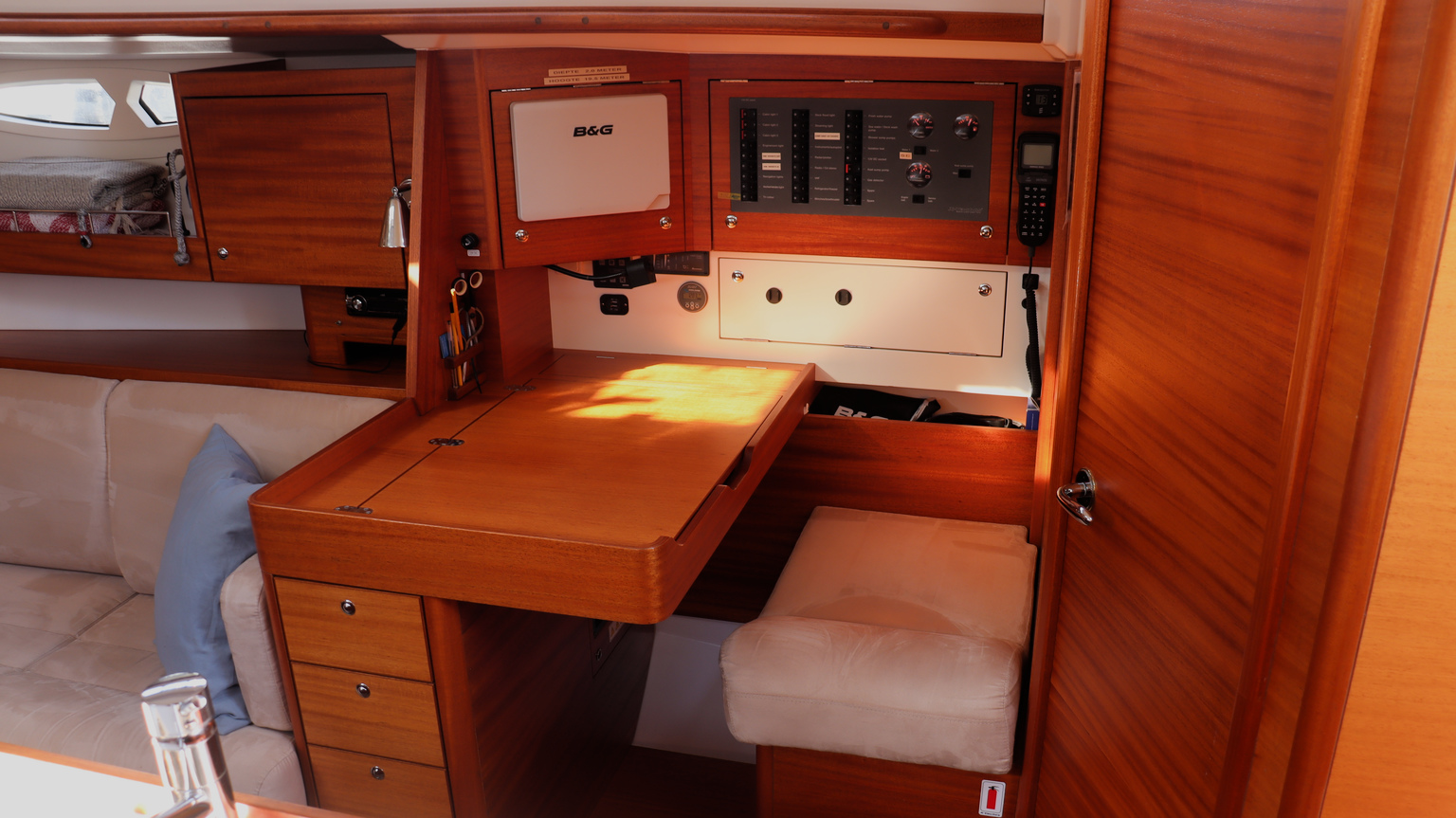

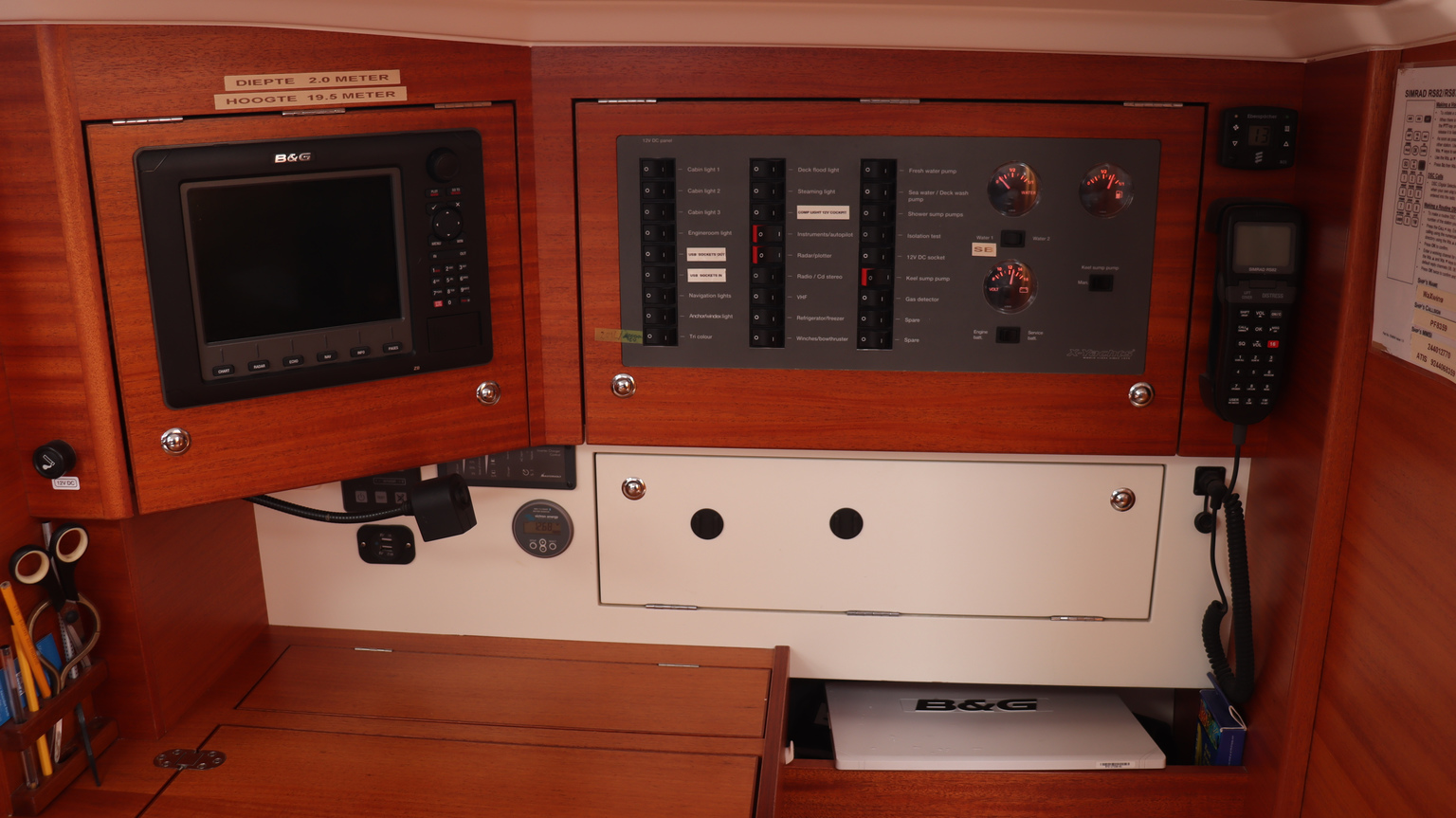

• X-Yachts main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery
• voltage.
• All cabling terminates in “dry” GRP box fitted behind main electrical panel for added safety
• 2024 - AGM batteries (total 390 Ah@12 V) securely mounted under main cabin sofa (3 pcs x 130Ah)
• 2026 - Separate engine start battery (55 Ah, 12 V). Battery is charged via the engine
• Shore power installation with shore power inlet mounted in cockpit protected by 10A main fuse. 230V AC
• distribution box located at navigation table with integrated ground fault circuit breaker/10A fuse, 230 V AC
• socket and switches for hot water immersion heater and battery charger. Shore power cable - 25 meters.
• 12V socket mounted in cockpit locker
• Charger and inverter 12V/1200W/60A including multi control panel, incl. 3 x 220 V sockets mounted, one in
• pantry, one at chart table and one in forward cabin
• Galvanic Isolator 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion)

Electronics

• B&G TRITON INSTRUMENTS:

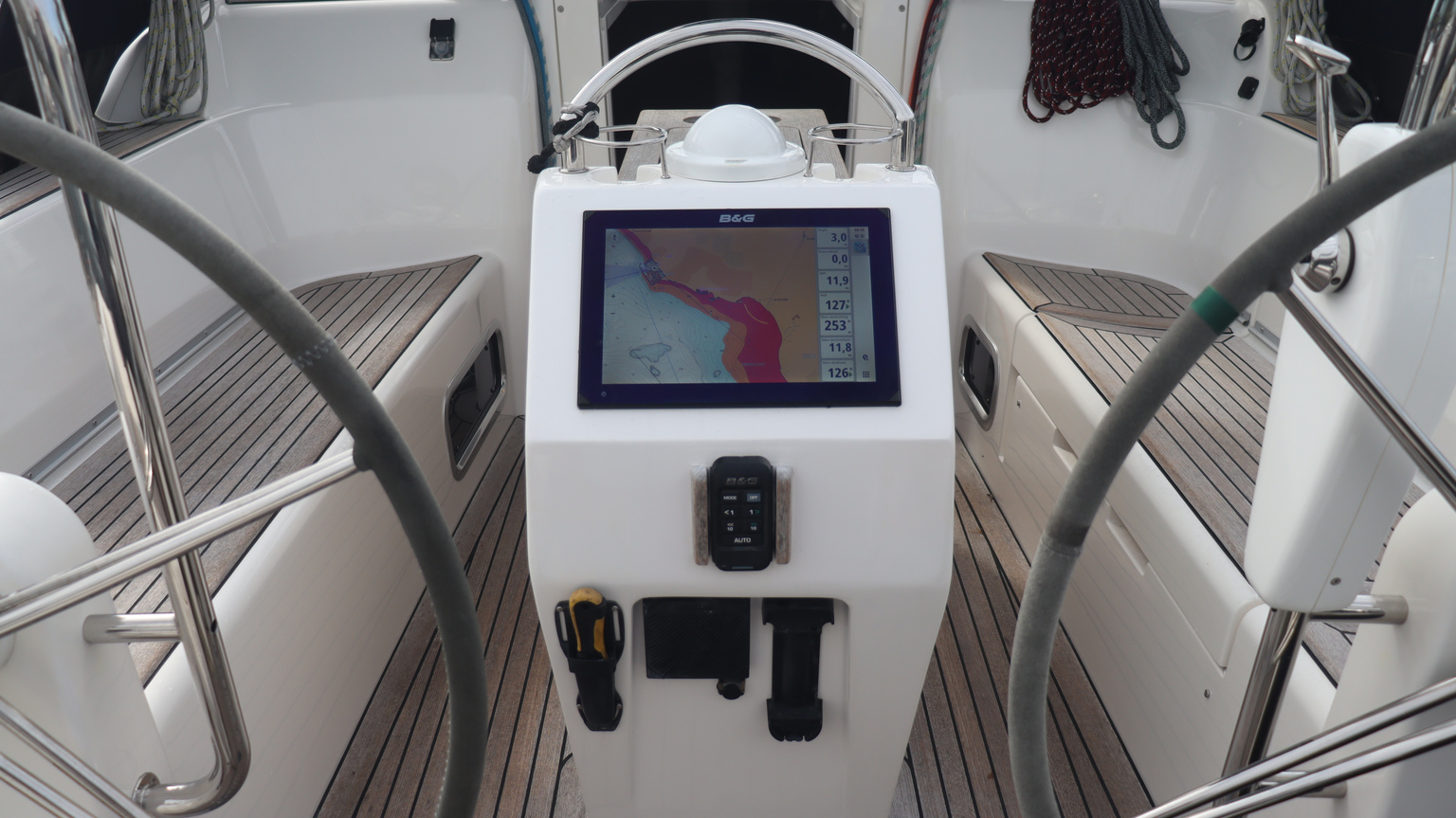

• New B&G 12” Zeus plotter at cockpit
• 3 x Multi displays mounted in garage
• Triton Autopilot system
• VHF RS82 at chart table & second station in cockpit
• B&G 4G Broadband Radar
• B&G 8” Zeus plotter at chart table
• NAIS-300L Class-B AIS
• JVC music system with one set of JVC speakers mounted in main cabin & Bose speakers in cockpit

Thrusters

• Bow thruster - Retractable Max Power Compact Retract 12V with control at starboard recess near steering
• wheel
