Xc 45

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: Xc 45
  • Build Number: 68
  • Build Year: 2012
  • Lying: Denmark
  • Price: Sold
  • Contact: Nanno Schuttrups
Xc 45


A Xc 45 as it should be: completely equipped and originally specified by the dealer for its first owner, since 2014 enjoyed by its current owners who have kept the yacht maintained by the dealer as well (including yearly indoor winter storage). Log stands at 9700 nm.

In-boom furling, generator, beautiful teak carpentry and many more relevant options for comfort cruising with the X-Yachts' renowned sailing qualities. All sheets and halyards can be controlled on electrical winches.

Video presentation can be seen on this Youtube link

Standard Specification

DesignerX-Yachts Design Team
Hull Length13.86 m45'6"
Waterline Length12.76 m41'10"
Beam (max)4.31 m14'2"
Draft2.21 m7'3"
Ballast - Std5,740 kg12,655 lbs
Displacement - Light13,220 kg29,145 lbs
Engine Power59 kW80 hp
Fuel Tank - Std460 ltr122 gal (US)
Water Tank - Std590 ltr156 gal (US)

Standard Xc 45 brochure


Exterior Details


  • Standard with:
  • Teak in cockpit, on deck and on the coachroof
  • 6 Andersen stainless steel winches
  • Gas springs on the cockpit lockers
  • Furling system for genoa
  • Electrical anchor winch 1500W
  • Combined deck & steaming light
  • Lead bulb keel
  • White Camoan Corian galley counter top
  • Refrigerator (watercooled, with accumulator)
  • Boiler 40l
  • Holding tanks for both toilets
  • Cockpit shower (hot/cold water)
  • 24V electrical system with gel batteries (replaced 2014)
  • Separate 12V starter battery for engine

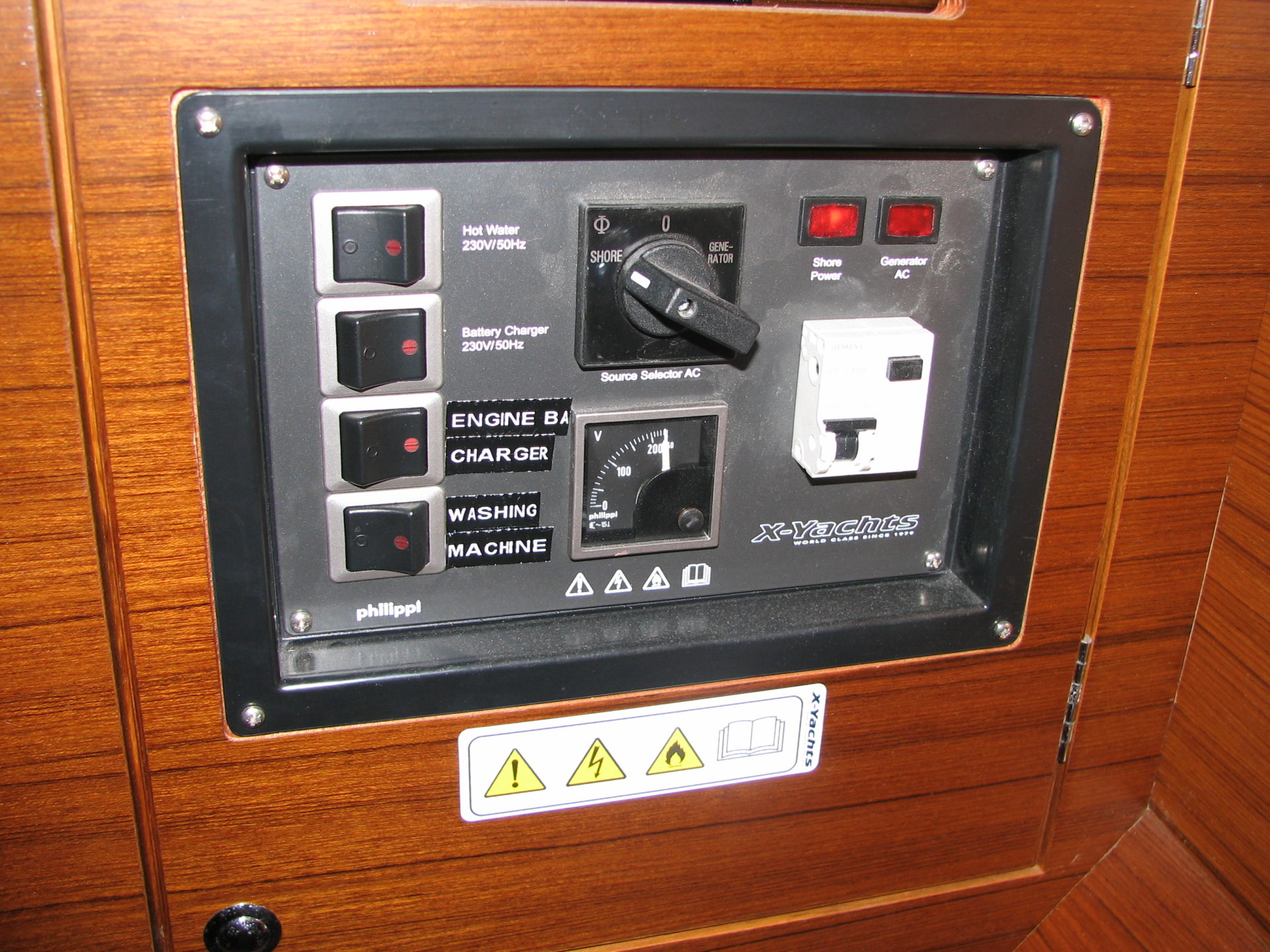

  • Combined charger/inverter (24V/1600W/50A)
  • 3-blade folding propellor


  • Bottom treatment from yard (3x epoxy & 2x antifouling)
  • Antifouling yearly re-newed

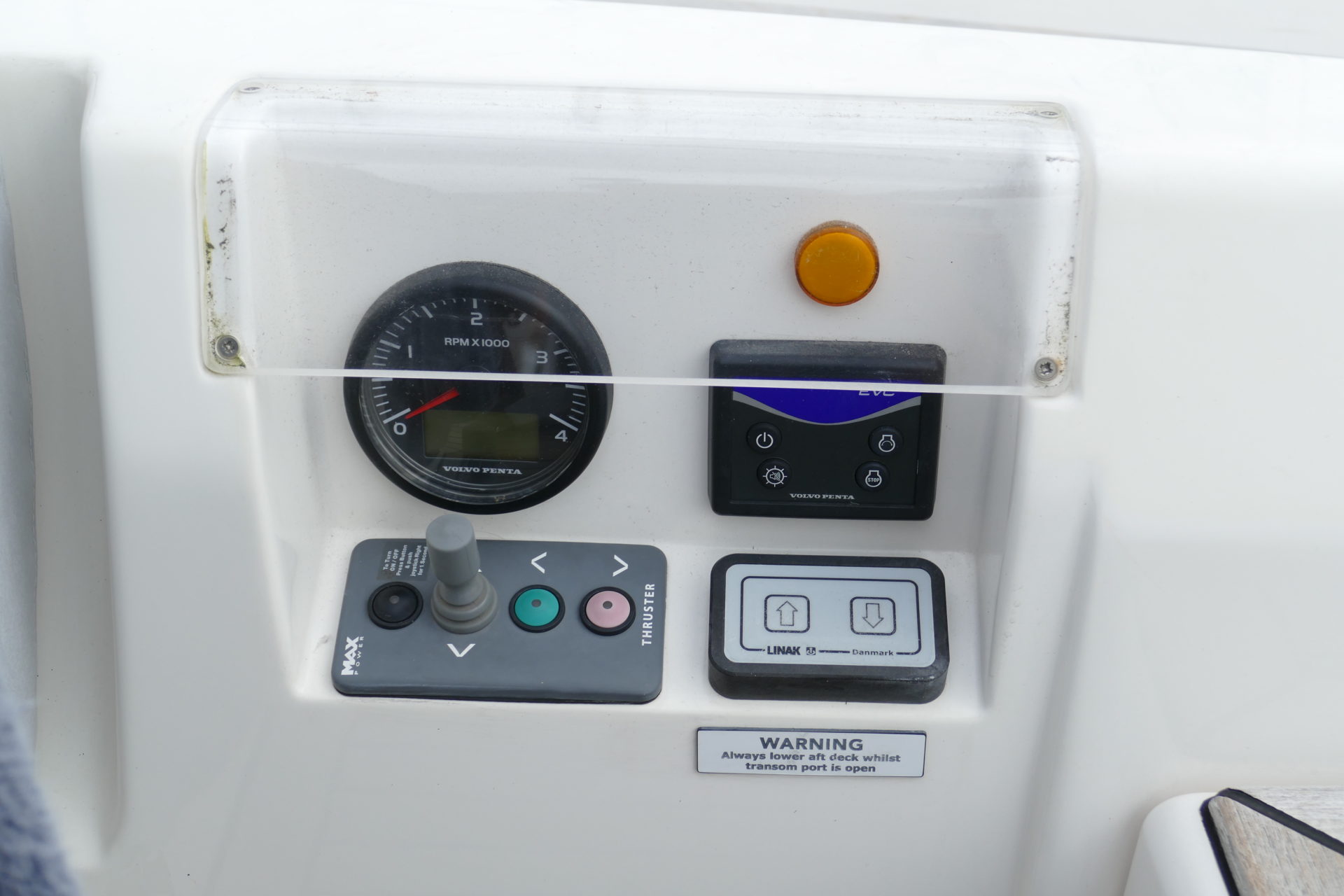

  • Retractable bow thruster
  • Ambassador Marine rope cutter for folding propellor
  • Electrical halyard winch + extra control button at steering wheel
  • Electrical genoa winches (control button at steering wheel)

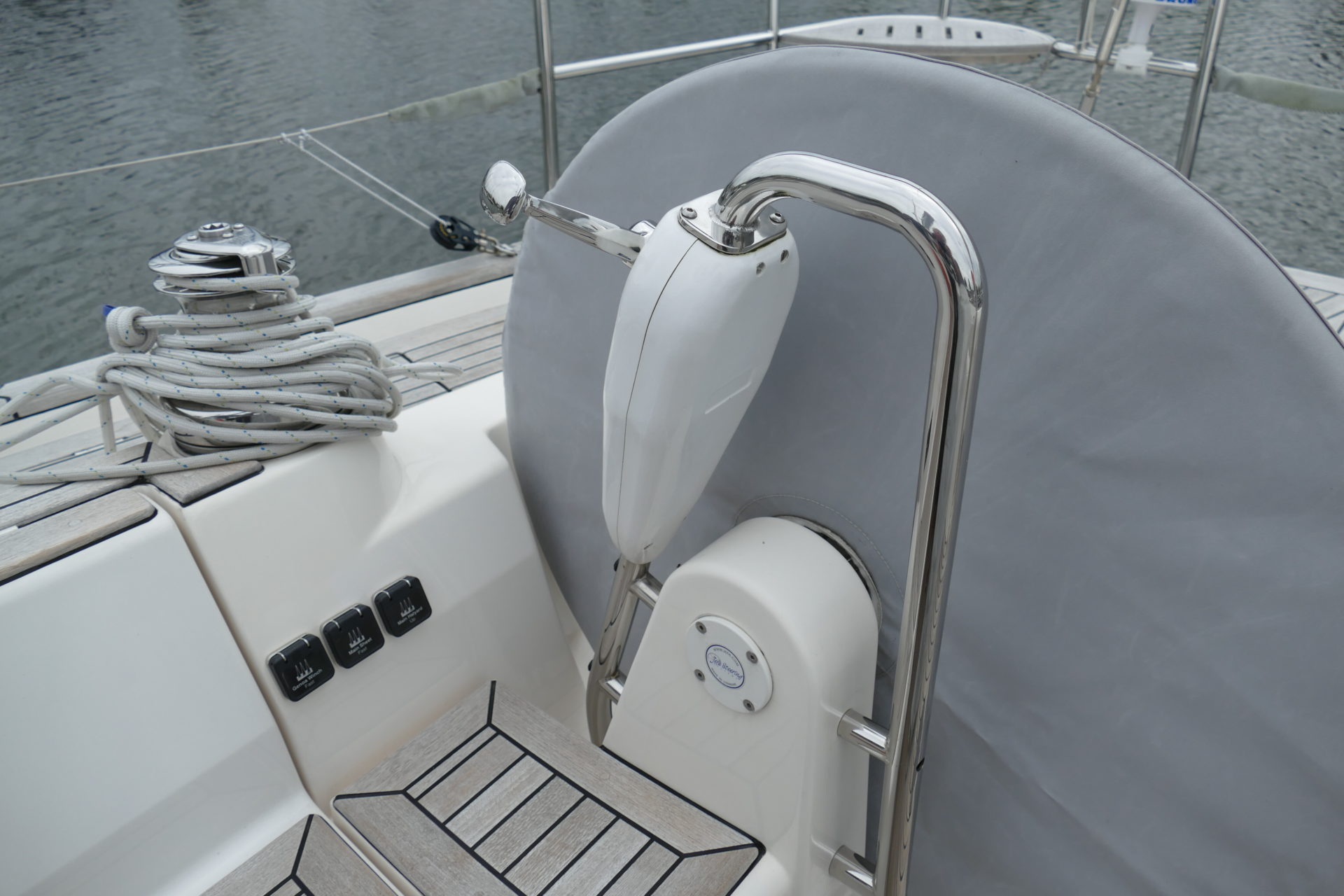

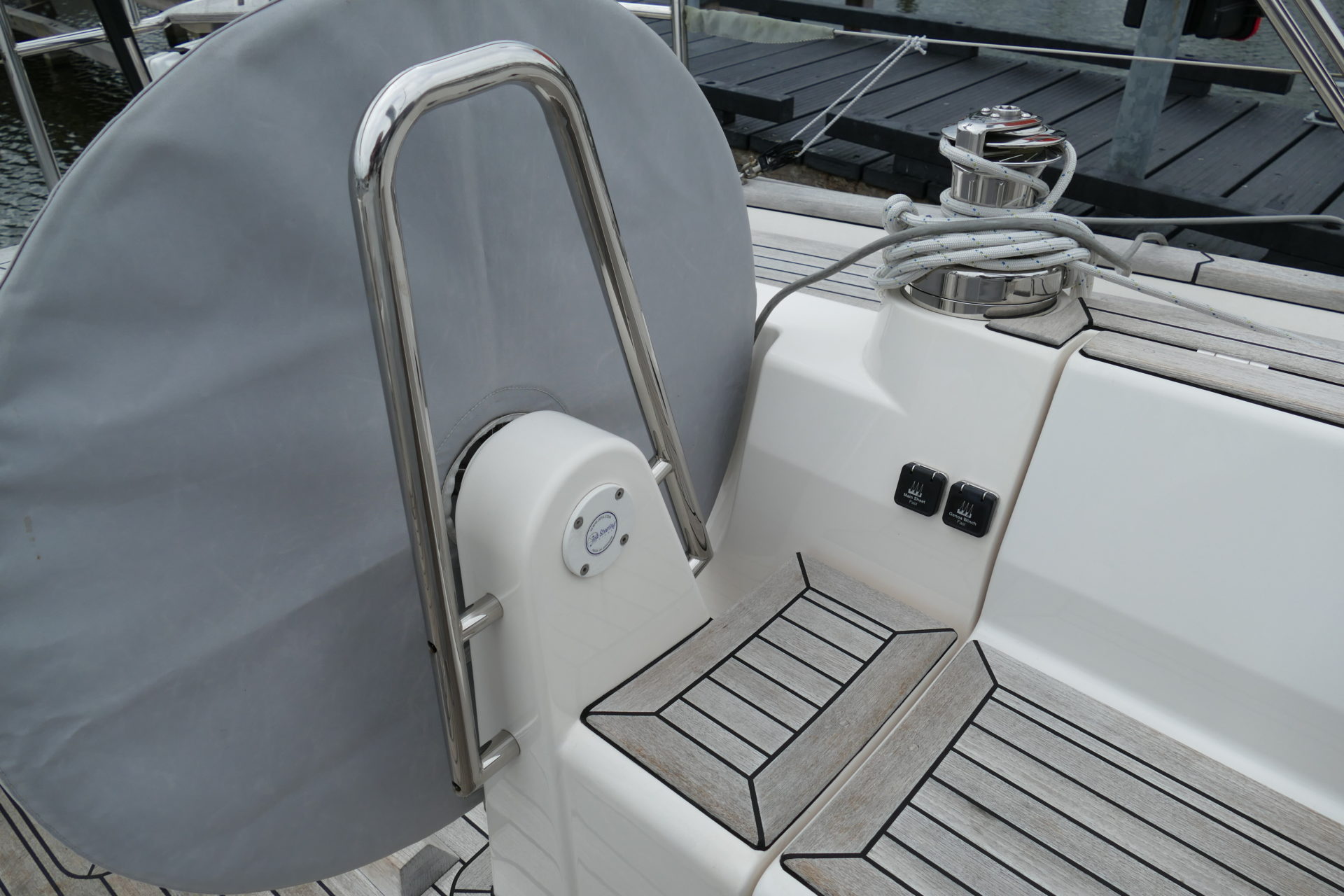

  • Electrical mainsheet winch (control buttons on both sides of the cockpit)
  • Fixed windscreen with sprayhood
  • Sprayhood cloth replaced 2015 for lower version
  • A-frame on bow (stainless steel with teak capping)
  • Bow boarding ladder in stainless steel
  • Side boarding ladder in stainless steel and teak (2014)
  • Additional handholds at cabin entrance

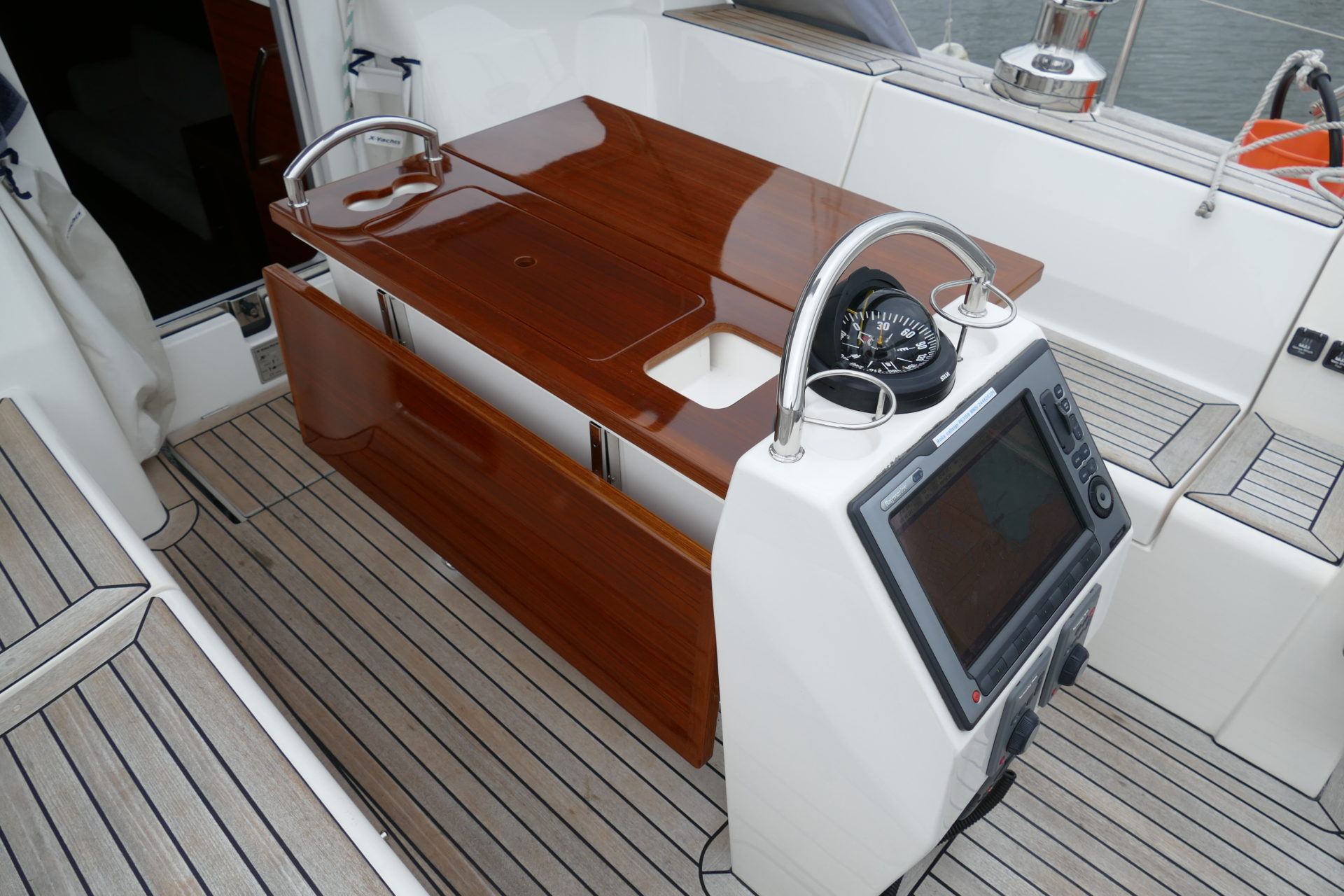

  • Cockpit table in high gloss varnish/epoxy coating
  • Gennaker package
  • Remote control for electric transom hatch (with 2 remotes)
  • Bose cockpit speakers
  • Handrail in stainless steel on forward end of cockpit table
  • Crash bars in stainless steel at steering wheels
  • Custom throttle control bracket, mounted in a comfortable location
  • Outboard engine bracket mounted on aft pushpit and in saillocker
  • Bimini
  • Halyard bags for easy access of common control lines
  • 12V outlet in cockpit table and saillocker
  • Cockpit cushions
  • Capstan on windlass, foot control buttons
  • Preparation for cutterstay (halyard in mast and strengthened putting on deck)
  • Deckwash pump at saillocker/windlass


  • North Sails furling mainsail in dyneema SRP cloth
  • Hagoort Sails 107% furling jib in MAXX Voyager Aramid laminate
  • North Sails 88% furling jib in dyneema SRP cloth
  • North Sails cuttersail in dyneema SRP, on Karver furler
  • North Sails A2 asymmetric spinnaker with snuffer
  • Cover for furling boom
  • Cover for jib
  • Cover for cockpit table
  • Cover for steering wheels

Mast & Rigging

  • Furler boom (including stronger vang) with LED light
  • Combined 3-colour/anchor light
  • Additional 2:1 halyard for cutter sail
  • Fixed radar reflector Tri-Lens
  • White painted carbonfiber spinnaker pole, mounted on track against mast



  • Teak bulkheads
  • Additional refrigerator 85l (front loaded)
  • Microwave
  • Kenwood DAB radio/CD/MP3/USB

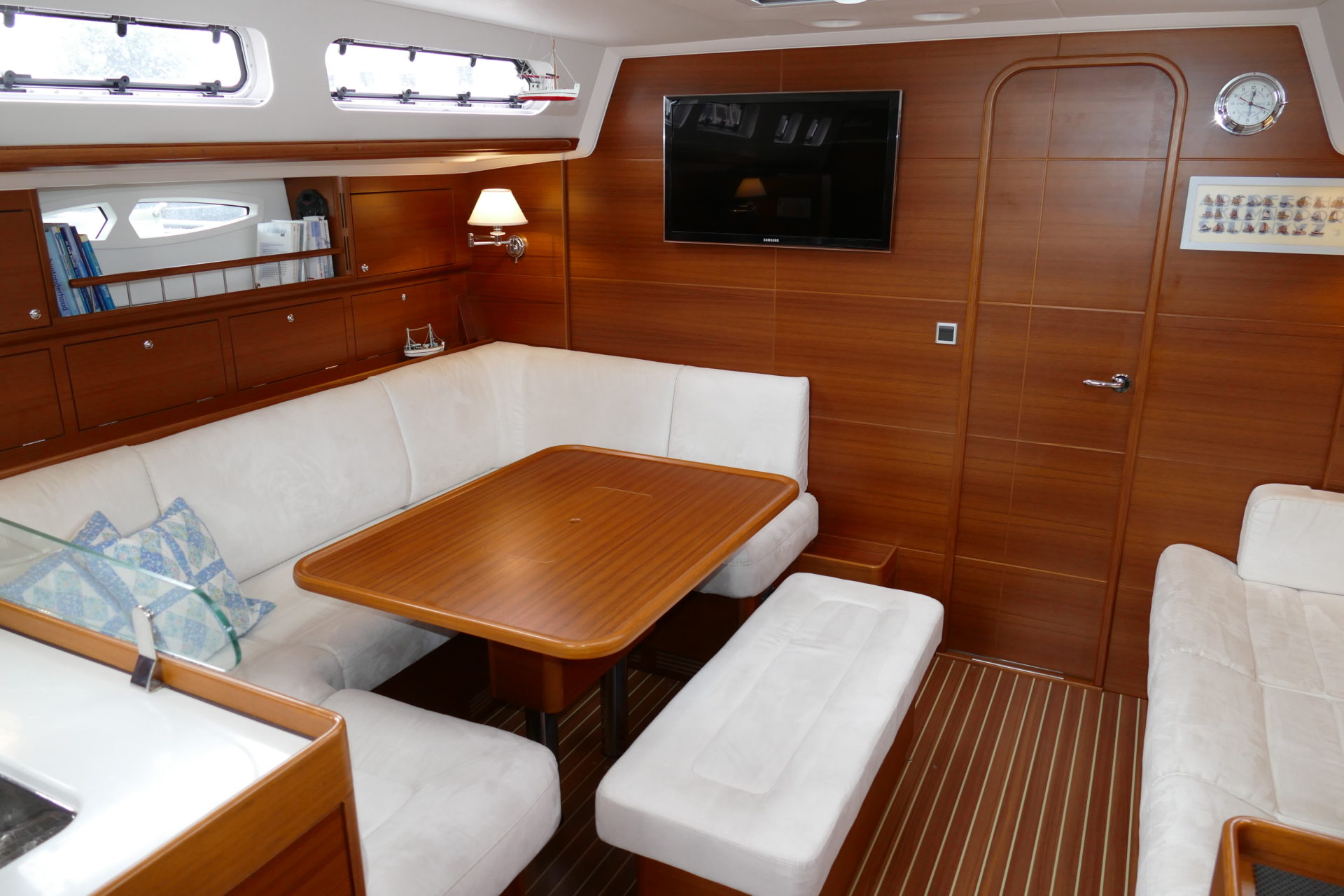

  • 32' LED TV on head bulkhead incl. antenna in mast

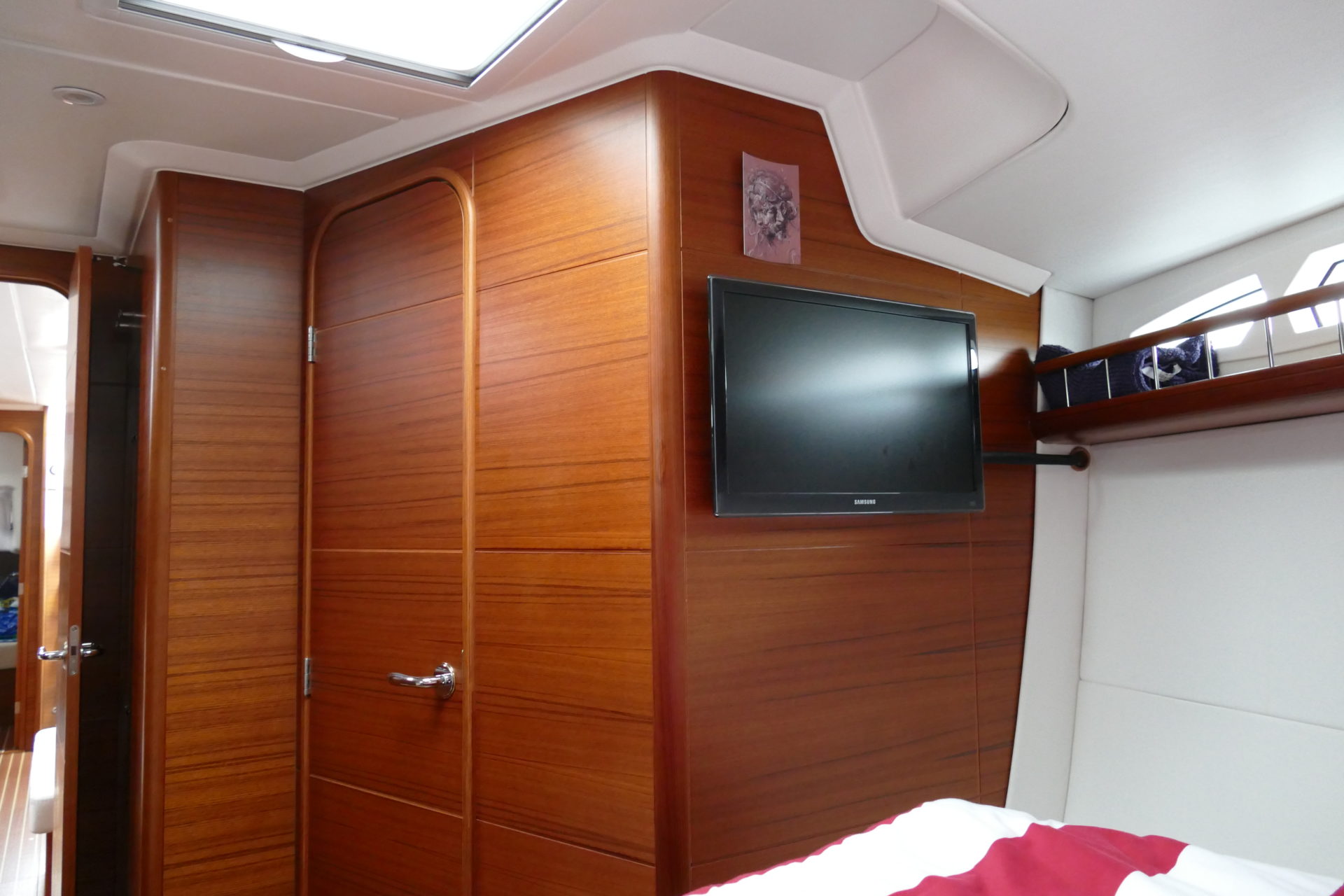

  • 22" LED TV in owner's cabin
  • 3x additional 220V outlet sockets
  • Safe for small items
  • Eberspacher D5 heating system with 6 outlets

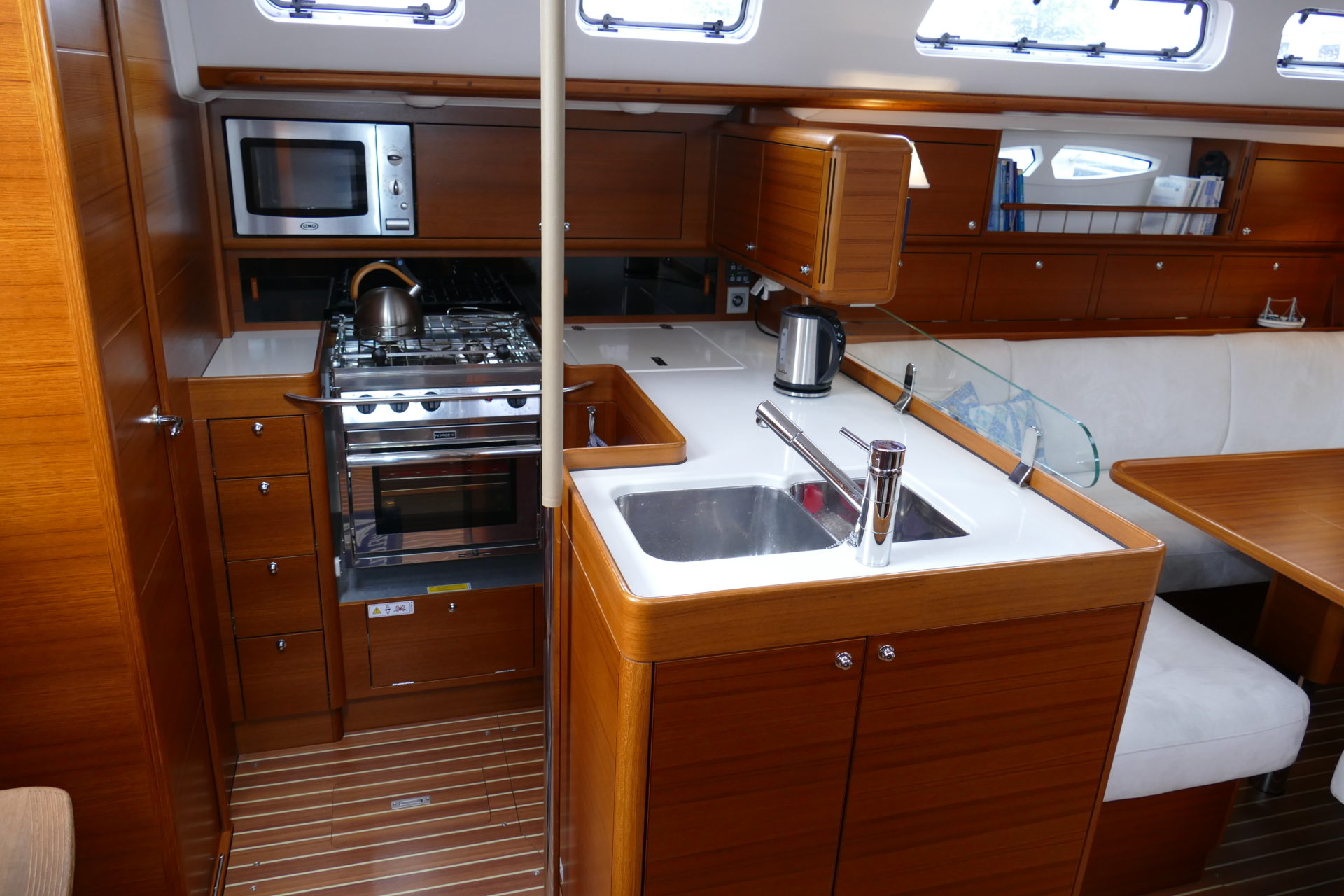

  • Force 10 3-burner stove with oven
  • Drawer under owner's bed
  • Jabsco Quiet Flush electrical toilet in owner's head



  • Fisher Panda generator 4 kW
  • 2x additional gel batttery (260Ah @ 12V)

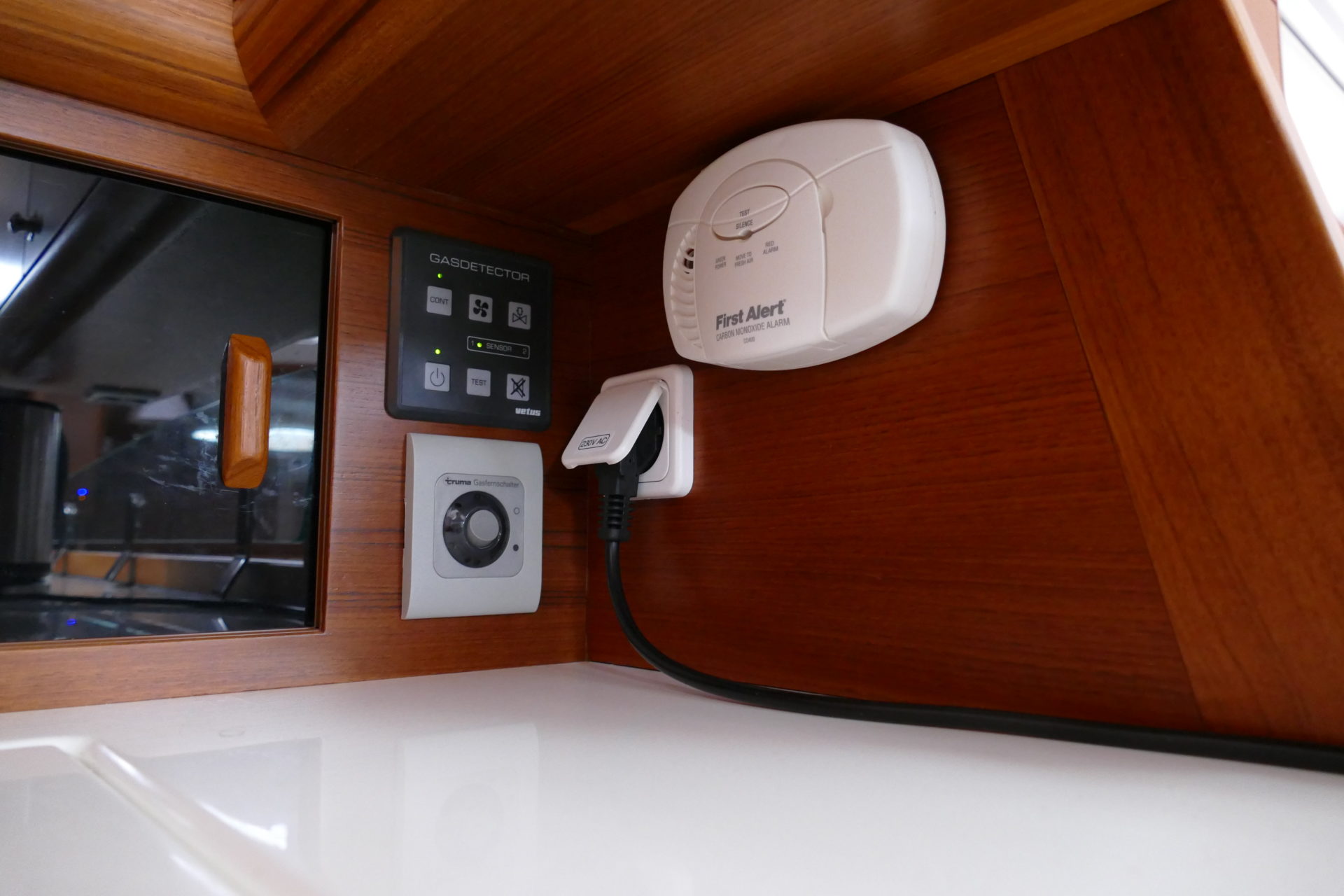

  • Electrical gas switch
  • Gasdetector

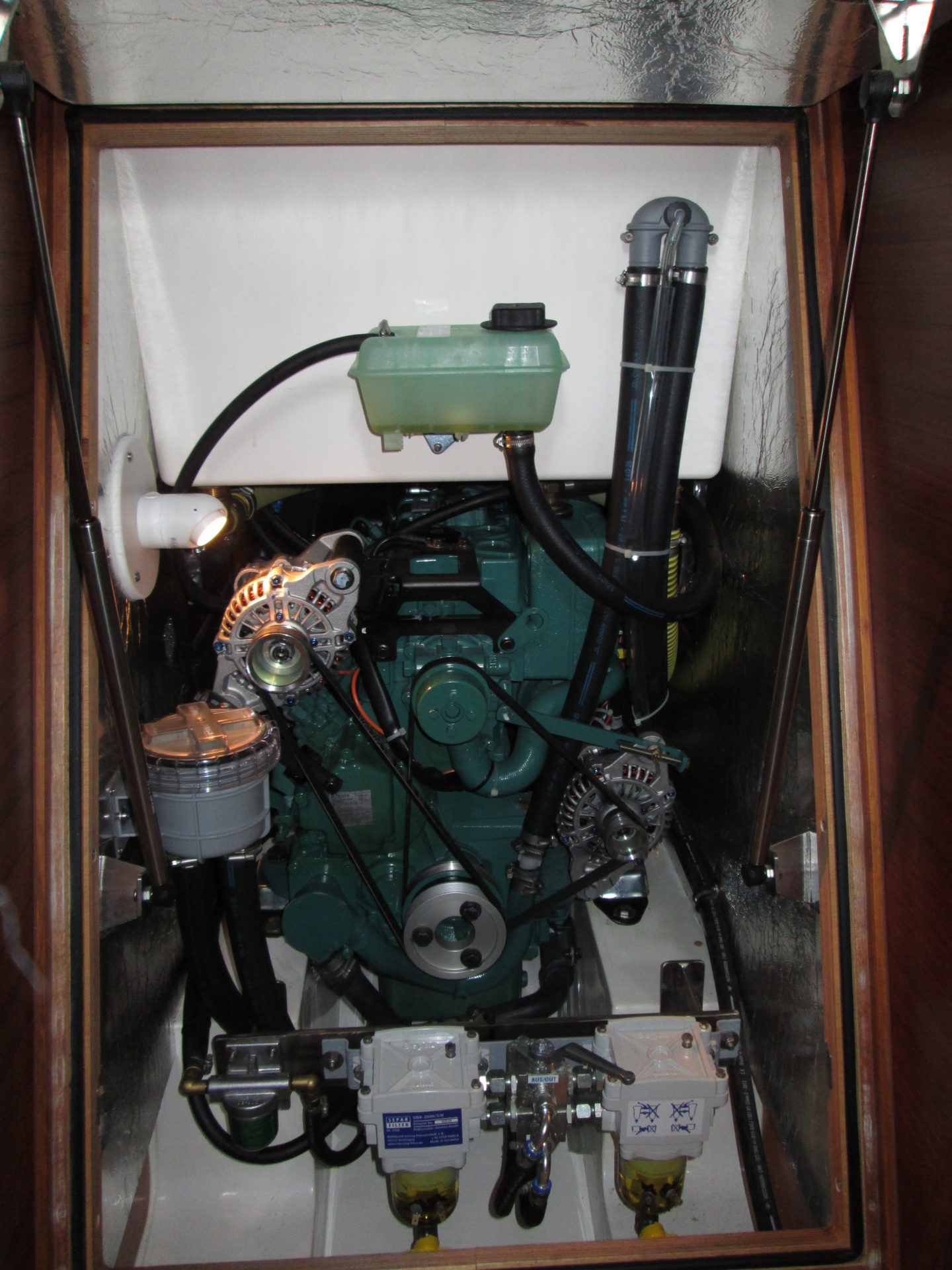

  • SEPAR double dieselfilter (switchable) between consumption tank and engine

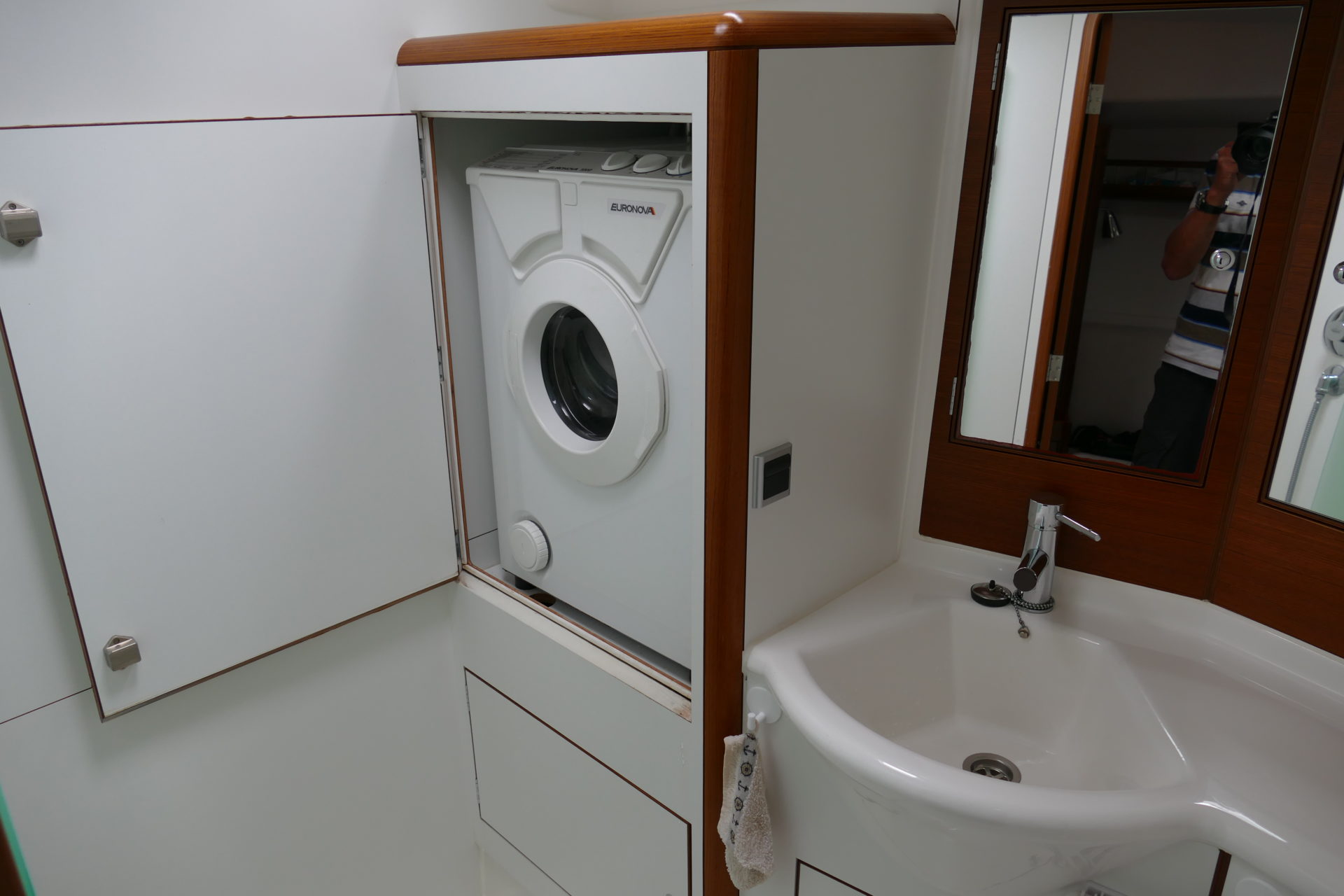

  • Washing machine
  • Jabsco filter in fresh water supply to tap at galley (2015)


  • Full Raymarine ST70+ system installed, with:
  • Transducers for speed, depth and wind
  • 3x ST70+ graphical colour display over sliding hatch
  • Raymarine autopilot SPX30
  • Raymarine Ray240E VHF in cockpit
  • Additional speaker and handset for VHF at charttable

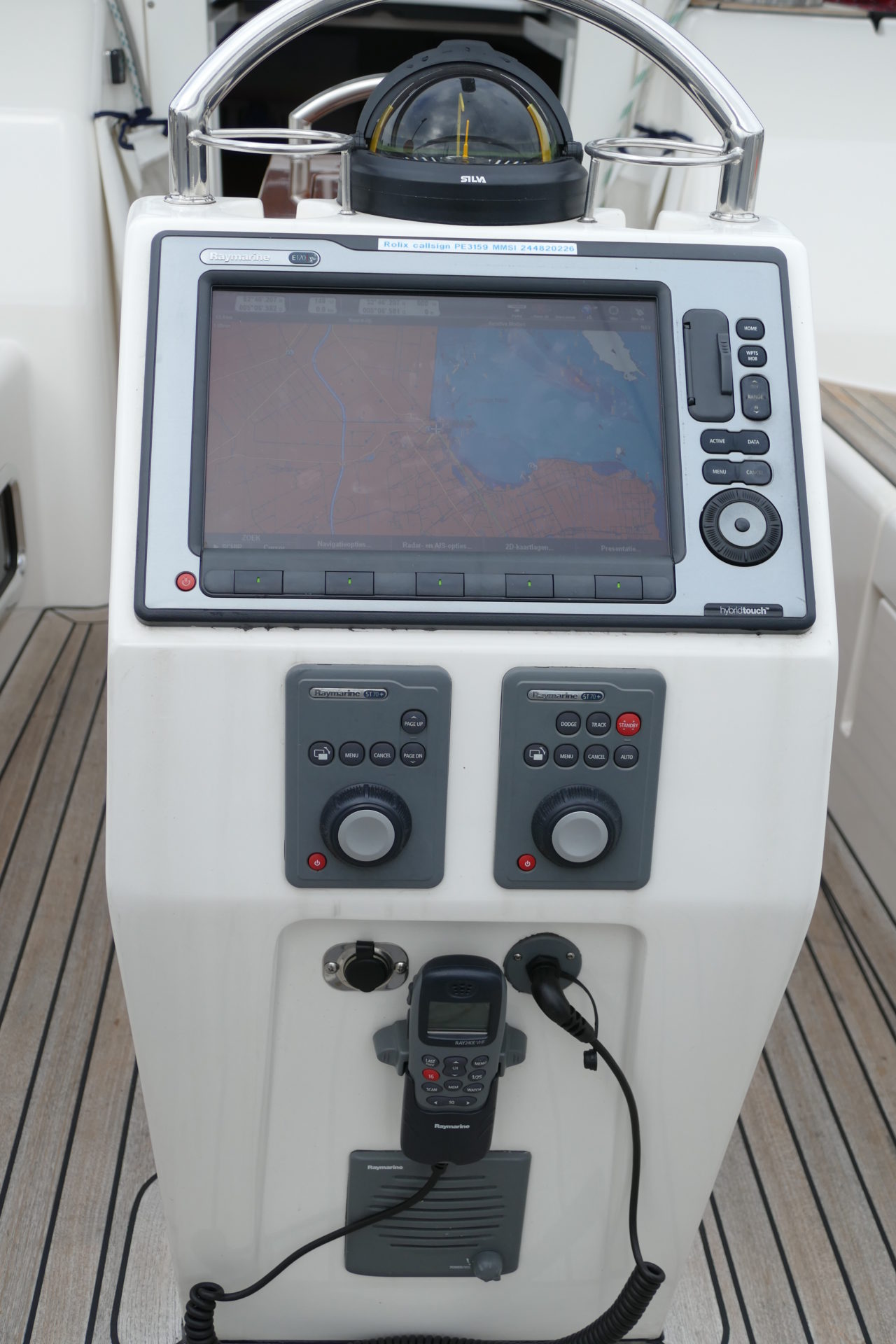

  • Raymarine E120W GPS/plotter in cockpit
  • Radardome 4kW HD digital
  • Raymarine AIS650 transceiver
  • Raymarine remote for autopilot

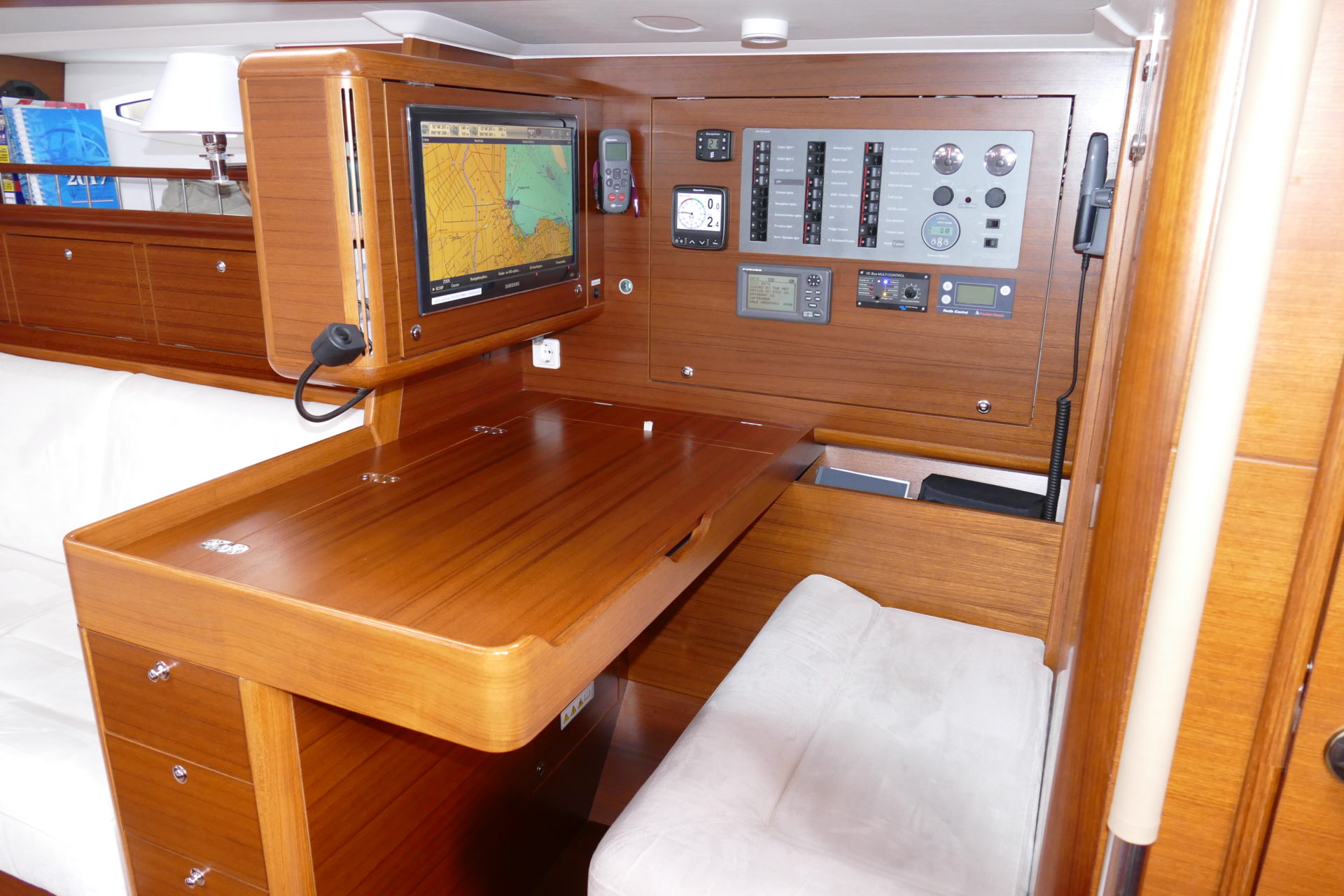

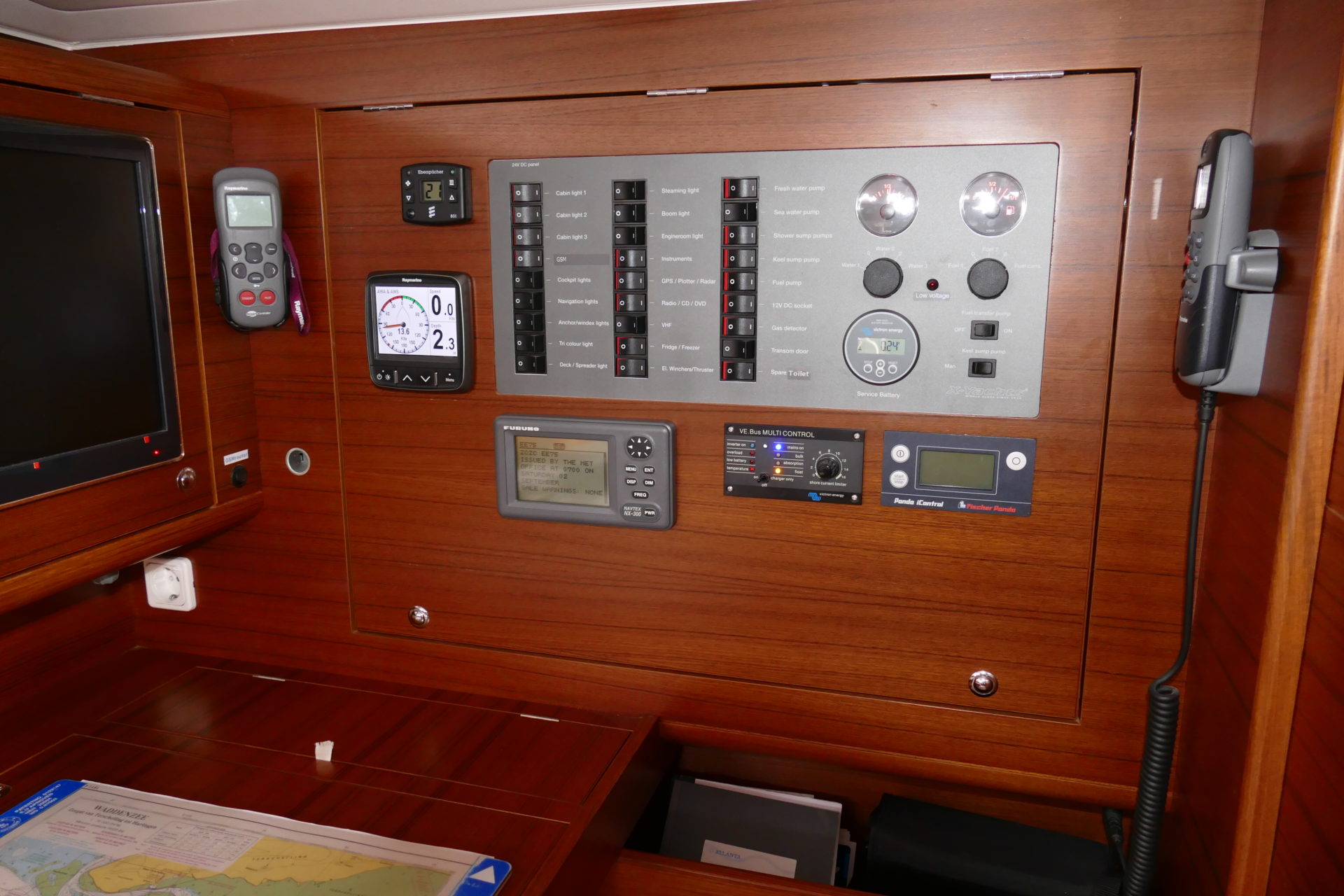

  • Furthermore, at nav station:
  • Samsung 19" flatscreen at nav station to mirror the Raymarine plotter image
  • Raymarine keyboard at nav station to control the plotter image on the flatscreen
  • Additional Raymarine i70 repeater display (2014)
  • Furuno NX300 navtex receiver
  • Connection for laptop at charttable
  • Router for internet access (GMS) with UMTS antenna in mast, creating a local Wifi hotspot for general use
  • WiFi antenna in mast
  • Handheld VHF Icom IC-M73 (2014)
  • Epirb Oceansignal E100G (2014)

Additional Information

  • Jon Buoy on custom bracket at pushpit (2014)
  • Liferaft
  • Secondary anchor with lead line
