Yacht Summary

  • Manufacturer: X-Yachts
  • Model: Xc 45
  • Build Year: 2012
  • Lying: Marina Muiderzand, Netherlands
  • Price: €475,000 (VAT Paid)
  • Dealer: X-Yachts Holland
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email: info@x-yachts.nl

View Xc 45 Brochure

Xc 45

Yacht Enquiry or Offer

To discuss your requirements call X-Yachts Holland on +31 (0)36 536 9057 or complete the form below.

Truly unique Xc 45 with Hall Spars carbonfiber mast and Furlerboom in-boom furling system for mainsail. Furthermore fully equipped for long distance sailing, the boat has been checked and serviced by dealer in 2017.

So if you are thinking about owning one of these blue water sailing thoroughbreds then look no further and ask for more information.

Standard Specification

DesignerX-Yachts Design Team
Hull Length13.86 m45'6"
Waterline Length12.76 m41'10"
Beam (max)4.32 m14'2"
Draft2.20 m7'3"
Ballast - Std5,965 kg13,151 lbs
Displacement - Light13,220 kg29,145 lbs
Engine Power55 kW75 hp
Fuel Tank - Std440 ltr116 gal (US)
Water Tank - Std615 ltr162 gal (US)

Details

Exterior Details

Hull

  • Bottom treatment from yard (3x epoxy & 2x antifouling)
  • Retractable bow thruster
  • Ropecutter on folding propellor

Deck

  • Electrical halyard winch + extra control button at steering wheel
  • Electrical genoa winches (control button at steering wheel)
  • Electrical mainsheet winch (control buttons on both sides of the cockpit)
  • Composite steering wheels
  • Fixed windscreen with sprayhood
  • Sprayhood with extension part for even better shelter
  • Cockpit tent (attached to extension part on sprayhood, zipper needs service)
  • A-frame on bow (stainless steel with teak capping)
  • Bow boarding ladder in stainless steel
  • Additional handholds at cabin entrance
  • Gennaker package with tack line
  • Remote control for electric transom hatch (with 2 remotes)
  • Bose cockpit speakers (currently not working)
  • Handrail in stainless steel on forward end of cockpit table
  • Crash bars in stainless steel at steering wheels
  • Outboard engine bracket mounted on aft pushpit and in saillocker
  • Bimini
  • Halyard bags for easy access of common control lines
  • 12V outlet in cockpit table and saillocker
  • Cockpit cushions
  • Capstan on windlass, foot control buttons
  • Preparation for cutterstay (halyard in mast and strengthened putting on deck)
  • Deckwash pump at saillocker/windlass

Sails

  • 2016 North Sails furling mainsail in Tour Xi cloth
  • 2016 North Sails 108% furling jib in Tour Xi cloth
  • 2012 North Sails cuttersail in dyneema SRP, on Karver furler
  • 2012 North Sails G2 asymmetric spinnaker with snuffer
  • 2014 North Sails C1 code sail, to be used with Karver furler
  • Cover for furling boom
  • Cover for jib
  • Cover for cockpit table

Mast & Rigging

  • Hall Spars carbonfiber mast, 2 spreaders, white painted
  • Furlerboom in-boom furling system (with vang furling angle control and LED light)
  • Combined 3-colour/anchor light
  • 2x mainsail halyard
  • 2x top spinnaker halyard
  • 1x genoa halyard
  • 1x 2:1 halyard for cutter sail
  • Hall Spars carbonfiber spinnaker pole, mounted on track against mast
  • LED downlights in lower spreaders
  • Wifi antenna on first spreader
  • GSM antenna on first spreader
  • Radardome on custom bracket at first spreader
  • Sailor broadband dome on custom bracket at first spreader
  • Sea-Me antenna in top of mast (active radarreflector)

Accommodation

Interior

  • Teak bulkheads
  • Additional refrigerator 85l (front loaded)
  • JVC radio/CD/MP3/USB
  • Eberspacher D5 heating system with 6 outlets
  • Force 10 3-burner stove with oven
  • Manual foot pump for fresh water back-up
  • Drawer under owner's bed
  • Larger sized toilet bowls

Systems

Electrical

  • Fisher Panda generator 6 kW
  • Additional fuel tank
  • Saildrive seal shall be replaced in 2019 (already planned by owner)
  • Service batteries replaced 2018 (6x Mastervolt 120Ah)
  • Separate starter batteries for both engine and generator (2x)
  • Electrical gas switch
  • SEPAR double dieselfilter (switchable) between consumption tank and engine
  • Washing machine preparation (thru-hull fittings, plumbing and electrical socket)
  • Galvanic isolator
  • Spectra watermaker (not used since 2015)
  • Watt&Sea Cruise hydrogenerator (not used since 2015)

Electronics

  • Full Raymarine ST70+ system installed, with:
  • Transducers for speed, depth and wind
  • 3x ST70+ graphical colour display over sliding hatch
  • Raymarine autopilot SPX30
  • Raymarine Ray240E VHF in cockpit
  • Additional speaker and handset for VHF at charttable
  • Raymarine E120W GPS/plotter in cockpit
  • Radardome 4kW HD digital
  • Raymarine AIS500 transceiver
  • Furthermore, at nav station:

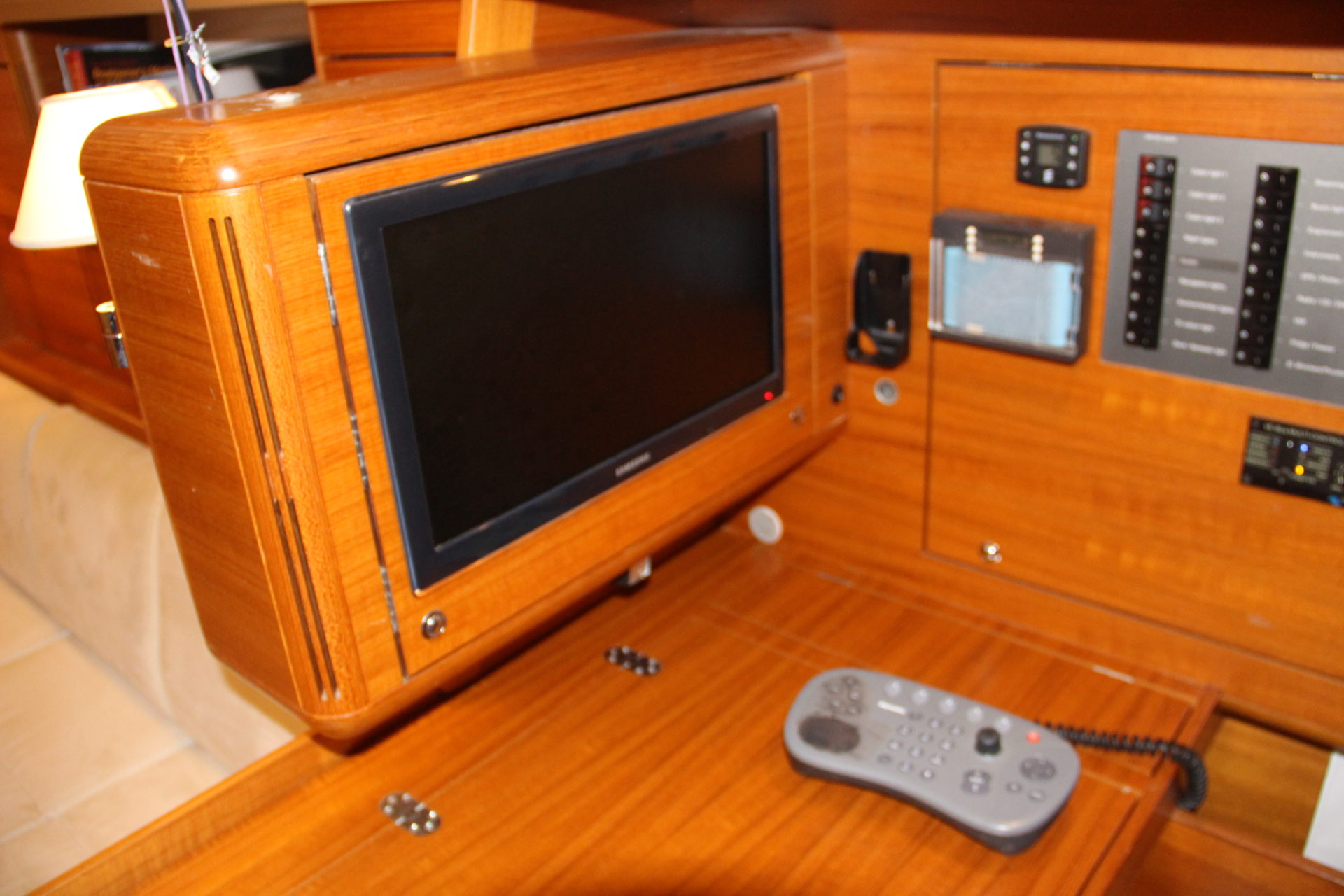

  • Samsung 19" flatscreen at nav station to mirror the Raymarine plotter image
  • Raymarine keyboard at nav station to control the plotter image on the flatscreen
  • Marine PC with Yachtcontrol software, as secondary system to be displayed onto the Samsung 19" flatscreen (software subscription needs to be transferred)
  • Router for internet access with GSM and Wifi antennas in mast, creating a local Wifi hotspot for general use
  • Sailor broadband modem
  • Iridium phone
  • Barograph
  • Control box for SeaMe active radarreflector

Additional Information

  • Standard items on Xc 45:
  • Teak in cockpit, on deck and on the coachroof
  • 6 Andersen stainless steel winches
  • Gas springs on the cockpit lockers
  • Furling system for genoa
  • Electrical anchor winch 1500W
  • Combined deck & steaming light
  • Lead bulb keel
  • White Camoan Corian galley counter top
  • Refrigerator (watercooled, with accumulator)
  • Boiler 40l
  • Holding tanks for both toilets
  • Cockpit shower (hot/cold water)
  • 24V electrical system with gel batteries (replaced 2018)
  • Separate 12V starter battery for engine
  • Combined charger/inverter (24V/1600W/50A)
  • 3-blade folding propellor
  • Teak seats in pushpits
  • Miscellaneous:
  • Jon Buoy on custom bracket at pushpit
  • Fortress anchor with lead line
  • Winter cover
  • Light weight deck cover (for protecting the boat in hot climates)
  • Spare parts for Jabsco toilets
  • Spare parts for Volvo Penta main engine
  • Spare parts for Spectra watermaker (in plastic storage box which is custom fitted)
  • Spare fuel transfer pump
