Details

Exterior Details

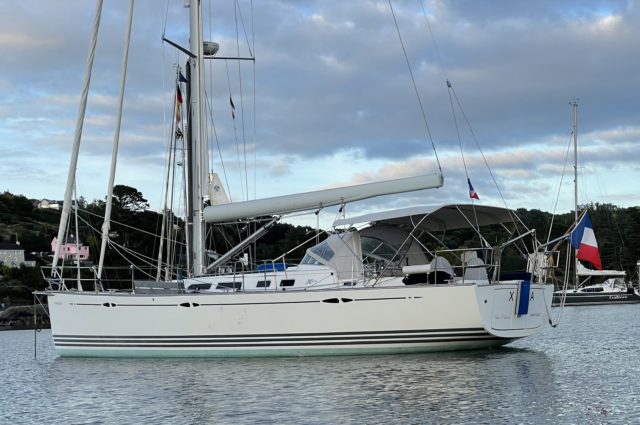

Hull

• • Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull fittings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• waterlines in NGA Gelcoat (RAL 7011 dark grey)
• • Hull moulded in female moulds for highest quality surface finish
• • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht

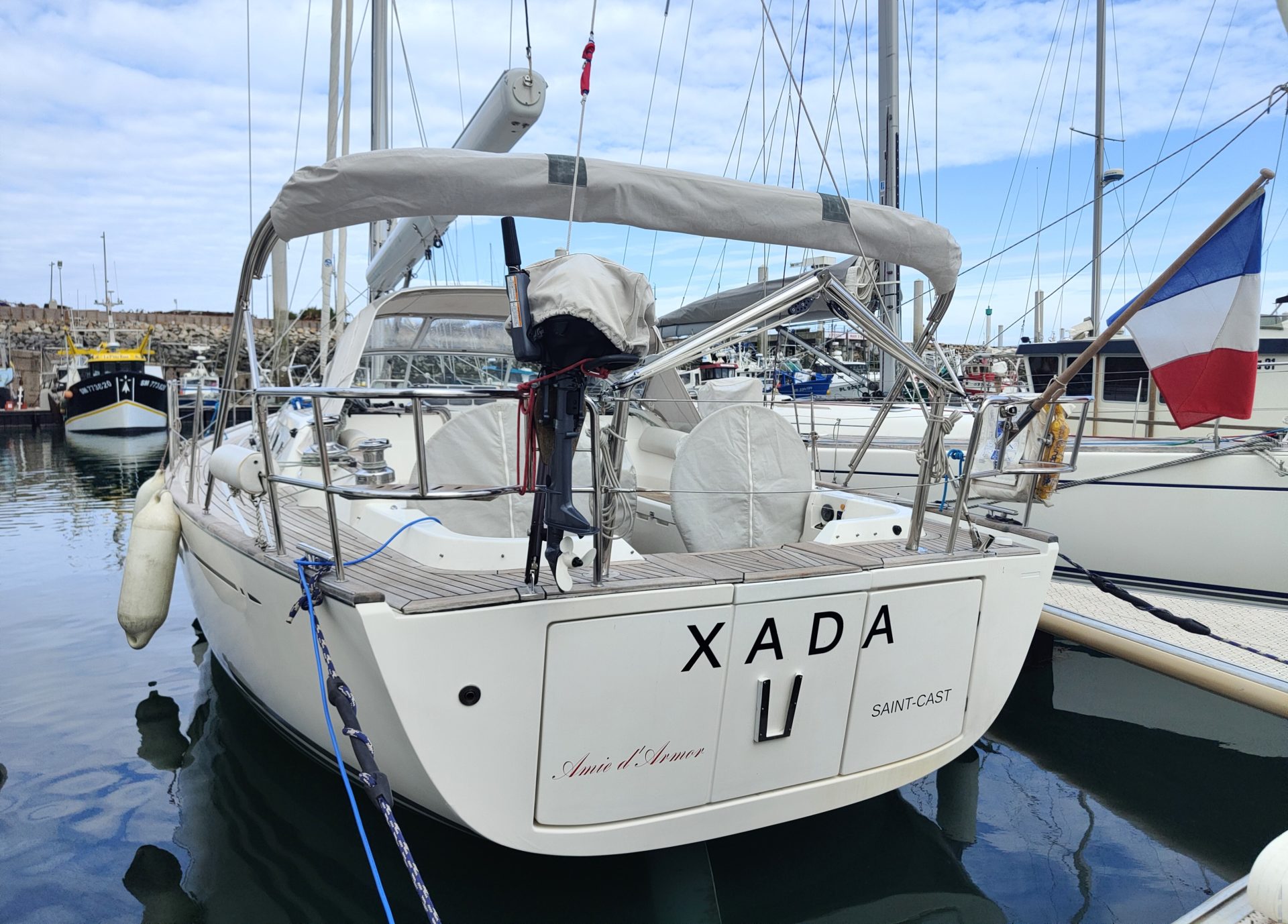

• • Bathing platform incorporated in transom port with electrical hoisting and lowering system
• • Bathing ladder in stainless steel mounted onto bathing platform
• • Continuous stainless steel rail protection mounted on sheerline
• • X-Yachts style hull recessed portlights (6 pcs)

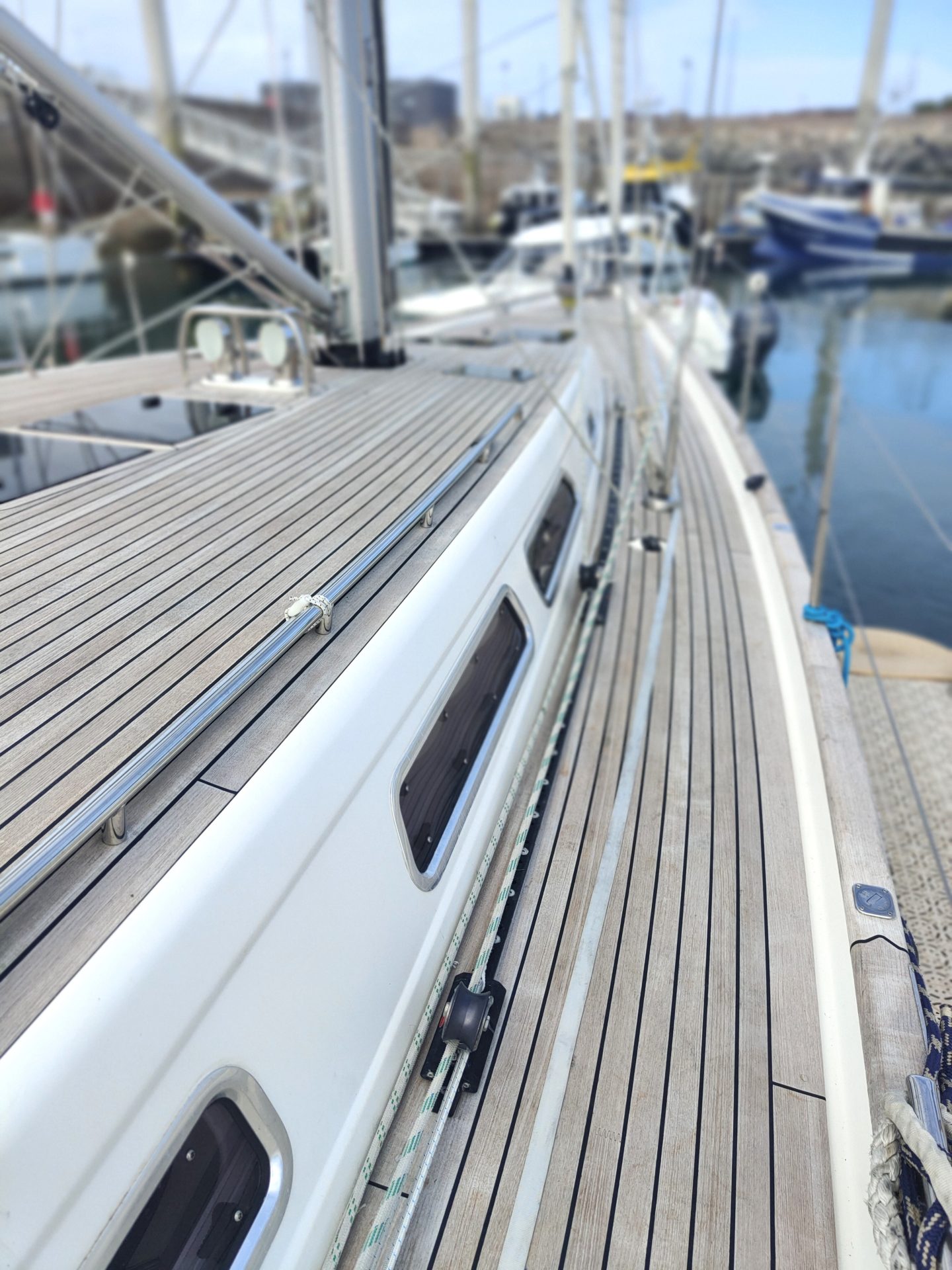

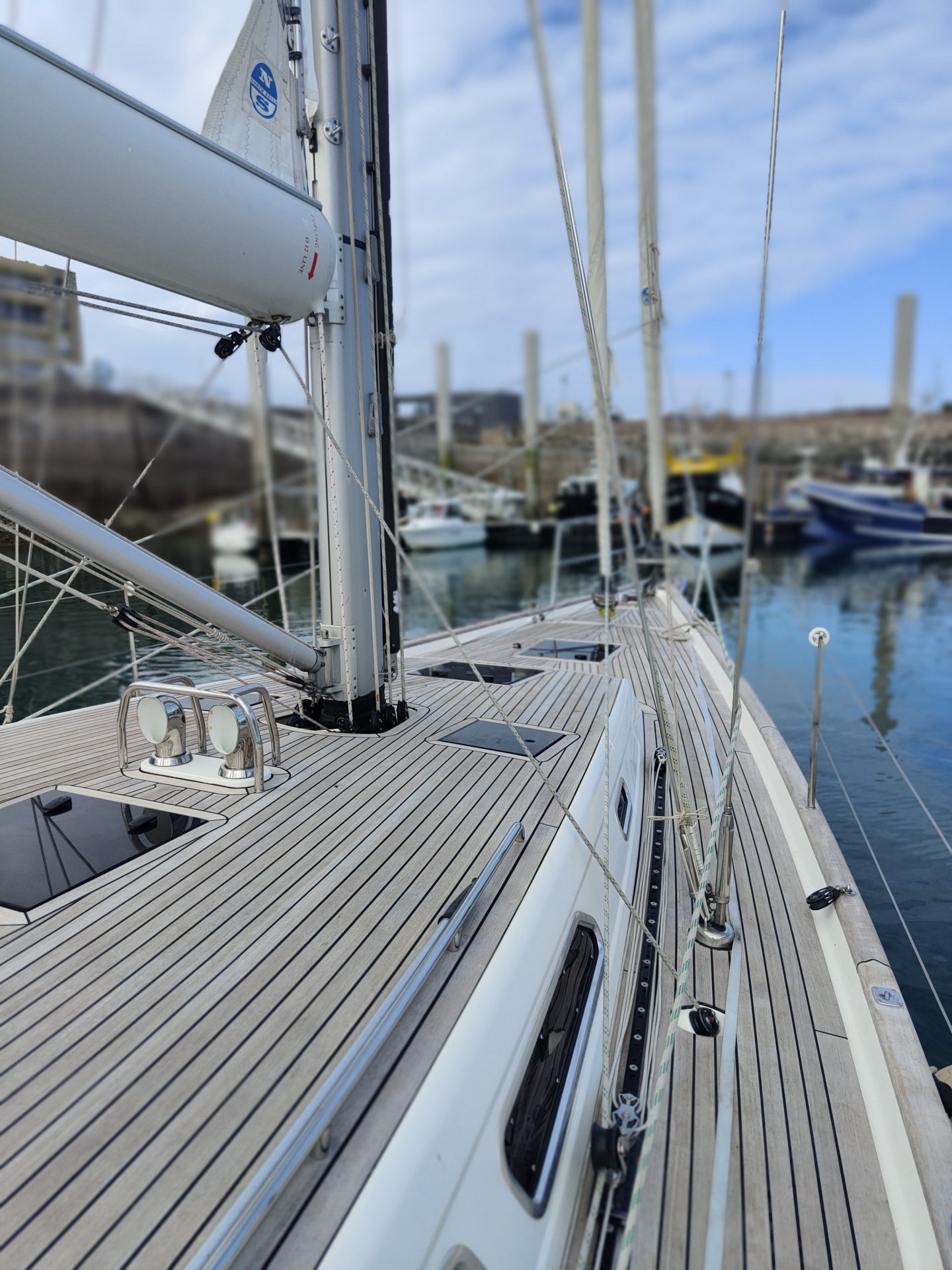

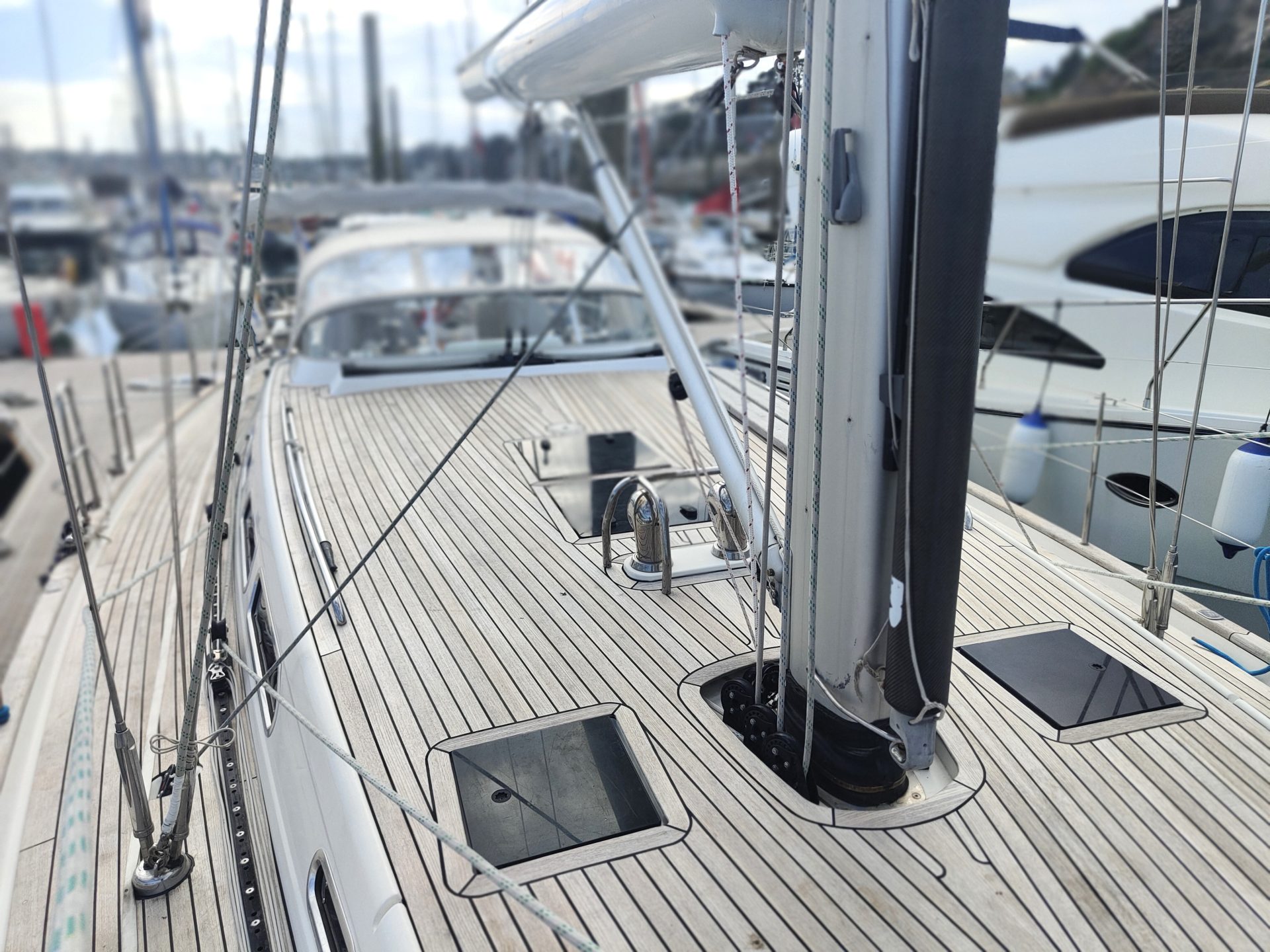

Deck

• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Large sail locker, accessible from deck hatch , and inside the yacht
• • Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - drained with space for 50 m anchor chain
• • Electric windlass 1500 W 24 V with DELTA E anchor and 75 M chain anf additionnal cockpit command
• • Gas locker storage of gas bottle located in port side, side deck (max 12 kg)
• • Space for a 6 man life raft in stb side transom locker
• • Halyard locker recessed into cockpit

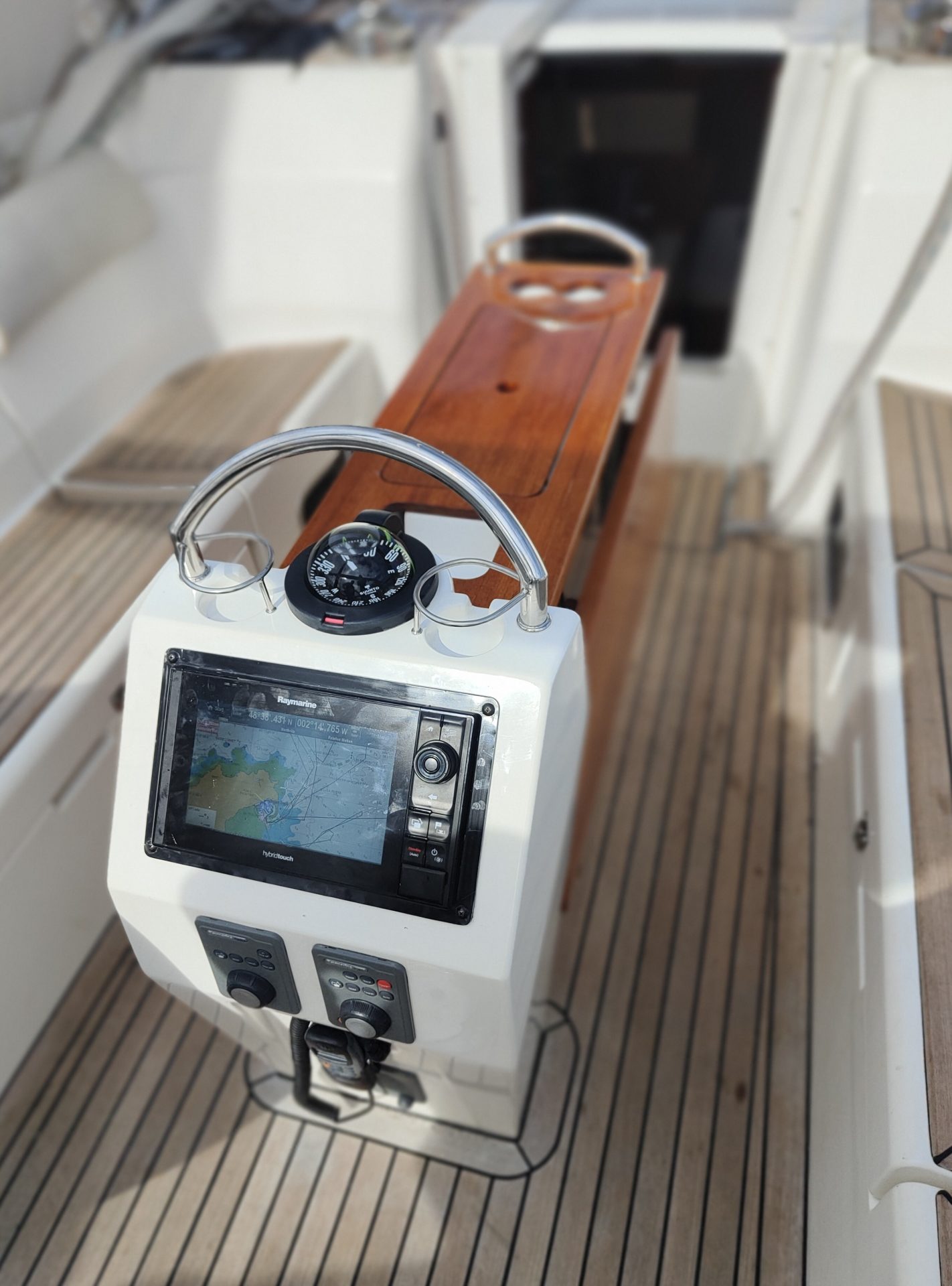

• • Cockpit table with space for navigational instruments (see extras) and compas

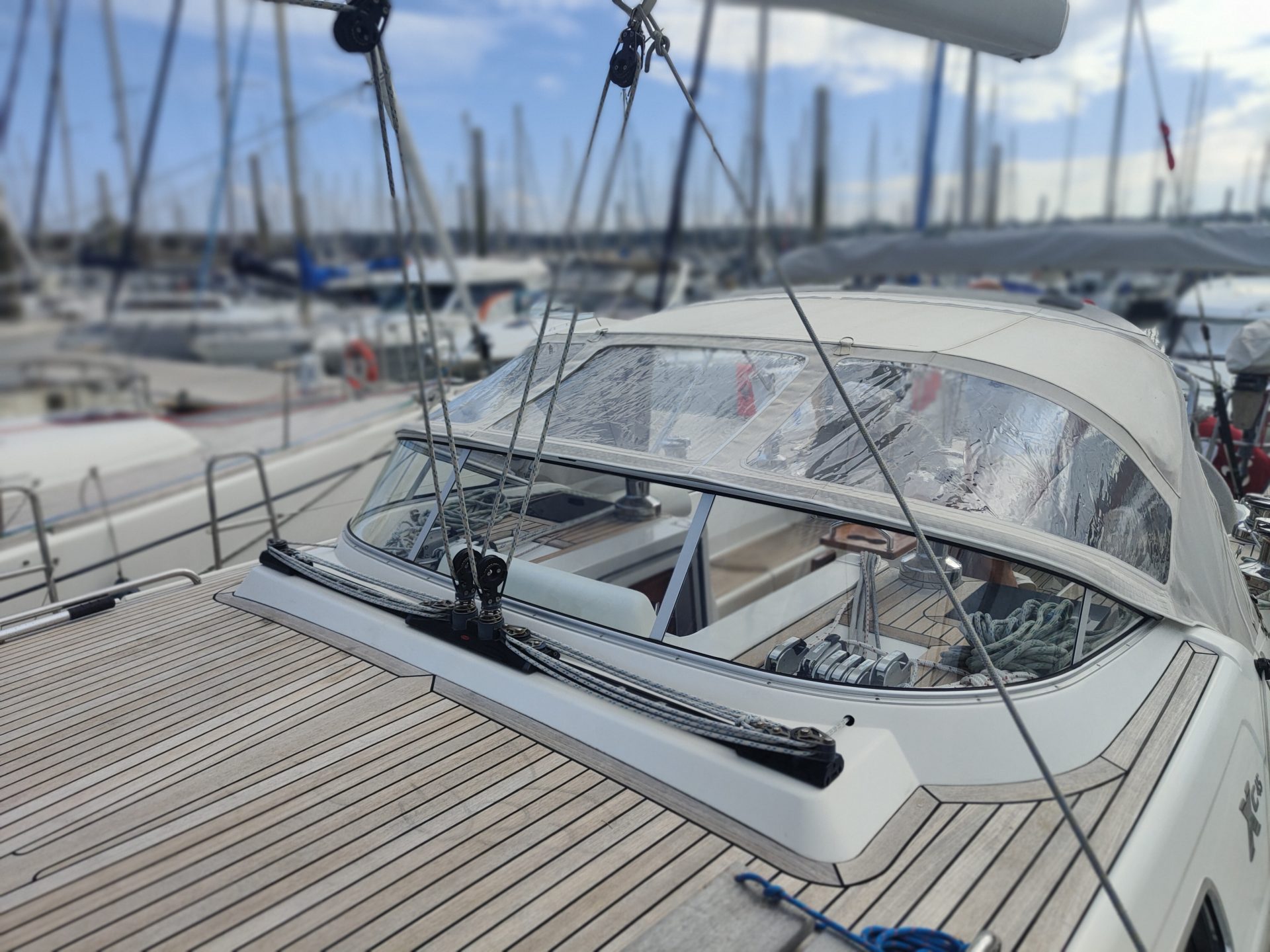

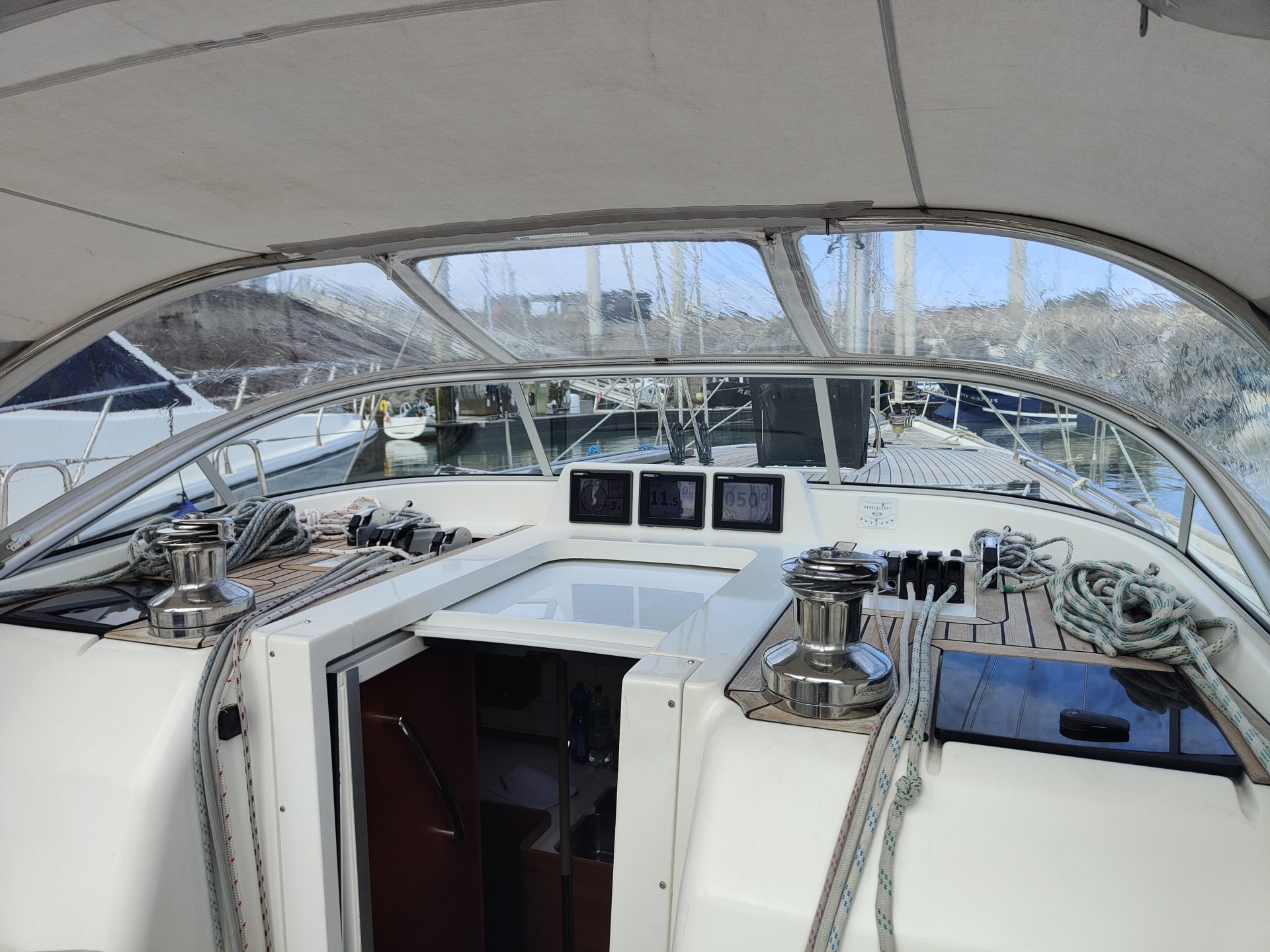

• • Windscreen in Sekurit glass and sprayhood
• • Bimini
• • Full winter tente

Sail Handling

• • Electrical Stainless Steel Andersen 58.2 primary winches
• • Stainless Steel Andersen 46.2 for Geman Mainsheet system
• • Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit
• • Carbon spinnaker pool with storage on the mast

Sails

• NORTH SAILS
• • Furling Dyneema mainsail with battens
• • Furling genoa with vertical battens Dyneema
• • Furling Solent Dyneema 2020
• • Gennaker Norlam with 2.1 halyard

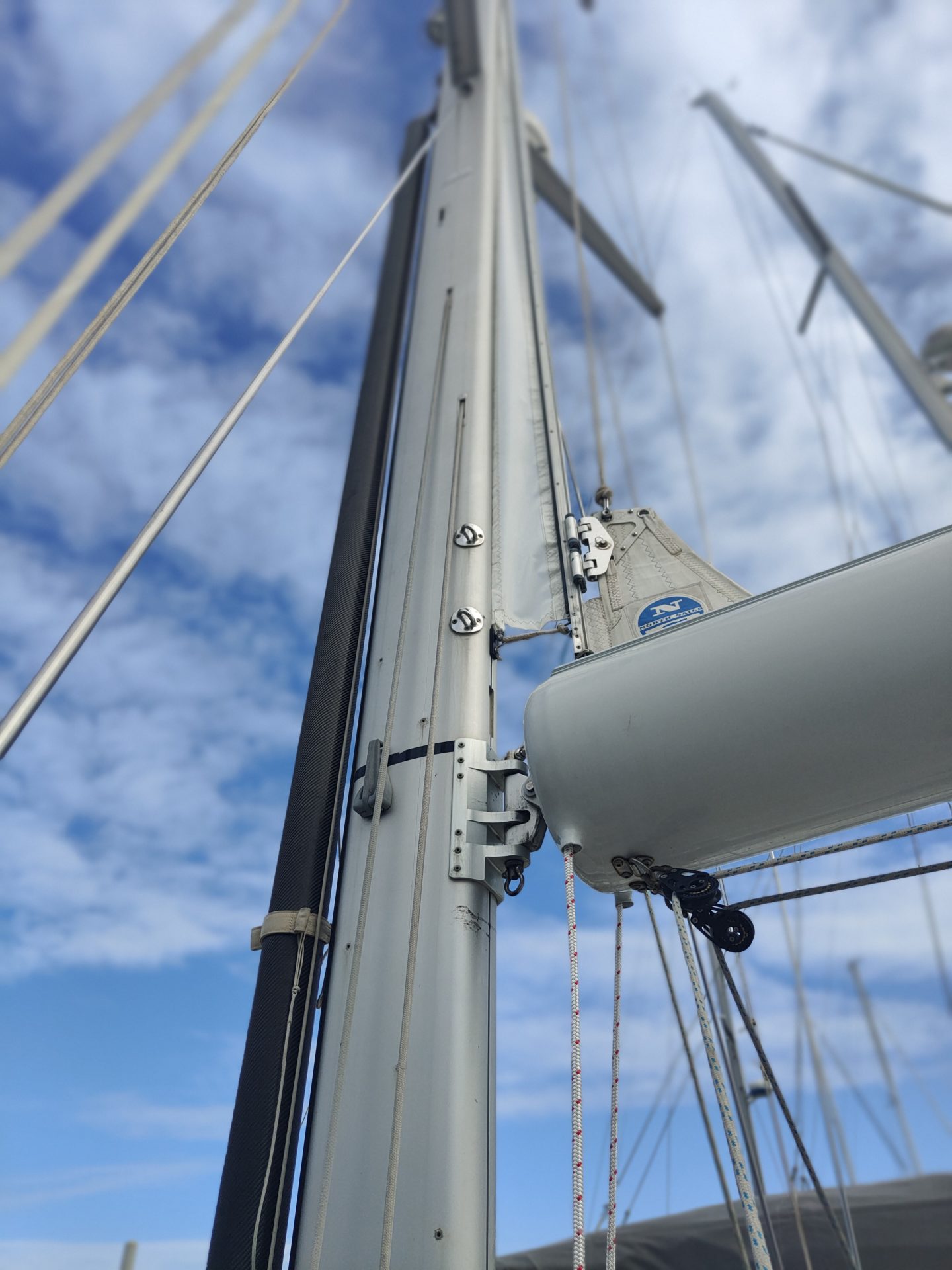

Mast & Rigging

• • JOHN MAST Fractional triple spreader, tapered silver anodized aluminium mast
• stepped on steel frame, specially designed for Xc 45
• • Composit FURLER boom with rigid vang
• • Split backstay fitted with single Navtec 10 integral backstay adjuster on starboard
• side and turnbuckle on port
• • Tip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• • Discontinuous rod rigging replaced 2022
• • Composit folding inerstay
• • Boom braker

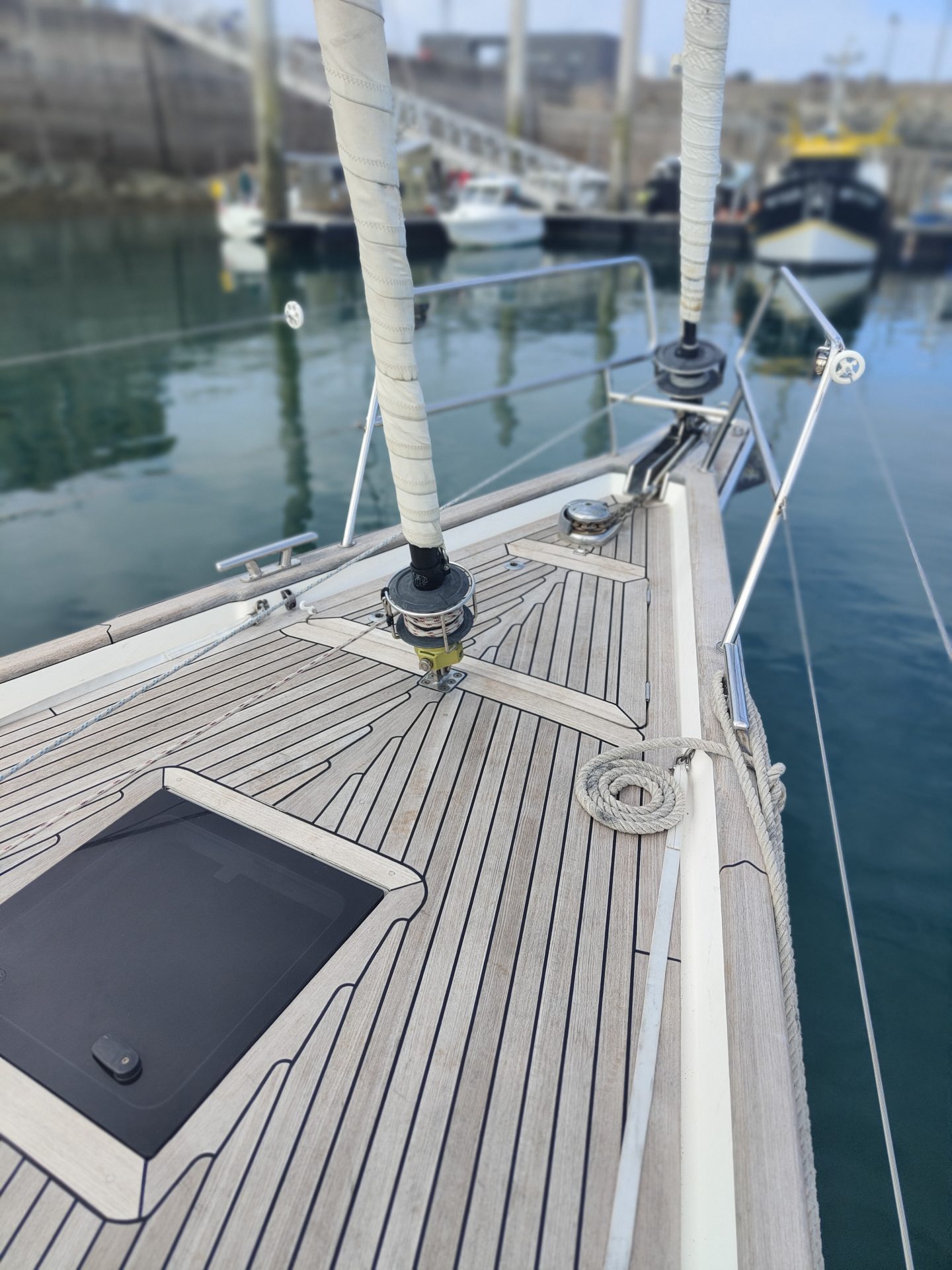

• • Profurl headsail furler
• • Profurl innerstay furler
• • Running Rigging with Spectra halyard

Systems

Engine

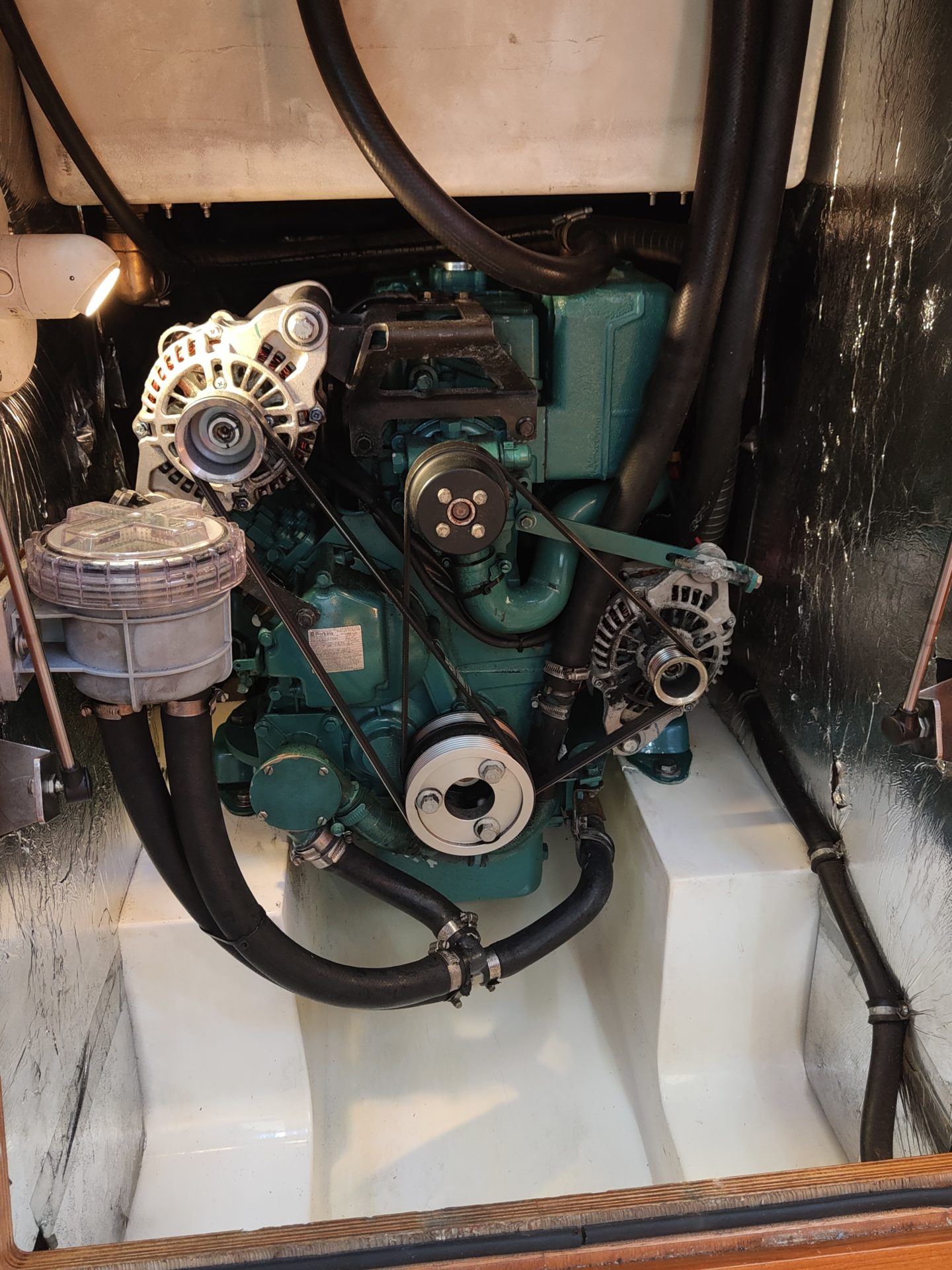

• - Main engine - VOLVO D2 75 HP. 2022 maintenance and new saildrive rubber seal replaced 2022
• - FLEXOFOLD 3 blades folding propeller
• - Fuel tank 440 L with gasoil filter

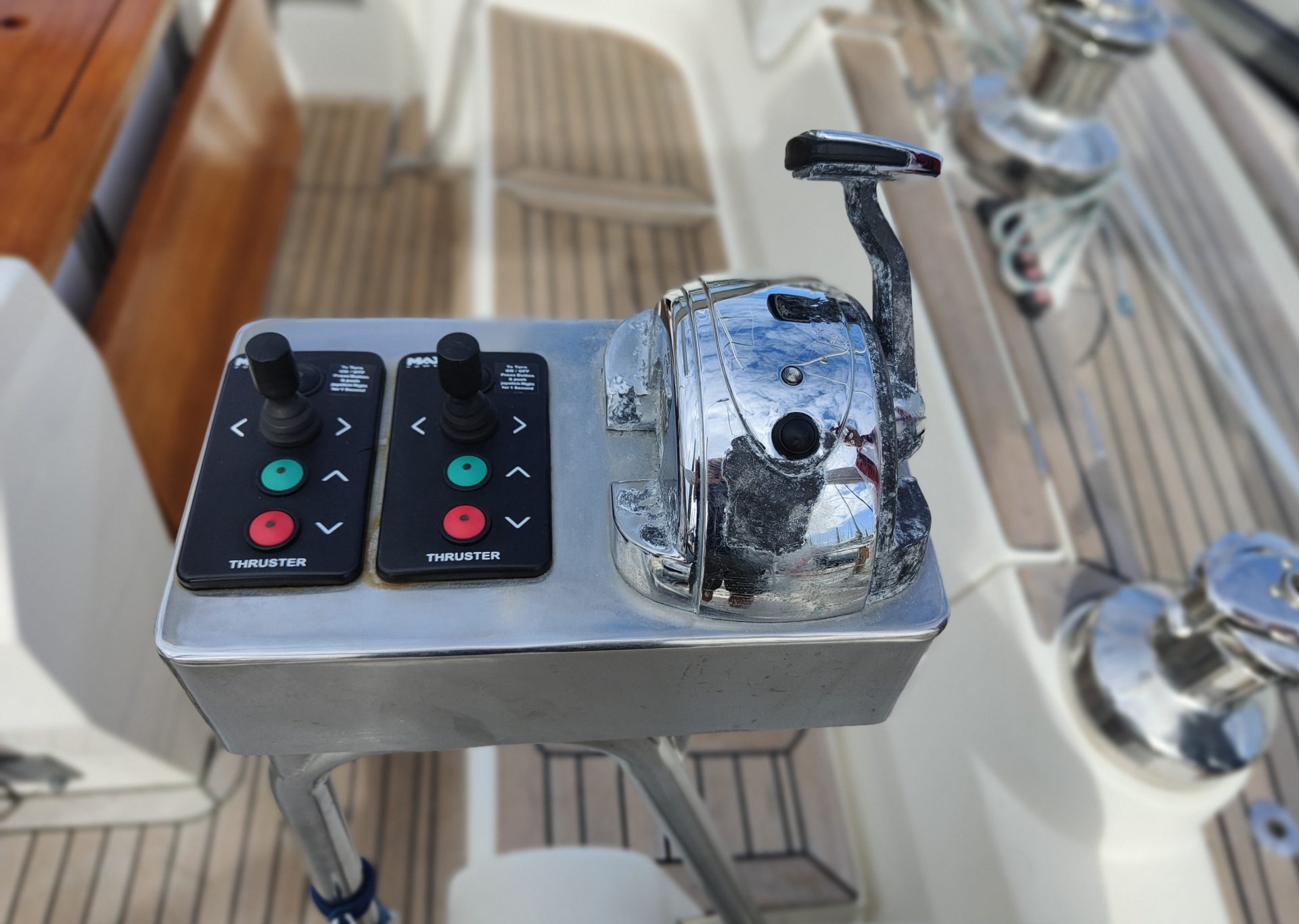

• - Retractable bowthruster and sternshruster MAXPOWER Compac Retract 12 V
• - Electrical command at the steering wheel

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank total 615 litres
• • Hot water tank Isotherm 40 l. Tank can be heated either by main engine or immersion heater connected to shore power
• • Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)

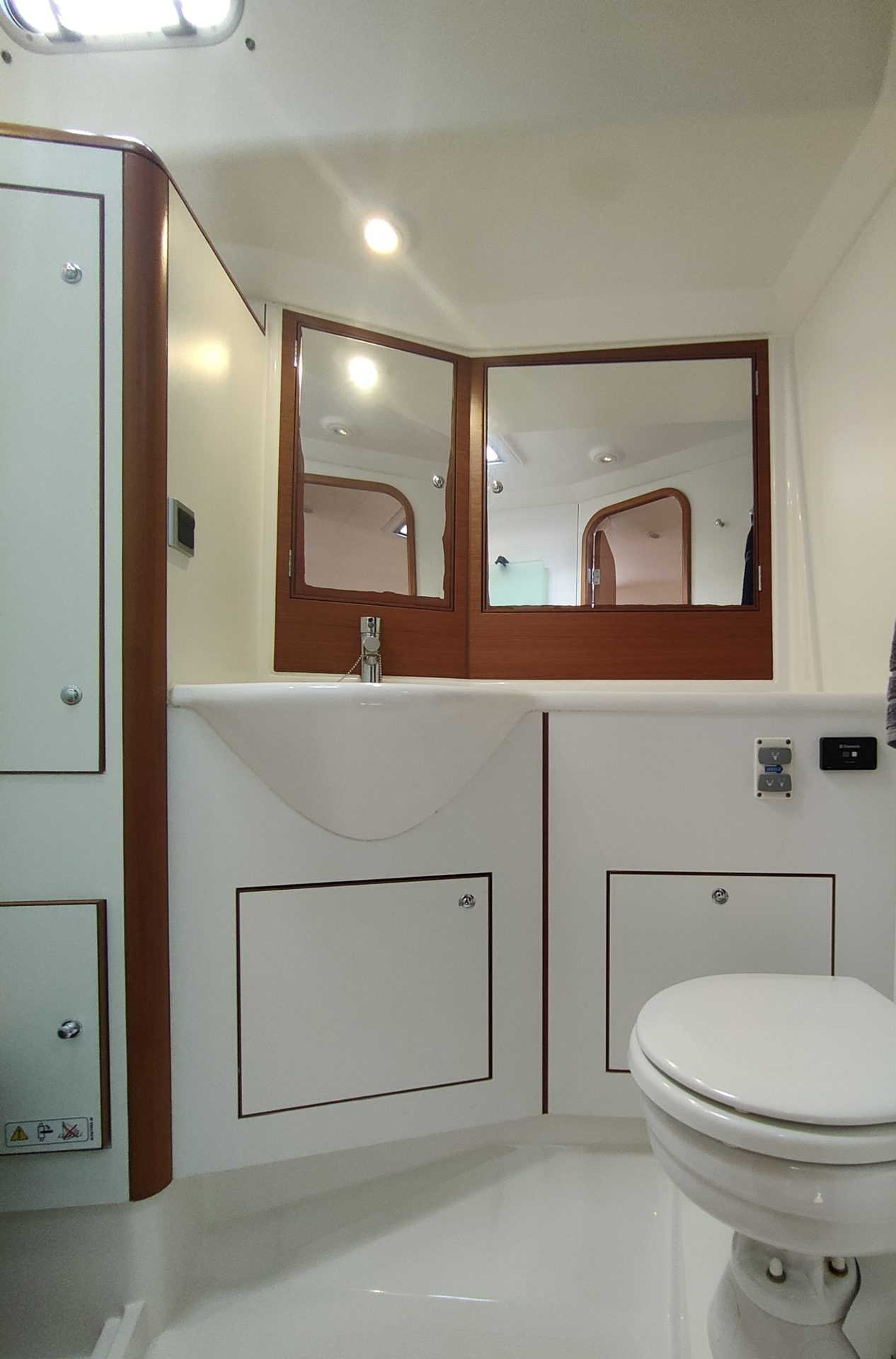

• • Electrical toilett in owners bathroom
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Seawater tap with electrical pump fitted at galley
• • Manual fresh water pump
• • Deck shower fitted at bathing platform with hot/cold freshwater
• • Fridge top opened 140 l built in Isotherm SP, accumulator plate sea water cooled Danfoss compressor
• Additional fridge with front opening

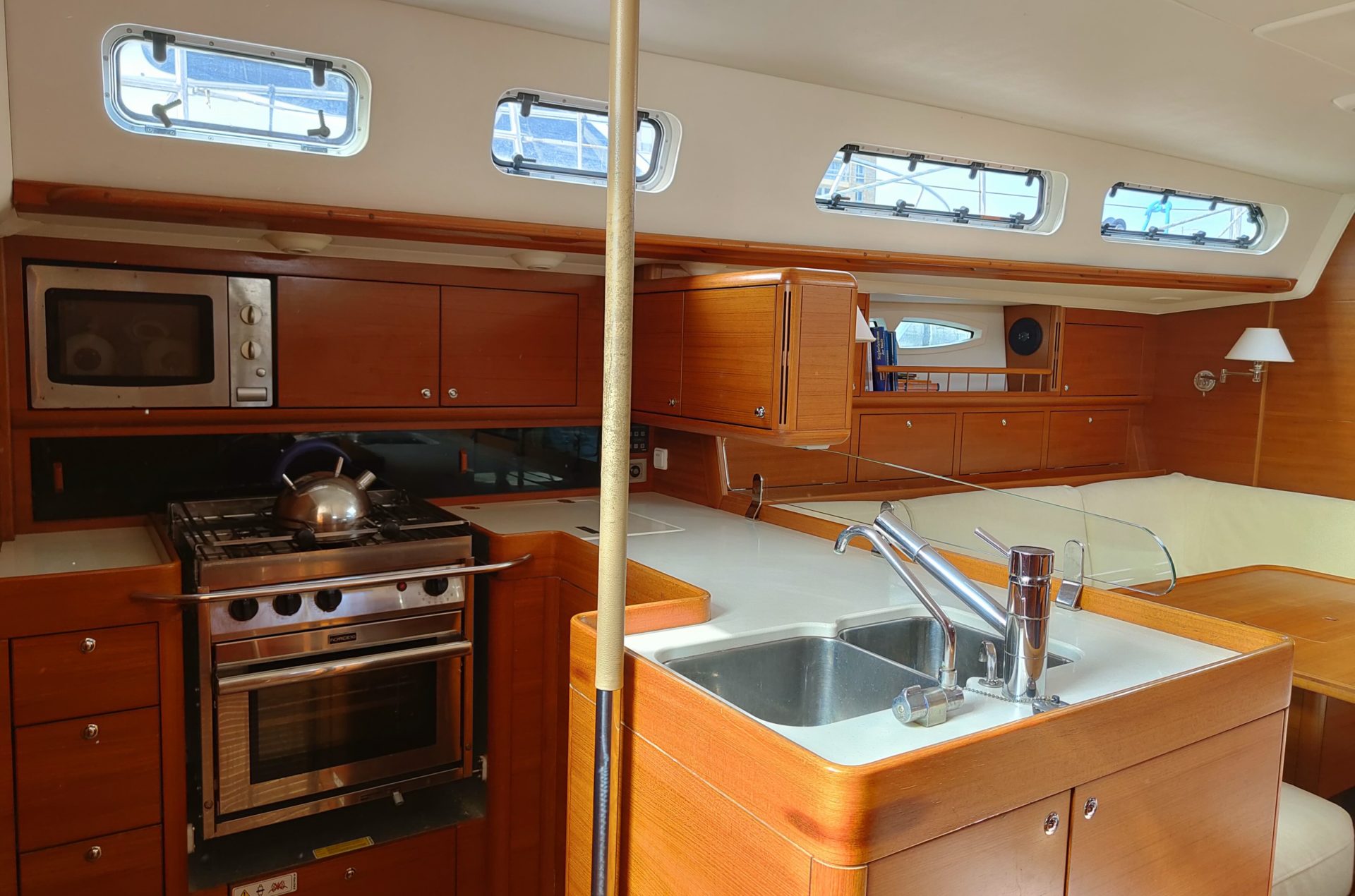

• • Gimballed FORCE 10 Gas cooker - 3 burner Eno cooker with oven
• • Microwave oven
• • Eberspächer air pulsed heater

Electrical

• • 8 x 135 Ah AGM services batteries 2020 (total 520 Ah/ 24V)
• • Separate engine spiral-cell battery 2020 (70 Ah, 12V)
• • Shore power installation with shore power inlet mounted in cockpit

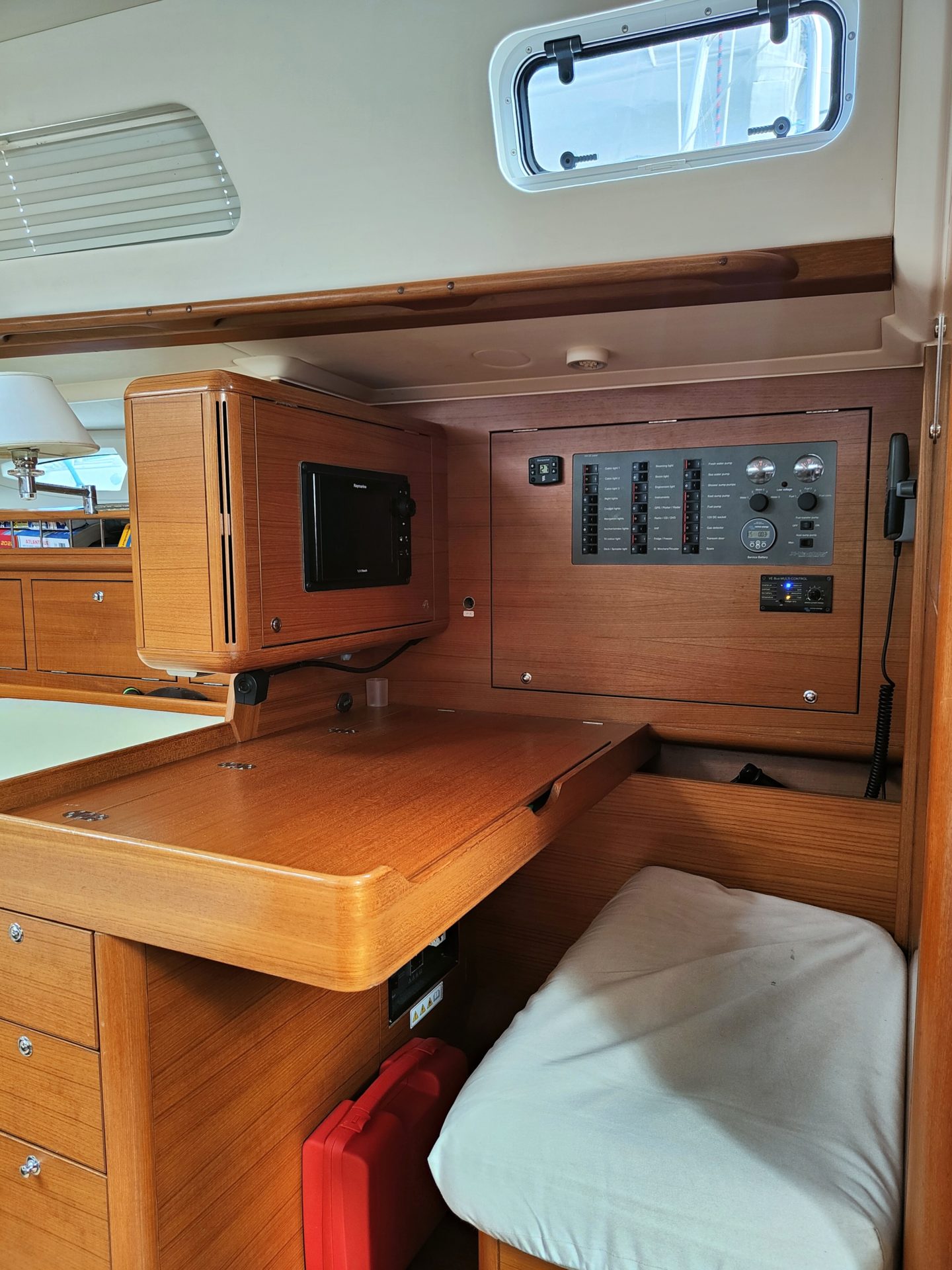

• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and VICTRON battery charger 24 V/50A
• • Halogen lights fitted for general purpose below deck throughout cabin
• • Courtesy Interior red night lights
• • Cockpit night lights
• • Hydrogenerator WATT SEA 600 Cruising
• •

Electronics

• RAYMARINE electronic
• - 1 x E S chart plotter at the chart table
• - 1 x ES chart plotter in the cockpit
• 2x ST 70 dysplays in the roof
• - Auto pilot SPX 30
• - Radar 4KW
• - Emetteur récepteur AIS Class B
• - VHF RAY E 240

Thrusters

• Dinghy and ouboard
