Details

Exterior Details

Hull

• Hull built with polyester and vinylester resin
• Built in sandwich construction with structural foam core, Bi-directional and uni directional E-glass
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 grey waterlines RAL 7011

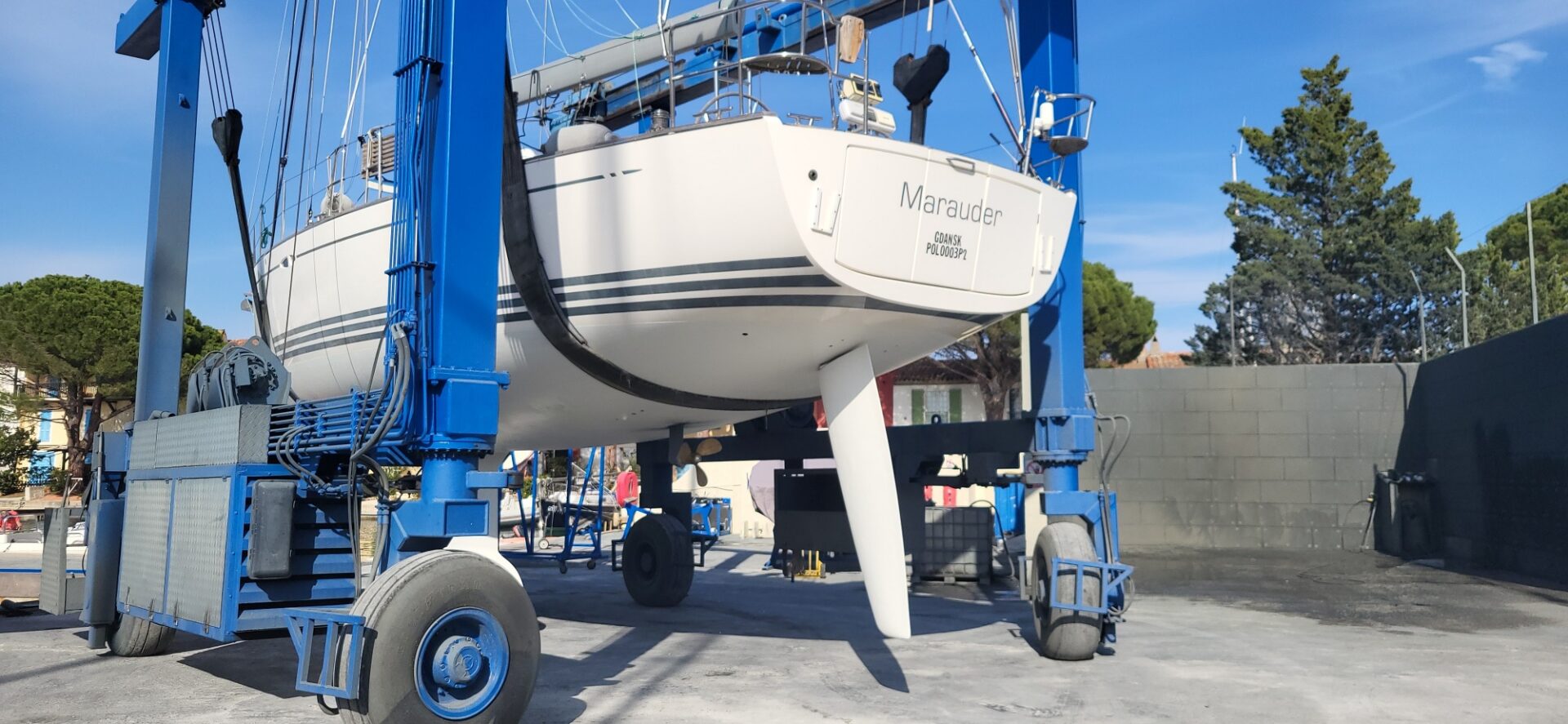

• Single point hoist for easy and safe lifting and launching of the yacht
• Hull recessed portlights - (6 pcs)
• Standard keel 2.20m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• Keel securely bolted to reinforced keel structure
• Deck built in sandwich construction with structural foam and bi and uni-directional E – Glass cloth, white gelcoat
• Rudder blade of sandwich construction laminated
• Rudder stock mounted with needle and self aligning bearings, replaced 2025
• Steering system with two stainless steel wheels (90cm) with leather wheel covers, two independent quadrants for added safety and easy passage.

Deck

• Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit sole seats and bathing plateform. Bulwark with teak capping incorporated in deck/hull design
• Anchor locker - drained area with 24 V 1500 W Quick electric windlass with second cockpit control unit
• 25Kg DELTAg Anchor with 100 m of 10mmm chain 2021
• Sail locker accessible from deck hatch, plenty of storage space for sails and deflated dinghy
• Stainless steel bow sprit, for asymmetric spinnaker and Code 0's, with twin anchor roller and P/S lights
• Gas spring fitted to forward and both aft cockpit lockers
• Halyard locker recessed into cockpit floor
• Teakwood cockpit table with space for navigational instruments and compass
• Moorings cleats in stainless steel mounted fore, aft and amidships, including stainless steel protection rails
• Crashbars at each steering wheel for support electronic screens
• Lifelines with boarding gates
• Folding transom platform with electrical hoisting and lowering system
• Bathing ladder with exit handles in stainless steel integrated in transom platform
• Stainless Steel handrails on coachroof
• Outboard engine bracket and aft light on aft pushpit

Sail Handling

• Electric Stainless Steel Andersen 58.2 primary winches
• Electric Stainless Steel Andersen 46.2 for Geman Mainsheet system
• Electric Stainless Steel Andersen 46.2 for halyards,
• Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• Mainsail track in front of sprayhood
• Profurl furling forestay furling line led back to cockpit
• Profurling furling innerstay, furling line led back to cockpit
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• Asymetric and symetric spinnaker hardware and rigging with carbon spinnaker boom

Sails

• Mainsail DOYLE SAILS Full batten 3 reefs 2025
• Furling Genoa DOYLE SAILS 4 Vertical battens 2025
• Staysail DOYLES SAILS 109 % 2025 on inner furler
• Assy spinnaker A2 Runner 2022

Mast & Rigging

• John Mast fractional triple spreader keel stepped mast, tapered silver anodized aluminum
• Discontinuous rod rigging with rod turnbuckles replaced 2021
• Silver anodized boom with single line reefing and internal boom outhaul
• Telescopic vang with outer purchase block system
• Split backstay fitted with hydraulic NAVTEC backstay adjuster
• PROFURL Genoa furler
• SELEDEN FURLEX 304 S inner furler
• Tricolor masthead light
• Mooring light and deck light

Hatches / Portlights / Ventilation / Sprayhood

• Sprayhood on stainless steel arch
• Retractable cockpit bimini hood at helm post
• Sunshade liaising the sprayhood and the cockpit hood

Accommodation

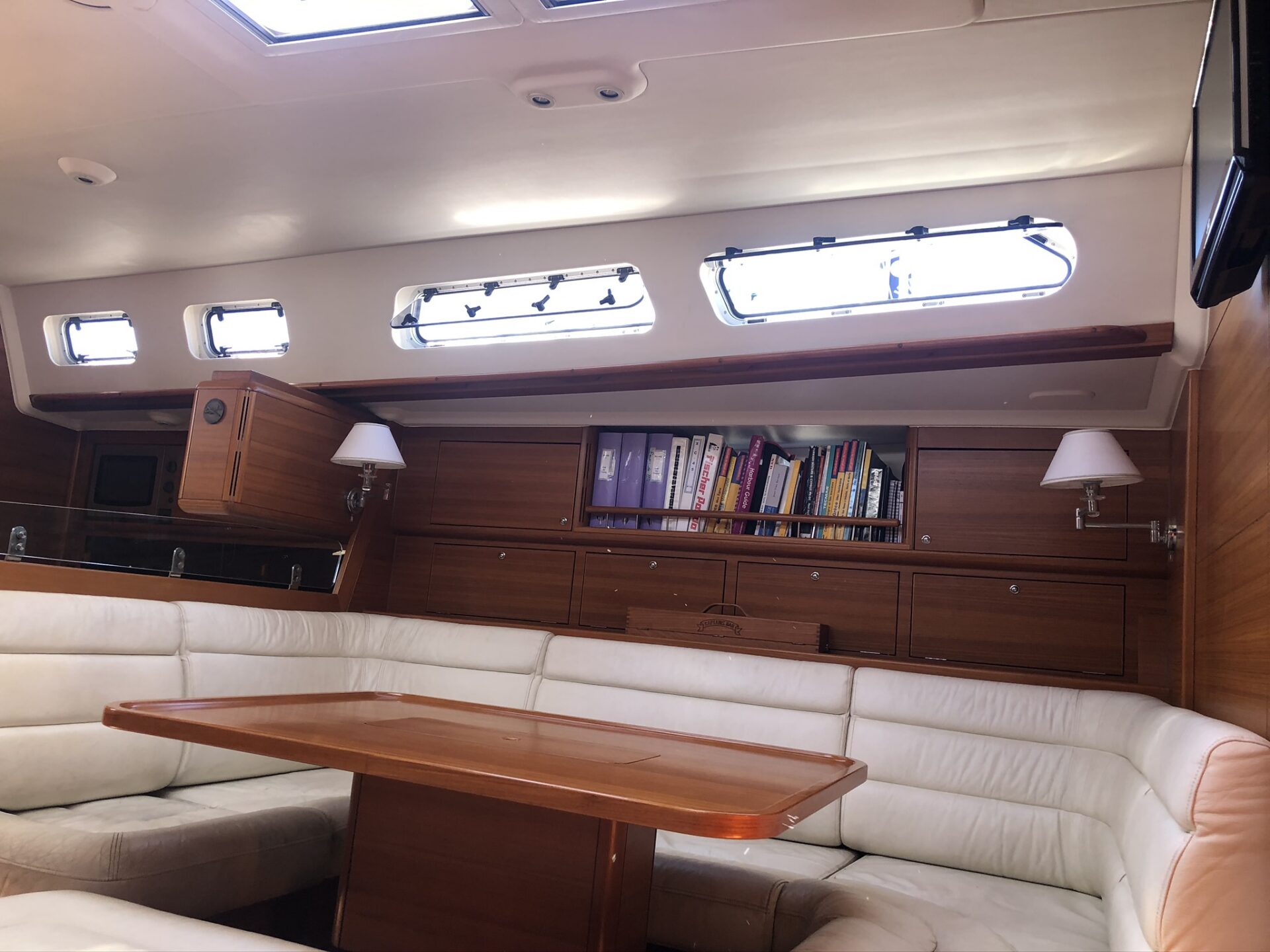

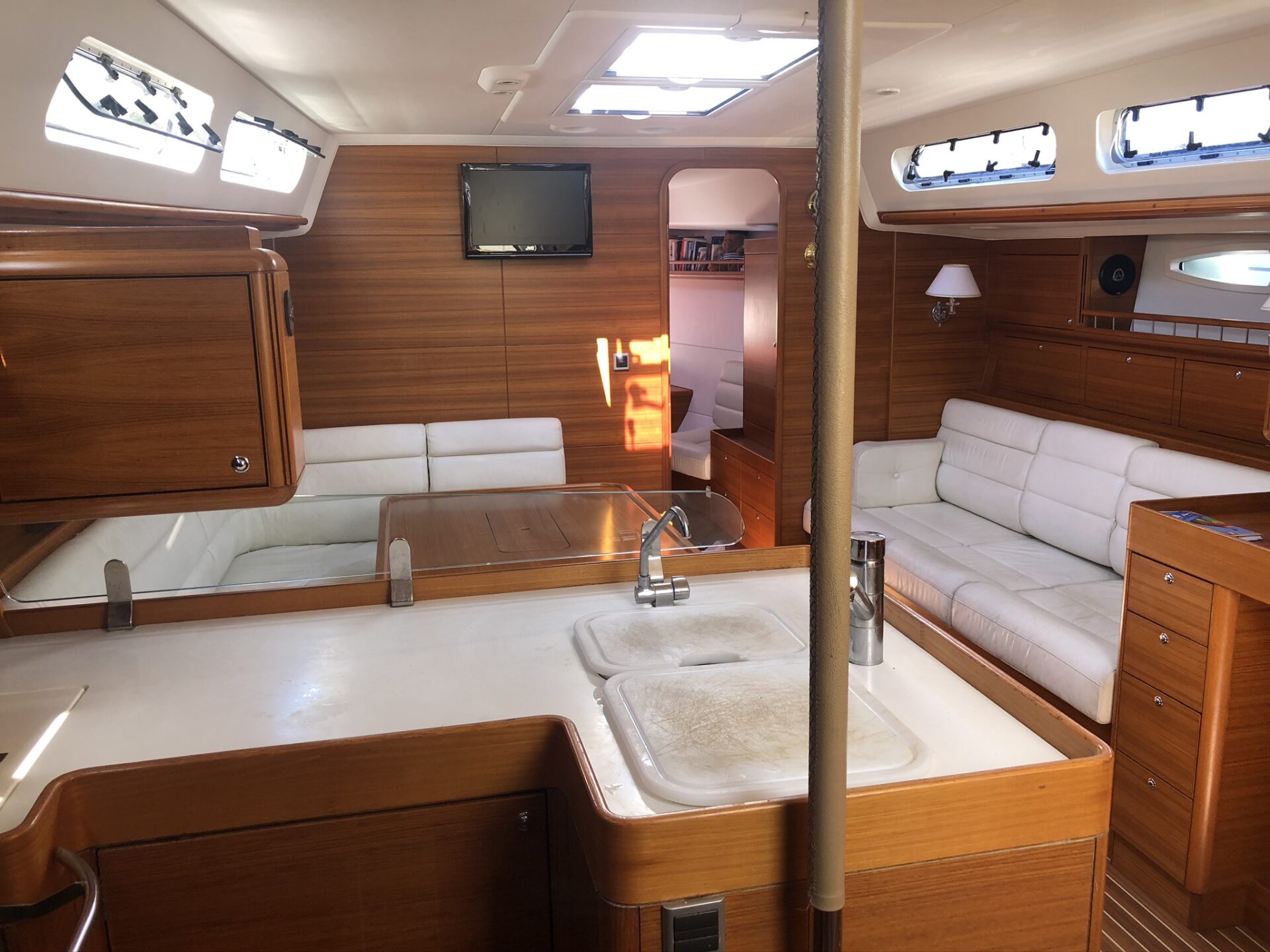

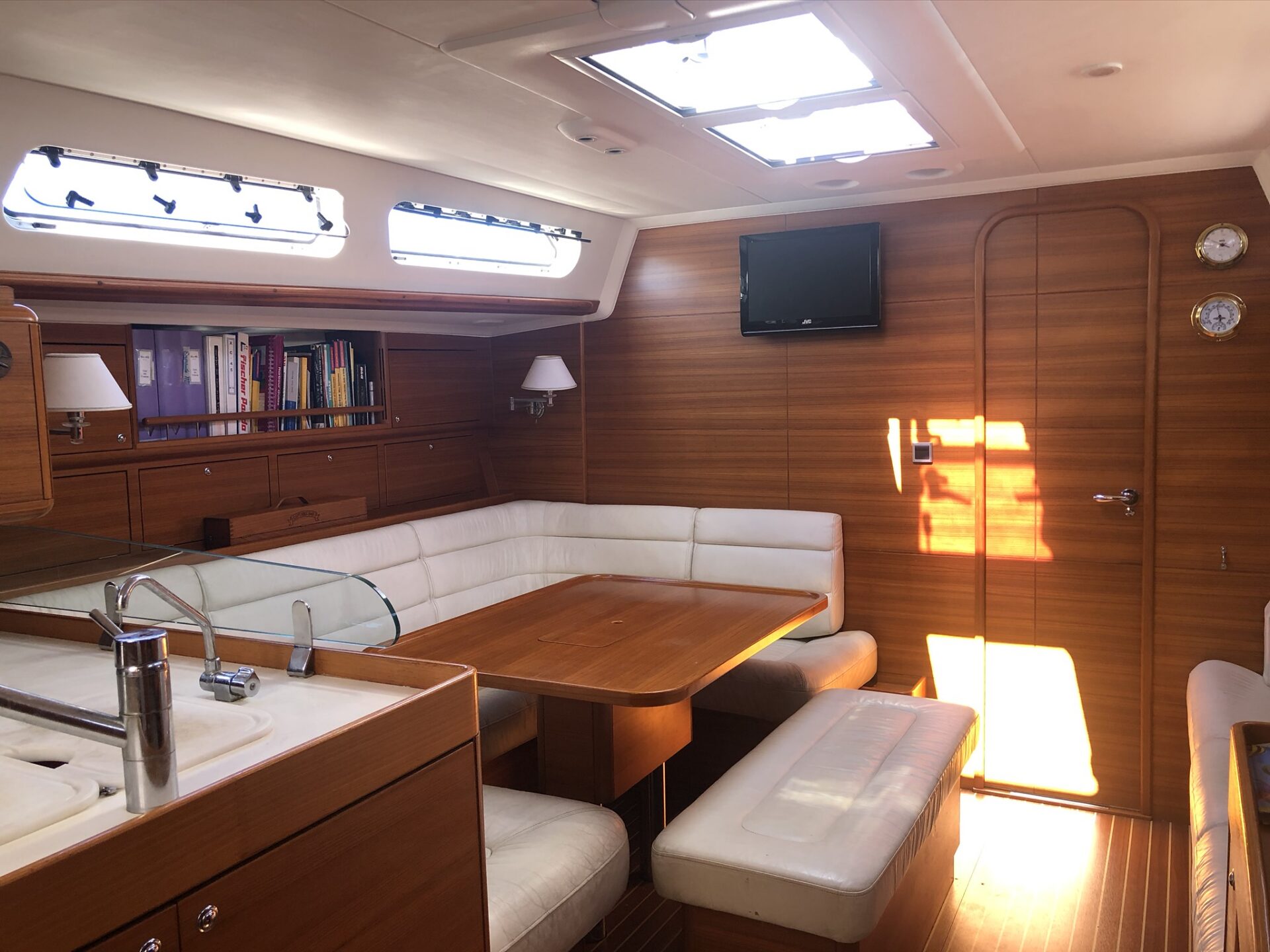

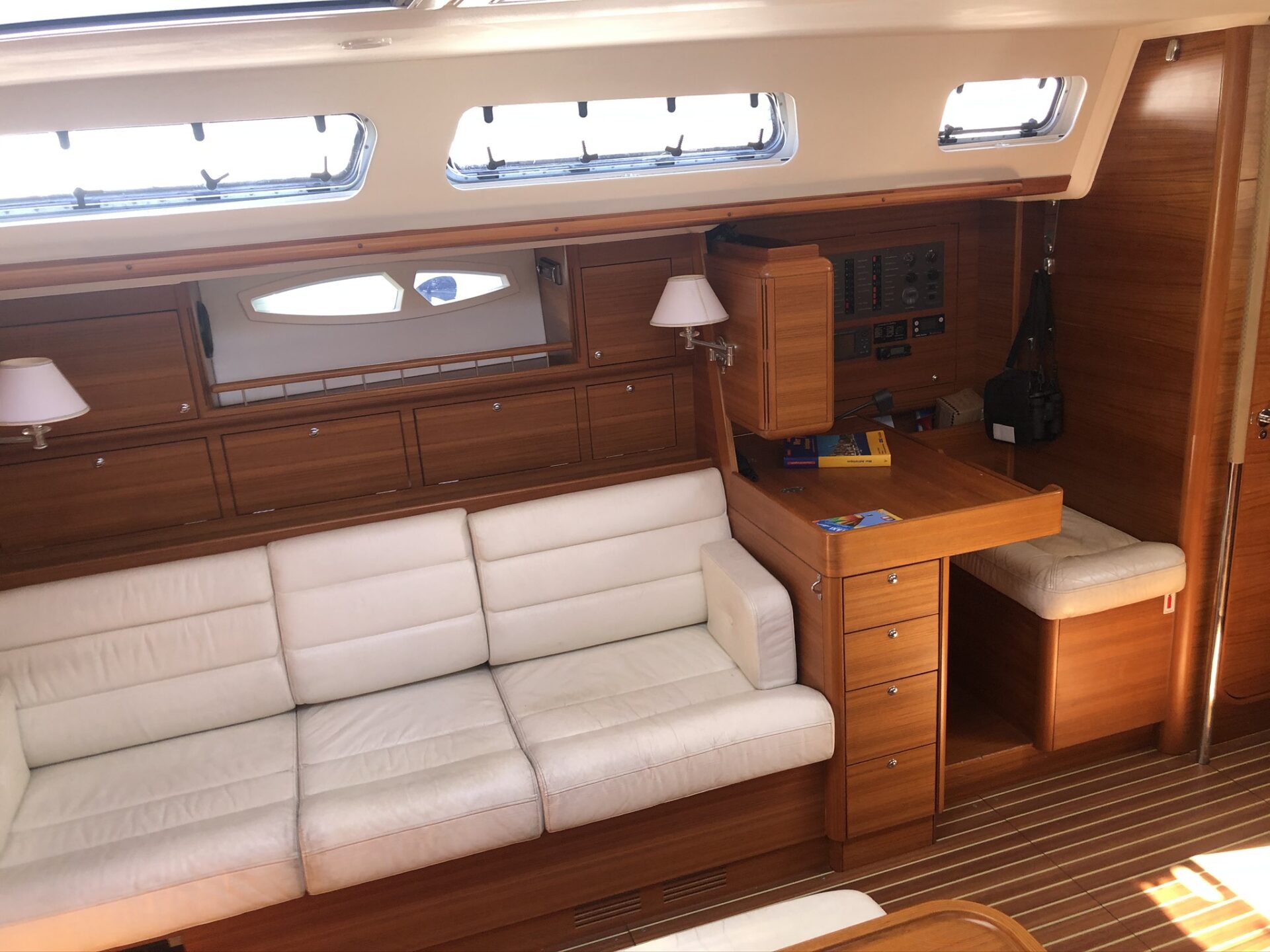

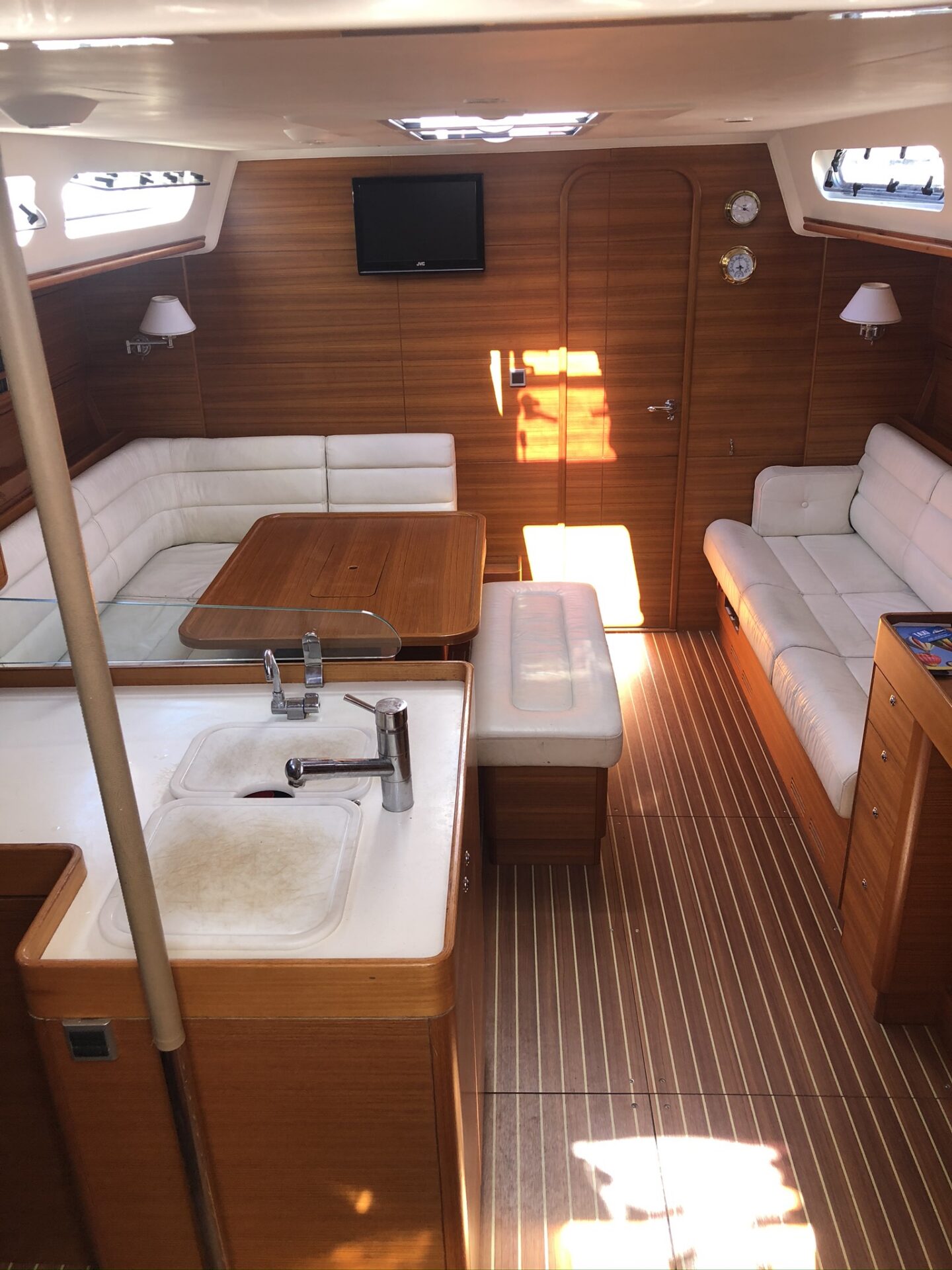

• Three cabins layout, teak wood inside
• All interior cushions replaced in 2021

Systems

Engine

• Engine VOLVO D2 75 Hp, water cooled diesel engine with S-Drive
• Special engine compartment with sound insulation
• Folding propeller, 3-bladed bronze for S-drive
• Retractable Max Power bow thruster
• 2025 New Generator FISHER PANDA 4000S Neo PMS 230 V 50 Hz

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• Fresh water stainless steel tank (615 litre)
• Hot water tank Isotherm 40 l. Tank can be heated either by main engine or immersion heater connected to shore power
• Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• Electrical toilett in aft head 2021
• Pressurized freshwater system for hot and cold water throughout yacht
• Seawater tap with electrical pump fitted at galley
• Deck shower fitted at bathing platform with hot/cold freshwater
• Fridge top opened 140 l built in Isotherm SP, accumulator plate sea water cooled Danfoss compressor
• Fridge front opened ISOTHERM 85 L

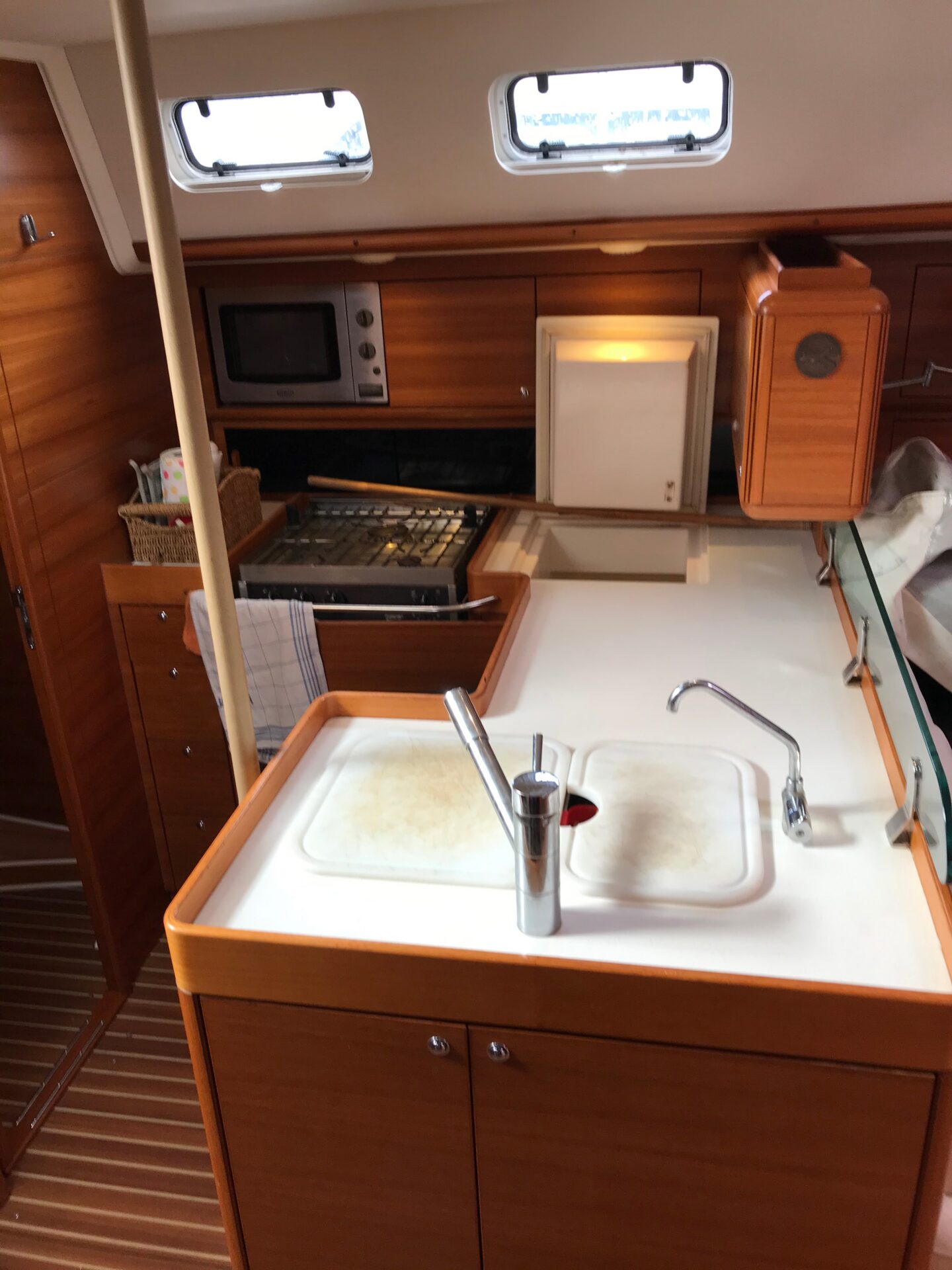

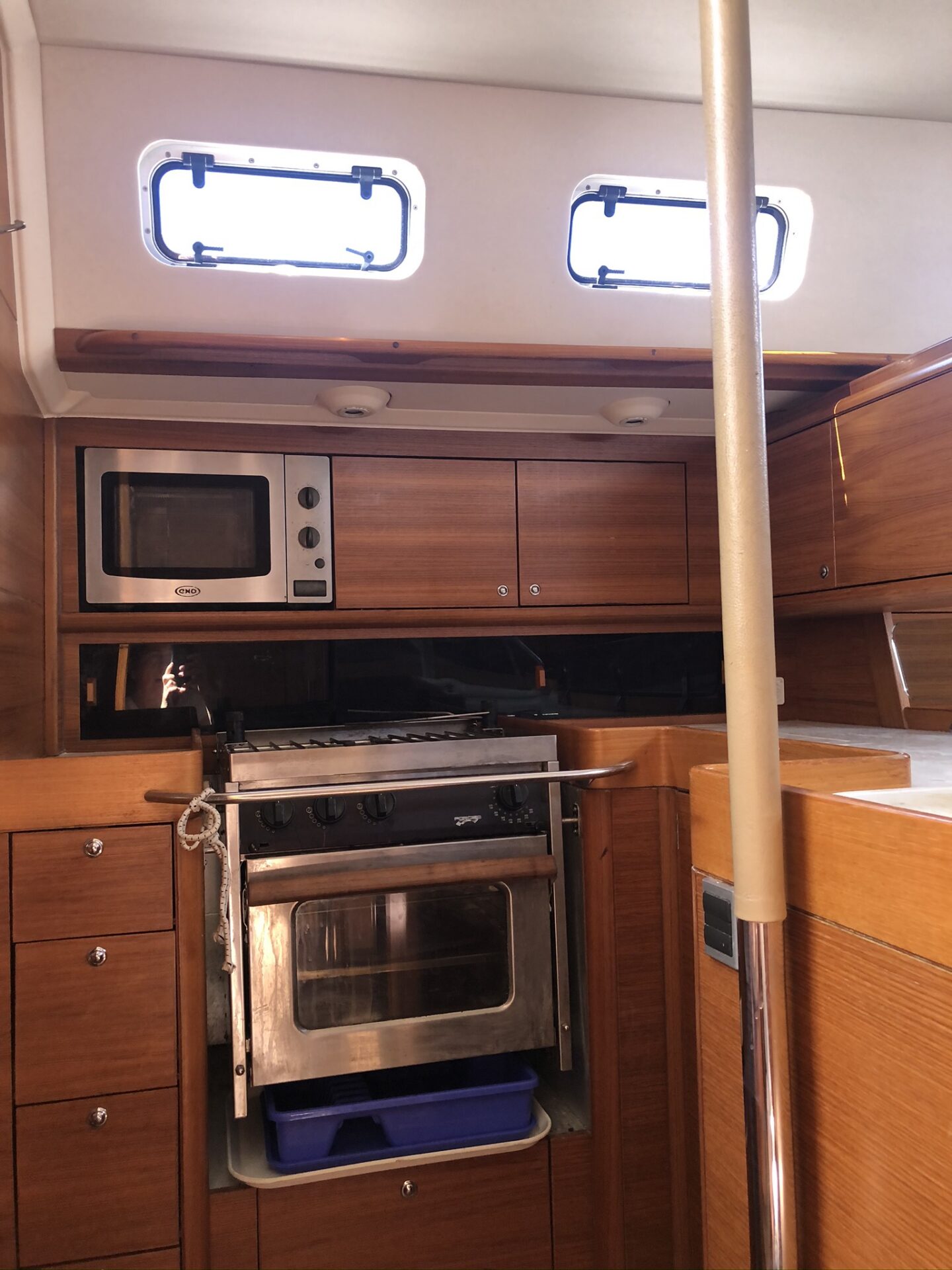

• Gimballed Gas cooker - 3 burner Eno cooker with oven
• Eberspächer air pulsed heater

Electrical

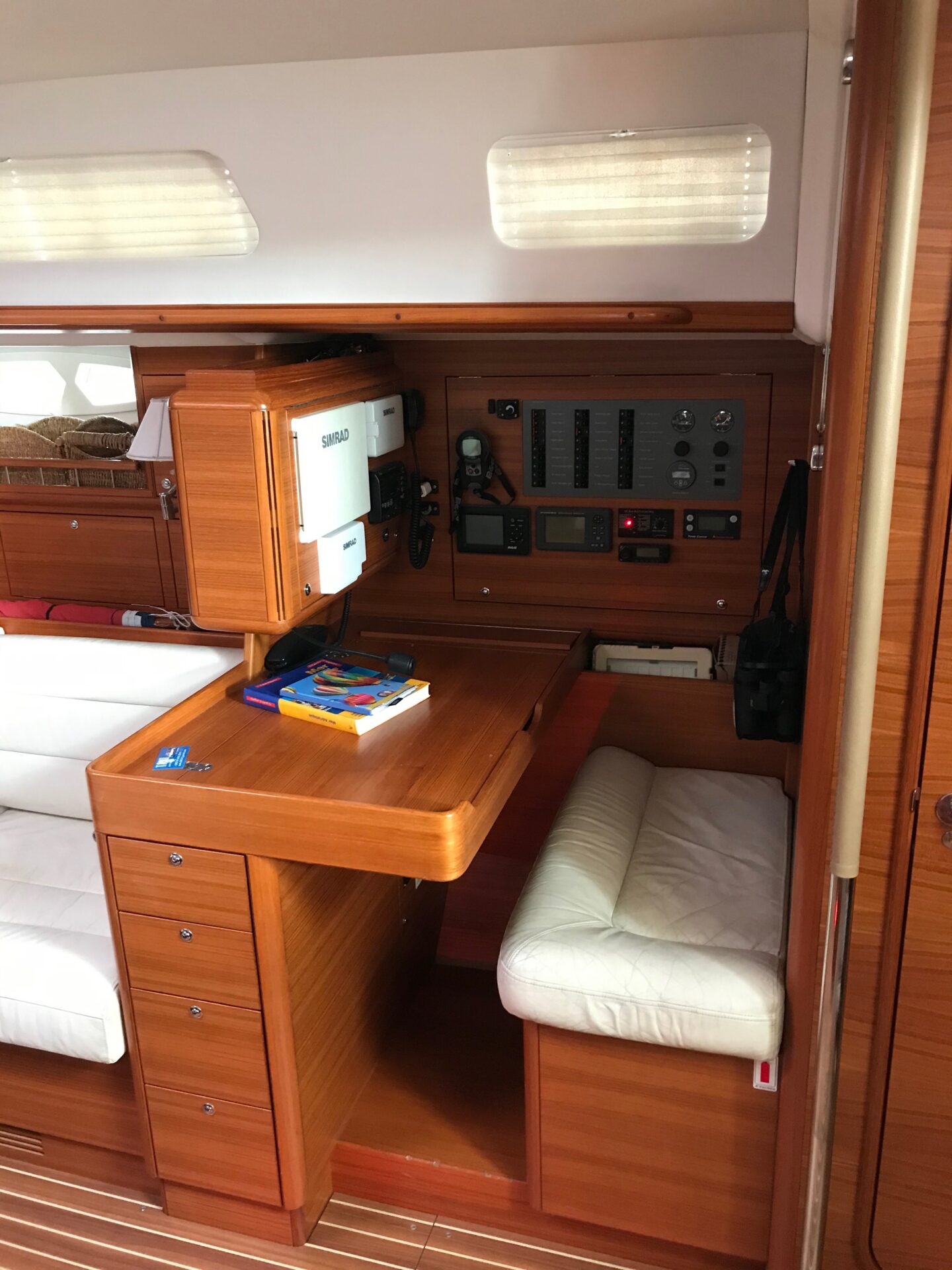

• Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• AGM services batteries (total 220 Ah@12V) 2016
• Separate engine spiral-cell battery (55 Ah, 12V)2016
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• Charger 12V/50A
• 12V halogen lights fitted for general purpose below deck throughout cabins
• Red floor courtesy light in saloon
• General lights and dome spotlights integrated in inner liner
• 2025 Generator FISHER PANDA Neo 4000 S PMS 230 V 50Hz
• Fresh water maker DESSALATOR 100 L/H 24 V fully serviced 2023
• WATT & SEA Hydro Generator C600 2023

Electronics

• B&G Hydra 3000 Electronics
• Depth, speed and wind captors CW90
• 2 x C90 W multifunction display on garage above sliding hatch + 1 at the chart table
• 1 weathercock display above sliding hatch
• 3 20/20 displays at mast
• VHF ICOM M505 at chart table with external handset
• Transponder AIS B class
• Pack Pilot BG H3000 with linear rod T1
• Simrad NS01 color chart plotter at chart table and in the cockpit
• Digital touch chart plotter Axiom 7 with handset at starboard helm post
• SPX 30 autopilot with ST70 + control unit and T2 ram
• Ray 240 VHF with handset in the cockpit
• 2 independent autopilots B&G and Raymarine managed on the starboard helm post
• Multimedia CD/DVD/MP3/USB with HP in the saloon and cockpit
• TV SAMSUNG
• New radar B&G EUS 3 S 2024
• IRRIDIUM GO and IRRIDIUM Satellite Phone

Thrusters

• Safety equipemnt largely updated for ARC in 2025
• Flares + compliant
• Fire extinguishers
• ARC EPIRB
• High volume bilge pump
• Life jackets
• Spare parts
• Cruising book and electronic chart for Med, Atlantic Europe, Scotland, Faroe Islands and Iceland
• Dinhghy ZODIAC + TORQUEDO 1100 Electrical HB 2022
