Details

Exterior Details

Hull

• Built in sandwich construction with structural foam core
• Bi-directional and uni directional E-glass strategically positioned for strength and weight optimization
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube.
• Outer surface of hull in white sprayed Gel coat (RAL 9010 white) with 3 waterlines in dark blue Gel coat (RAL 5011
• dark blue)
• Hull epoxy infused in female moulds for optimum consolidation and high quality surface finish
• Structural bulkheads in marine plywood varying in thickness from 16-20 mm bonded to hull
• Structural liner moulding laminated into hull. Carbon fibre reinforcements to absorb all loads from keel and mast.
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing ladder in stainless steel mounted on transom
• Hull recessed port lights - Rectangular (6 pcs)

Deck

• Built in sandwich construction with structural foam
• E-glass with bi and uni-directional cloth strategically positioned for strength
• Outer surface of deck in white sprayed Gel coat (RAL 9010 white)
• Deck and locker lids moulded in female moulds for highest quality surface finish
• Teak, vacuum applied, 9 mm nominal thickness on cockpit sole and seats
• Variable height bulwark incorporated in deck/hull design providing safe toe rail forward and comfortable hiking aft
• Anchor locker - drained area with space for anchor & optional chain.
• Gas locker compartment, for 2 x 3 kg gas bottle, located in port cockpit coaming, drained to the sea (1 x 3 kg is
• delivered with the yacht)
• Liferaft can be stored in stb aft cockpit locker in moulded locker - max size tbc. Second liferaft can be stored in port aft
• locker (max size tbc). Both lockers are hinged aft and secured when opened with robe and hook on life lines
• Gas springs fitted to forward cockpit lockers (2 pcs )
• Halyard locker recessed into cockpit
• Cockpit floor locker, hinged lid, for optional cockpit table

Sail Handling

• Genoa winches, self-tailing, Harken Radial 50.2 STA (2 pcs)
• Mainsheet winches, self-tailing, Harken Radial 46.2 STA (2 pcs)
• Halyard winches, self-tailing, Harken Radial 46.2 STA (2 pcs)
• Harken 10” Winch handle package (3 pcs)
• Jammer/clutches for halyards/control lines/reef lines (10 pcs) - Spinlock
• X-Yachts mainsheet system led under deck to winches placed in easy reach of helmsman
• Mainsail track on cockpit floor forward of the helm position.
• Furling forestay drum below deck. Furling line led back to cockpit for easy handling - Profurl
• Genoa tracks mounted on deck with Genoa cars and control lines fitted.
• Mast collar in stainless steel including tie rods.
• Stand-up blocks for halyards, reef and control lines (5 pcs) and 2 blocks for vang and boom outhaul
• Deck organiser system for halyard and control lines led back to cockpit (2 pcs)

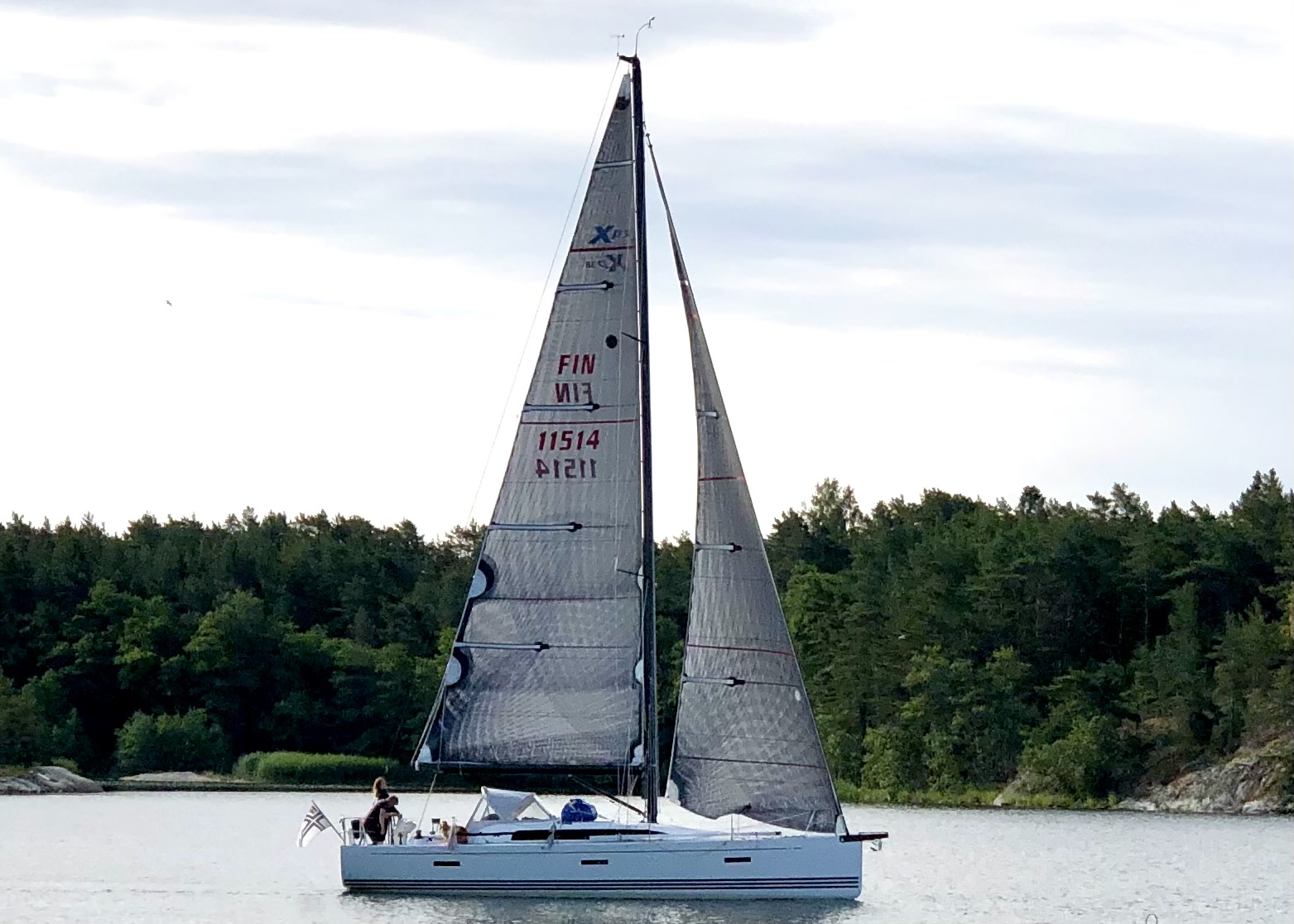

Sails

• Mainsail-WB Sails D4 Carbon / technore + 1xtaftetta High-TechRacing
• Jib#1 WB Sails D4 Carbon Premium D4 Premium Carbon/Technora 13500dpiHigh-Tech
• Racing
• Jib#2 WB Sails D4 Carbon Premium D4 Premium Carbon/Technora 18000Dpi High-
• TechRacing
• Jib#3,5 WB Sails ORC HWJ 33,0 m2 D4 Carbon Premium D4 PremiumCarbon/technora 19500dpi
• High-TechRacing
• WB Sails Spinaakkeri Light Runner 130,0 m2 Stress Cut® Racing Cut Contender Superlite 50
• WB Sails AsyCode 100,0 m2 Stress Cut® Code Zero Laminate Racing

Mast & Rigging

• Fractional double spreader keel stepped mast, tapered silver anodized aluminium, specially designed for Xp 38 incl
• spinnaker pole track,
• Steaming light, Windex with light, tube for additional electrical equipment
• Silver anodized boom with single line reefing and internal boom outhaul, telescopic vang and outer purchase block
• system
• Standing Rigging
• Central backstay fitted with integral backstay adjuster.
• Chain plates in stainless steel fitted to bull walk/on top of hull (2 pcs)
• Discontinuous rod rigging with rod turnbuckles
• Rod forestay with furling drum under deck
• Chain plates in stainless steel for forestay and centre backstay (2 pcs)
• Running Rigging
• Spectra halyards led back to cockpit for easy handling:
• Furling control line 8 mm
• Cunningham 6mm
• Main halyard 12 mm
• Reef 2 10 mm
• Genoa halyard 12 mm
• Outhaul 8 mm
• Vang control line 8 mm
• Reef 1 10 mm
• Mast head spinnaker halyard 12 mm
• Spectra sheets and polyester control and reefing lines:
• Mainsheet 10 mm
• Genoa Sheet 10 mm

Keel

• Standard 'T' keel 2.1m draft.
• Keel consists of antimony hardened lead bulb bolted and glued to cast iron fin for high strength, low centre of gravity
• and comfortable sailing performance. Keel securely bolted to carbon reinforced keel structure.

Hatches / Portlights / Ventilation / Sprayhood

• 12 mm white sliding Plexi glass hatch protected by GRP garage
• 12 mm smoked Plexi glass washboard with integrated storage system
• Coach roof side window. Long fixed section with 2 open able sections each side. Open able sections to be flush
• mounted and from reputable supplier (4 pcs)
• Deck hatches, flush mounted, open able, hatches on foredeck and coach roof for ventilation and light (6 pcs) (Glass -
• Opening size: 1 x (512x512 - 426x426) Foredeck, 2 x (330x230 - 244x144) CR fwd, 1 x (512x512 - 426x426) CR, 2 x
• (330x230-244x144) CR Aft)

Guard rail / Anchor / Stainless Steel Fittings

• Lifelines with stainless steel stanchions mounted on the bulwark
• 2 x Aft push pits in stainless steel with integrated LED stern light
• Central aft push pit with integrated swim ladder
• Bow pulpits in stainless steel with integrated LED navigation lights
• Anchor 13 kg Bruce type (galvanised steel) with 30 m warp
• Folding mooring cleats (Nomen) mounted fore and aft including stainless steel protection rails (4 pcs)
• Pad eyes for safety harnesses mounted in cockpit (4 pcs)
• Deck filler in stainless steel for water (1 pcs)
• Deck filler in stainless steel for diesel (1 pcs)
• Deck outlets in stainless steel for holding tank (1 pcs)
• Stem head fitting in stainless steel with removable anchor roller and GRP cover plate

Accommodation

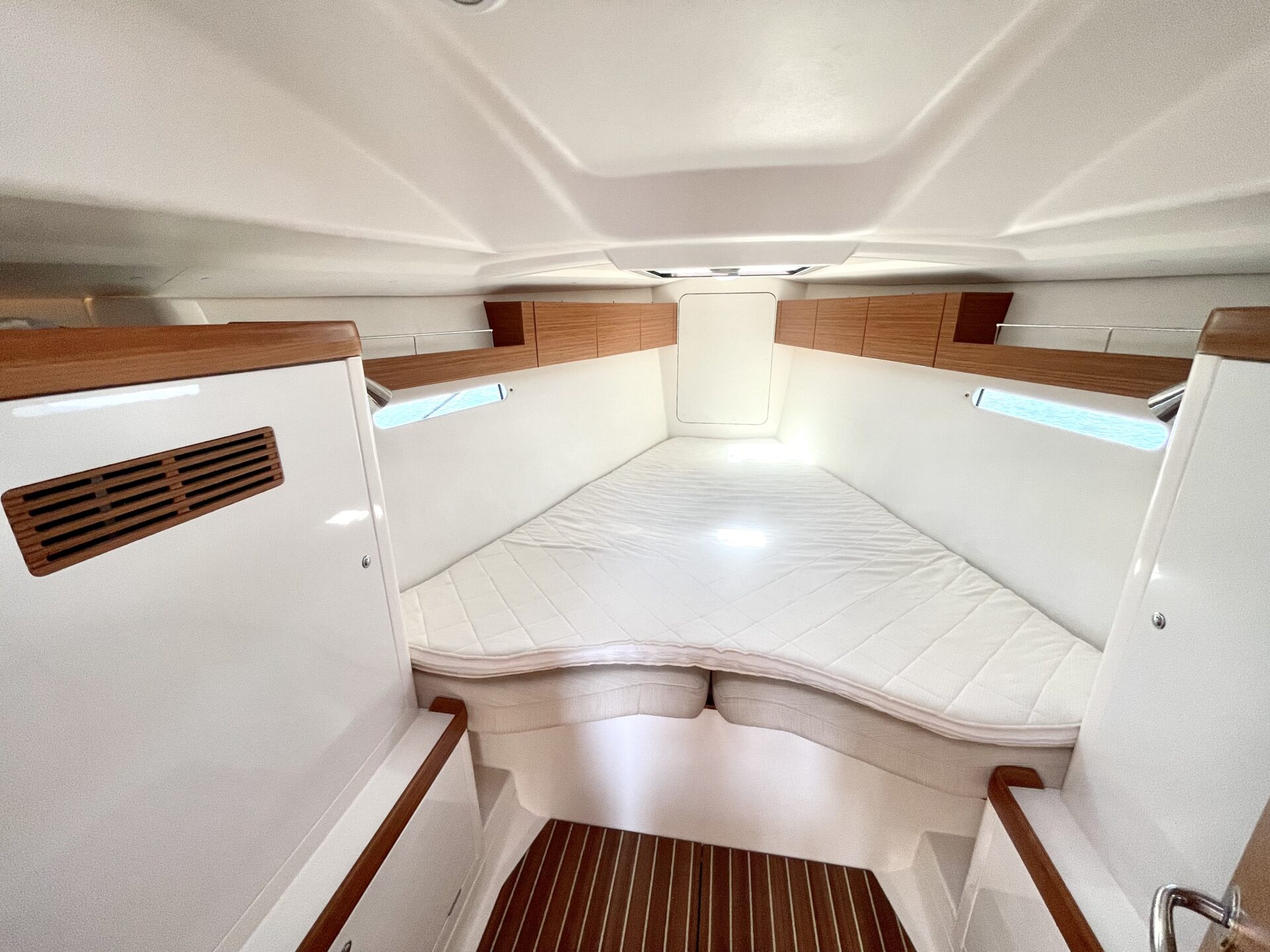

Owners cabin

• Large double berth . Marine plywood mattress supports . Mattresses in 120 mm comfort foam. Max size 205 x 178cm
• 2 x Large double composite wardrobe with shelves and hangers on starboard.
• 2 x night table with lower storage on port side
• Freeboard cupboards and shelves above berth
• Storage space under owners berth for bedding
• Freeboard lined with vinyl covered 7 mm panels

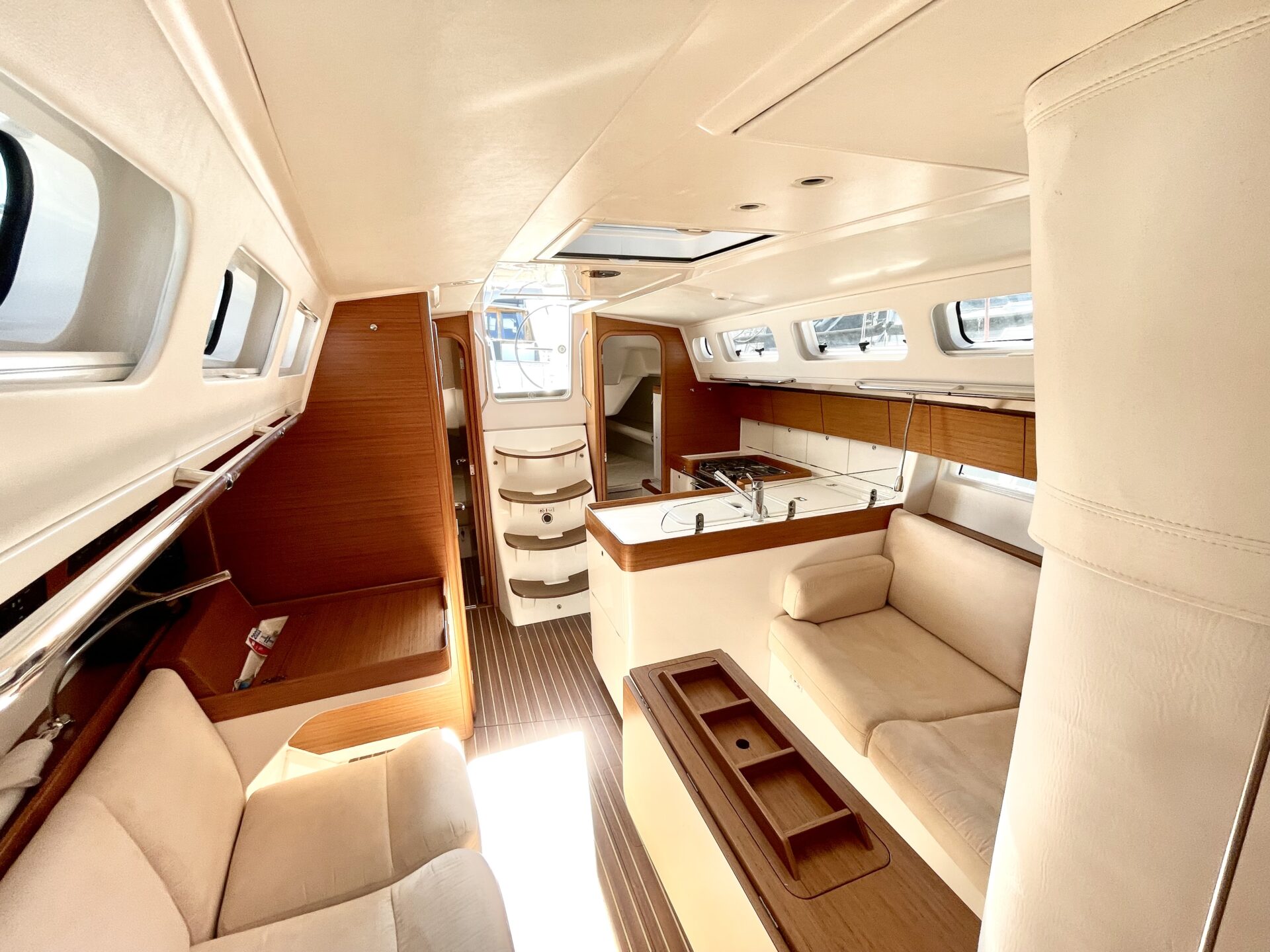

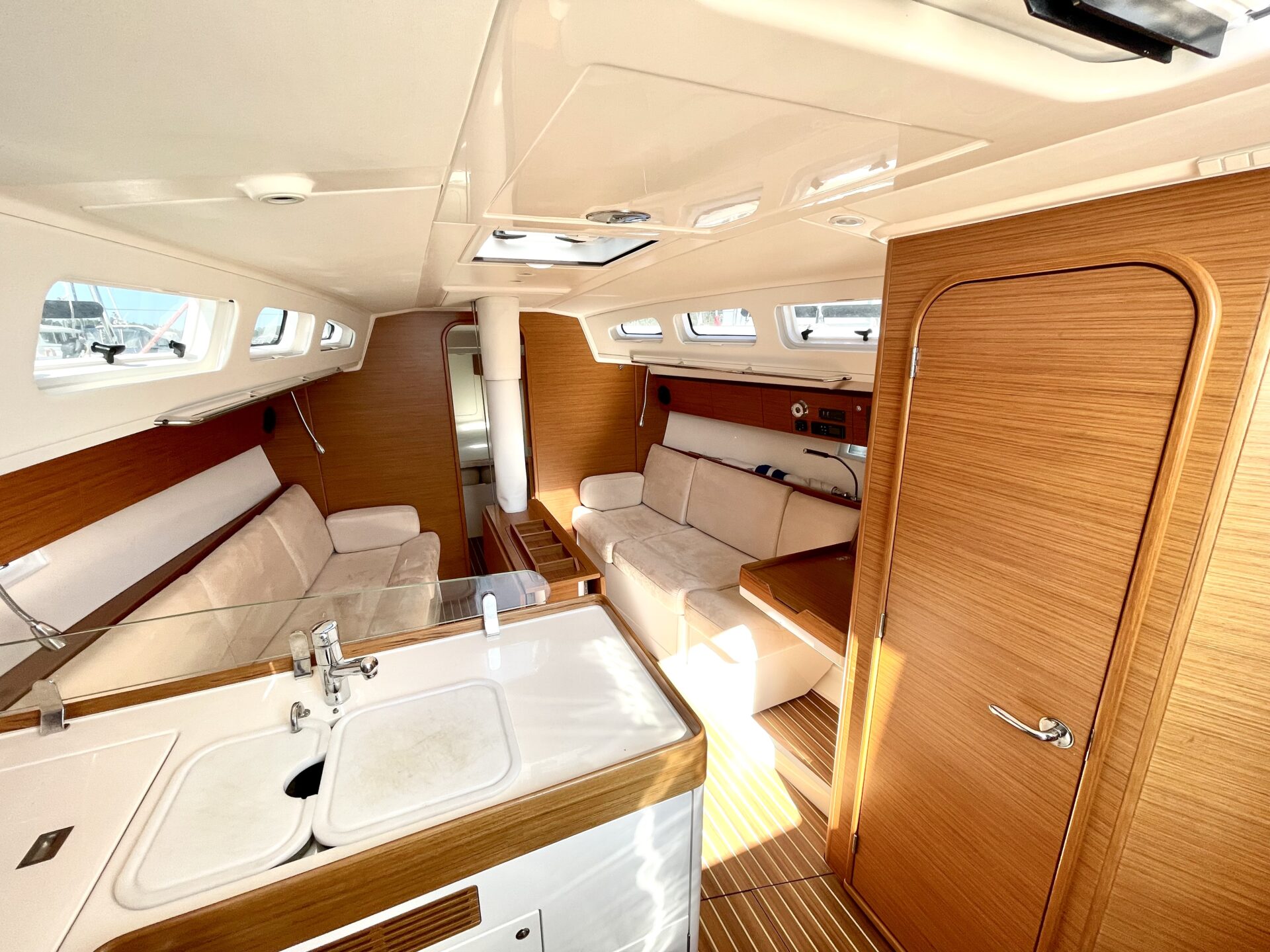

Saloon

• To port: Long sofa (200 cm x 68cm) dining table

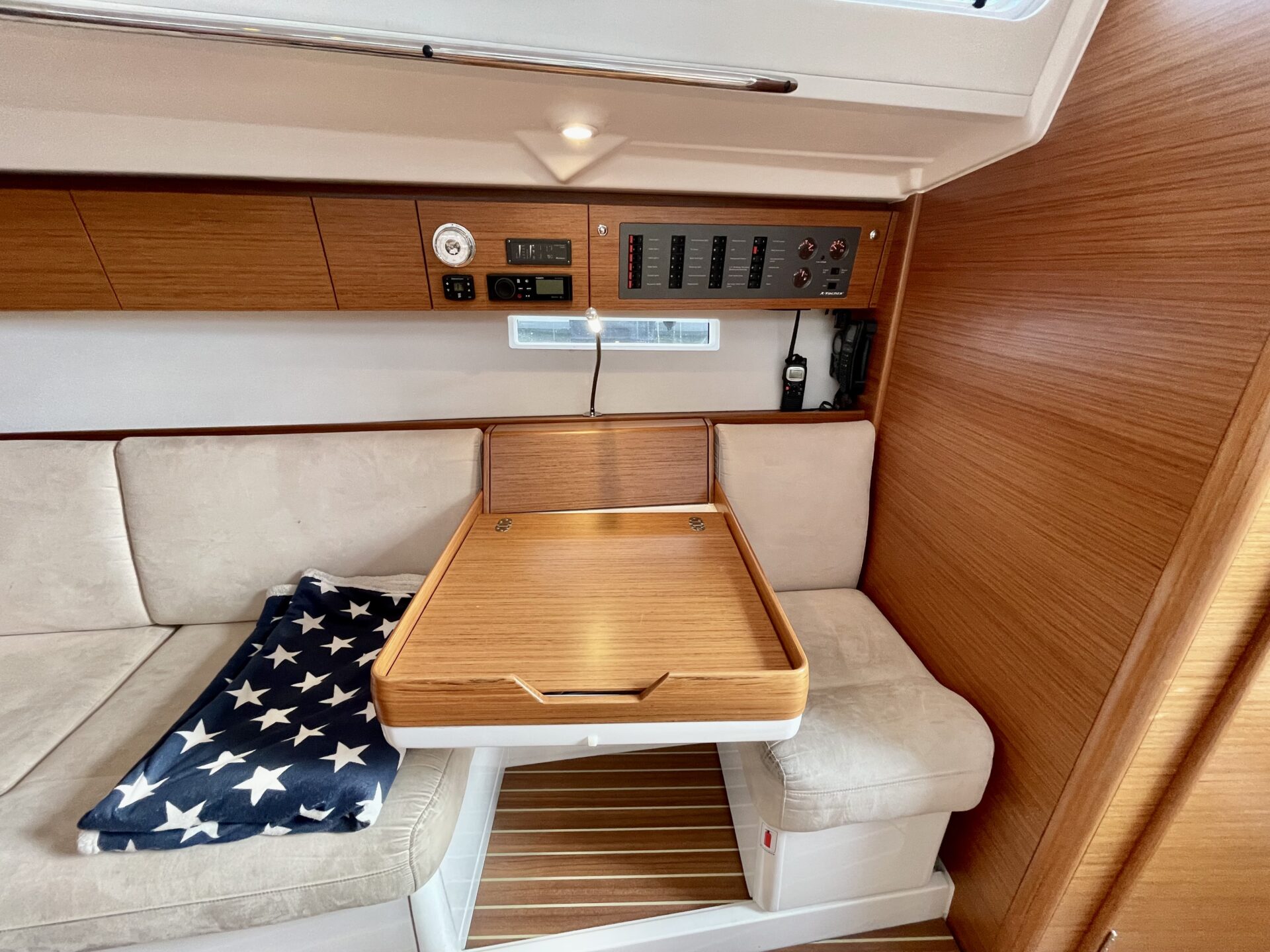

• To starboard: Sliding navigation station (75cm x 56cm) with storage for charts inside. Additional storage below sliding
• seat. The sliding system can be used for a foreword or aft facing navigation station. This converts the sofa from 135
• cm to a maximum length sofa of 175 cm
• Overhead lockers with bottom hinged openings running full length of saloon
• Electrical switch board located above chart table on upper lockers.
• Freeboard lined with vinyl covered 7 mm panels

Aft Cabin

• Large double berth (204 cm x 145 cm, max width) Marine plywood mattress support with ventilation holes. Mattresses
• 120 mm comfort foam.
• Large double composite wardrobe with shelves and hangers . 84 x 70cm
• Freeboard lined with vinyl

Galley

• Galley, High gloss white Composite moulding L-shaped (151 cm x 172cm).
• Drawer unit with 4 drawers
• Sinks, rectangular recessed stainless steel with single lever mixing tap (2 pcs) including cutting boards / covers
• Cool box, GRP top opened 130 l with 100 mm insulation, built in Isotherm SP, accumulator plate sea water cooled
• Danfoss compressor
• Gimballed Gas cooker -2 Jet - model TBC
• White painted drawers and lockers provide storage space for cutlery and food
• Waste bin mounted under sinks

Head & Shower Compartment

• Bulkheads covered with white laminate
• Tabletop and sink in a white composite moulding
• Mixer taps, single lever luxury for sink and shower
• Electrical pump for shower floor sump, manually operated switch
• Towel rail and grab handle running around table top in stainless steel
• Towel hooks and loo roll holders
• Mirrors above sinks

Systems

Engine

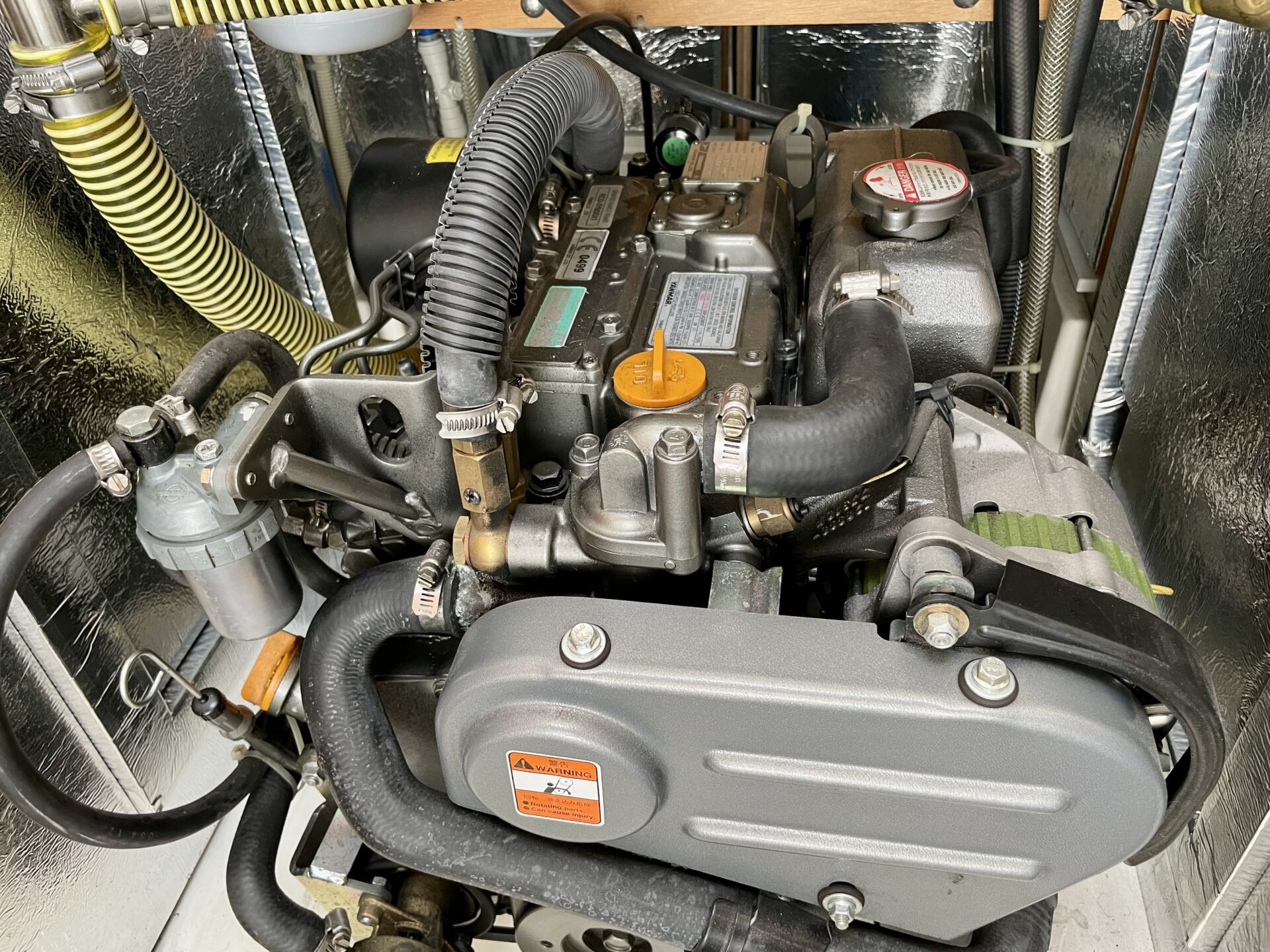

• Main engine Yanmar 29 HP water cooled diesel engine with S-Drive
• Special engine compartment with sound insulation ensures low noise level in yacht
• Engine easily accessible for service at the forward end, through companionway steps; and from the aft end via
• removable GRP boxes.
• Folding propeller, 2-bladed bronze for S-drive
• Engine control panel and throttle/gear lever placed in starboard cockpit coaming. Engine control panel incorporates
• rpm meter, hour counter, acoustic alarm for oil pressure and cooling water temperature
• Fuel tank in aluminium for fuel below sofa in saloon. Analogue level gauge, filter with water separator and shut-off
• valve and deck fill (150 litre)

Plumbing

• Seacocks and through hull fittings are made of composite material and flush mounted
• Fresh water in plastic (260 litre) below saloon sofa. Analogue tank level gauge, inspection hatch and deck fill
• Hot water tank Isotherm 30 l. Tank can be heated either by main engine or immersion heater connected to shore
• power
• Holding tank, 60 l, with tank level watch with self-draining outlet and deck outlet (1 pcs)
• Pressurized freshwater system for hot and cold water throughout yacht
• Central bilge incorporated in keel structure
• Electrical bilge pump with sensor and manual ON/OFF or automatic switch at Nav station
• Manual bilge pump mounted in cockpit
• Deck shower fitted at bathing platform with hot/cold freshwater

Electrical

• 12 V DC system throughout yacht
• X-Yachts main switch board with 27 automatic fuses and 3 analogue meters for fuel, water and battery voltage.
• 12 V DC system for main engine installation
• All cabling terminates in “dry” GRP box fitted behind main electrical panel for added safety
• AGM batteries (total 260 Ah@12 V) securely mounted in wardrobe in forward cabin (2 pcs x 130Ah)
• Separate engine spiral-cell battery (55 Ah, 12 V) mounted near main engine for starting of engine. Engine battery is
• charged by the engine.
• Shore power installation with shore power inlet mounted in cockpit protected by 10A main fuse. 230V AC distribution
• box located in aft cabin with integrated ground fault circuit breaker/10A fuse, 230 V AC socket and switches for hot
• water immersion heater and battery charger.
• Charger 12V/35A, mounted
• Lights fitted for general purpose below deck throughout cabins
• Chart table light fitted
• General lights and dome spotlights integrated in inner liner
• Reading lights throughout aft cabins, main cabin and owners cabin (8 pcs)

Electronics

• 2 x B&G Zeus 2 12” (2017)
• The H5000 Fastnet Interface provides a B&G supported solution for customers wishing to progressively upgrade H3000 systems and/or replace displays on an H3000 system with the latest
• H5000 Graphic displays (2017)
• NAIS-400 S system, Class B-AIS w/GPS Antenna (2017)
• B&G/Simrad electronics Pack III
• B&G H3000 system pack including the following:
• B&G H3000 Hercules main processor, mounted near nav station
• Halcyon 2000 compass sensor
• 3 x 20/20 on mast with mast bracket
• 2 x GFD Graphic displays mounted. 1st mounted on mast with mast bracket. 2nd on back facing end of coaming aft in cock-pit
• Speed and depth transducer mounted
• Wind transducer 810 mm mounted
• Remote vision system with base station
• Simrad GS 15 GPS antenn, 5 Hz
• Autopilot: B&G H3000 ACP1 Pilot pack with type 1 drive and H3000 autopilot display mounted on back facing end of coaming aft in cock-pit
• 2x Suunto B95 compasses mounted aft on bench in Cock-pit WHITE compasses
• VHF Simrad RD68 DSC with antenna mounted at nav station
• Extra VHF högtalare i cock-pit
• Entertainment
• Blaupunkt Multimedia centre, CD/DVD/MP3/USB stick fitted in main cabin near navigation station. One set of loudspeakers (2 pcs) mounted in main cabin
• Bose cockpit loudspeakers fitted in cockpit connected to Blaupunkt multimedia system (2 pcs)
